2010 Hyundai Accent Owner's Manual

1
FEATURES OF YOUR HYUNDAI
77
B340E01A-AAT Headlight Flasher To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even thoughthe headlight switch is in the "OFF" position.
B340D01A-AAT High-beam Switch
B340F01MC-GATDaytime Running Lights (If Installed) Your Hyundai is equipped with daytime running lights. The daytime running lights are used to improve visibility foroncoming traffic. Your vehicle daytime running lights are designed to remain on continuously when the engine is operat-ing even though the headlight switch is in the "OFF" position. If you turn on the tail lights when the ignition switch is inthe "ON" position, the daytime running lights will go off.
OSA049094
To turn on the headlight high beams, push the lever forward (away from you). The high beam indicator light will come on at the same time. For low beams,pull the lever back toward you.OSA049093

1FEATURES OF YOUR HYUNDAI

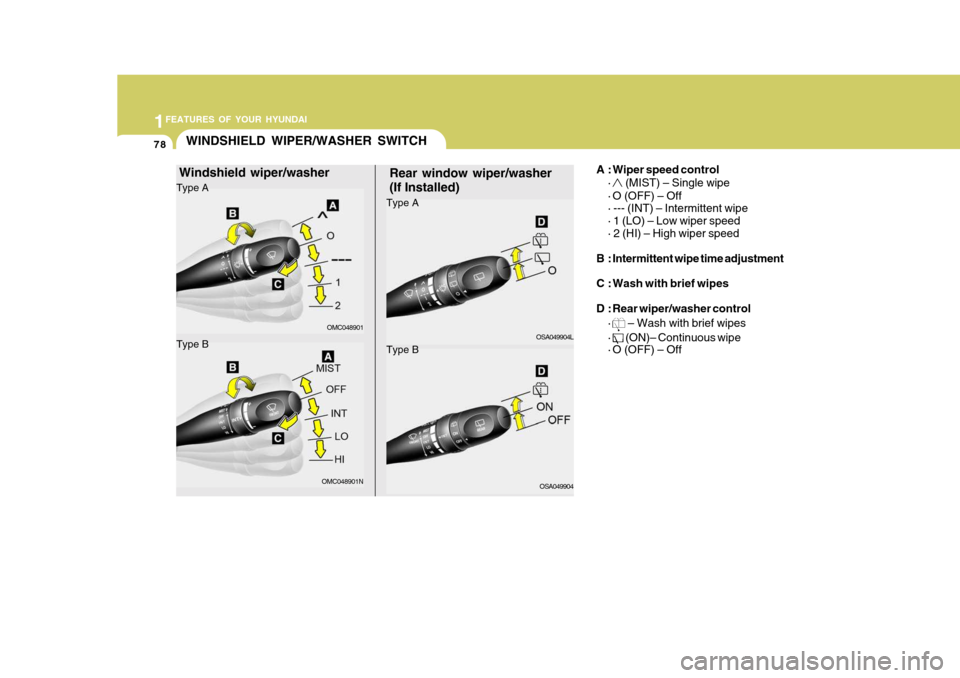

78WINDSHIELD WIPER/WASHER SWITCH
Rear window wiper/washer (If Installed) A : Wiper speed control
· (MIST) – Single wipe
· O (OFF) – Off · --- (INT) – Intermittent wipe · 1 (LO) – Low wiper speed· 2 (HI) – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control ·
– Wash with brief wipes
·
(ON)– Continuous wipe
· O (OFF) – Off
Windshield wiper/washer
Type A
OMC048901
Type BOMC048901NOSA049904L
OSA049904
Type A Type B

1
FEATURES OF YOUR HYUNDAI
79

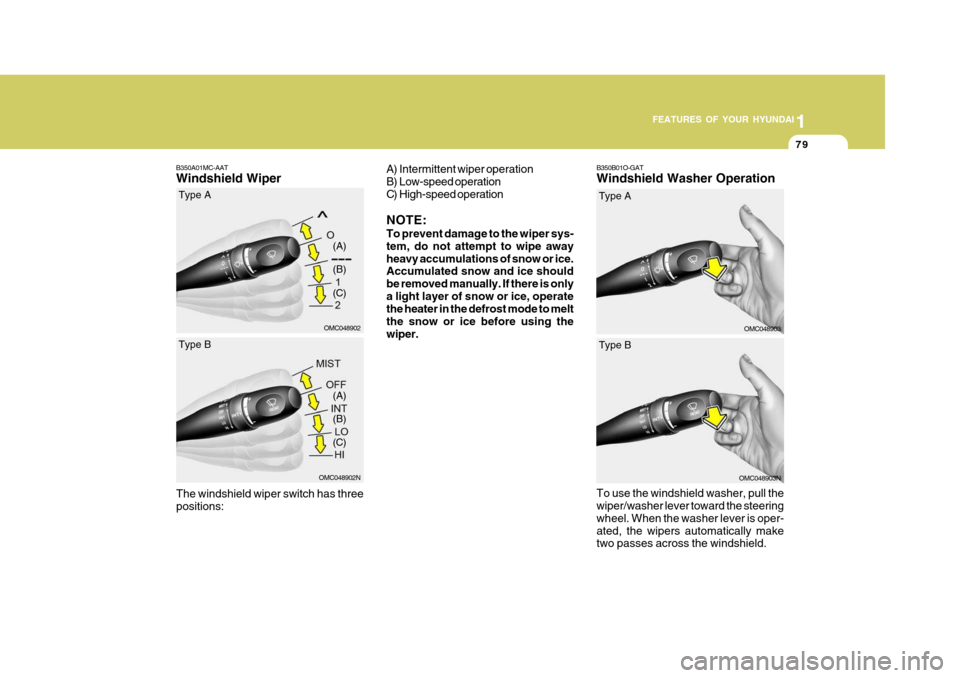

B350B01O-GAT Windshield Washer Operation
B350A01MC-AATWindshield Wiper
The windshield wiper switch has three positions:
OMC048902 (A) (B) (C)
Type A
OMC048902N
(A) (B) (C)
Type B
OMC048903
Type A
A) Intermittent wiper operation
B) Low-speed operation
C) High-speed operation NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe awayheavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is onlya light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using thewiper.
OMC048903N
Type B
To use the windshield washer, pull the wiper/washer lever toward the steering wheel. When the washer lever is oper-ated, the wipers automatically make two passes across the windshield.

1FEATURES OF YOUR HYUNDAI
80
To use the intermittent wiper feature, place the wiper switch in the "---" or "INT" position.
OMC048905
Type A
OMC048905N
Type B
B350C03MC-GAT Adjustable Intermittent Wiper Operation
Mist Wiper Operation
The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure
the wiper blades are not frozen tothe glass prior to operating the wipers.
o In areas where water freezes in winter, use windshield washerantifreeze.
If a single wipe is desired in mist, push the windshield wiper and washer control lever upwards.
OMC048904
Type A
OMC048904N
Type B

1
FEATURES OF YOUR HYUNDAI
81
B390A02MC-AAT Rear Window Wiper and Washer (If Installed)
OSA049905L
Type A
1.
: The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2.
(ON) : The rear window wiper
starts to operate continu- ously.
3.O (OFF) NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty; this could damage the system. Donot operate the wiper when the win- dow is dry; this can result in scratch- ing as well as premature wiper bladewear.
OSA049905
Type B
With the switch in this position, the interval between wipes can be variedfrom approximately 1 to 15 seconds by turning the interval adjuster barrel (1).

1FEATURES OF YOUR HYUNDAI
82
Loading condition Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditionsother than those listed below, adjust the switch position so that the beam level may be the nearest as the conditionobtained according to the list.
HAZARD WARNING SYSTEM
B370A01A-AAT
The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer-gency stop, always pull off the road as far as possible. The hazard warning lights are turned onby pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights will operateeven though the key is not in the igni- tion. To turn the hazard warning lights off,push the switch a second time.
OMC025067
HEADLIGHT LEVELING DE- VICE SYSTEM
B340G01S-GAT (If Installed)
Left-hand Drive type
Right-hand Drive type
B340G01MC
B340G01MC-R

1
FEATURES OF YOUR HYUNDAI
83FOG LIGHT SWITCH
B360B01FC-GAT Front Fog Light Switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will light when the headlight switch is in thefirst or second position.
CAUTION:
Do not clean the inner side of the rearwindow glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from theinner surface of the glass as this may cause damage to the defroster ele- ments. NOTE: The engine must be running for the rear window defroster to operate.
!
B360B01MC
REAR WINDOW DEFROSTER SWITCH
B380A01MC-AAT The rear window defroster is turned on by pushing in the switch. To turn the defroster off, push the switch a secondtime. The rear window defroster auto- matically turns itself off after about 20 minutes. To restart the defroster cycle,push in the switch again after it has turned itself off.
OMC025072
B360B01MC-R
Right-hand Drive Type
Left-hand Drive Type

1FEATURES OF YOUR HYUNDAI
84DIGITAL CLOCK
B400A01A-AAT There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour
indicated. MIN - Push "M" to advance the minute
indicated.RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 :29 changes the readout to 12 : 00.CIGARETTE LIGHTER
B420A02A-AAT
For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it allthe way into its socket. When the ele- ment has heated, the lighter will pop out to the "ready" position.Do not hold the cigarette lighter pressed in. This can damage the heating ele- ment and create a fire hazard.If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement or its approved equivalent. HHR2098A
OMC025098
B360A01Y-GAT Rear Fog Light Switch (If Installed)
To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position and the key is in the "ON" position.
B360A01MC
B360A01MC-R
Right-hand Drive Type
Left-hand Drive Type
