2010 Hyundai Accent Owner's Manual

F9
1. Hood
Release Lever ............................................ 1-96
2. Front/Rear Fog Light Switch (If Installed) ............ 1-83
3. Headlight Leveling Switch (If Installed) ................ 1-82
4. Instrument Cluster.............................................. 1-69
5. Multi-Function Light Switch................................. 1-75
6. Horn and Driver's Front Airbag (If Installed) 1-104, 1-45
7. Windshield W iper/Washer Switch ........................1-78
8. Hazard Warning Light Switch.............................. 1-82
9. Digital Clock ........................................................ 1-84
10. Rear Window De froster Switch ............................ 1-83
11. Audio System (If Installed) ................................ 1-126
12. Passenger's Front Airbag (If Installed) ................1-45
13. Glov e Box ........................................................... 1-91
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel pad or air ventilator), itmay damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 14. Heating/Air Conditioning Control Panel
(If Installed) ....................................................... 1-105
15. Multi Box ............................................................ 1-92
16. Cigarette Lighter .................................................. 1-84
17. Seat Warmer Switch (If Installed) ........................ 1-20
18. Electronic Stability Program (ESP) Switch
(If Installed) ......................................................... 2-14
19. Power Outlet ....................................................... 1-85
20. Ashtray ............................................................... 1-86
21. Shift Lever ........................................................... 2-9
22. Parking Brake Lever ........................................... 1-94
23. Front Drink Holder ............................................... 1-86
24. Trunk Lid Release Lever (If Installed) ................1-100
25. Fuel Filler Lid Release Lever ...............................1-97

F10

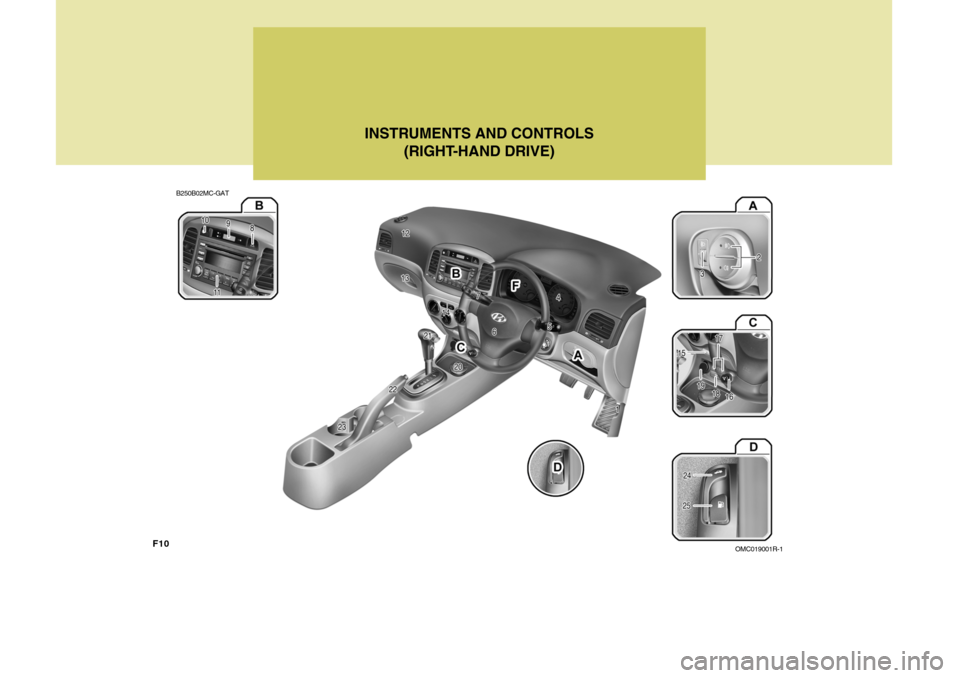

B250B02MC-GATINSTRUMENTS AND CONTROLS
(RIGHT-HAND DRIVE)
OMC019001R-1

F11
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash themwith water immediately.
!
1. Hood
Release Lever ............................................ 1-96
2. Front/Rear Fog Light Switch (If Installed) ............ 1-83
3. Headlight Leveling Switch (If Installed) ................ 1-82
4. Instrument Cluster.............................................. 1-69
5. Multi-Function Light Switch................................. 1-75
6. Horn and Driver's Front Airbag (If Installed) . 1-104,1-45
7. Windshield W iper/Washer Switch ........................1-78
8. Hazard Warning Light Switch.............................. 1-82
9. Digital Clock ........................................................ 1-84
10. Rear Window De froster Switch ............................ 1-83
11. Audio System (If Installed) ................................ 1-126
12. Passenger's Front Airbag (If Installed) ................1-45
13. Glov e Box ........................................................... 1-9114. Heating/Air Conditioning Control Panel
(If Installed) ....................................................... 1-105
15. Multi Box ............................................................ 1-92
16. Cigarette Lighter .................................................. 1-84
17. Seat Warmer Switch (If Installed) ........................ 1-20
18. Electronic Stability Program (ESP) Switch (If Installed) ......................................................... 2-14
19. Power Outlet ....................................................... 1-85
20. Ashtray ............................................................... 1-86
21. Shift Lever ........................................................... 2-9
22. Parking Brake Lever ........................................... 1-94
23. Front Drink Holder ............................................... 1-86
24. Trunk Lid Release Lever (If Installed) ................1-100
25. Fuel Filler Lid Release Lever ...............................1-97

YOUR VEHICLE AT A GLANCE
F12B255A03MC-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found begining on page 1-60.
Turn Signal Indicator Lights
SRS (Airbag) Service Reminder Indicator (If Installed) O/D OFF Indicator Light (Automatic transaxle only) High Beam Indicator Light
Low Oil Pressure Warning Light
ABS Service Reminder Indicator (If Installed)
Door Ajar Warning Light
Parking Brake/Low Brake Fluid Level Warning Light
Charging System Warning Light Fuel Filter Warning Light (Diesel only)
Low Fuel Level Warning Light Diesel Pre-heat Indicator Light (Diesel only)
Malfunction Indicator Light (If Installed)
Immobilizer Warning Light (If Installed)
Passenger's Front Airbag OFF Indicator Light (If Installed)
Trunk Lid/Tail Gate Open Warning Light
Engine Coolant Temperature Warning Light Seat Belt Warning Light
Electronic Power Steering (EPS) System Warning Light (If Installed)
Electronic Stability Program Indicator Lights (If Installed)
120
km/hOverspeed Warning Light (If Installed)
Automatic Transaxle Position Indicator Light (If Installed)

Fuel Recommendations ................................................ 1-2
Breaking In Your New Hyundai .................................... 1-5
Keys ............................................................................. 1-5
Immobilizer System ...................................................... 1-6
Door Locks ................................................................... 1-8Theft-Alarm S ystem ..................................................... 1-10
Window Glass ............................................................. 1-14
Seats ........................................................................... 1-16
Seat Belts .................................................................... 1-26
Child Restraint System ................................................ 1-34
Supplemental Restraint (Airbag) System.................... 1-44
Instrument Cluster and Indicator Lights .......................1-56
Warning and Indicator Lights....................................... 1-60
Trip Computer .............................................................. 1-73
Multi-function Light Switch ........................................... 1-75
Windshield Wiper/Washer Switch ................................1-78
Sunroof ........................................................................ 1-87
Mirror ........................................................................... 1-92
Hood R elease .............................................................. 1-96
Heating and Cooling Control ...................................... 1-106
Stereo Sound System ............................................... 1-122
Antenna ..................................................................... 1-126
Audio System ............................................................ 1-127
FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
2FUEL RECOMMENDATIONS
B010A02MC-GAT Use Unleaded Gasoline If leaded gasoline is used, it will cause the catalytic converter to become inef-fective and the emission control sys- tem to malfunction. This can also result in increased maintenance expense. Toavoid accidental use of leaded fuel, the large nozzle used with leaded gasoline at service stations can not be insertedinto fuel tank opening of Hyundai ve- hicle. NOTE:
o For some countries, Hyundai ve-
hicles are designed to use leaded gasoline. When you are going touse leaded gasoline, ask to Hyundai dealer whether leaded gasoline in your vehicle is avail-able or not.
o Octane Rating of leaded gasoline
is same with unleaded one.
For Europe
– For the optimal vehicle
performance, we recommend you to use unleaded gasoline with an octane rating of RON (Research Octane Num-ber) 95 /AKI (Anti Knock Index) 91 or higher. You may use unleaded gasoline with anoctane rating of RON 91~94/AKI 87~90 but it may result in slight performance reduction of the vehicle. Except Europe – Unleaded gasoline
with a Pump Octane Rating of 87 (Re- search Octane Number 91) or higher must be used in Hyundai vehicle. B010A01MC
Use Diesel Diesel fuel Diesel engine must be operated only on commercially available diesel fuel that complies with EN 590 or comparablestandard. (EN stands for "European Norm"). Do not use marine diesel fuel, heatingoils, or non-approved fuel additives, as this will increase wear and cause dam- age to the engine and fuel system. Theuse of non-approved fuels and / or fuel additives will result in a limitation of your warranty rights.Diesel fuel of above cetane 52 is used in Hyundai vehicle. If two types of diesel fuel are available, use summer orwinter fuel properly according to the following temperature conditions.
o Above -5°C (23°F) ... Summer type
diesel fuel.
o Below -5°C (23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuits must be com- pletely purged to permit restarting.

1
FEATURES OF YOUR HYUNDAI
3
CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary to drain it out and to bleed the lines to avoid jamming the injection pump and damagingthe engine.
o In winter, in order to cut down
incidents due to freezing, paraffinoil may be added to the fuel if the temperature drops to below -10°C. Never use more than 20% paraffinoil.
! Biodiesel Commercially supplied biodiesel blends of no more than 5% biodiesel, com-monly known as "B5 biodiesel" may be used in your vehicle if it meets EN 14214 or equivalent specifications. (ENstands for "European Norm"). The use of biofuels made from rapeseed methyl ester (RME), fatty acid methyl ester(FAME), vegetable oil methyl ester (VME) etc. or mixing diesel with biodiesel will cause increased wear ordamage to the engine and fuel system. Repair or replacement of worn or dam- aged components due to the use of nonapproved fuels will not be covered by the manufactures warranty. A020202AUN Biodiesel (for New Zealand) Commercially supplied biodiesel blends of no more than 5% biodiesel, com-monly known as "B5 biodiesel" may be used in your vehicle if it meets EN 14214 or equivalent specifications. (ENstands for "European Norm"). The use of biofuels exceeding 5%, made from rapeseed methyl ester (RME), vegetableoil methyl ester (VME) etc. or mixing diesel exceeding 5% with biodiesel will cause increased wear or damage to theengine and fuel system. Repair or re- placement of worn or damaged compo- nents due to the use of non approvedfuels will not be covered by the manu- factures warranty.

1FEATURES OF YOUR HYUNDAI
4
B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alco-hol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol,should not be used. B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood alco- hol) should not be used in your Hyundai. This type of fuel can reduce vehicleperformance and damage components of the fuel system.
CAUTION:
Your Hyundai's New Vehicle LimitedWarranty may not cover damage to the fuel system and performanceproblems that are caused by the use of methanol or fuels containing methanol.
! B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you use gasolinestreated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help theengine run cleaner and enhance perfor- mance of the Emission Control Sys- tem. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding reg-
istration and insurance.
o Determine that acceptable fuel is available.
! CAUTION:
o Never use any fuel, whether diesel or B5 biodiesel that fails to meet the latest petroleum industry speci-fication.
o Never use any fuel additives or
treatments that are not recom-mended or approved by the ve- hicle manufacturer.
