2010.5 Citroen C3 Owner's Manual

1 2
TECHNICAL DATA
The tyre pressures must be
checked when the tyres are cold,
at least once a month. Low tyre pressures increase fuel
consumption.
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the damper mounting.
B. Vehicle identifi cation number on
the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen.

C. Manufacturer's label.
The VIN is indicated on a self-destroying
label affi xed to the left hand centre pillar.
D. Tyre/paint label.
This label is affi xed to the left hand centre
pillar.
It bears the following information:
- the tyre pressures, for unladen and laden conditions,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the spare tyre infl ation pressure,
- the paint colour code.
Wheels which are fi tted with
205/45 R17 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

8

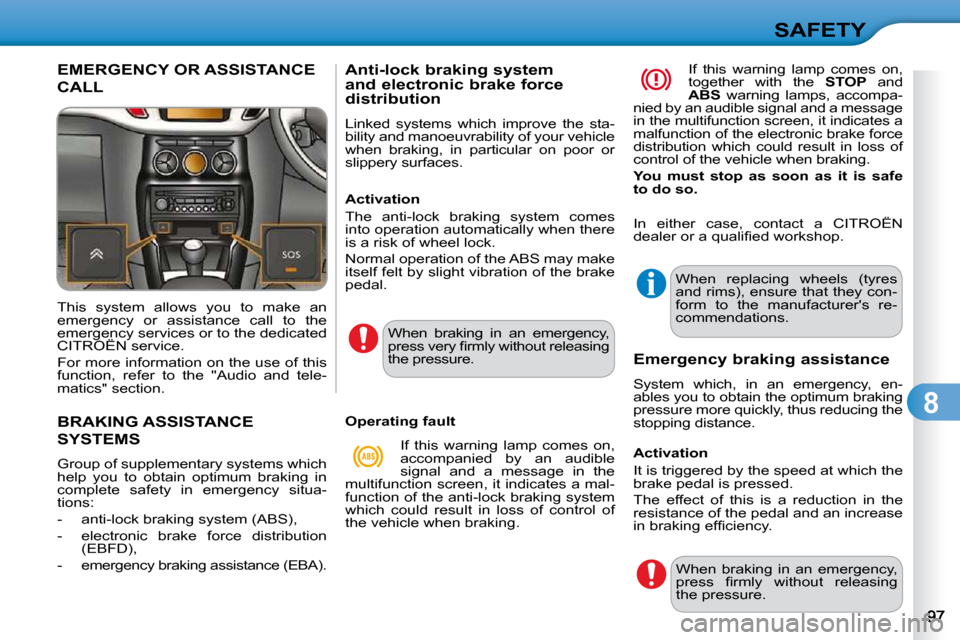

SAFETY
BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA). Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
When braking in an emergency,
press very fi rmly without releasing
the pressure.
Operating fault In either case, contact a CITROËN
dealer or a qualifi ed workshop.
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
multifunction screen, it indicates a mal-
function of the anti-lock braking system
which could result in loss of control of
the vehicle when braking. If this warning lamp comes on,
together with the
STOP and

ABS warning lamps, accompa-
nied by an audible signal and a message
in the multifunction screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking.

You must stop as soon as it is safe
to do so.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer's re-
commendations.
Emergency braking assistance
System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing
the pressure.
EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
CITROËN service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.

170
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the CITROËN Emergency team * . voice message confi rm that the call has been made to the voice message confi rm that the call has been made to the
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the CITROËN dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of commun ication.
This call is dealt with by the CITROËN Emergency team which re ceives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
If the orange indicator lamp fl ashes: there is a system fault.
If the orange indicator lamp is on continuously: the backup battery must be replaced.
In either case, contact a CITROËN dealer or a qualifi ed workshop.
* These services are subject to conditions and availability.
Consult a CITROËN dealer.

171
The MyWay is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of operate in your vehicle. If it is to be installed in another operate in your vehicle. If it is to be installed in another
the system.
Certain functions described in this handbook will become available during the year.
MYWAY
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the MyWay switches off following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth telephone
09 Configuration
10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
11 Screen menu map
Frequently asked questions p.
p. 172
173
174
177
185
187
188
191
193
194
195
199

01
11
55
1010
22
334466
1313
1111
99
14141515
778812121616
172
1. Engine not running: - Short press: on/off. - Long press: CD pause, mute for the radio. Engine running: - Short press: CD pause, mute for the radio. - Long press: reinitialisation of the system. 2. Volume adjustment (each source is independent, including also navigation messages and alerts). 3. Access to the "Radio" Menu. Display the list of stations. 4. Access to the "Music" Menu. Display the tracks.
5. Access to the "SETUP" menu. Long press: access to the GPS coverage and the demonstration mode. 6. Access to the "Phone" Menu. Display the call list. 7. Access to the "MODE" menu. Selection of the successive display of: Radio, Map, NAV (if navigation is in progress), Telephone (if a conversation is in progress), Trip computer. Long press: display of a black screen (DARK). 8. Access to the "Navigation" Menu. Display the last destinations. 9. Access to the "Traffi c" Menu. Display the current traffi c alerts. 10. ESC: abandon the operation in progress. 11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next MP3 folder. Selection of the previous/next page of a list. 13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list. 14. Buttons 1 to 6: Selection of the stored radio station. Long press: store the current radio station. 15. SD card reader (navigation SD card only). 16. Dial for selection of the screen display and according to the context of the menu. Short press: contextual menu or confi rmation. Long press press: contextual menu specifi c to the list displayed.
FIRST STEPS
MyWay CONTROL PANEL
3 - 4. Long press: access to the audio settings: front/rear fader and left/right balance, bass/treble, equaliser, loudness, automatic volume adjustment, initialise the settings.

02
173
STEERING MOUNTED CONTROLS
RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.
RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.
- Change the sound source.
- Make a call from the address book.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds: access to the address book.
Volume increase.
Volume decrease.
Mute: function activated by pressing the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.

03
174
GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section.
Press the MODE button several times in succession for access to the foll owing menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.
RADIO/MUSIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP:
system language * , date and time * , display, vehicle settings * , unit and system settings, "Demo mode".
TRAFFIC:
TMC information and messages.
* Available according to model.
TRIP COMPUTER

03
175
GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.
DISPLAY ACCORDING TO THE CONTEXT
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
TRIP COMPUTER:
Abort guidance
Repeat advice
Block road
Route info
Show destination
Trip info
Route type
Avoid
Satellites
Zoom/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2 TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
1
1
1
1
1
1
