2010.5 Citroen C3 Owner's Manual

1 0
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.
Opening

 Push the exterior safety catch B to
the left and raise the bonnet.
 Unclip the bonnet stay C from its
housing, holding it by its foam pro-
tection.

 Fix the stay in the notch to hold the
bonnet open.
The location of the interior re-
lease lever prevents opening of
the bonnet while the front left
door is closed.
Closing

 Take the stay out of the support
notch.

 Clip the stay in its housing.

 Lower the bonnet and release it at
the end of its travel.

 Pull on the bonnet to check that it is
fully latched.
RUNNING OUT OF FUEL
(DIESEL)
If your vehicle is fi tted with an HDI en-
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump
and a transparent pipe under the bonnet.

 Fill the fuel tank with at least fi ve litres
of Diesel.

 Open the bonnet.

 Depending on version, unclip the
cover to gain access to the priming
pump.

 Squeeze and release the priming
pump until resistance is felt (could
be from the fi rst application) and fuel
appears in the transparent pipe with
the green connector.

 Operate the starter until the engine
starts.

 Depending on version, put the cover
back in position and clip it in place.

 Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter.
When the engine is hot, handle
the exterior safety catch and the
stay with care.
Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.

 Open the front left door.

 Pull the interior release lever A ,
located at the bottom of the door
aperture.

1 0
CHECKS
PETROL ENGINES

1. Screenwash fl uid reservoir.

2. Coolant header tank.

3. Air fi lter.
4. Brake fl uid reservoir.

5. Battery.

6. Fusebox.
7. Engine oil dipstick.

8. Engine oil fi ller cap.

1 0
CHECKS
DIESEL ENGINES

1. Screenwash fl uid reservoir.

2. Coolant header tank.

3. Air fi lter.
4. Brake fl uid reservoir.

5. Battery.

6. Fusebox.
7. Engine oil dipstick.

8. Engine oil fi ller cap.

9. Priming pump (on fuel fi lter).

1 0
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer or a qualifi ed work-
shop.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator in the instrument panel, or us-
ing the dipstick.
Engine oil change
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil grade
The oil must be suitable for your engine
and conform to the manufacturer's rec-
ommendations. Brake fluid level
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Changing the fl uid
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may oper-
ate after the vehicle has been switched
off, even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Changing the coolant
The coolant does not have to be
changed.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Screenwash fluid level
Top up the level when neces-
sary.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with water.
Take care when carrying out
checks under the bonnet as
some parts of the engine can be
very hot (risk of burns).

1 0
CHECKS
Additive level (Diesel with
particle emissions filter)
According to your version of instrument panel,
the additive reservoir low level is indicated by:

- fi xed illumination of the particle emissions fi lter warning lamp, accompanied by an
audible signal and a message that the
particle emissions fi lter additive level is
too low,
or

- fi xed illumination of the service warning lamp, accompanied by an audible signal
and a message that the particle emissions
fi lter additive level is too low.
Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.
Used products
Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.
Unless otherwise indicated, check these
components in accordance with the
Maintenance and Warranty Guide and ac-
cording to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualifi ed workshop.
Battery
The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
Air filter and passenger
compartment filter Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" section).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and speci-
fi cation, for which the involvement of a
CITROËN dealer or a qualifi ed work-
shop is required when replacing or dis-
connecting the battery.
Failure to observe this recommendation
may shorten the life of the battery. When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

1 0
CHECKS
Additive level (Diesel with
particle emissions filter)
According to your version of instrument panel,
the additive reservoir low level is indicated by:

- fi xed illumination of the particle emissions fi lter warning lamp, accompanied by an
audible signal and a message that the
particle emissions fi lter additive level is
too low,
or

- fi xed illumination of the service warning lamp, accompanied by an audible signal
and a message that the particle emissions
fi lter additive level is too low.
Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.
Used products
Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.
Unless otherwise indicated, check these
components in accordance with the
Maintenance and Warranty Guide and ac-
cording to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualifi ed workshop.
Battery
The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
Air filter and passenger
compartment filter Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (refer
to the "Engines" section).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and speci-
fi cation, for which the involvement of a
CITROËN dealer or a qualifi ed work-
shop is required when replacing or dis-
connecting the battery.
Failure to observe this recommendation
may shorten the life of the battery. When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

1 0
CHECKS
Manual gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Maintenance and
Warranty Guide for the details
of the level checking interval
for this component.
Automatic gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this
component.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the system, a
drop in the brake fl uid level indicates
that the brake pads are worn. Brake disc wear
For information on checking
brake disc wear, contact a
CITROËN dealer or a quali-
fi ed workshop.
Manual parking brake
If a loss of effectiveness of this system is noticed, the parking
brake must be checked, even
between two services.
Checking this system must be done by
a CITROËN dealer or a qualifi ed work-
shop.
Only use products recommende d
by CITROËN or products of equiv-
alent quality and specifi cation.
In order to optimise the opera-
tion of units as important as the
braking system, CITROËN se-
lects and offers very specifi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly prohibited .
Particle emission filter (Diesel)
According to your version of instrument
panel, the start of saturation of the par-
ticle emissions fi lter is indicated by:
Following prolonged operation of the vehicle at very low speed or
at idle, you may, in exceptional
circumstances, notice the emis-
sion of water vapour at the ex-
haust on acceleration. This does
not affect the behaviour of the
vehicle or the environment.
-
fi xed illumination of the par-
ticle emissions fi lter warning
lamp, accompanied by an
audible signal and a message
that there is a risk of blockage
of the particle emissions fi lter,
or
- temporary illumination of the service warning lamp,
accompanied by an audible
signal and a message that
there is a risk of blockage of
the particle emissions fi lter.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, refer to the
"Additive level" section. SensoDrive gearbox The gearbox does not require any maintenance (no oil change).
Refer to the Maintenance and
Warranty Guide for details of
the checking interval for this
component.

11
PRACTICAL INFORMATION
The speed limit sticker I must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.

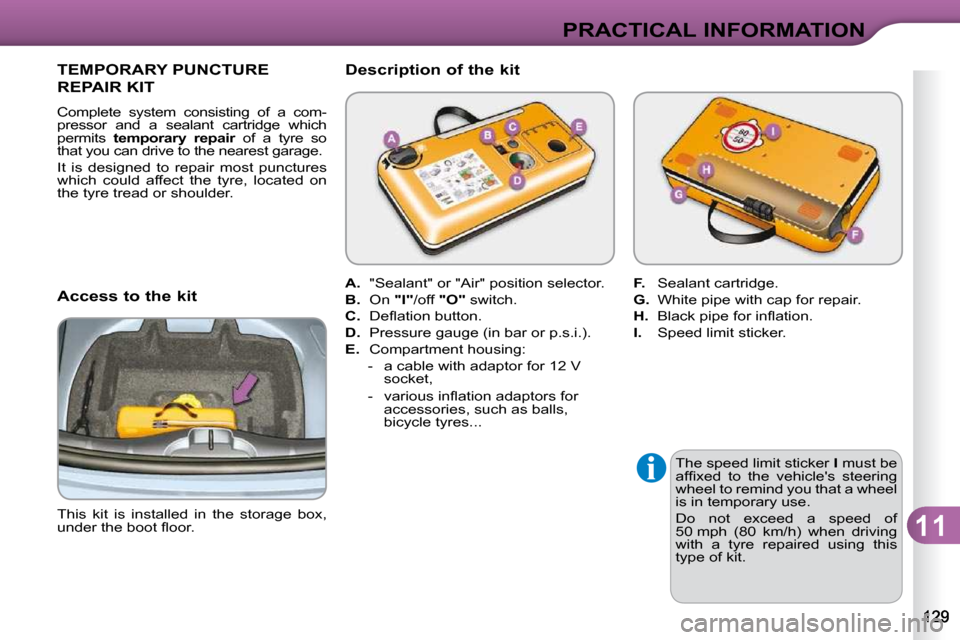

TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair of a tyre so
that you can drive to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
This kit is installed in the storage box,
under the boot fl oor. Description of the kit

A. "Sealant" or "Air" position selector.

B. On "I" /off "O" switch.

C. Defl ation button.

D. Pressure gauge (in bar or p.s.i.).

E. Compartment housing:
- a cable with adaptor for 12 V socket,
- various infl ation adaptors for accessories, such as balls,
bicycle tyres...
F. Sealant cartridge.

G. White pipe with cap for repair.

H. Black pipe for infl ation.

I. Speed limit sticker.
Access to the kit
