2010.5 Citroen C3 Owner's Manual

3
COMFORT
REAR SEATS
Bench seat with fi xed one-piece cush-
ion and split backrest (left hand 2/3, right
hand 1/3) which can be folded individu-
ally to adapt the load space in the boot.
Rear head restraints
These have one position for use (up)
and a stowed position (down). Folding the backrest

 Move the corresponding front seat
forward if necessary.

 Check that the seat belt is posi-
tioned correctly on the side of the
seat back.

 Place the head restraints in the low
position.
Repositioning the seat backrest
When repositioning the rear seat back-
rest:

 Straighten the seat back 2 and
secure it.

 Check that the red indicator, located
next to the control 1 , is no longer
visible.
They can also be removed.
To remove a head restraint:

 release the backrest using control 1 ,

 tilt the backrest 2 slightly forwards,

 pull the head restraint upwards to
the stop,

 then, press the lug A .
When repositioning the seat
backrest, take care not to trap
the seat belts.
Never drive with the head re-
straints removed; they must be
in place and correctly adjusted.
 Pull control 1 forwards to release
the seat back 2 .


Fold the seat back 2 on to the cushion.

3
COMFORT

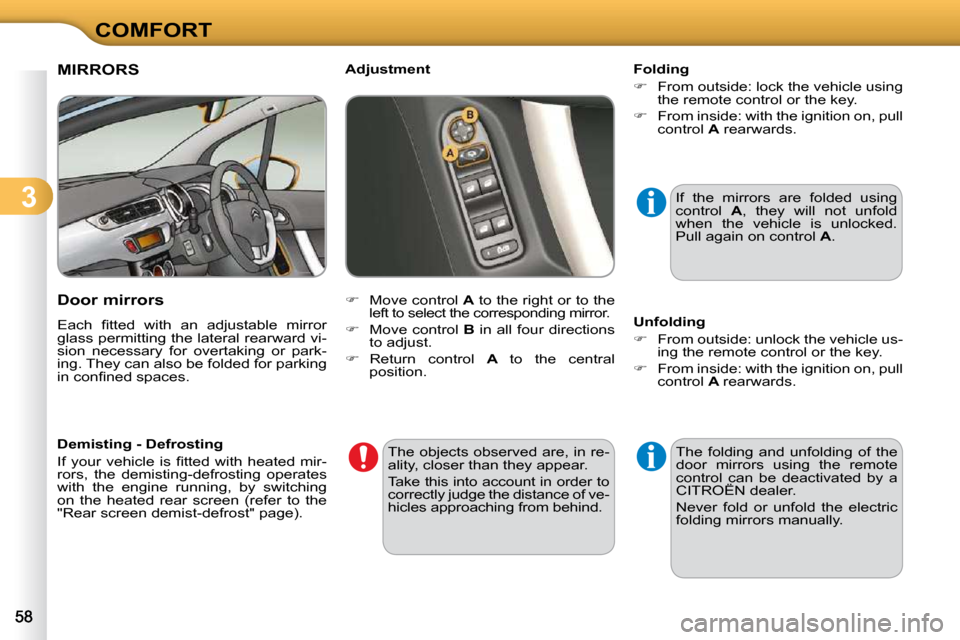

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
 Move control A to the right or to the
left to select the corresponding mirror.

 Move control B in all four directions
to adjust.

 Return control A to the central
position.
Adjustment Folding

 From outside: lock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
Unfolding

 From outside: unlock the vehicle us-
ing the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using
control
A , they will not unfold
when the vehicle is unlocked.
Pull again on control A .
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Never fold or unfold the electric
folding mirrors manually.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).

3
COMFORT

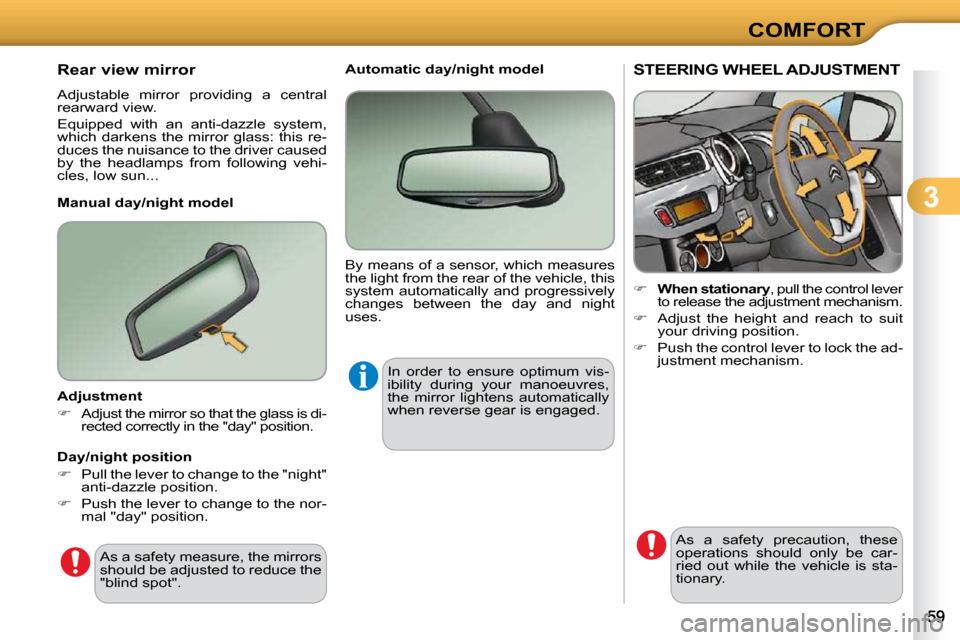

STEERING WHEEL ADJUSTMENT

 When stationary , pull the control lever
to release the adjustment mechanism.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is sta-
tionary.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
Adjustment

 Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the nor-
mal "day" position.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Manual day/night model

4
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unlocking the vehicle
Unfolding the key

 First press this button to unfold
the key.
Unlocking using the remote control
 Press the open padlock to
unlock the vehicle. Unlocking using the key

 Turn the key to the right in the driv-
er’s door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote control
 Press the closed padlock
to lock the vehicle.
Locking using the key

 Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely. If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
relock automatically after thirty
seconds unless a door or the
boot is open.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.

4
ACCESS
Folding the key

 First press this button to fold the key.
Deadlocking using the remote
control

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key
 Press the closed padlock
to lock the vehicle com-
pletely.

 Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.


Turn the key to the left again within
fi ve seconds to deadlock the vehicle.
Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,
an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locating your vehicle
 Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.

4
ACCESS Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition
on) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Changing the battery
Battery ref.: CR1620/3 volts.
If the battery is fl at, you are
informed by illumination of
this warning lamp, an audi-
ble signal and a message in the multi-
function screen.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its location.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release
the key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver's door is
opened.

4
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and
your personal identifi cation documents.
The CITROËN dealer will be able to retrieve the key code a nd the
transponder code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser
system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the
keys in your possession are the only ones which can start the vehicle .

4
ACCESS
Folding the key

 First press this button to fold the key.
Deadlocking using the remote
control

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key
 Press the closed padlock
to lock the vehicle com-
pletely.

 Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.


Turn the key to the left again within
fi ve seconds to deadlock the vehicle.
Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone
inside the vehicle when it is
deadlocked.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible. In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,
an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locating your vehicle
 Press the closed pad-
lock to locate your locked
vehicle in a car park.
This is indicated by lighting of the cour-
tesy lamps and fl ashing of the direction
indicators for a few seconds. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
