2010.5 Citroen C3 Owner's Manual

5
VISIBILITY
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.
Switching on

 With the ignition off, "fl ash" the
headlamps using the lighting stalk.

 A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set time.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation

 Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.
Deactivation

 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal; it
disappears after the lamps have
been on for a few minutes.

5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.

0
. Driver only or driver + front passenger.
- . Intermediate setting

1. 5 people.
- . 5 people + load in the boot.

2. Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid caus-
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu (except
in the case of the monochrome
screen A, for which the duration is
set: 60 seconds),
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in ope-
ration.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.

5
VISIBILITY
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.
Switching on

 With the ignition off, "fl ash" the
headlamps using the lighting stalk.

 A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set time.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation

 Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.
Deactivation

 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal; it
disappears after the lamps have
been on for a few minutes.

5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.

0
. Driver only or driver + front passenger.
- . Intermediate setting

1. 5 people.
- . 5 people + load in the boot.

2. Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid caus-
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu (except
in the case of the monochrome
screen A, for which the duration is
set: 60 seconds),
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in ope-
ration.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.

5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.

0
. Driver only or driver + front passenger.
- . Intermediate setting

1. 5 people.
- . 5 people + load in the boot.

2. Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid caus-
ing dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu (except
in the case of the monochrome
screen A, for which the duration is
set: 60 seconds),
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in ope-
ration.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-
ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.

5
VISIBILITY

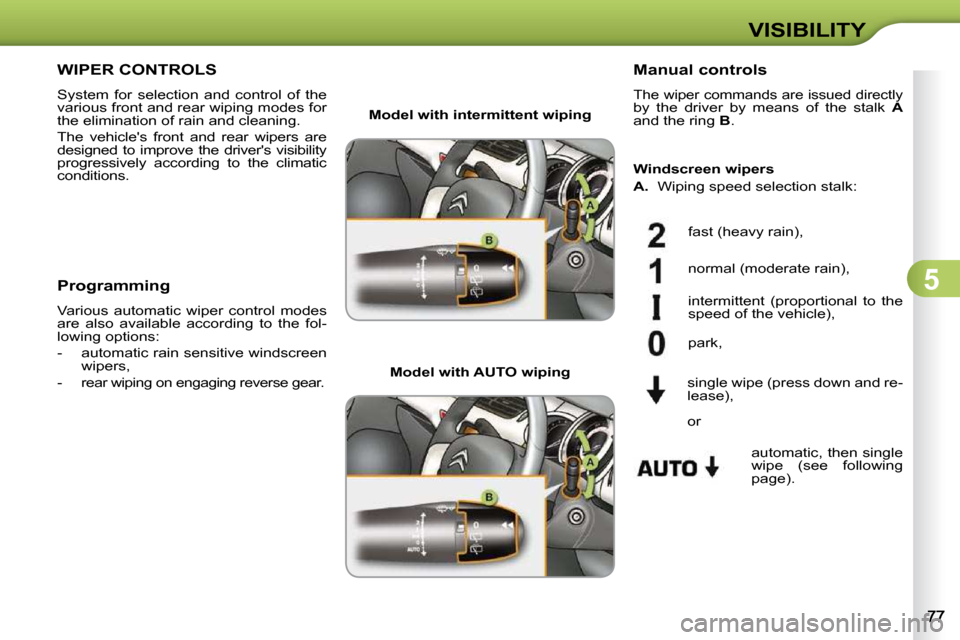

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear. Model with intermittent wiping
Model with AUTO wiping Manual controls
The wiper commands are issued directly
by the driver by means of the stalk A
and the ring B .
Windscreen wipers

A. Wiping speed selection stalk:
single wipe (press down and re-
lease),
or fast (heavy rain),
normal (moderate rain),
intermittent (proportional to the
speed of the vehicle),
park,
automatic, then single
wipe (see following
page).

5
VISIBILITY
Rear wiper
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
The function is activated or deactivated
via the multifunction screen confi gura-
tion menu.
This function is activated by default. Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
wipers, operate for a pre-determined
time.

B. Rear wiper selection ring:
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
screen confi guration menu.

5
VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop. Vertical windscreen wiper
position
To retain the effectiveness of the
"fl at-blade" wiper blades, it is ad-
visable to:
- handle them with care,
- clean them regularly using soapy water,
- not use them to hold a sheet of cardboard against the wind-
screen,
- replace them at the fi rst signs of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is complete-
ly clear of ice before activating
the automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driv-
er by pushing stalk
A to the "AUTO"
position.
This is controlled manually by the driver
by moving stalk A upwards, returning it
to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.
