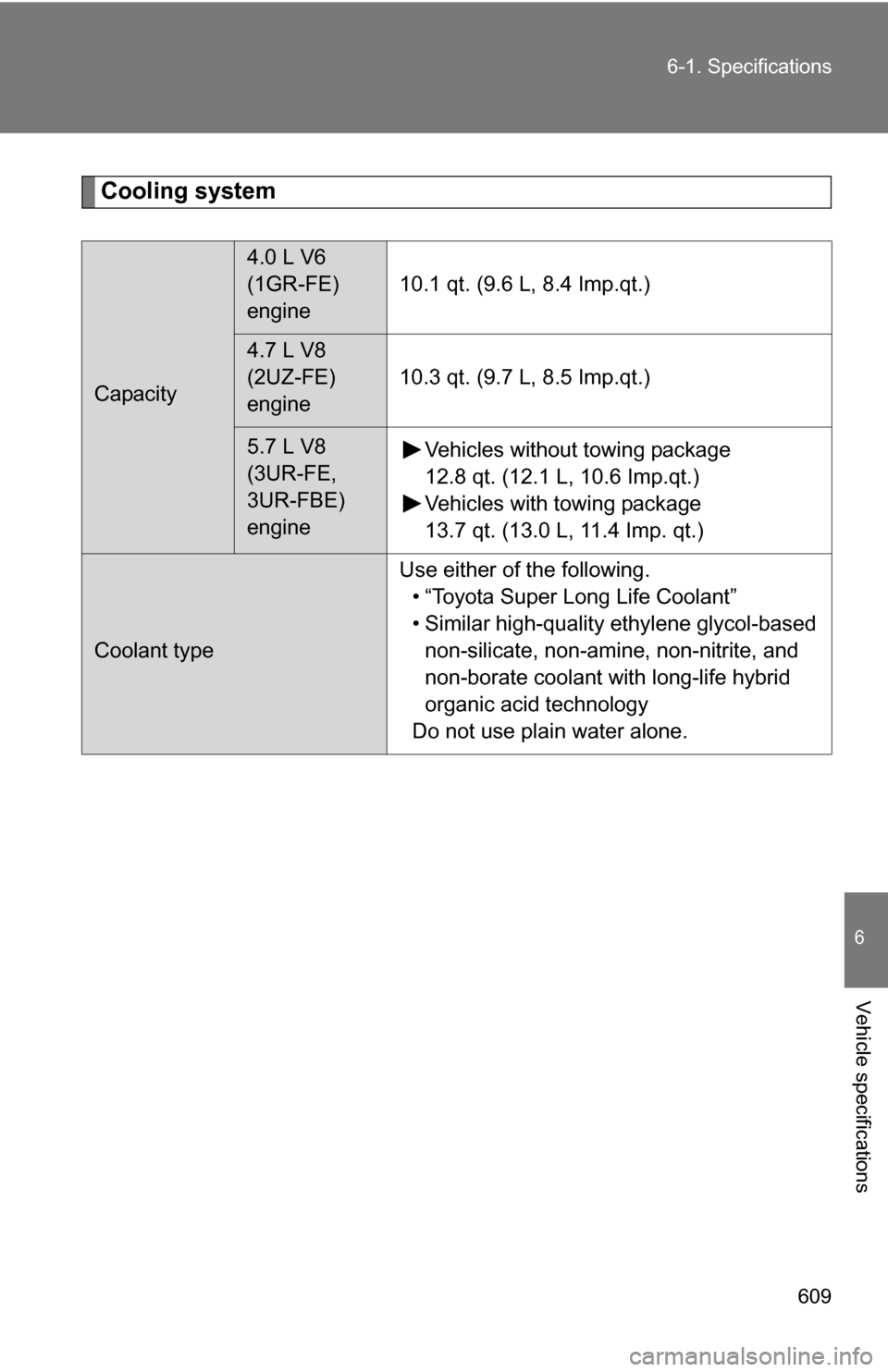

2009 TOYOTA TUNDRA Owners Manual

609
6-1. Specifications
6
Vehicle specifications
Cooling system
Capacity
4.0 L V6
(1GR-FE)
engine
10.1 qt. (9.6 L, 8.4 Imp.qt.)
4.7 L V8
(2UZ-FE)
engine10.3 qt. (9.7 L, 8.5 Imp.qt.)
5.7 L V8
(3UR-FE,
3UR-FBE)
engine Vehicles without towing package
12.8 qt. (12.1 L, 10.6 Imp.qt.)
Vehicles with towing package
13.7 qt. (13.0 L, 11.4 Imp. qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

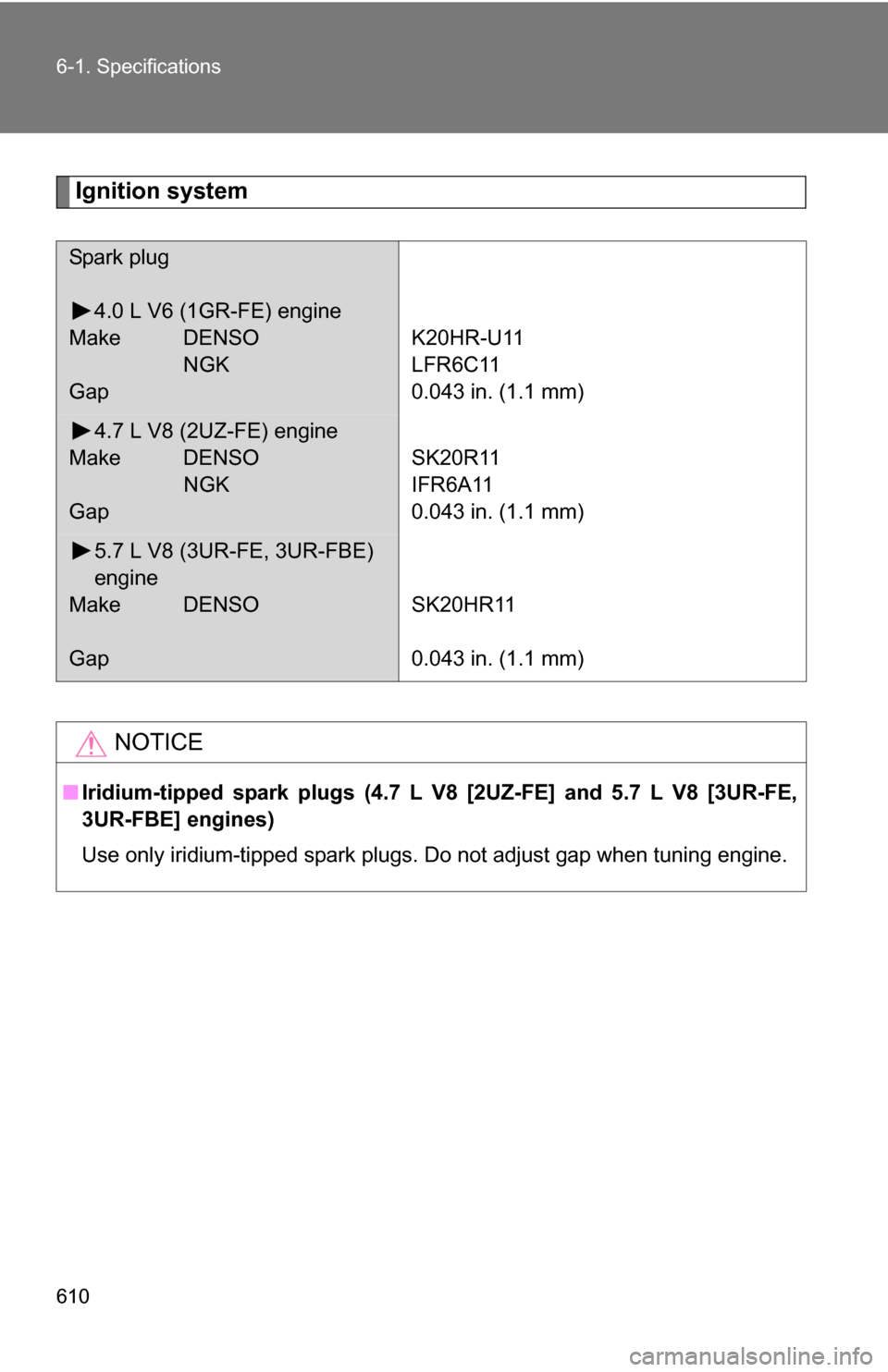

610 6-1. Specifications
Ignition system
Spark plug4.0 L V6 (1GR-FE) engine
Make DENSO NGK
Gap
K20HR-U11
LFR6C11
0.043 in. (1.1 mm)
4.7 L V8 (2UZ-FE) engine
Make DENSO NGK
Gap
SK20R11
IFR6A11
0.043 in. (1.1 mm)
5.7 L V8 (3UR-FE, 3UR-FBE)
engine
Make DENSO
Gap
SK20HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs (4.7 L V8 [2UZ-FE] and 5.7 L V8 [3UR-FE,
3UR-FBE] engines)
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

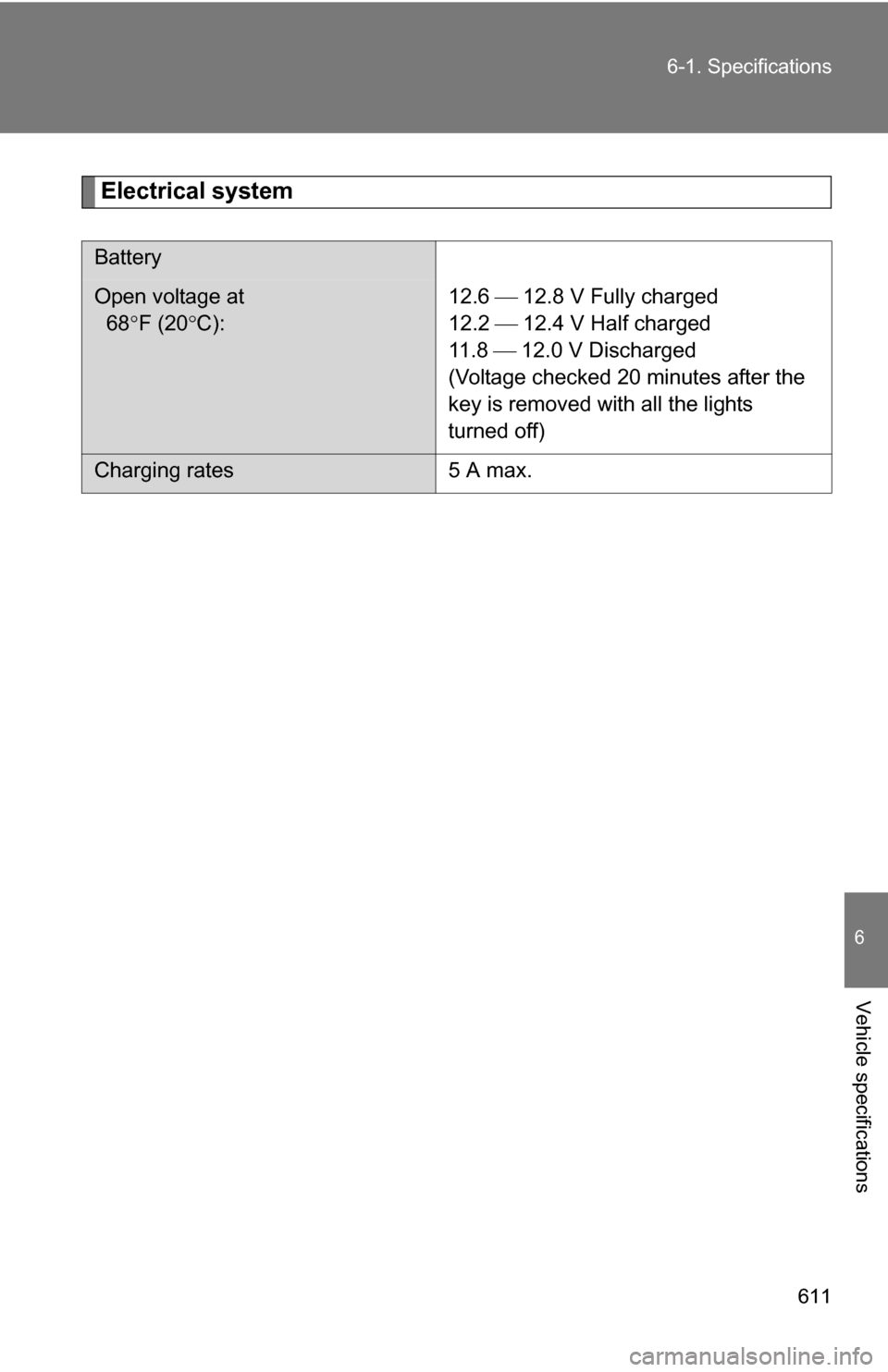

611
6-1. Specifications
6
Vehicle specifications
Electrical system
Battery
Open voltage at
68
F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after the
key is removed with all the lights
turned off)
Charging rates 5 A max.

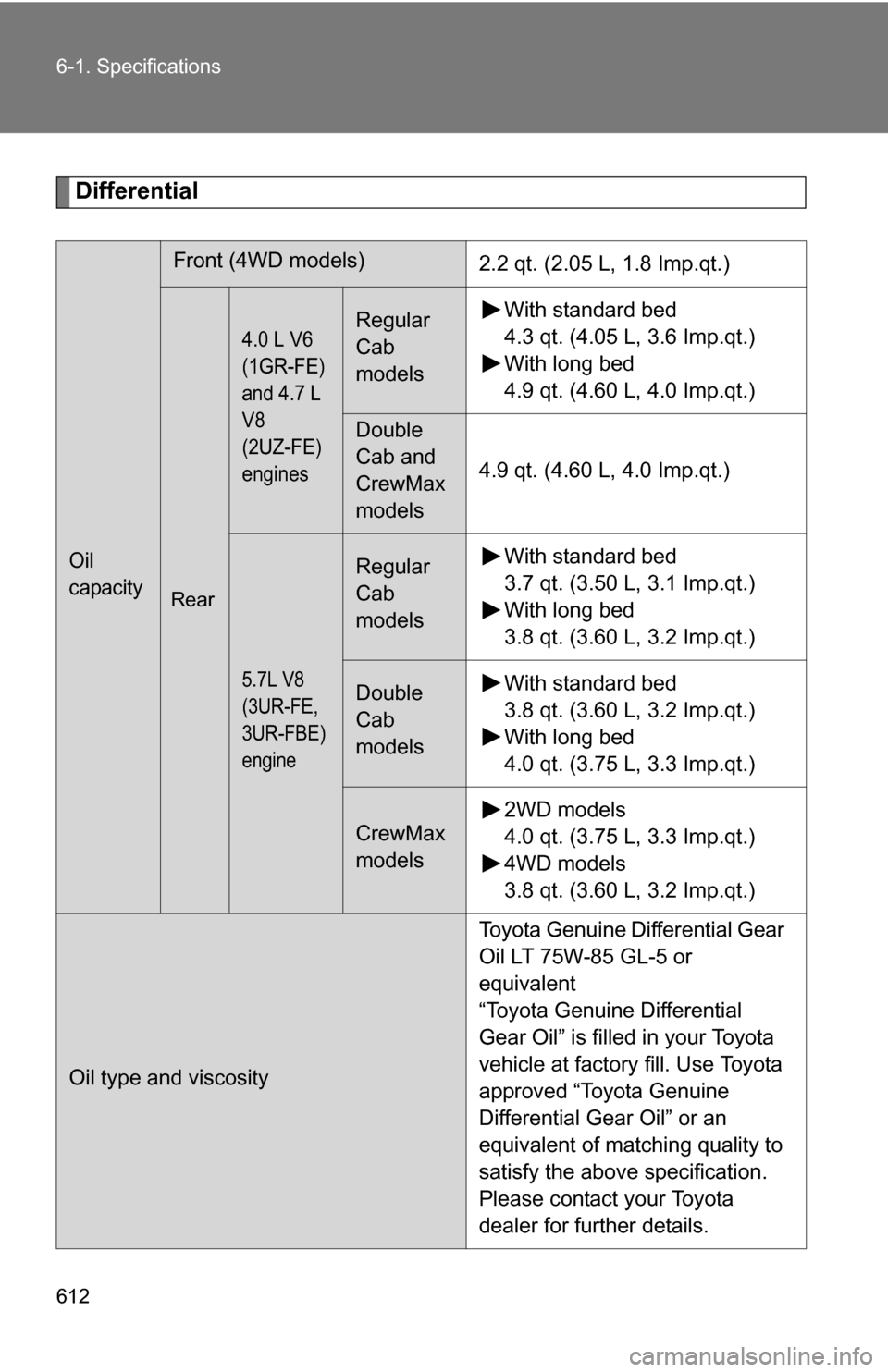

612 6-1. Specifications
Differential
Oil
capacity
Front (4WD models)2.2 qt. (2.05 L, 1.8 Imp.qt.)
Rear
4.0 L V6
(1GR-FE)
and 4.7 L
V8
(2UZ-FE)
enginesRegular
Cab
modelsWith standard bed
4.3 qt. (4.05 L, 3.6 Imp.qt.)
With long bed
4.9 qt. (4.60 L, 4.0 Imp.qt.)
Double
Cab and
CrewMax
models
4.9 qt. (4.60 L, 4.0 Imp.qt.)
5.7L V8
(3UR-FE,
3UR-FBE)
engine
Regular
Cab
models With standard bed
3.7 qt. (3.50 L, 3.1 Imp.qt.)
With long bed
3.8 qt. (3.60 L, 3.2 Imp.qt.)
Double
Cab
modelsWith standard bed
3.8 qt. (3.60 L, 3.2 Imp.qt.)
With long bed
4.0 qt. (3.75 L, 3.3 Imp.qt.)
CrewMax
models
2WD models
4.0 qt. (3.75 L, 3.3 Imp.qt.)
4WD models
3.8 qt. (3.60 L, 3.2 Imp.qt.)
Oil type and viscosity Toyota Genuine Differential Gear
Oil LT 75W-85 GL-5 or
equivalent
“Toyota Genuine Differential
Gear Oil” is filled in your Toyota
vehicle at factory fill. Use Toyota
approved “Toyota Genuine
Differential Gear Oil” or an
equivalent of matching quality to
satisfy the above specification.
Please contact your Toyota
dealer for further details.

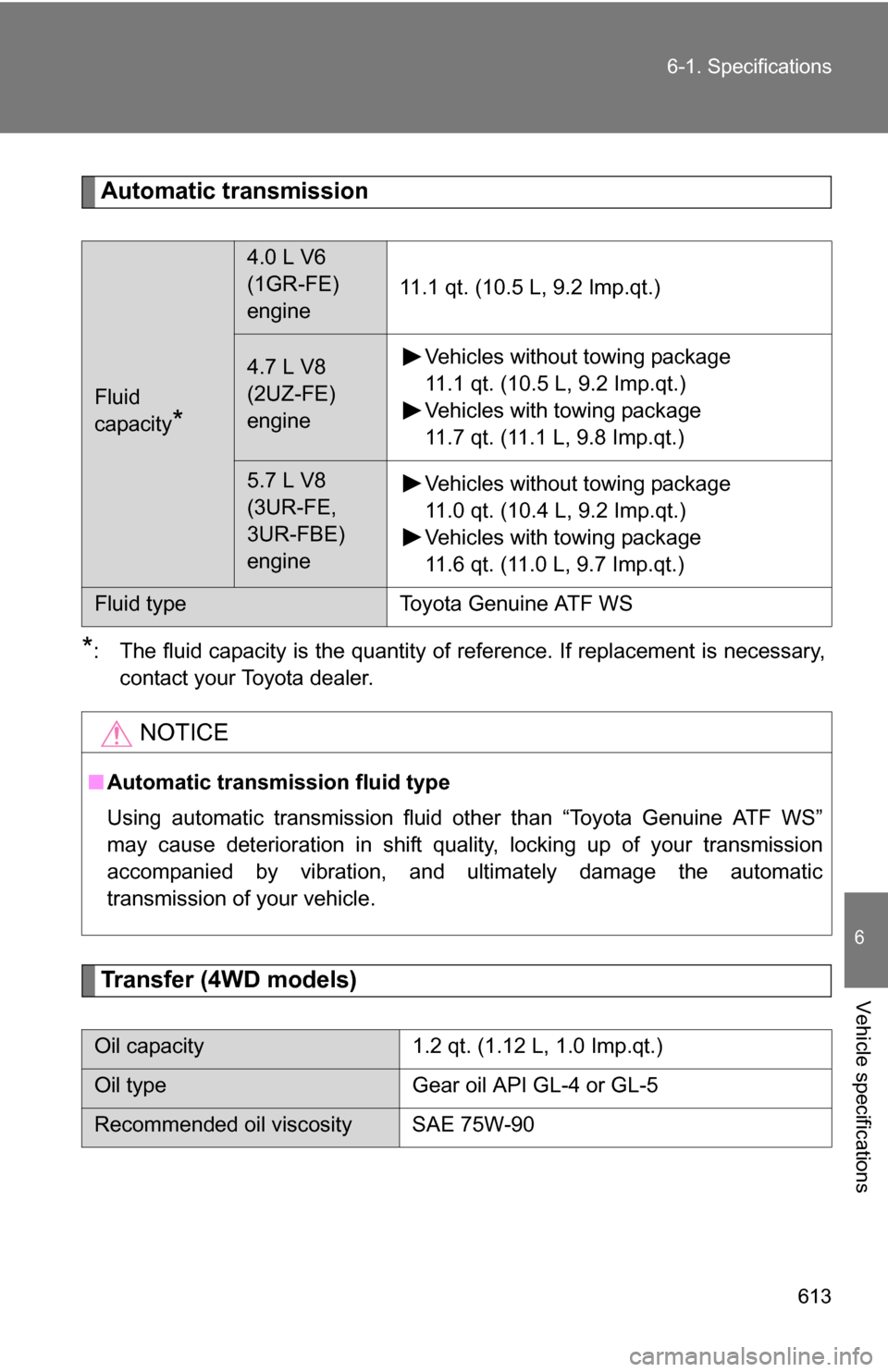

613
6-1. Specifications
6
Vehicle specifications
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
Transfer (4WD models)
Fluid
capacity
*
4.0 L V6
(1GR-FE)
engine 11.1 qt. (10.5 L, 9.2 Imp.qt.)
4.7 L V8
(2UZ-FE)
engine Vehicles without towing package
11.1 qt. (10.5 L, 9.2 Imp.qt.)
Vehicles with towing package
11.7 qt. (11.1 L, 9.8 Imp.qt.)
5.7 L V8
(3UR-FE,
3UR-FBE)
engineVehicles without towing package
11.0 qt. (10.4 L, 9.2 Imp.qt.)
Vehicles with towing package
11.6 qt. (11.0 L, 9.7 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
Oil capacity 1.2 qt. (1.12 L, 1.0 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscosity SAE 75W-90

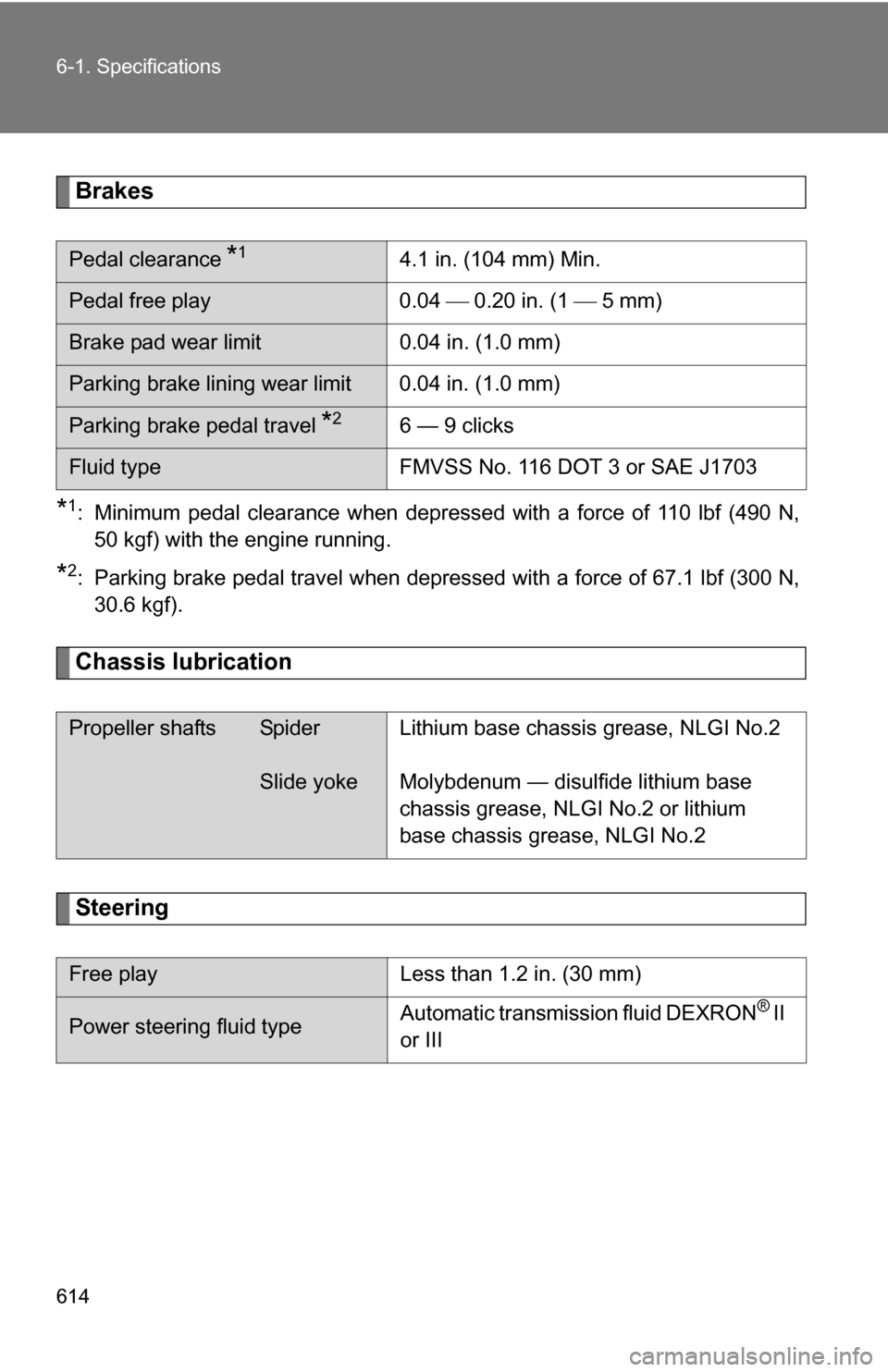

614 6-1. Specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) with the engine running.
*2: Parking brake pedal travel when depressed with a force of 67.1 lbf (300 N,30.6 kgf).
Chassis lubrication
Steering
Pedal clearance *14.1 in. (104 mm) Min.
Pedal free play 0.04  0.20 in. (1  5 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel *26 — 9 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Propeller shafts Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum — disulfide lithium base
chassis grease, NLGI No.2 or lithium
base chassis grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid type
Automatic transmission fluid DEXRON® II
or III

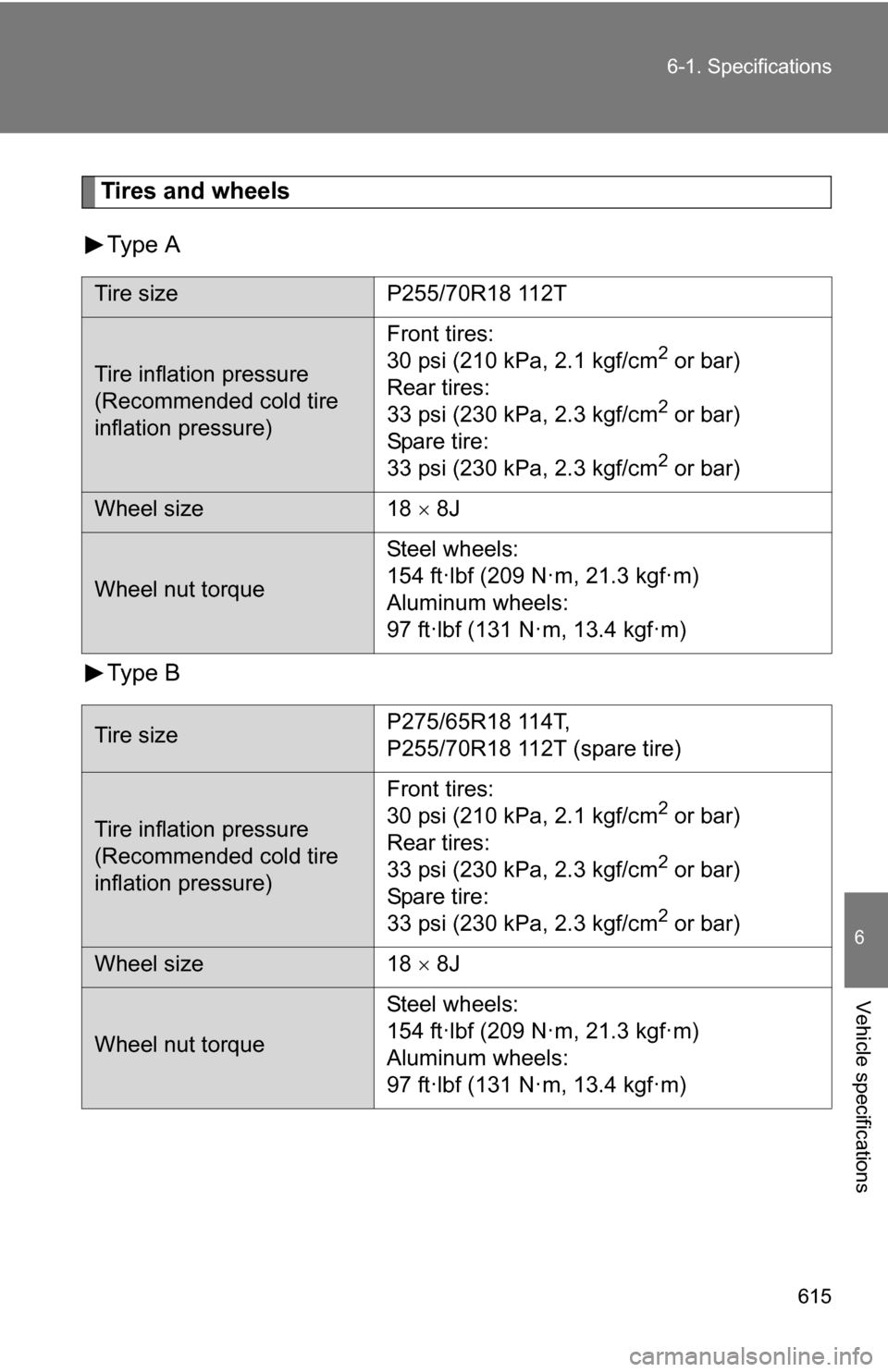

615
6-1. Specifications
6
Vehicle specifications
Tires and wheels
Type A
Type B
Tire size P255/70R18 112T
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 18  8J
Wheel nut torque Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)
Tire size
P275/65R18 114T,
P255/70R18 112T (spare tire)
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
30 psi (210 kPa, 2.1 kgf/cm2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 18  8J
Wheel nut torque Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)

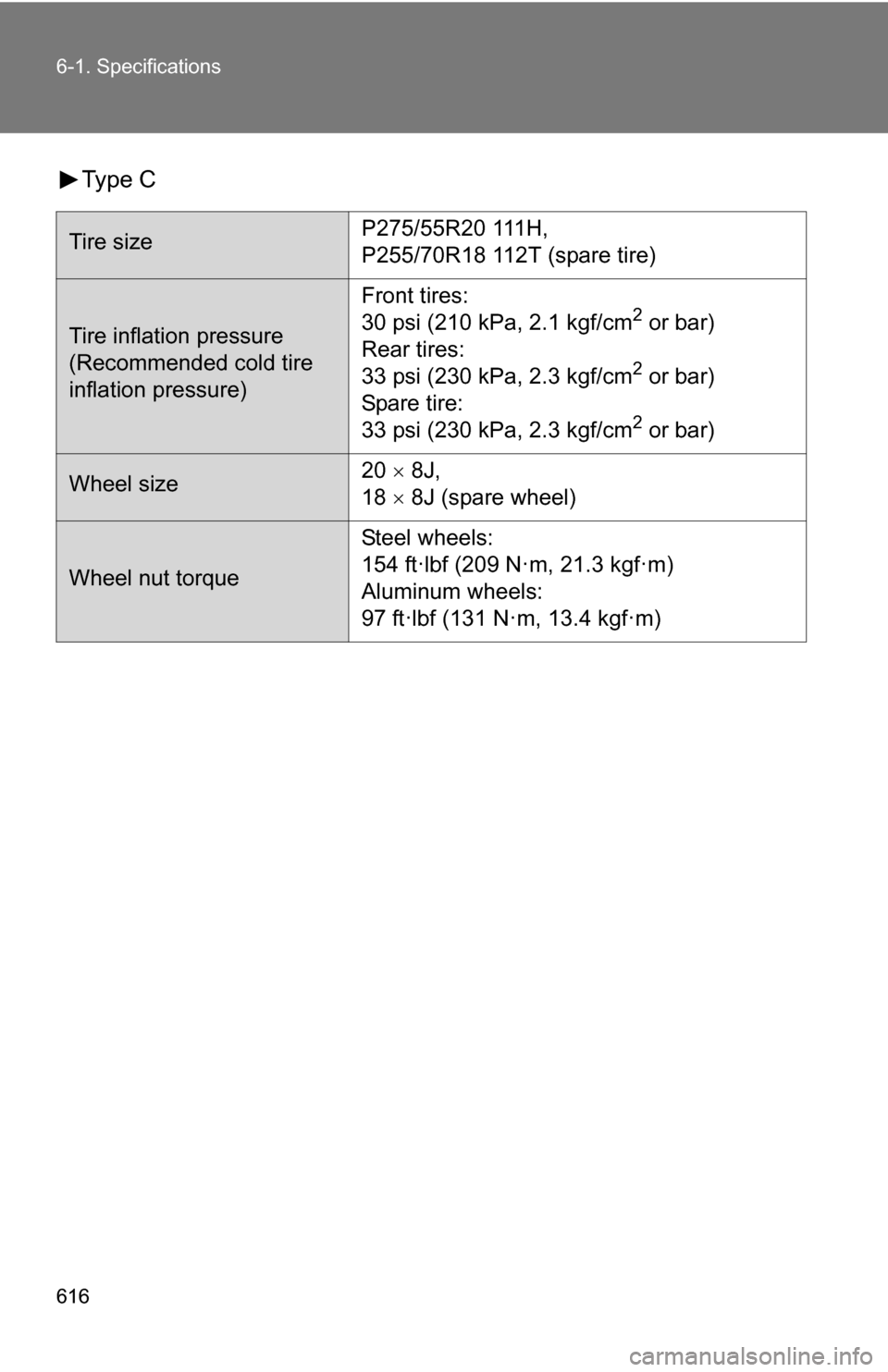

616 6-1. Specifications
Type C
Tire sizeP275/55R20 111H,
P255/70R18 112T (spare tire)
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 20
 8J,
18  8J (spare wheel)
Wheel nut torque Steel wheels:
154 ft·lbf (209 N·m, 21.3 kgf·m)
Aluminum wheels:
97 ft·lbf (131 N·m, 13.4 kgf·m)
