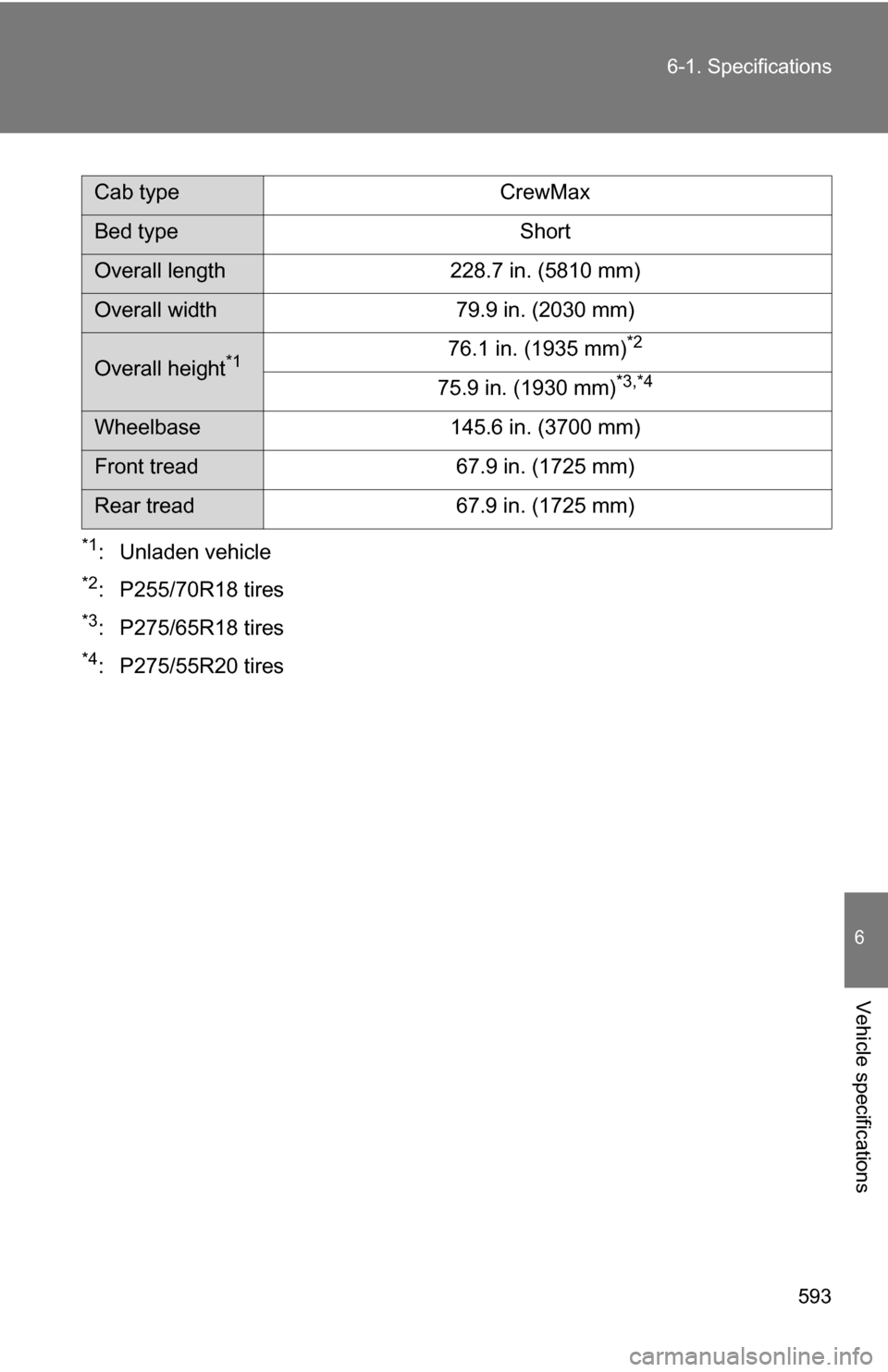

2009 TOYOTA TUNDRA Owners Manual

593
6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type
CrewMax
Bed type Short
Overall length228.7 in. (5810 mm)
Overall width 79.9 in. (2030 mm)
Overall height*176.1 in. (1935 mm)*2
75.9 in. (1930 mm)*3,*4
Wheelbase145.6 in. (3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

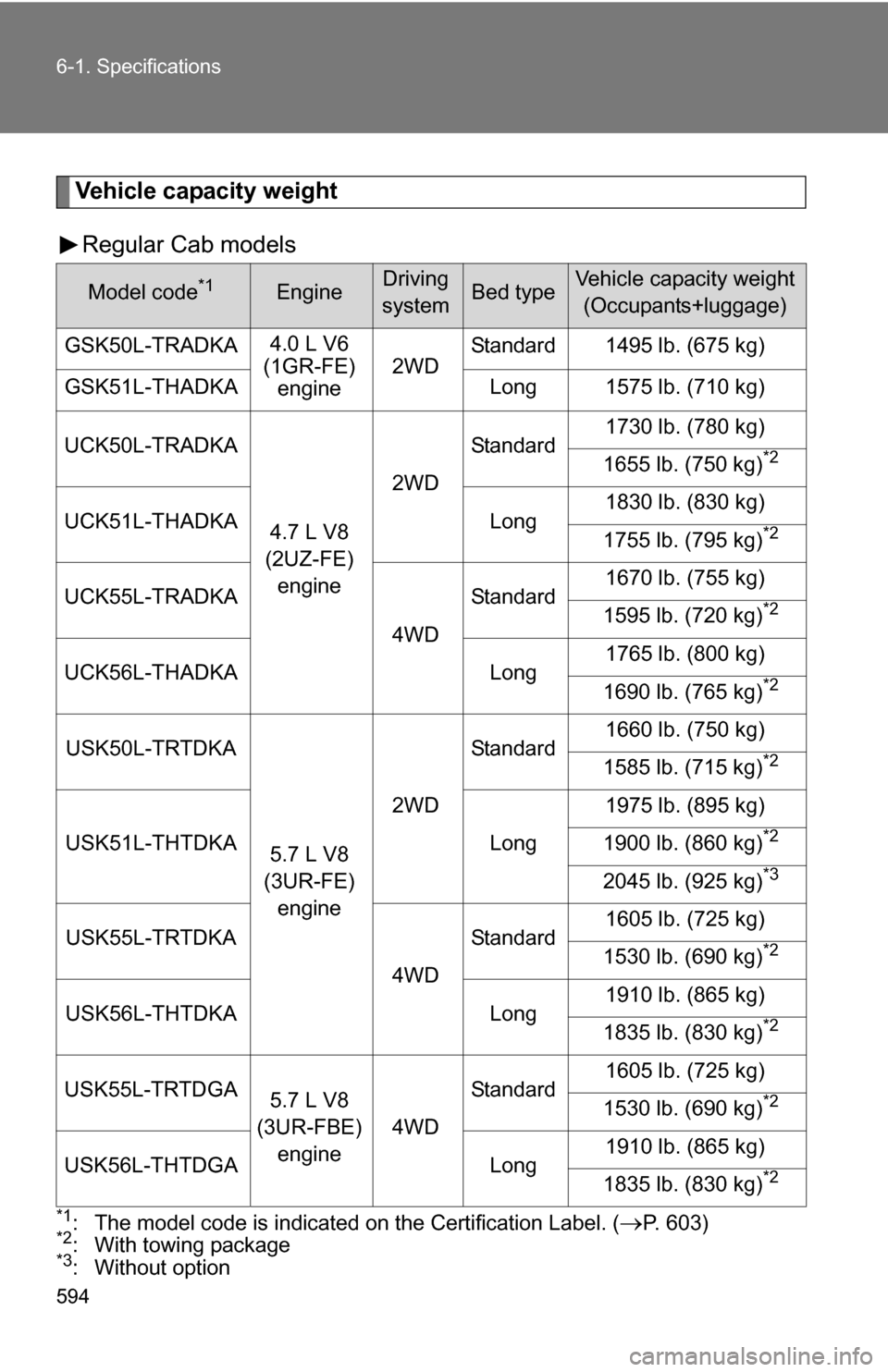

594 6-1. Specifications
Vehicle capacity weightRegular Cab models
*1: The model code is indicated on the Certification Label. (P. 603)*2: With towing package*3: Without option
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
GSK50L-TRADKA 4.0 L V6
(1GR-FE) engine 2WD
Standard 1495 lb. (675 kg)
GSK51L-THADKA Long 1575 lb. (710 kg)
UCK50L-TRADKA
4.7 L V8
(2UZ-FE) engine 2WD
Standard
1730 lb. (780 kg)
1655 lb. (750 kg)
*2
UCK51L-THADKA Long1830 lb. (830 kg)
1755 lb. (795 kg)*2
UCK55L-TRADKA 4WDStandard
1670 lb. (755 kg)
1595 lb. (720 kg)*2
UCK56L-THADKA Long1765 lb. (800 kg)
1690 lb. (765 kg)*2
USK50L-TRTDKA
5.7 L V8
(3UR-FE) engine 2WD
Standard
1660 lb. (750 kg)
1585 lb. (715 kg)*2
USK51L-THTDKA Long1975 lb. (895 kg)
1900 lb. (860 kg)*2
2045 lb. (925 kg)*3
USK55L-TRTDKA 4WDStandard
1605 lb. (725 kg)
1530 lb. (690 kg)*2
USK56L-THTDKA Long1910 lb. (865 kg)
1835 lb. (830 kg)*2
USK55L-TRTDGA 5.7 L V8
(3UR-FBE) engine 4WDStandard
1605 lb. (725 kg)
1530 lb. (690 kg)*2
USK56L-THTDGA Long1910 lb. (865 kg)
1835 lb. (830 kg)*2

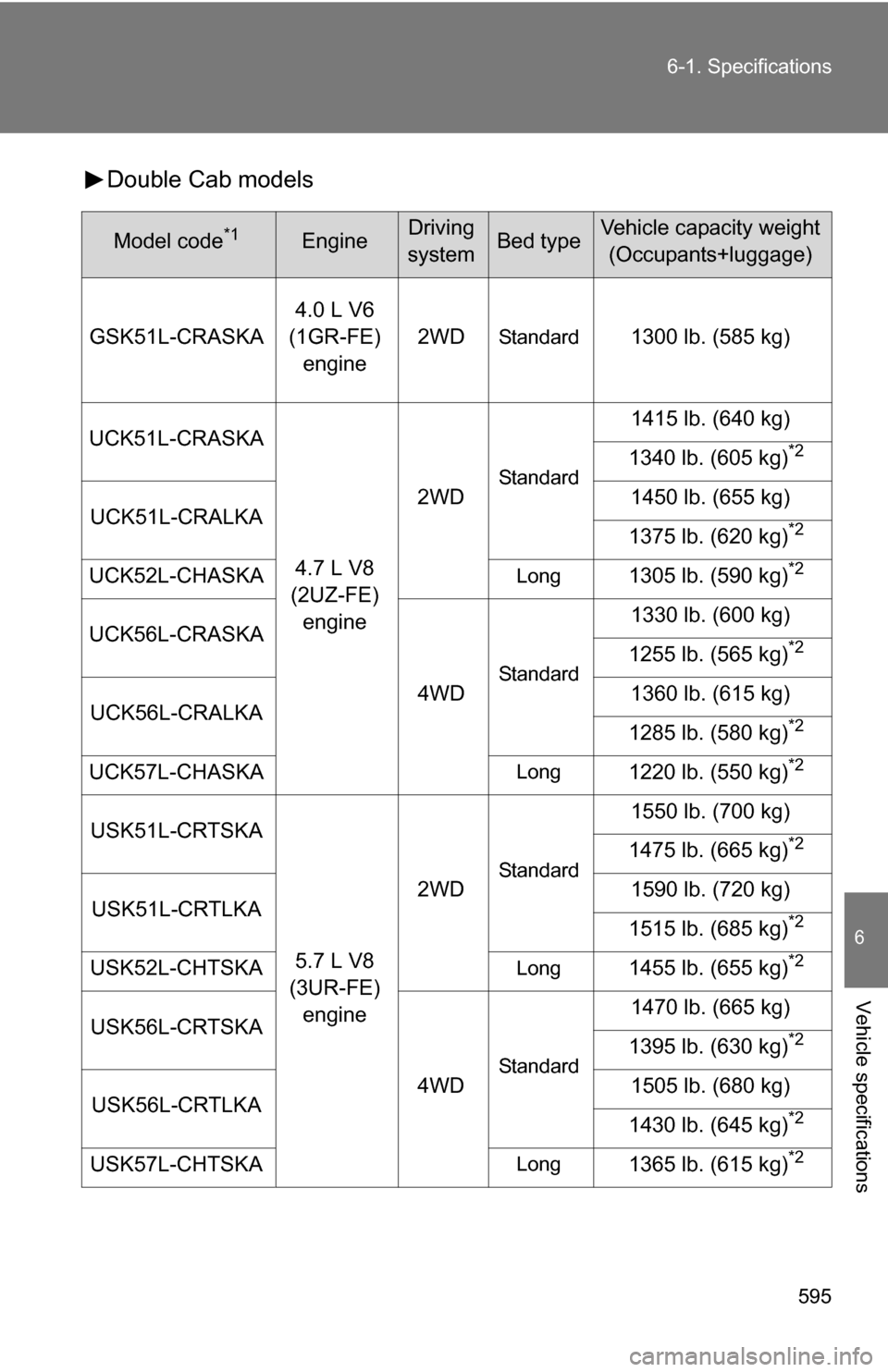

595
6-1. Specifications
6
Vehicle specifications
Double Cab models
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
GSK51L-CRASKA 4.0 L V6
(1GR-FE) engine 2WD
Standard1300 lb. (585 kg)
UCK51L-CRASKA
4.7 L V8
(2UZ-FE) engine 2WD
Standard
1415 lb. (640 kg)
1340 lb. (605 kg)
*2
UCK51L-CRALKA 1450 lb. (655 kg)
1375 lb. (620 kg)*2
UCK52L-CHASKALong 1305 lb. (590 kg)*2
UCK56L-CRASKA
4WD
Standard
1330 lb. (600 kg)
1255 lb. (565 kg)
*2
UCK56L-CRALKA 1360 lb. (615 kg)
1285 lb. (580 kg)*2
UCK57L-CHASKALong 1220 lb. (550 kg)*2
USK51L-CRTSKA
5.7 L V8
(3UR-FE) engine 2WD
Standard
1550 lb. (700 kg)
1475 lb. (665 kg)
*2
USK51L-CRTLKA 1590 lb. (720 kg)
1515 lb. (685 kg)*2
USK52L-CHTSKALong 1455 lb. (655 kg)*2
USK56L-CRTSKA
4WD
Standard
1470 lb. (665 kg)
1395 lb. (630 kg)
*2
USK56L-CRTLKA 1505 lb. (680 kg)
1430 lb. (645 kg)*2
USK57L-CHTSKALong 1365 lb. (615 kg)*2

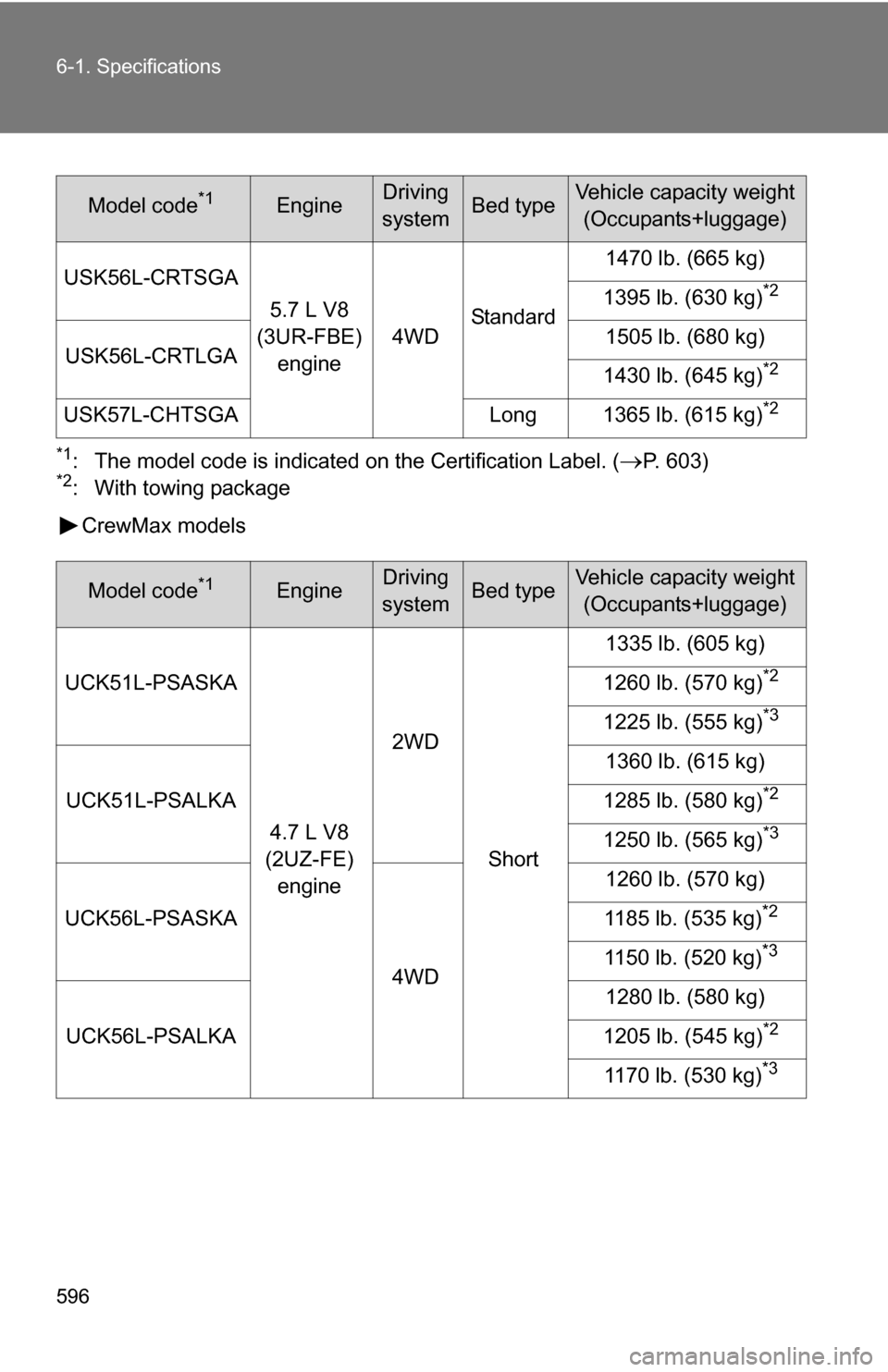

596 6-1. Specifications
*1: The model code is indicated on the Certification Label. (P. 603)*2: With towing packageCrewMax models
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
USK56L-CRTSGA 5.7 L V8
(3UR-FBE) engine 4WD
Standard 1470 lb. (665 kg)
1395 lb. (630 kg)
*2
USK56L-CRTLGA 1505 lb. (680 kg)
1430 lb. (645 kg)*2
USK57L-CHTSGA Long 1365 lb. (615 kg)*2
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
UCK51L-PSASKA
4.7 L V8
(2UZ-FE) engine 2WD
Short 1335 lb. (605 kg)
1260 lb. (570 kg)
*2
1225 lb. (555 kg)*3
UCK51L-PSALKA 1360 lb. (615 kg)
1285 lb. (580 kg)*2
1250 lb. (565 kg)*3
UCK56L-PSASKA
4WD1260 lb. (570 kg)
1185 lb. (535 kg)*2
1150 lb. (520 kg)*3
UCK56L-PSALKA 1280 lb. (580 kg)
1205 lb. (545 kg)*2
1170 lb. (530 kg)*3

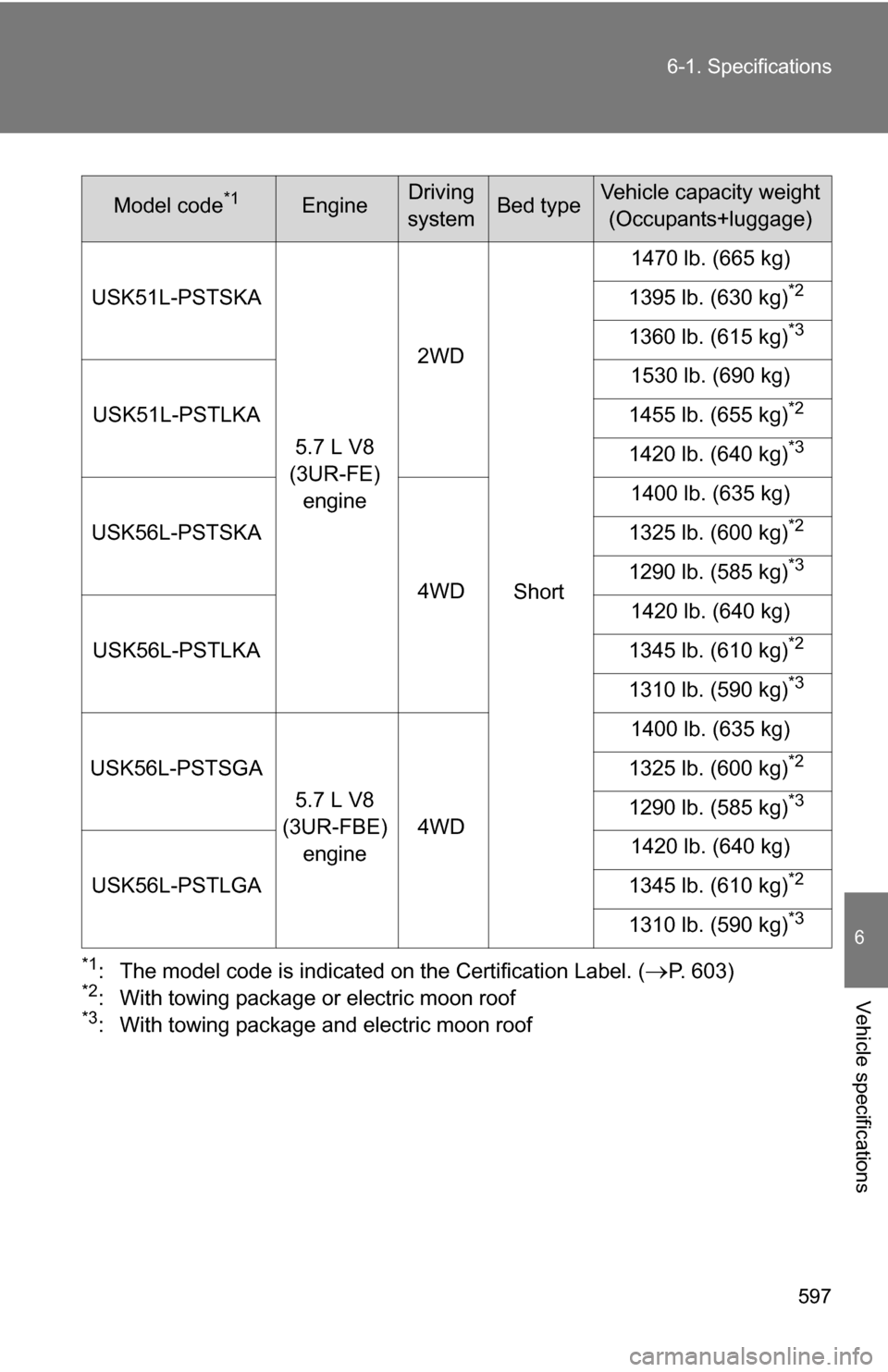

597
6-1. Specifications
6
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 603)*2: With towing package or electric moon roof*3: With towing package and electric moon roof
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
USK51L-PSTSKA
5.7 L V8
(3UR-FE) engine 2WD
Short 1470 lb. (665 kg)
1395 lb. (630 kg)
*2
1360 lb. (615 kg)*3
USK51L-PSTLKA 1530 lb. (690 kg)
1455 lb. (655 kg)*2
1420 lb. (640 kg)*3
USK56L-PSTSKA
4WD1400 lb. (635 kg)
1325 lb. (600 kg)*2
1290 lb. (585 kg)*3
USK56L-PSTLKA 1420 lb. (640 kg)
1345 lb. (610 kg)*2
1310 lb. (590 kg)*3
USK56L-PSTSGA 5.7 L V8
(3UR-FBE) engine 4WD 1400 lb. (635 kg)
1325 lb. (600 kg)*2
1290 lb. (585 kg)*3
USK56L-PSTLGA 1420 lb. (640 kg)
1345 lb. (610 kg)*2
1310 lb. (590 kg)*3

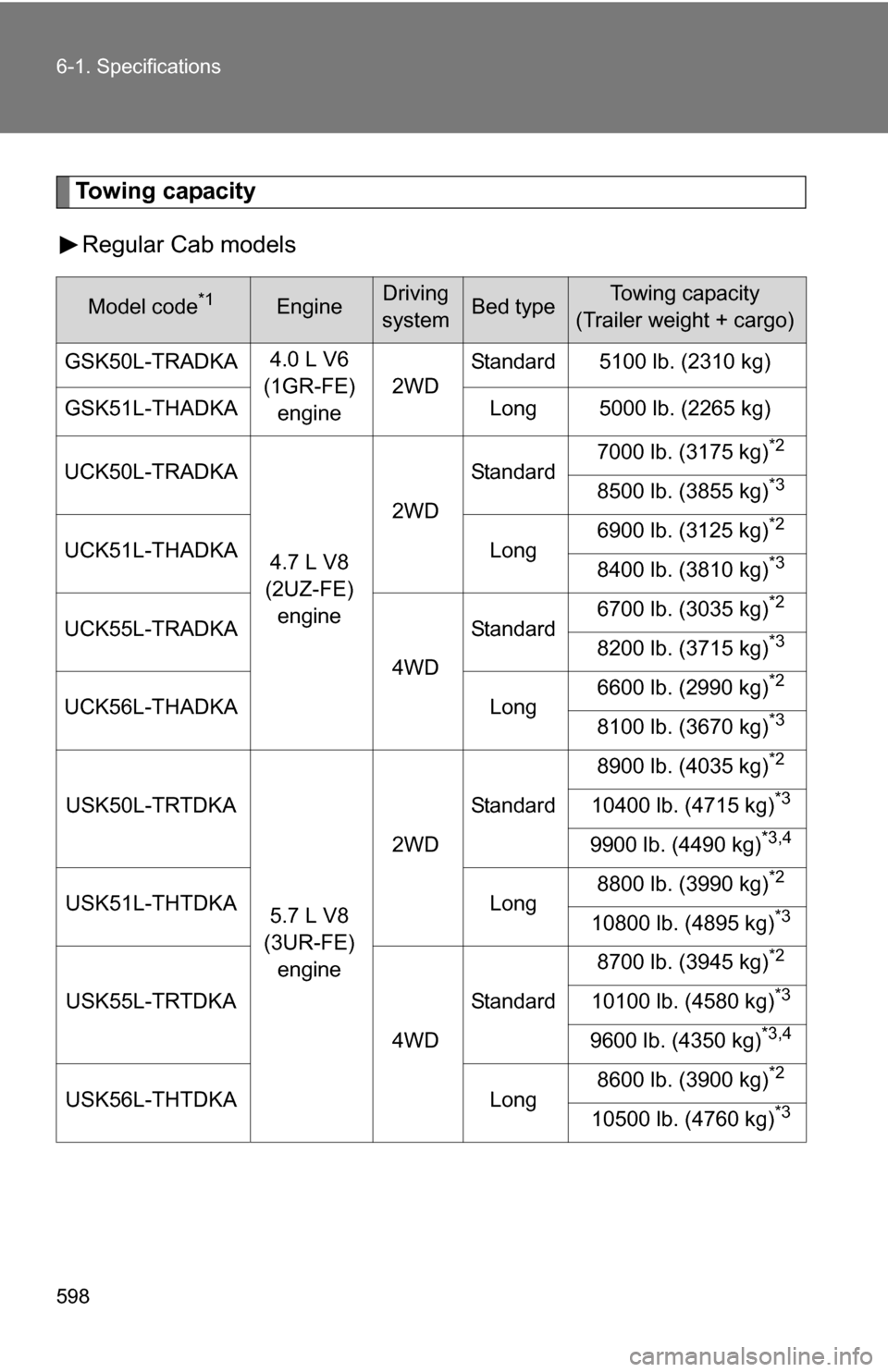

598 6-1. Specifications
Towing capacityRegular Cab models
Model code*1EngineDriving
systemBed typeTowing capacity
(Trailer weight + cargo)
GSK50L-TRADKA 4.0 L V6
(1GR-FE) engine 2WD
Standard 5100 lb. (2310 kg)
GSK51L-THADKA Long 5000 lb. (2265 kg)
UCK50L-TRADKA
4.7 L V8
(2UZ-FE) engine 2WD
Standard
7000 lb. (3175 kg)
*2
8500 lb. (3855 kg)*3
UCK51L-THADKA
Long 6900 lb. (3125 kg)
*2
8400 lb. (3810 kg)*3
UCK55L-TRADKA
4WDStandard
6700 lb. (3035 kg)
*2
8200 lb. (3715 kg)*3
UCK56L-THADKA
Long 6600 lb. (2990 kg)
*2
8100 lb. (3670 kg)*3
USK50L-TRTDKA
5.7 L V8
(3UR-FE) engine 2WD
Standard 8900 lb. (4035 kg)
*2
10400 lb. (4715 kg)*3
9900 lb. (4490 kg)*3,4
USK51L-THTDKA
Long 8800 lb. (3990 kg)
*2
10800 lb. (4895 kg)*3
USK55L-TRTDKA
4WDStandard 8700 lb. (3945 kg)
*2
10100 lb. (4580 kg)*3
9600 lb. (4350 kg)*3,4
USK56L-THTDKA
Long 8600 lb. (3900 kg)
*2
10500 lb. (4760 kg)*3

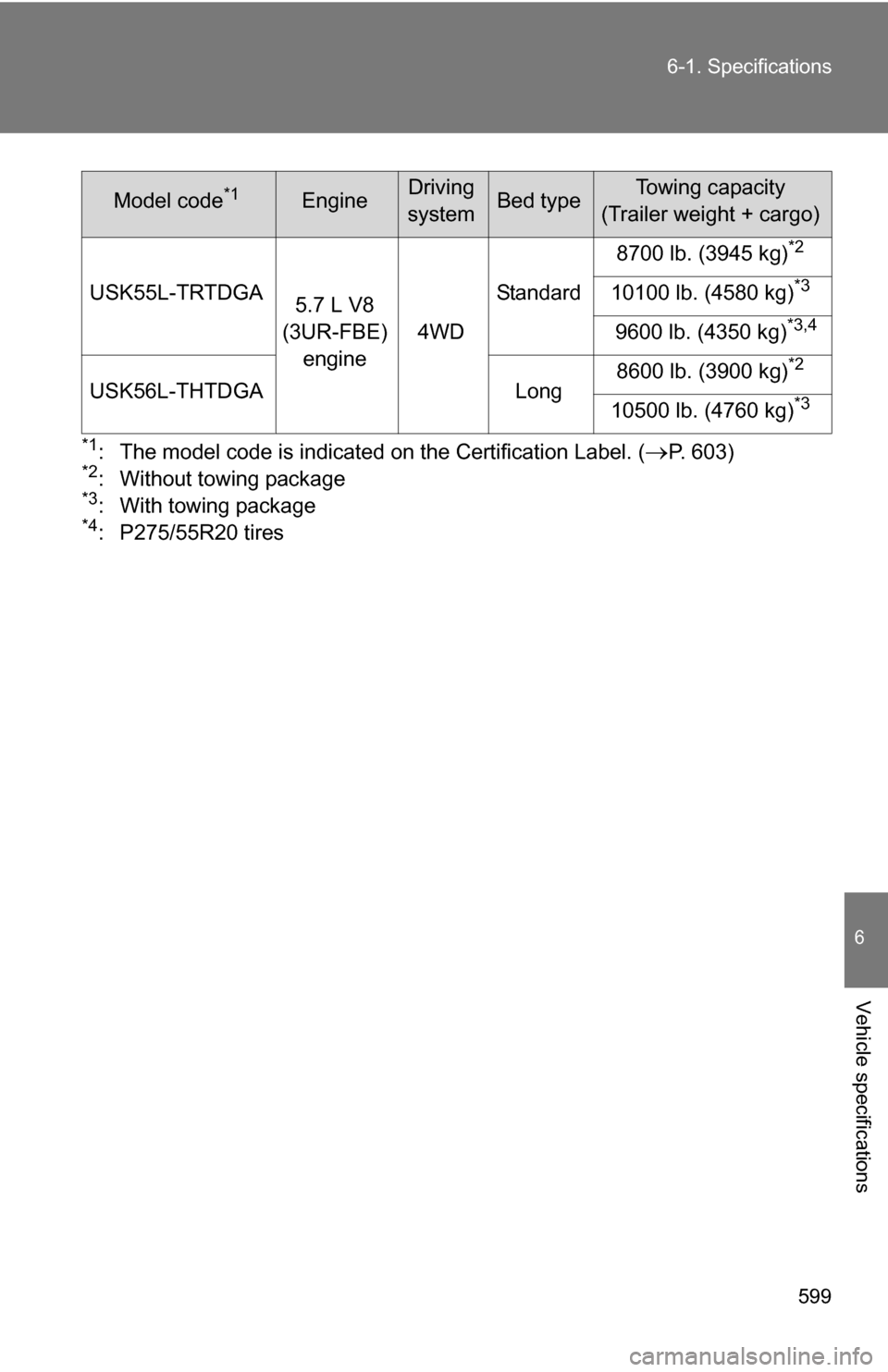

599
6-1. Specifications
6
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package*4: P275/55R20 tires
USK55L-TRTDGA
5.7 L V8
(3UR-FBE) engine 4WDStandard 8700 lb. (3945 kg)
*2
10100 lb. (4580 kg)*3
9600 lb. (4350 kg)*3,4
USK56L-THTDGA
Long8600 lb. (3900 kg)
*2
10500 lb. (4760 kg)*3
Model code*1EngineDriving
systemBed typeTowing capacity
(Trailer weight + cargo)

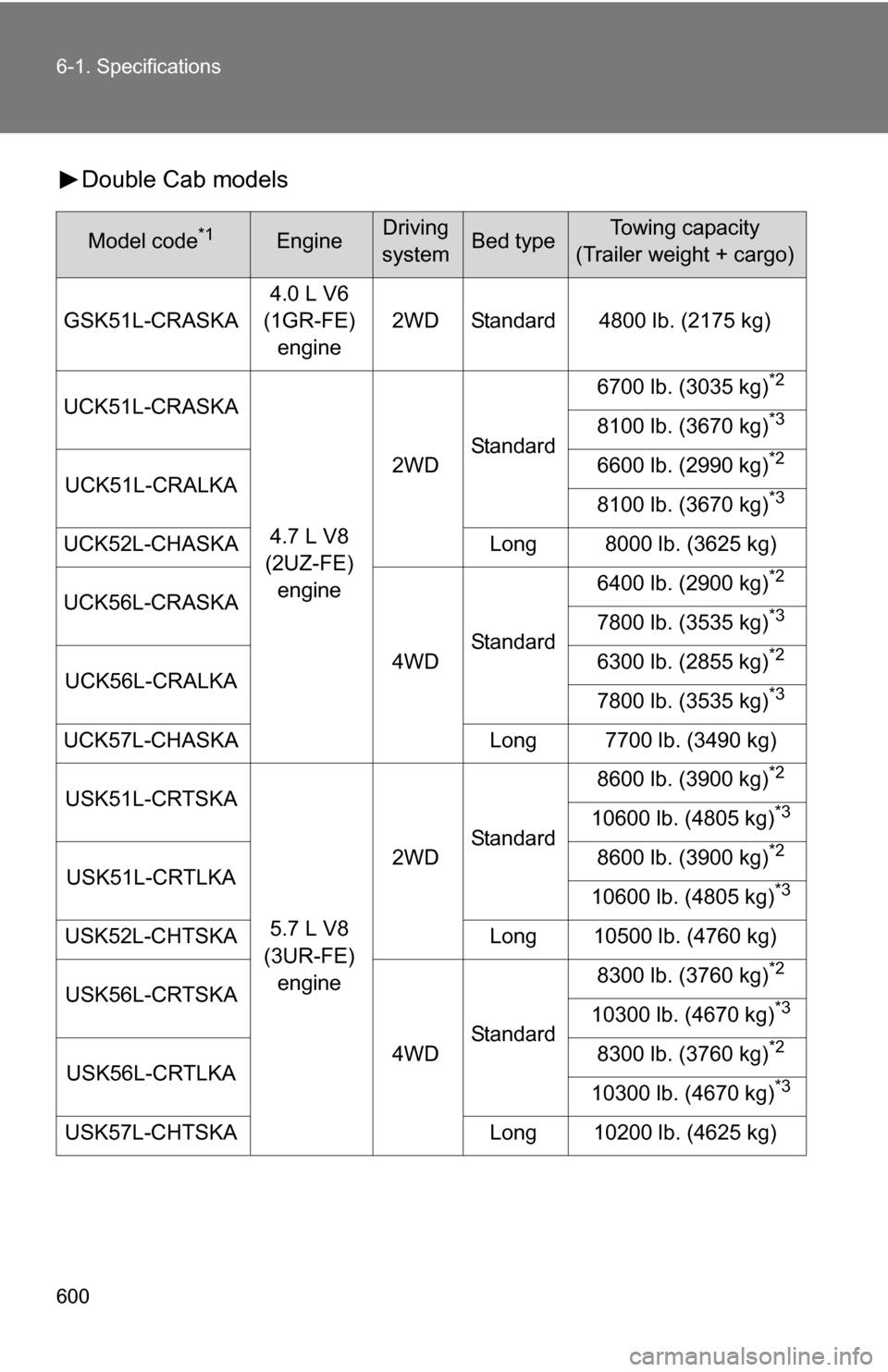

600 6-1. Specifications
Double Cab models
Model code*1EngineDriving
systemBed typeTowing capacity
(Trailer weight + cargo)
GSK51L-CRASKA 4.0 L V6
(1GR-FE) engine 2WD Standard 4800 lb. (2175 kg)
UCK51L-CRASKA
4.7 L V8
(2UZ-FE) engine 2WD
Standard 6700 lb. (3035 kg)
*2
8100 lb. (3670 kg)*3
UCK51L-CRALKA
6600 lb. (2990 kg)
*2
8100 lb. (3670 kg)*3
UCK52L-CHASKA
Long 8000 lb. (3625 kg)
UCK56L-CRASKA 4WDStandard 6400 lb. (2900 kg)
*2
7800 lb. (3535 kg)*3
UCK56L-CRALKA
6300 lb. (2855 kg)
*2
7800 lb. (3535 kg)*3
UCK57L-CHASKA
Long 7700 lb. (3490 kg)
USK51L-CRTSKA
5.7 L V8
(3UR-FE) engine 2WD
Standard 8600 lb. (3900 kg)
*2
10600 lb. (4805 kg)*3
USK51L-CRTLKA
8600 lb. (3900 kg)
*2
10600 lb. (4805 kg)*3
USK52L-CHTSKA
Long 10500 lb. (4760 kg)
USK56L-CRTSKA 4WDStandard 8300 lb. (3760 kg)
*2
10300 lb. (4670 kg)*3
USK56L-CRTLKA
8300 lb. (3760 kg)
*2
10300 lb. (4670 kg)*3
USK57L-CHTSKA
Long 10200 lb. (4625 kg)
