2009 TOYOTA TUNDRA Owners Manual

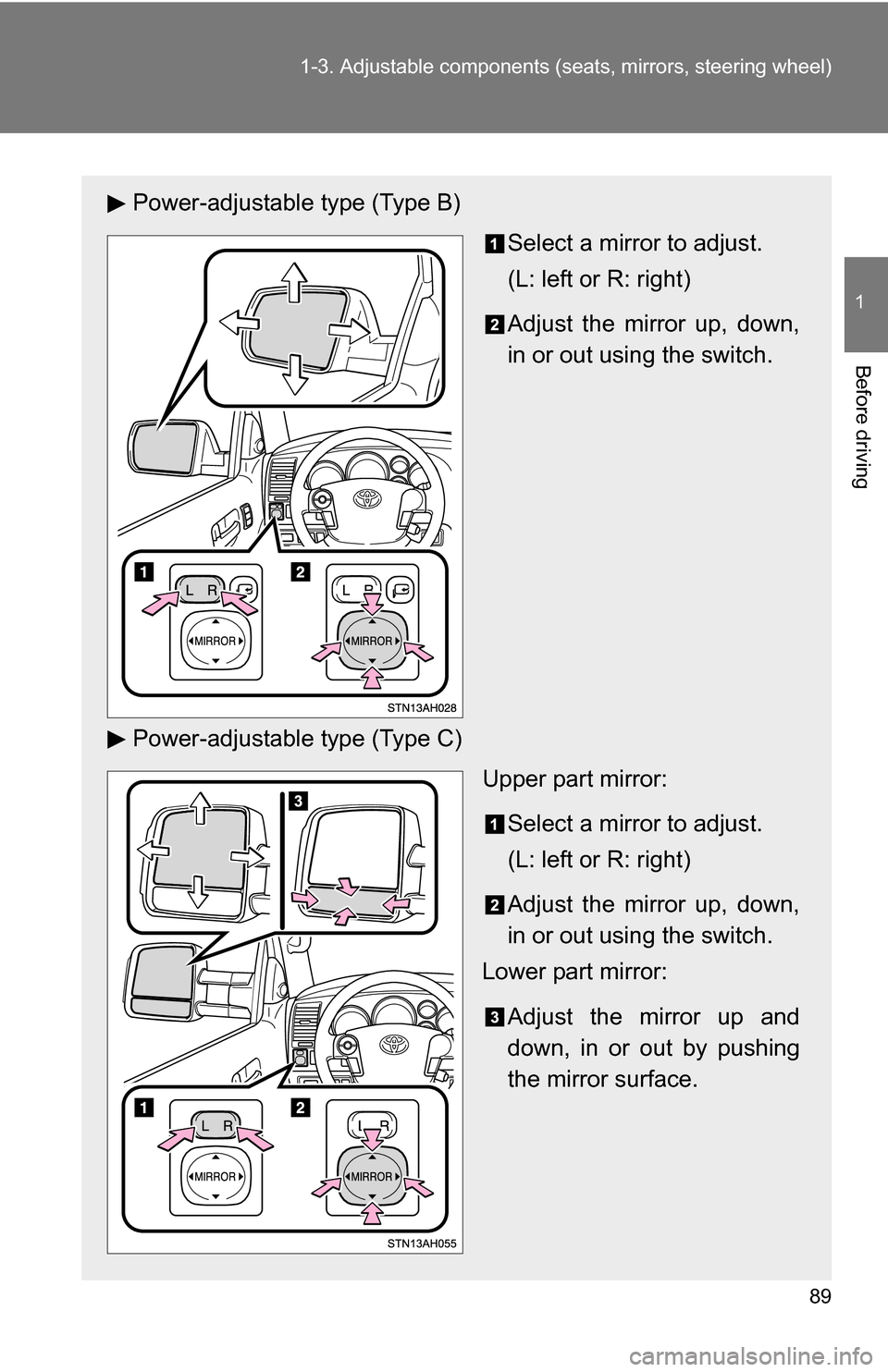

89
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Power-adjustable type (Type B)
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.
Power-adjustable type (Type C) Upper part mirror:
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.
Lower part mirror:
Adjust the mirror up and
down, in or out by pushing
the mirror surface.

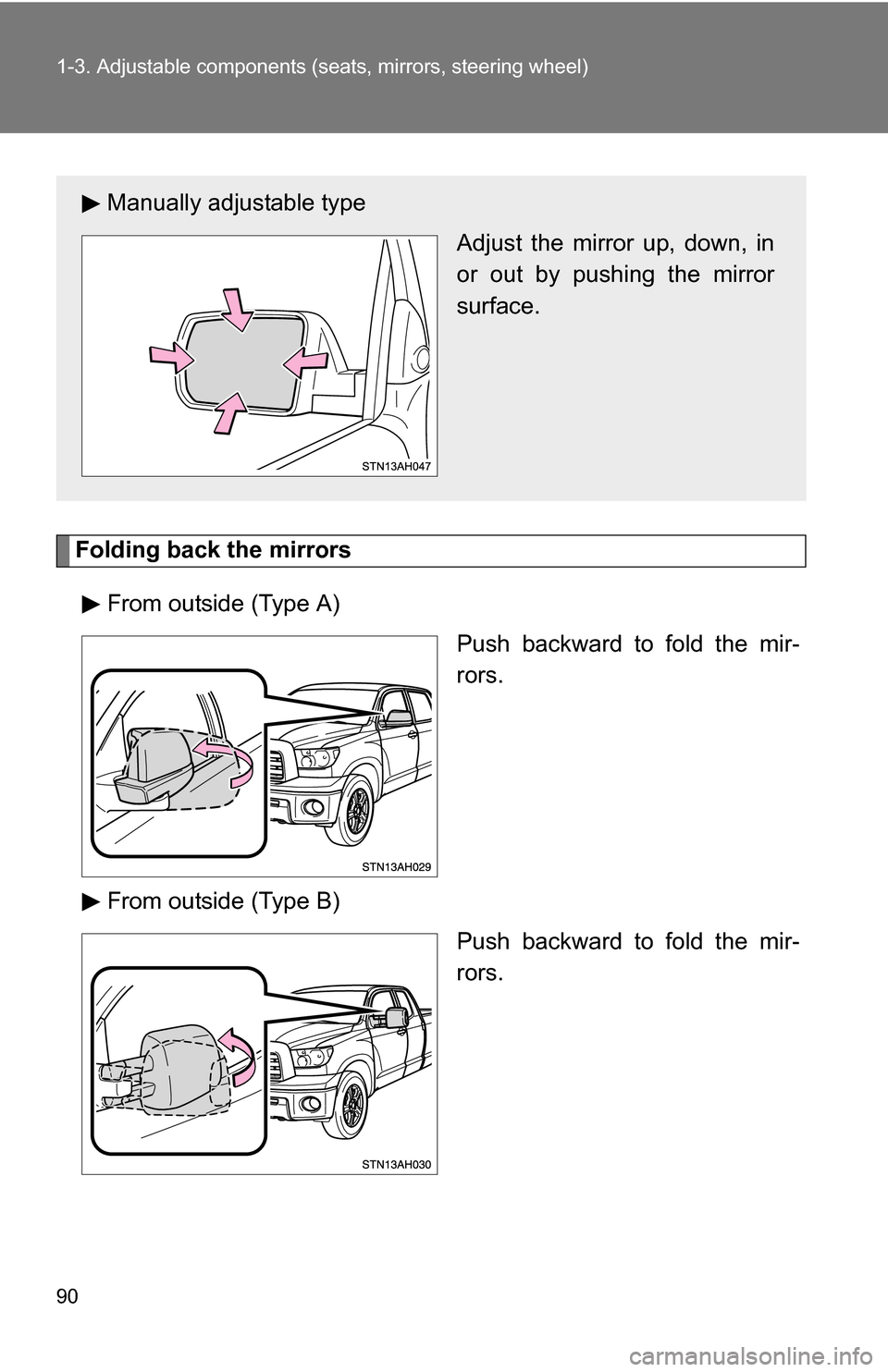

90 1-3. Adjustable components (seats, mirrors, steering wheel)
Folding back the mirrors
From outside (Type A) Push backward to fold the mir-
rors.
From outside (Type B) Push backward to fold the mir-
rors.
Manually adjustable typeAdjust the mirror up, down, in
or out by pushing the mirror
surface.

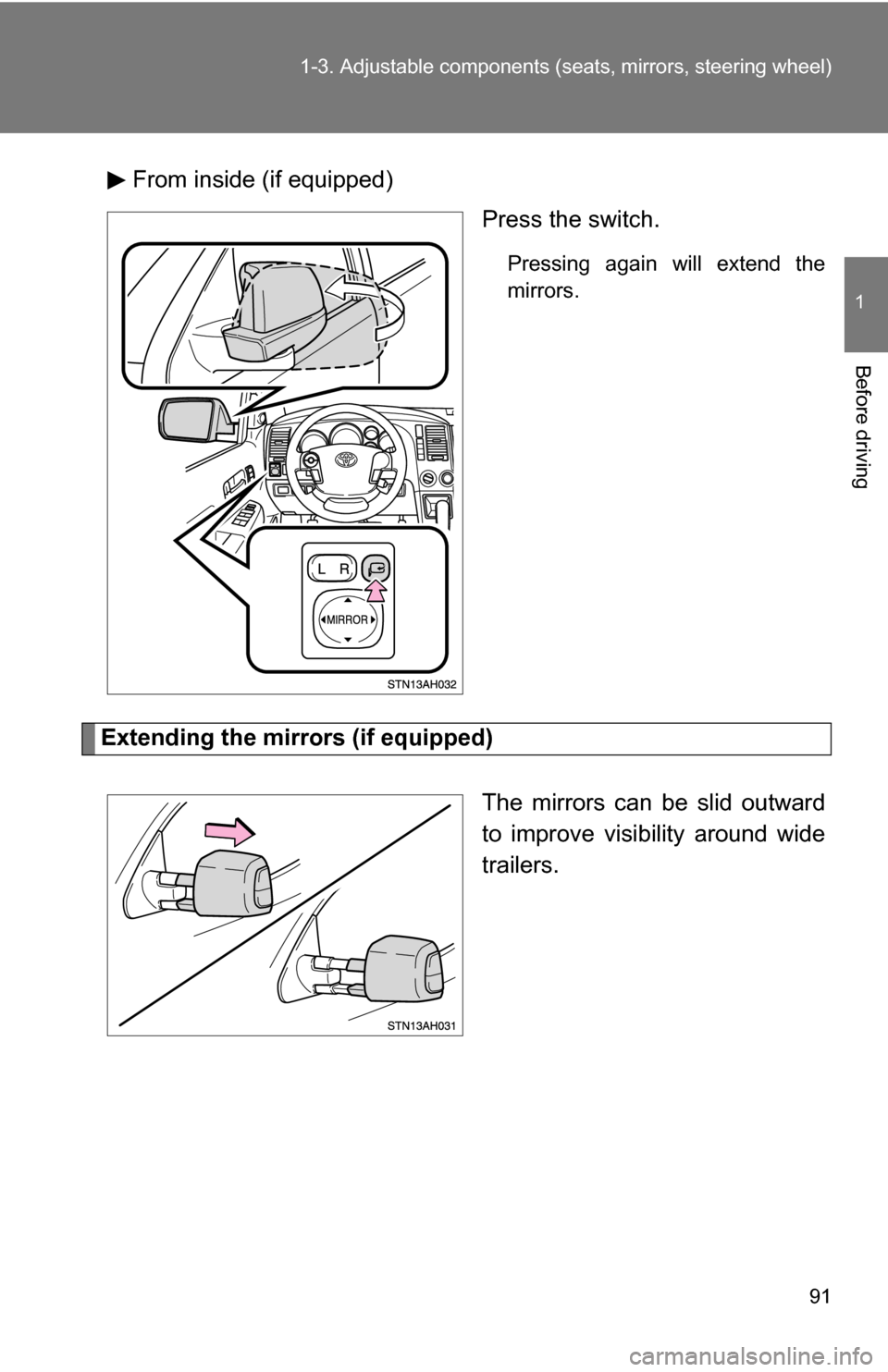

91
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
From inside (if equipped)
Press the switch.
Pressing again will extend the
mirrors.
Extending the mirrors (if equipped)
The mirrors can be slid outward
to improve visibility around wide
trailers.

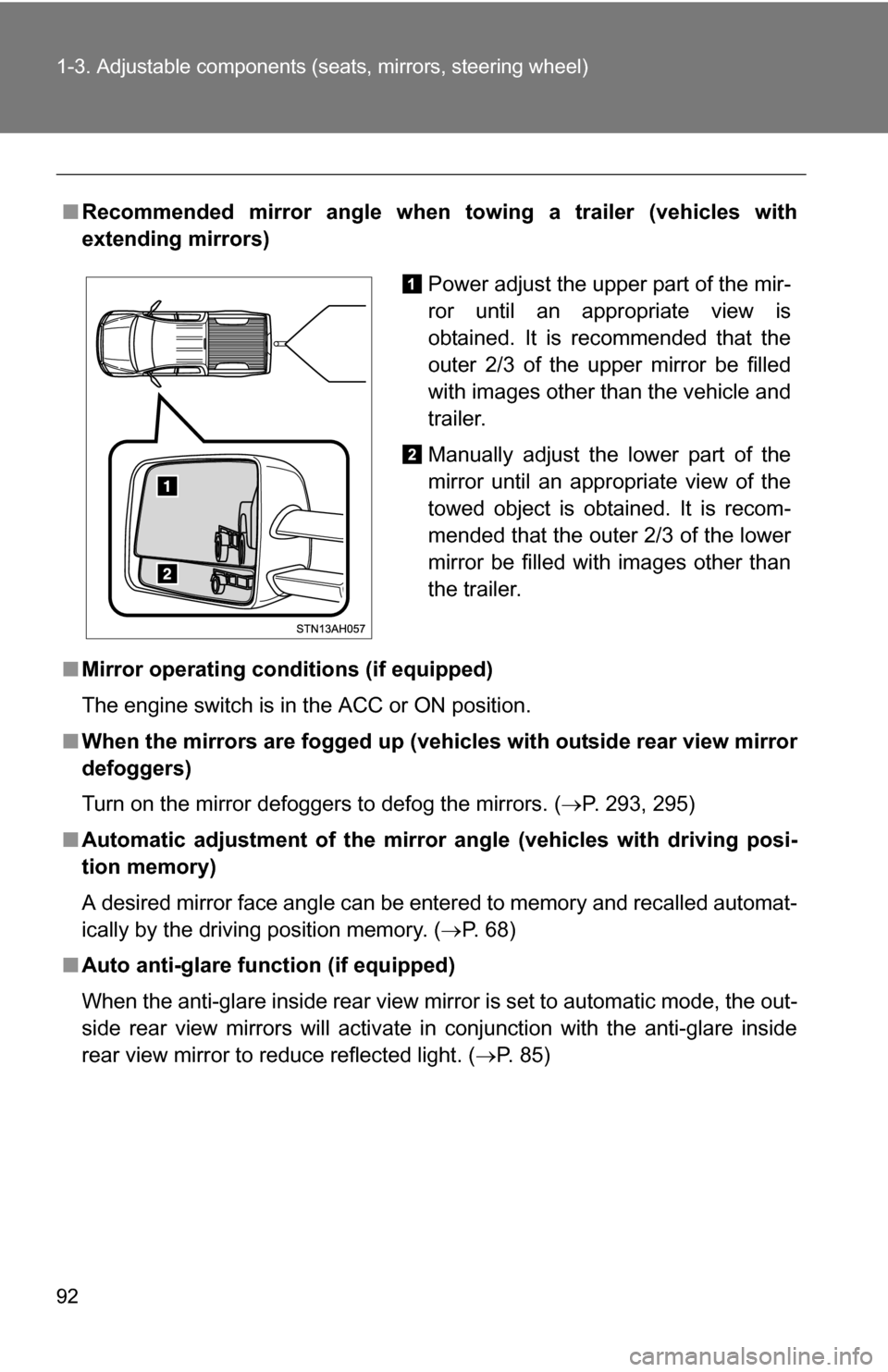

92 1-3. Adjustable components (seats, mirrors, steering wheel)
■Recommended mirror angle when towing a trailer (vehicles with
extending mirrors)
■ Mirror operating conditions (if equipped)
The engine switch is in the ACC or ON position.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. ( P. 293, 295)
■ Automatic adjustment of the mirror angle (vehicles with driving posi-
tion memory)
A desired mirror face angle can be entered to memory and recalled automat-
ically by the driving position memory. ( P. 6 8 )
■ Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side rear view mirrors will activate in conjunction with the anti-glare inside
rear view mirror to reduce reflected light. ( P. 85)
Power adjust the upper part of the mir-
ror until an appropriate view is
obtained. It is recommended that the
outer 2/3 of the upper mirror be filled
with images other than the vehicle and
trailer.
Manually adjust the lower part of the
mirror until an appropriate view of the
towed object is obtained. It is recom-
mended that the outer 2/3 of the lower
mirror be filled with images other than
the trailer.

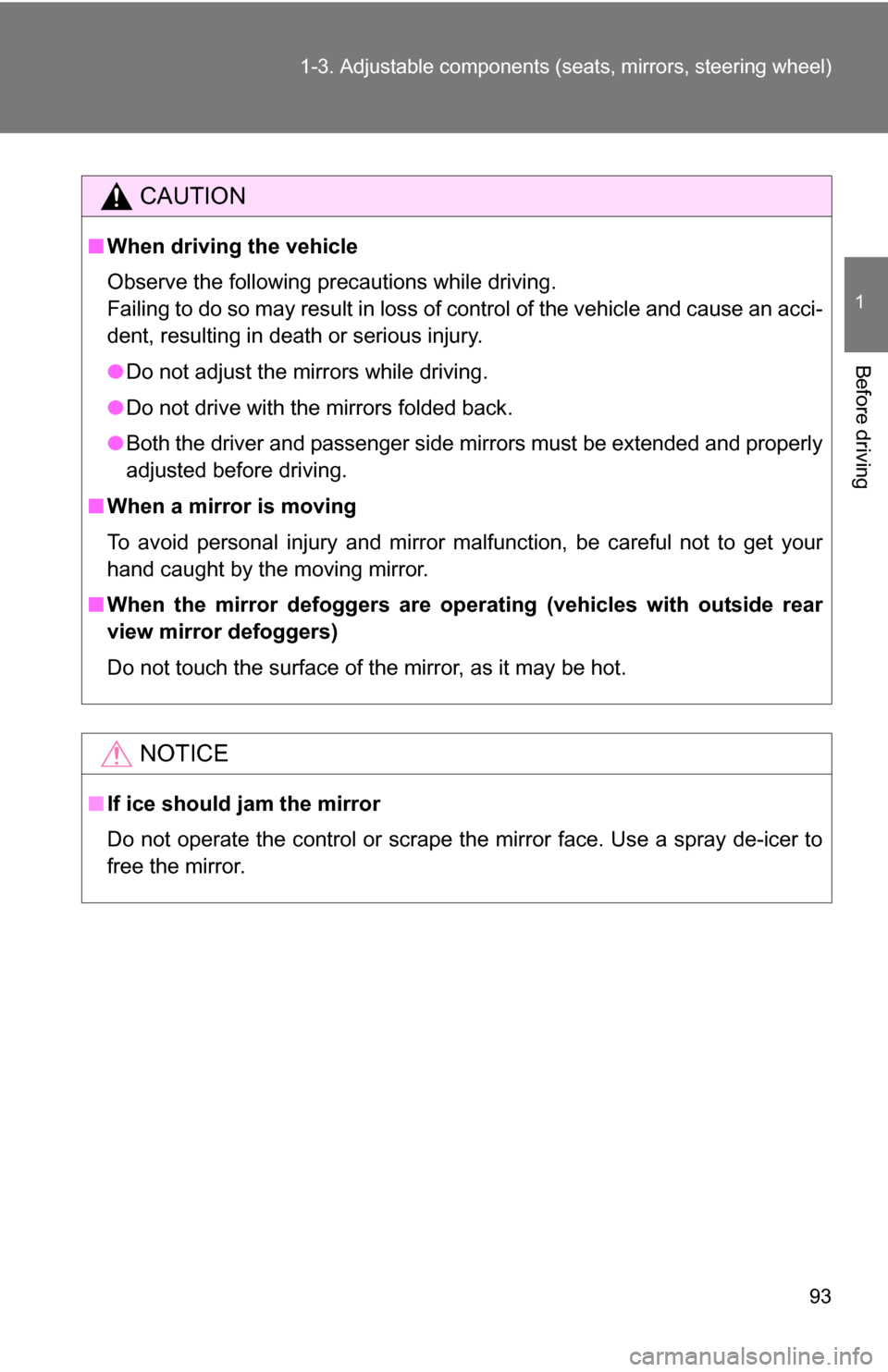

93
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded back.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are oper ating (vehicles with outside rear
view mirror defoggers)
Do not touch the surface of the mirror, as it may be hot.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

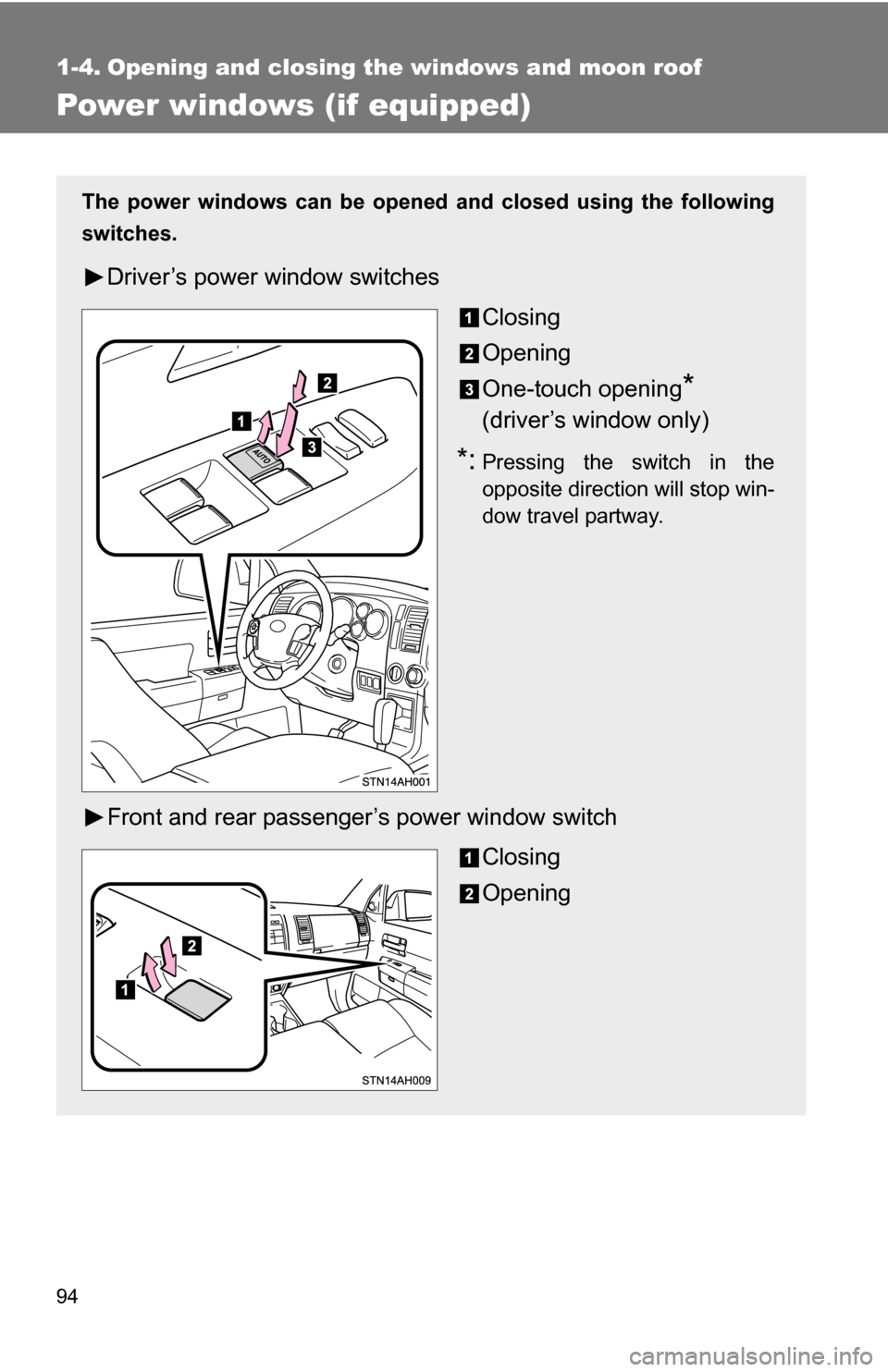

94
1-4. Opening and closing the windows and moon roof
Power windows (if equipped)
The power windows can be opened and closed using the following
switches.
Driver’s power window switches
Closing
Opening
One-touch opening
*
(driver’s window only)
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
Front and rear passenger’s power window switch
Closing
Opening

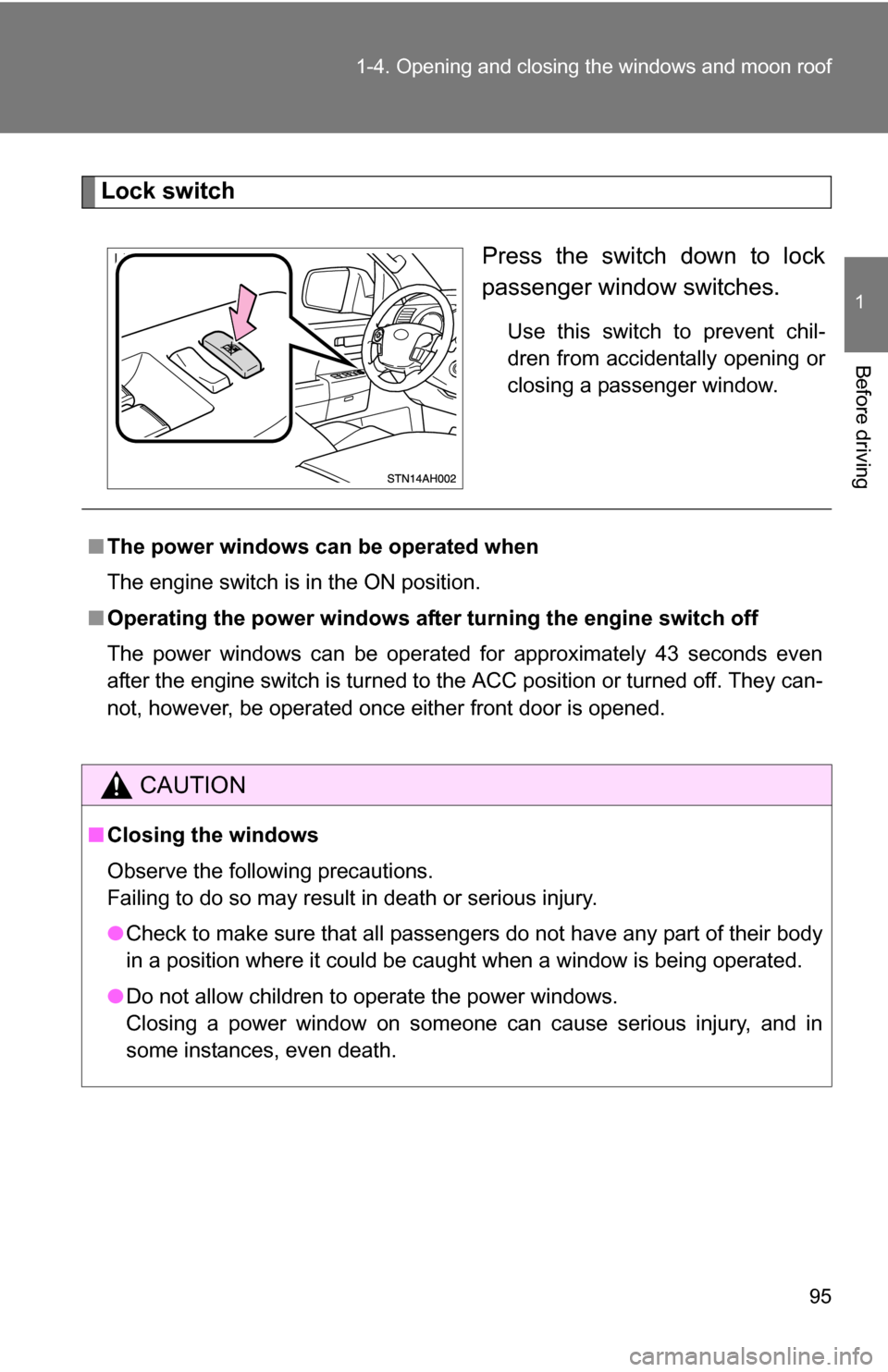

95
1-4. Opening and closing the windows and moon roof
1
Before driving
Lock switch
Press the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
■The power windows can be operated when
The engine switch is in the ON position.
■ Operating the power windows after turning the engine switch off
The power windows can be operated for approximately 43 seconds even
after the engine switch is turned to the ACC position or turned off. They can-
not, however, be operated once either front door is opened.
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

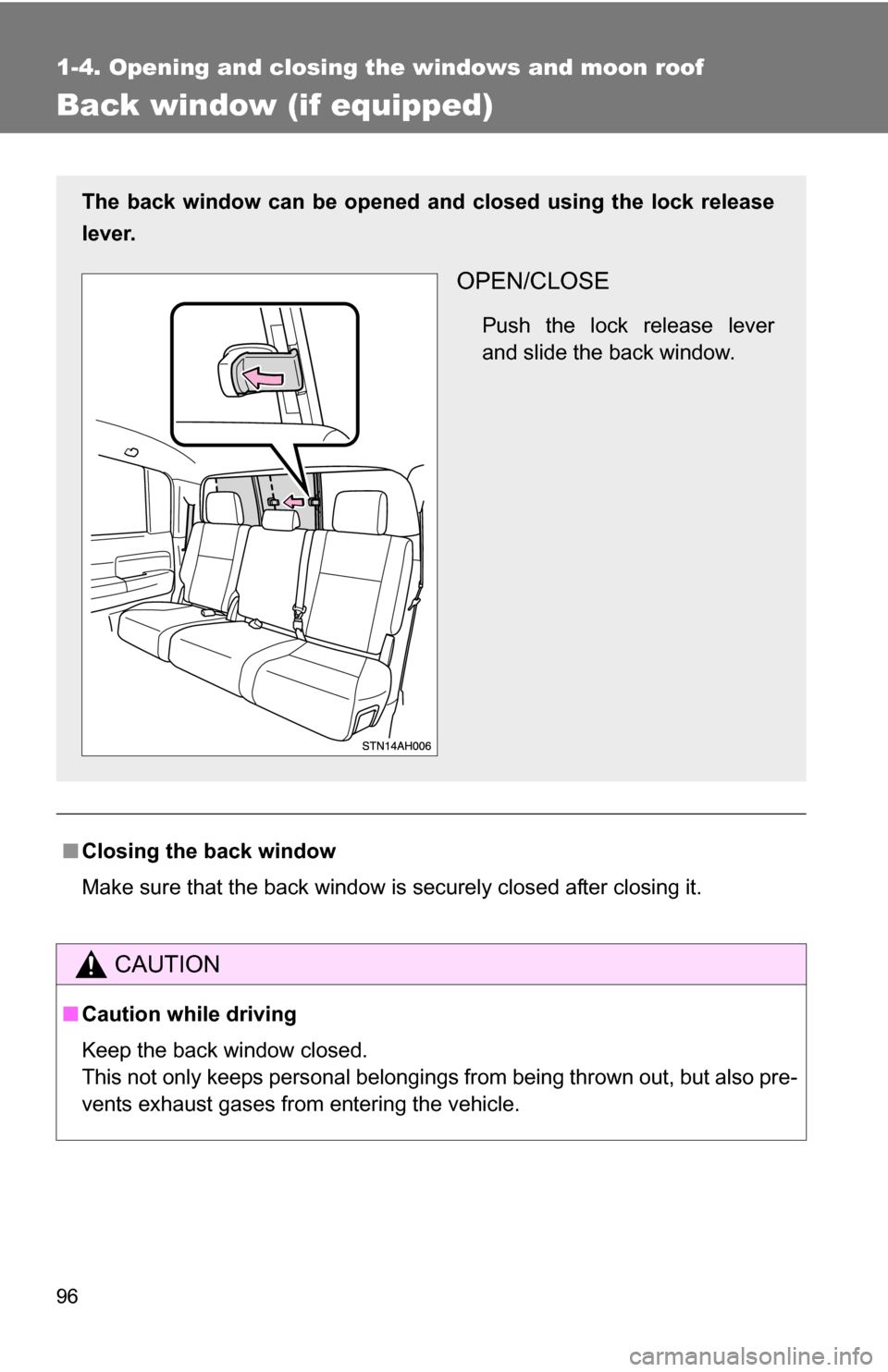

96
1-4. Opening and closing the windows and moon roof
Back window (if equipped)
■Closing the back window
Make sure that the back window is securely closed after closing it.
CAUTION
■Caution while driving
Keep the back window closed.
This not only keeps personal belongings from being thrown out, but also pre-
vents exhaust gases from entering the vehicle.
The back window can be opened and closed using the lock release
lever.
OPEN/CLOSE
Push the lock release lever
and slide the back window.
