2009 TOYOTA TUNDRA Owners Manual

65
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

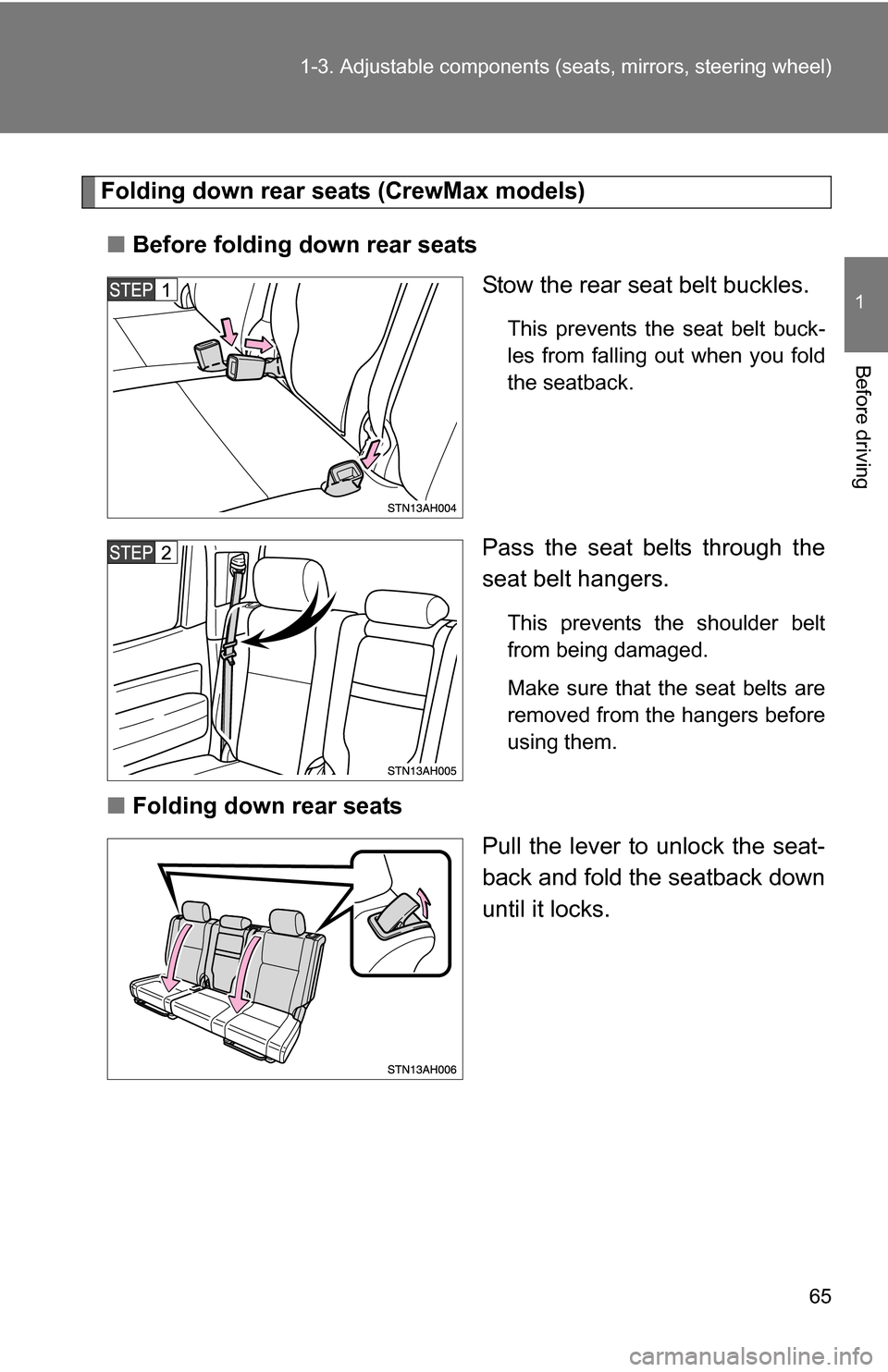

Folding down rear seats (CrewMax models)
■ Before folding down rear seats
Stow the rear seat belt buckles.
This prevents the seat belt buck-
les from falling out when you fold
the seatback.
Pass the seat belts through the
seat belt hangers.
This prevents the shoulder belt
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.
■Folding down rear seats
Pull the lever to unlock the seat-
back and fold the seatback down
until it locks.

66 1-3. Adjustable components (seats, mirrors, steering wheel)

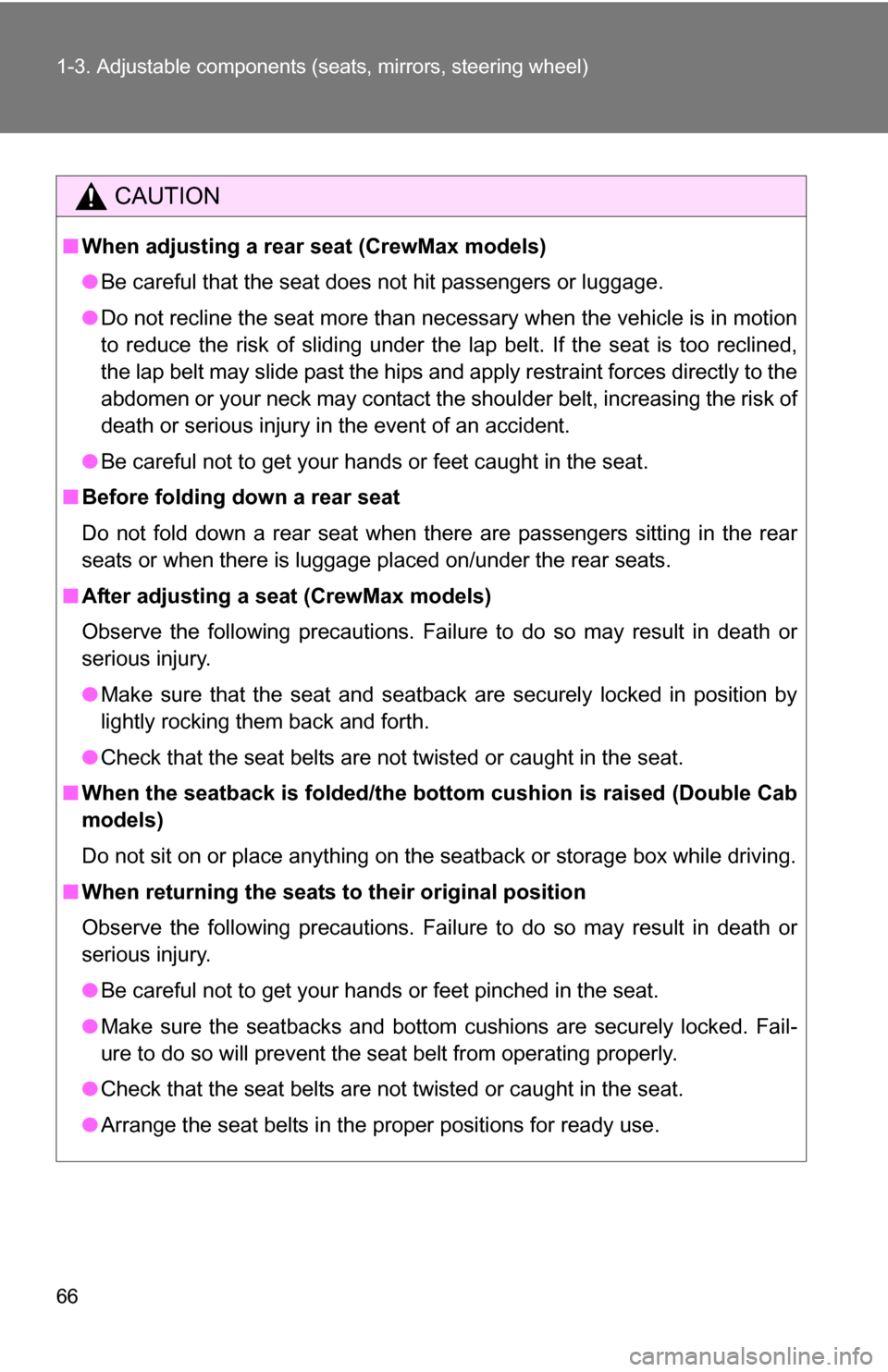

CAUTION
■When adjusting a rear seat (CrewMax models)
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined,
the lap belt may slide past the hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident.
● Be careful not to get your hands or feet caught in the seat.
■ Before folding down a rear seat
Do not fold down a rear seat when there are passengers sitting in the rear
seats or when there is luggage placed on/under the rear seats.
■ After adjusting a seat (CrewMax models)
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Make sure that the seat and seatback are securely locked in position by
lightly rocking them back and forth.
● Check that the seat belts are not twisted or caught in the seat.
■ When the seatback is folded/the bo ttom cushion is raised (Double Cab
models)
Do not sit on or place anything on the seatback or storage box while driving.
■ When returning the seats to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Be careful not to get your hands or feet pinched in the seat.
● Make sure the seatbacks and bottom cushions are securely locked. Fail-
ure to do so will prevent the seat belt from operating properly.
● Check that the seat belts are not twisted or caught in the seat.
● Arrange the seat belts in the proper positions for ready use.

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

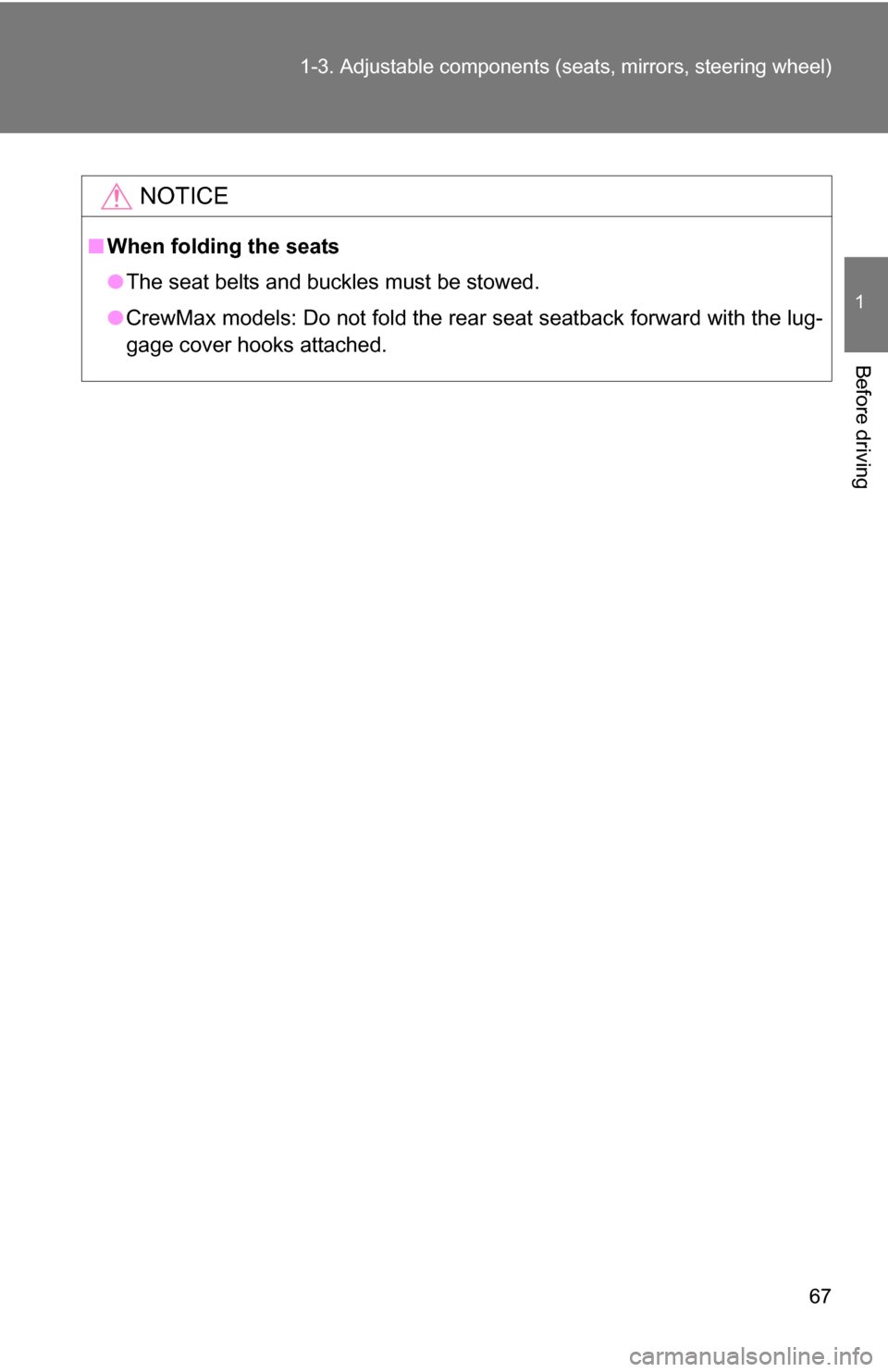

NOTICE
■When folding the seats
●The seat belts and buckles must be stowed.
● CrewMax models: Do not fold the rear seat seatback forward with the lug-
gage cover hooks attached.

68
1-3. Adjustable components (seats, mirrors, steering wheel)

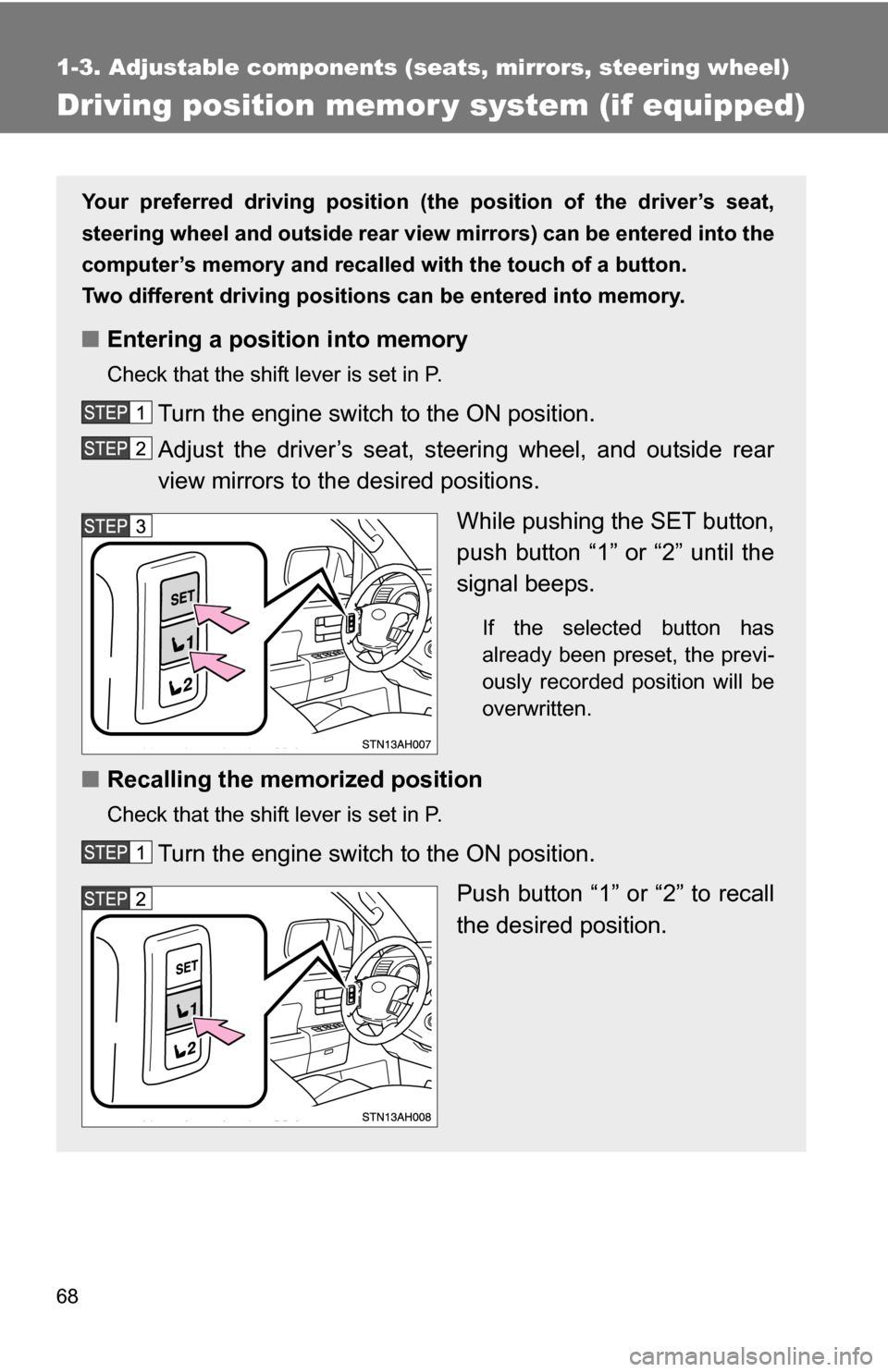

Driving position memor y system (if equipped)
Your preferred driving position (the position of the driver’s seat,
steering wheel and outside rear view mirrors) can be entered into the
computer’s memory and recalle d with the touch of a button.
Two different driving positions can be entered into memory.
■ Entering a position into memory
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Adjust the driver’s seat, steering wheel, and outside rear
view mirrors to the desired positions.
While pushing the SET button,
push button “1” or “2” until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Push button “1” or “2” to recall
the desired position.

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

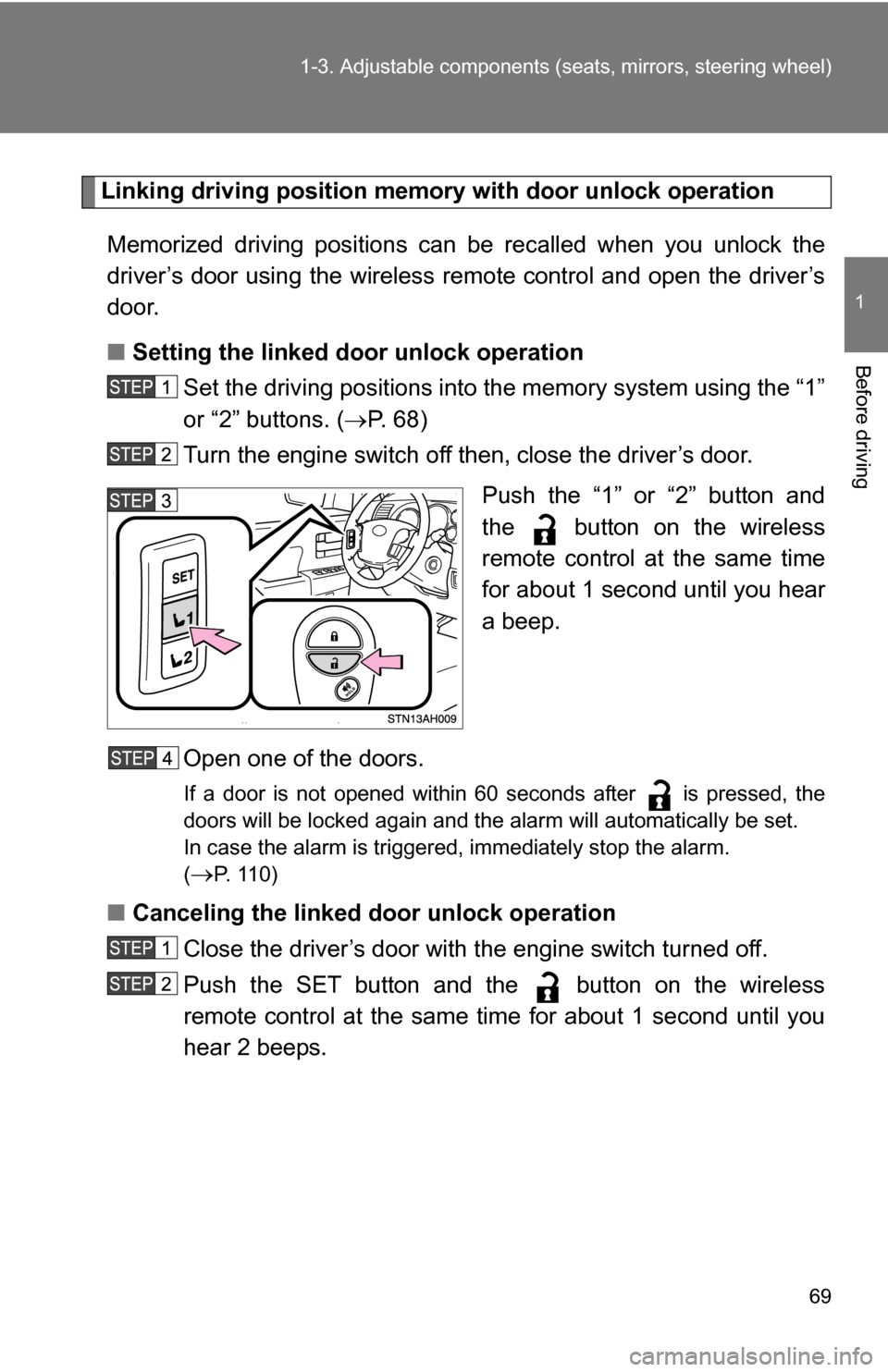

Linking driving position memory with door unlock operation
Memorized driving positions can be recalled when you unlock the
driver’s door using the wireless remote control and open the driver’s
door.
■ Setting the linked door unlock operation
Set the driving positions into the memory system using the “1”
or “2” buttons. ( P. 6 8 )
Turn the engine switch off then, close the driver’s door.
Push the “1” or “2” button and
the button on the wireless
remote control at the same time
for about 1 second until you hear
a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case the alarm is triggered, immediately stop the alarm.
(
P. 1 1 0 )
■ Canceling the linked door unlock operation
Close the driver’s door with the engine switch turned off.
Push the SET button and the button on the wireless
remote control at the same time for about 1 second until you
hear 2 beeps.

70 1-3. Adjustable components (seats, mirrors, steering wheel)

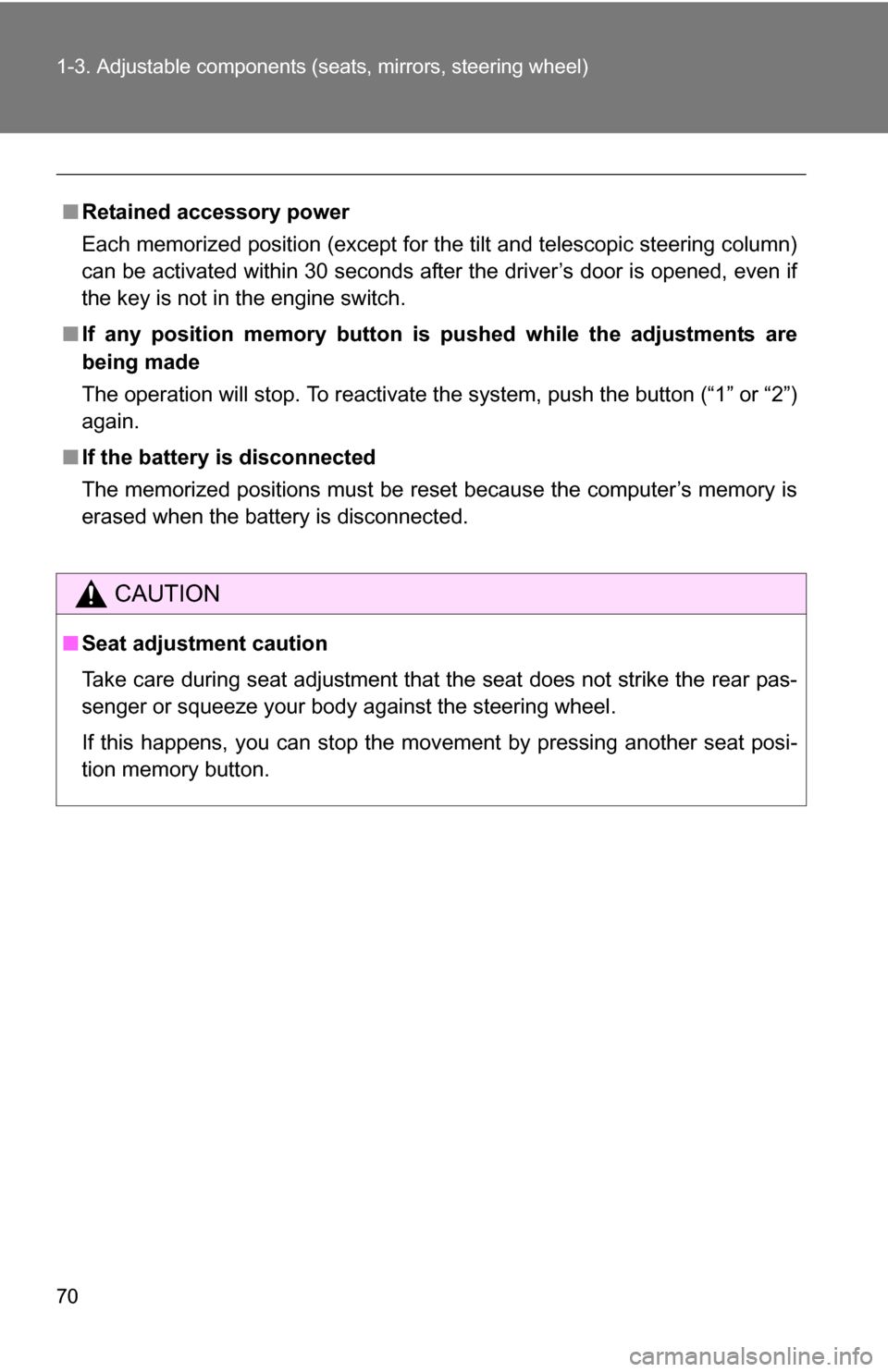

■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column)
can be activated within 30 seconds after the driver’s door is opened, even if
the key is not in the engine switch.
■ If any position memory button is pushed while the adjustments are
being made
The operation will stop. To reactivate the system, push the button (“1” or “2”)
again.
■ If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat posi-
tion memory button.

71
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

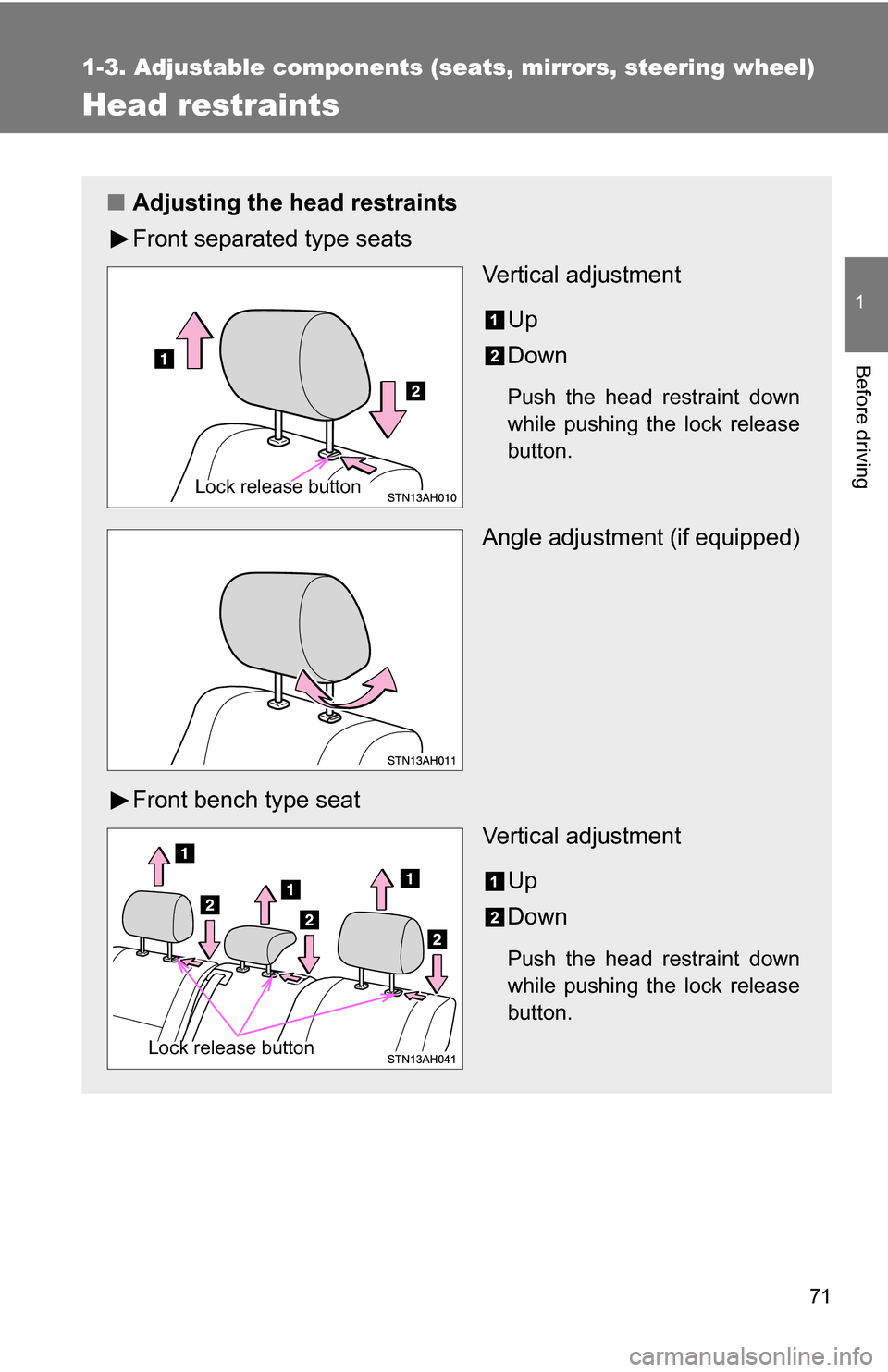

Head restraints
■Adjusting the head restraints
Front separated type seats
Vertical adjustment
Up
Down
Push the head restraint down
while pushing the lock release
button.
Angle adjustment (if equipped)
Front bench type seat Vertical adjustment
Up
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button

72 1-3. Adjustable components (seats, mirrors, steering wheel)

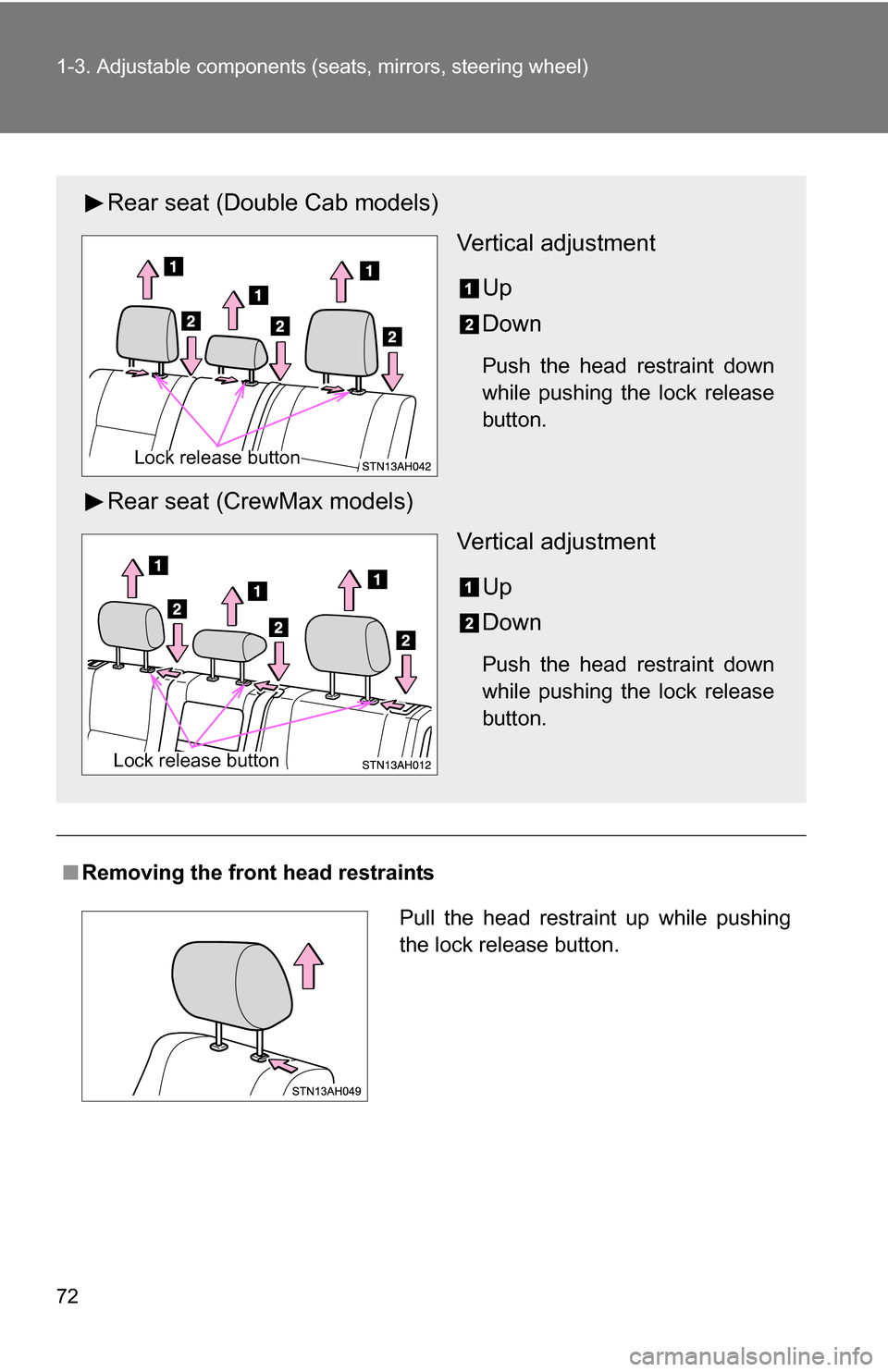

■Removing the front head restraints
Rear seat (Double Cab models)
Vertical adjustment
Up
Down
Push the head restraint down
while pushing the lock release
button.
Rear seat (CrewMax models) Vertical adjustment
Up
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button
Pull the head restraint up while pushing
the lock release button.
