2009 TOYOTA TUNDRA Owners Manual

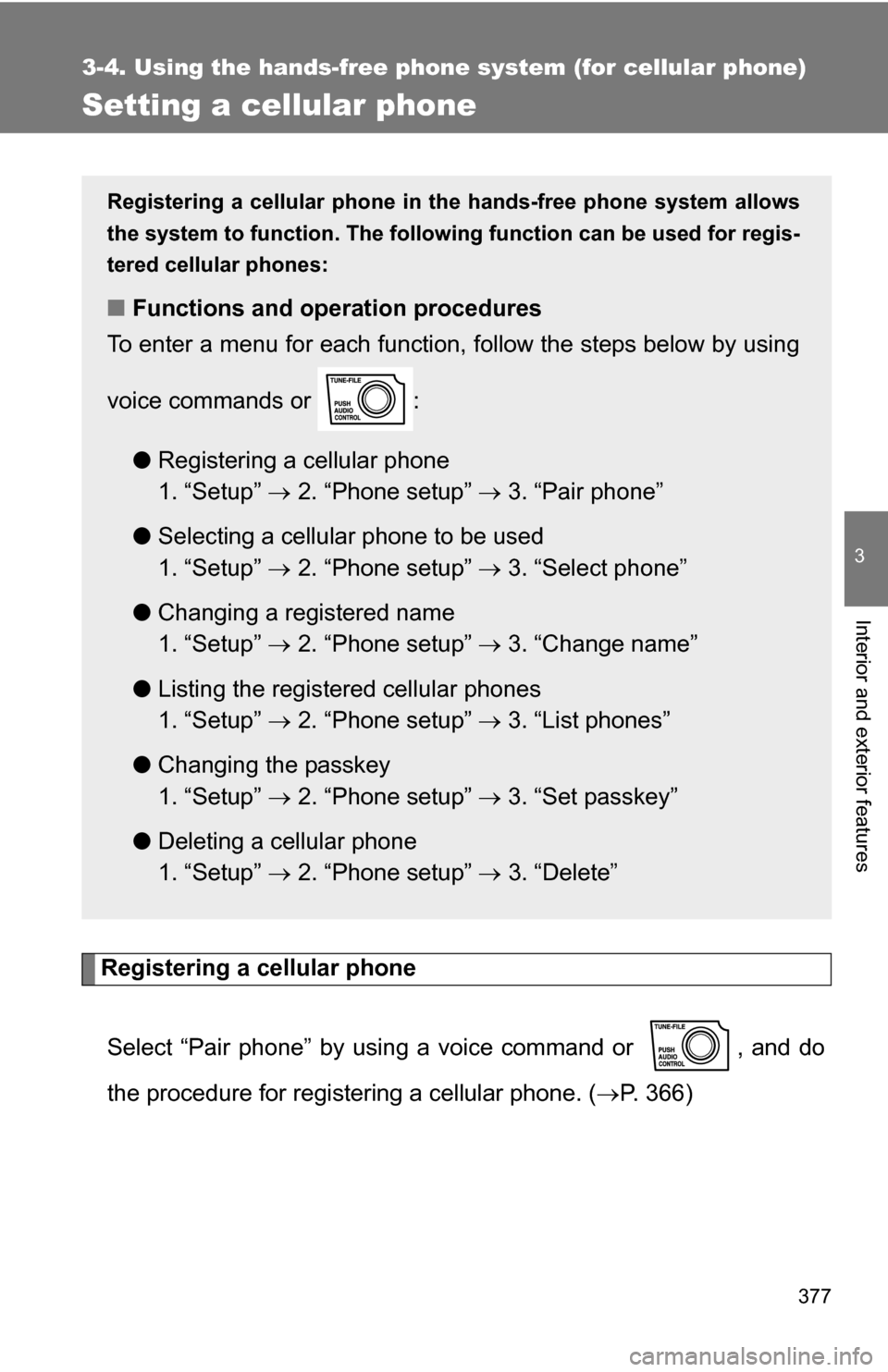

377
3-4. Using the hands-free phone system (for cellular phone)
3
Interior and exterior features
Setting a cellular phone
Registering a cellular phoneSelect “Pair phone” by using a voice command or , and do
the procedure for registering a cellular phone. ( P. 366)
Registering a cellular phone in the hands-free phone system allows
the system to function. The following function can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter a menu for each function, follow the steps below by using
voice commands or :
●Registering a cellular phone
1. “Setup”  2. “Phone setup”  3. “Pair phone”
● Selecting a cellular phone to be used
1. “Setup”  2. “Phone setup”  3. “Select phone”
● Changing a registered name
1. “Setup”  2. “Phone setup”  3. “Change name”
● Listing the registered cellular phones
1. “Setup”  2. “Phone setup”  3. “List phones”
● Changing the passkey
1. “Setup”  2. “Phone setup”  3. “Set passkey”
● Deleting a cellular phone
1. “Setup”  2. “Phone setup”  3. “Delete”

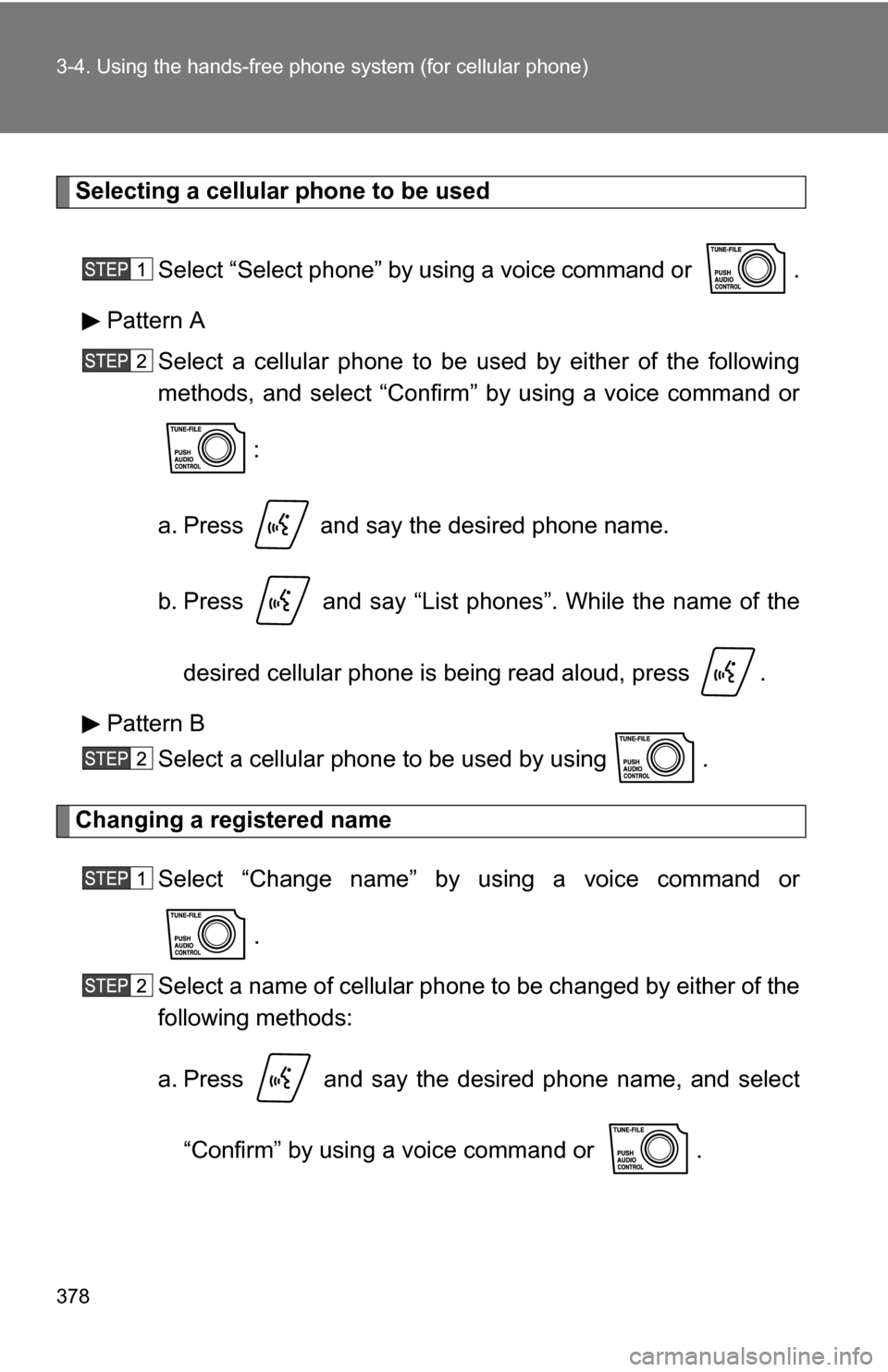

378 3-4. Using the hands-free phone system (for cellular phone)
Selecting a cellular phone to be used
Select “Select phone” by using a voice command or .
Pattern A Select a cellular phone to be used by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press and say the desired phone name.
b. Press and say “List phones”. While the name of the desired cellular phone is being read aloud, press .
Pattern B Select a cellular phone to be used by using .
Changing a registered name
Select “Change name” by using a voice command or .
Select a name of cellular phone to be changed by either of the
following methods:
a. Press and say the desired phone name, and select
“Confirm” by using a voice command or .

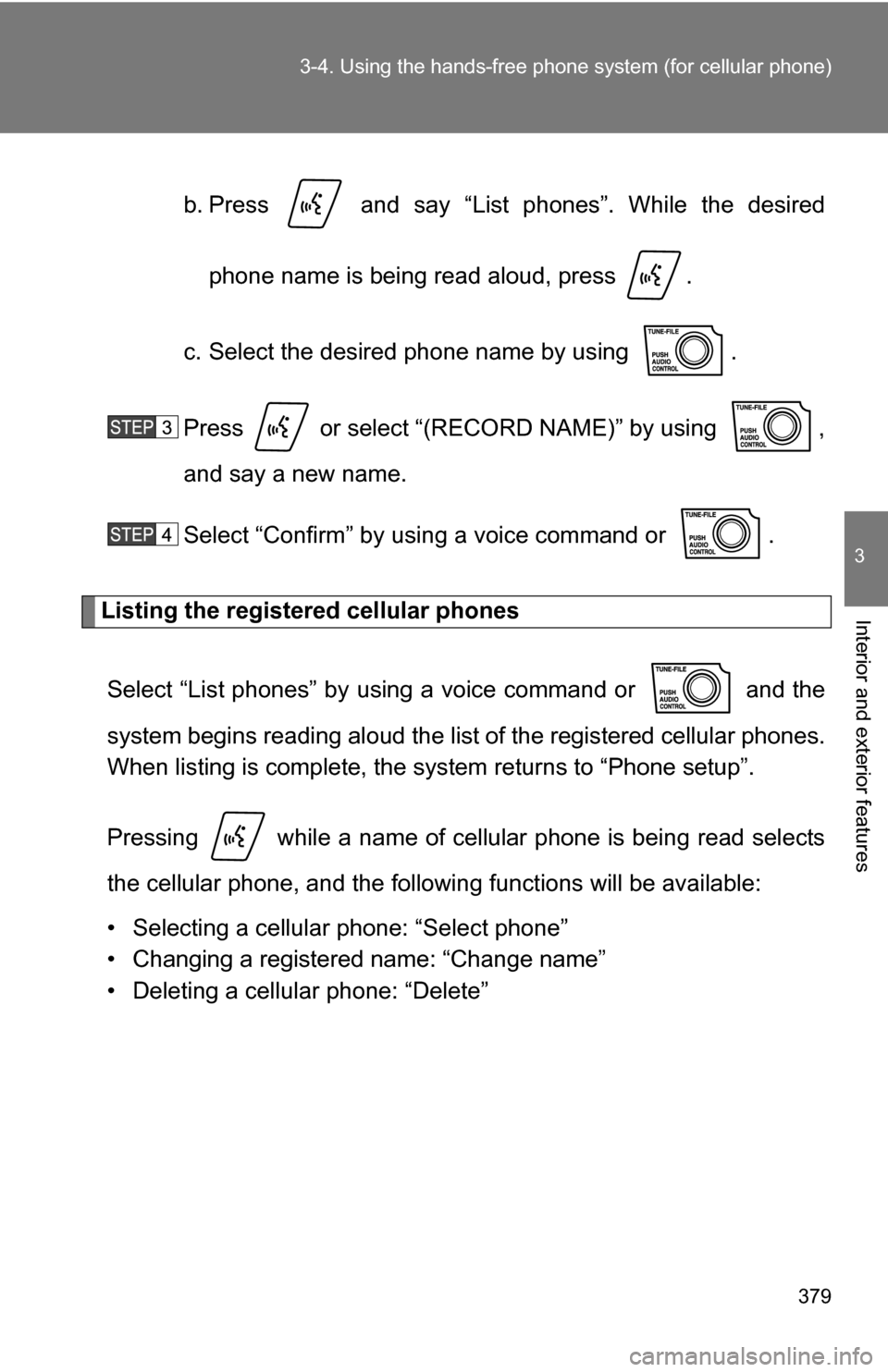

379
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features
b. Press and say “List phones”. While the desired
phone name is being read aloud, press .
c. Select the desired phone name by using .
Press or select “(RECORD NAME)” by using ,
and say a new name.
Select “Confirm” by using a voice command or .
Listing the registered cellular phones
Select “List phones” by using a voice command or and the
system begins reading aloud the list of the registered cellular phones.
When listing is complete, the system returns to “Phone setup”.
Pressing while a name of cellular phone is being read selects
the cellular phone, a nd the following functions will be available:
• Selecting a cellular phone: “Select phone”
• Changing a registered name: “Change name”
• Deleting a cellular phone: “Delete”

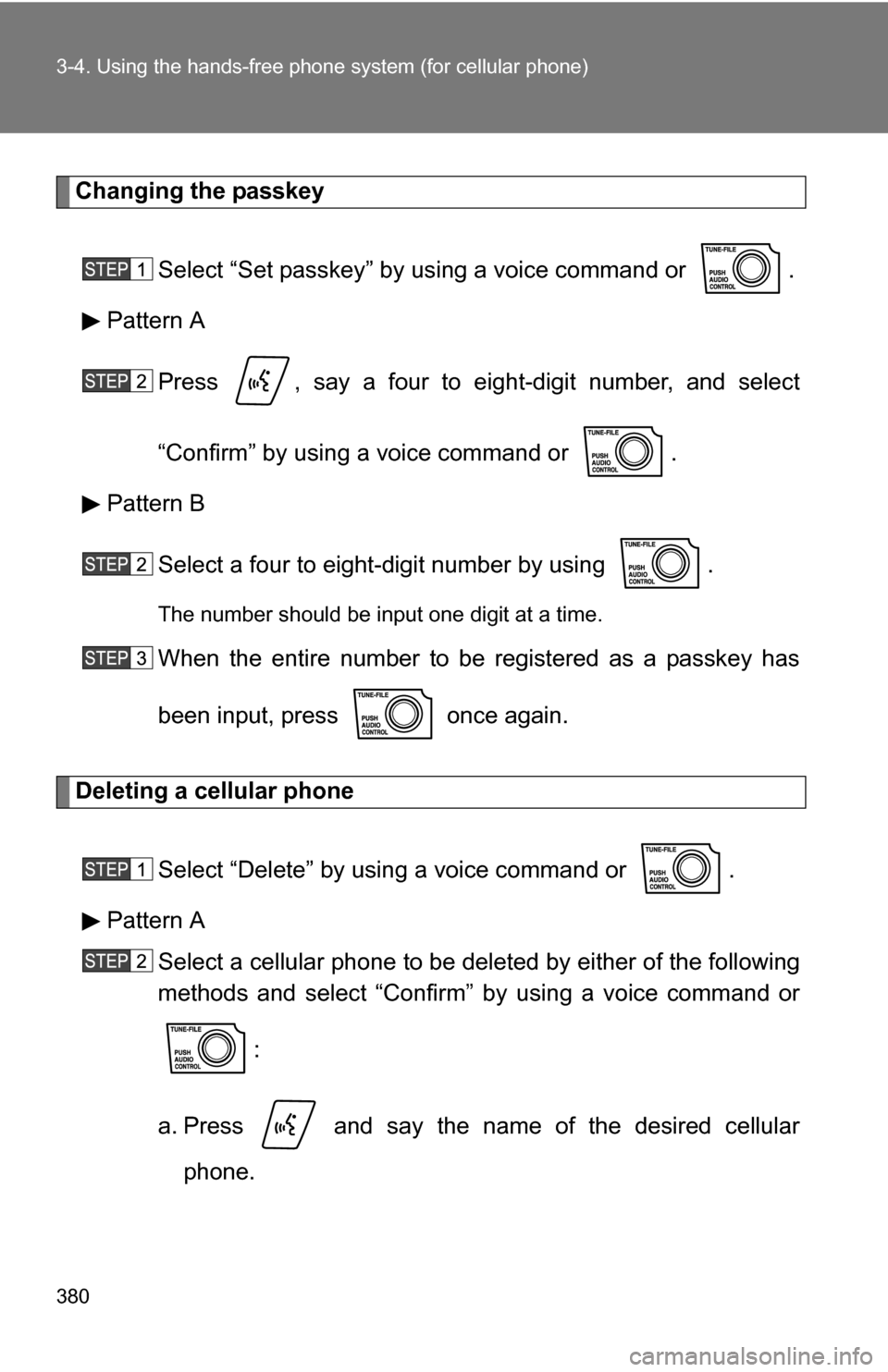

380 3-4. Using the hands-free phone system (for cellular phone)
Changing the passkey
Select “Set passkey” by using a voice command or .
Pattern A
Press , say a four to eight-digit number, and select
“Confirm” by using a voice command or .
Pattern B
Select a four to eight-digit number by using .
The number should be input one digit at a time.
When the entire number to be registered as a passkey has
been input, press once again.
Deleting a cellular phone
Select “Delete” by using a voice command or .
Pattern A Select a cellular phone to be deleted by either of the following
methods and select “Confirm” by using a voice command or
:
a. Press and say the name of the desired cellular phone.

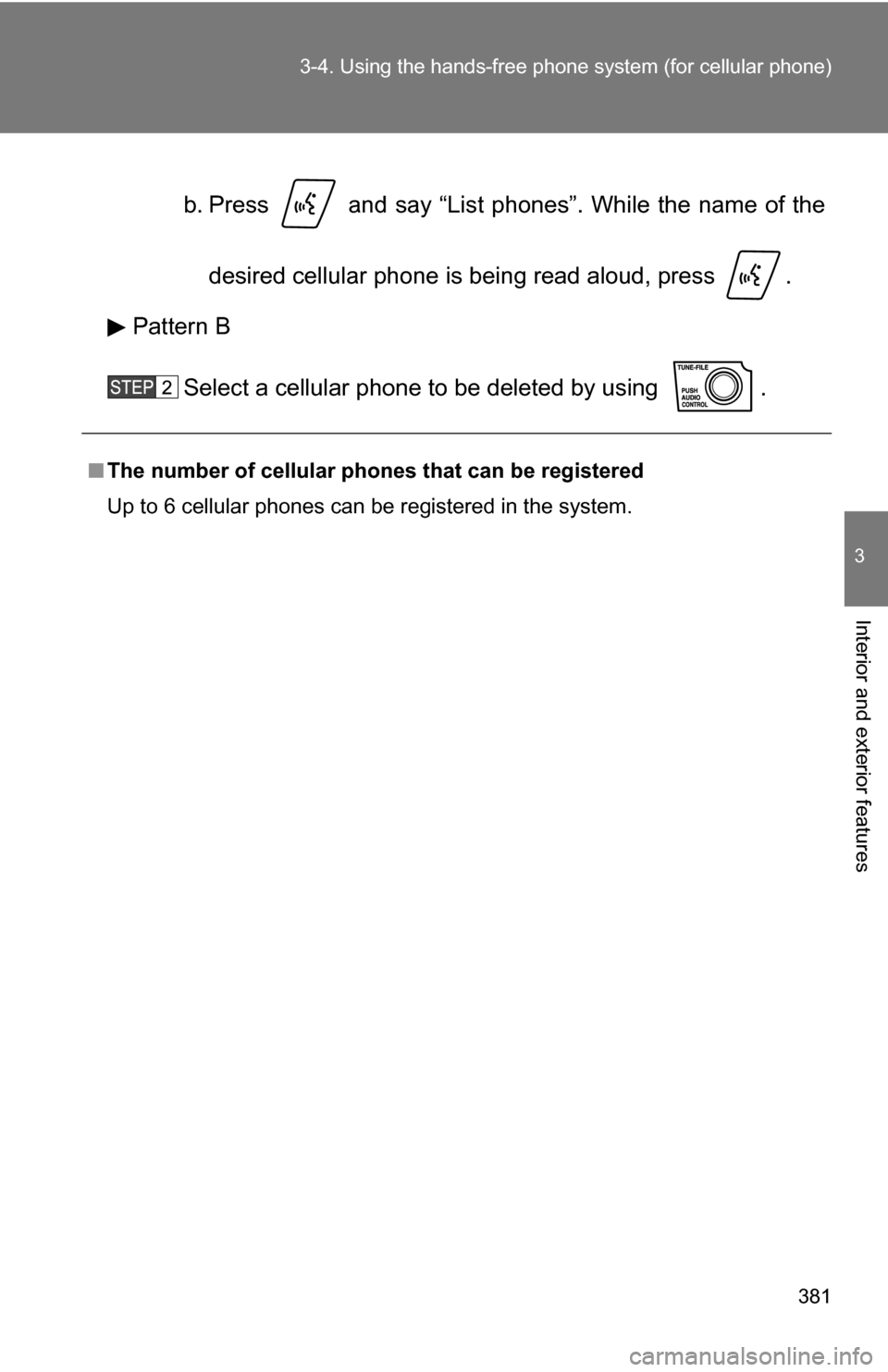

381
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features
b. Press and say “List phones”. While the name of the
desired cellular phone is being read aloud, press .
Pattern B
Select a cellular phone to be deleted by using .
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.

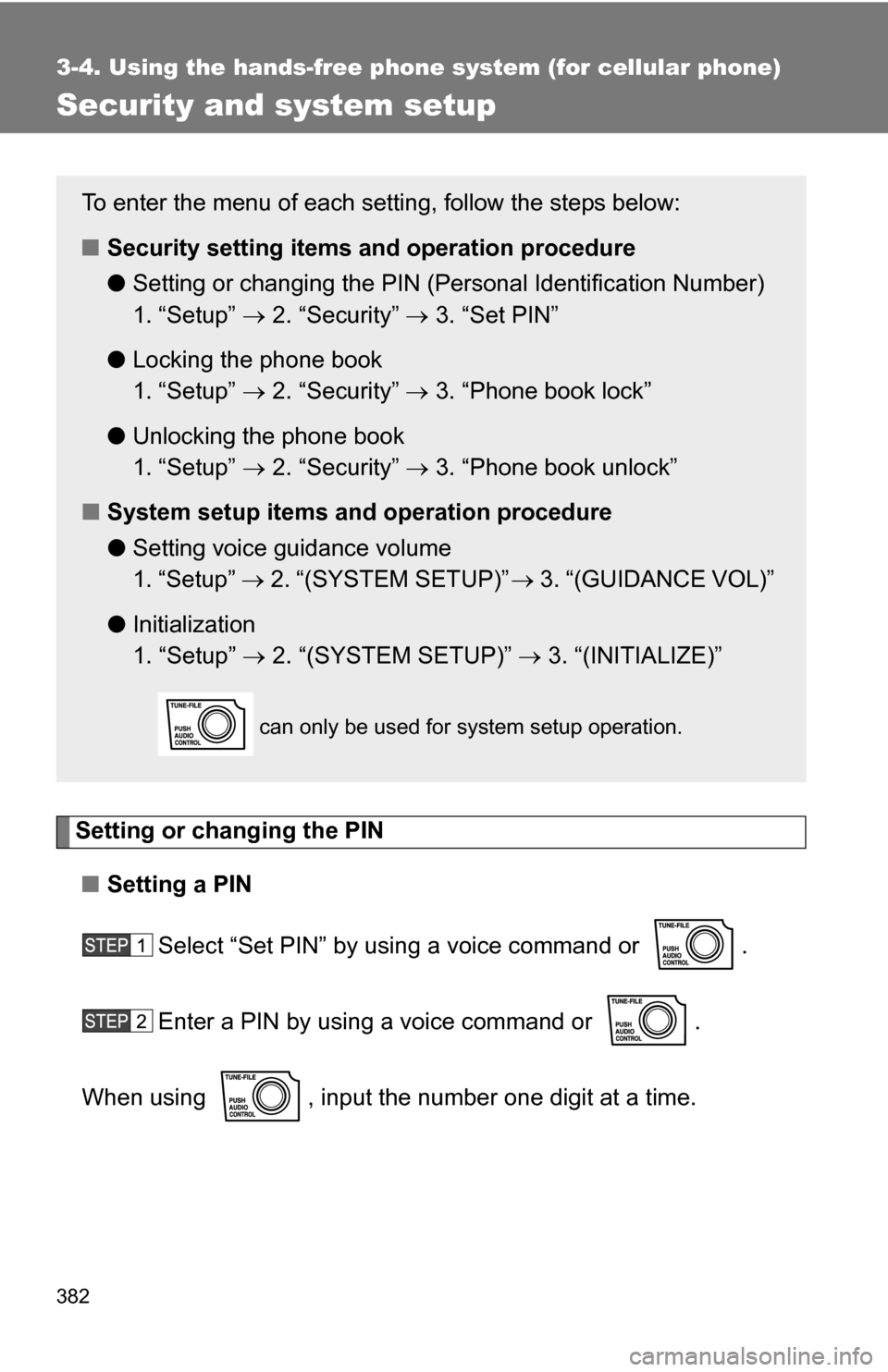

382
3-4. Using the hands-free phone system (for cellular phone)
Security and system setup
Setting or changing the PIN■ Setting a PIN
Select “Set PIN” by using a voice command or .
Enter a PIN by using a voice command or .
When using , input the number one digit at a time.
To enter the menu of each setting, follow the steps below:
■ Security setting items and operation procedure
● Setting or changing t he PIN (Personal Identification Number)
1. “Setup”  2. “Security”  3. “Set PIN”
● Locking the phone book
1. “Setup”  2. “Security”  3. “Phone book lock”
● Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phone book unlock”
■ System setup items and operation procedure
●Setting voice guidance volume
1. “Setup”  2. “(SYSTEM SETUP)”  3. “(GUIDANCE VOL)”
● Initialization
1. “Setup”  2. “(SYSTEM SETUP)”  3. “(INITIALIZE)”
can only be used for system setup operation.

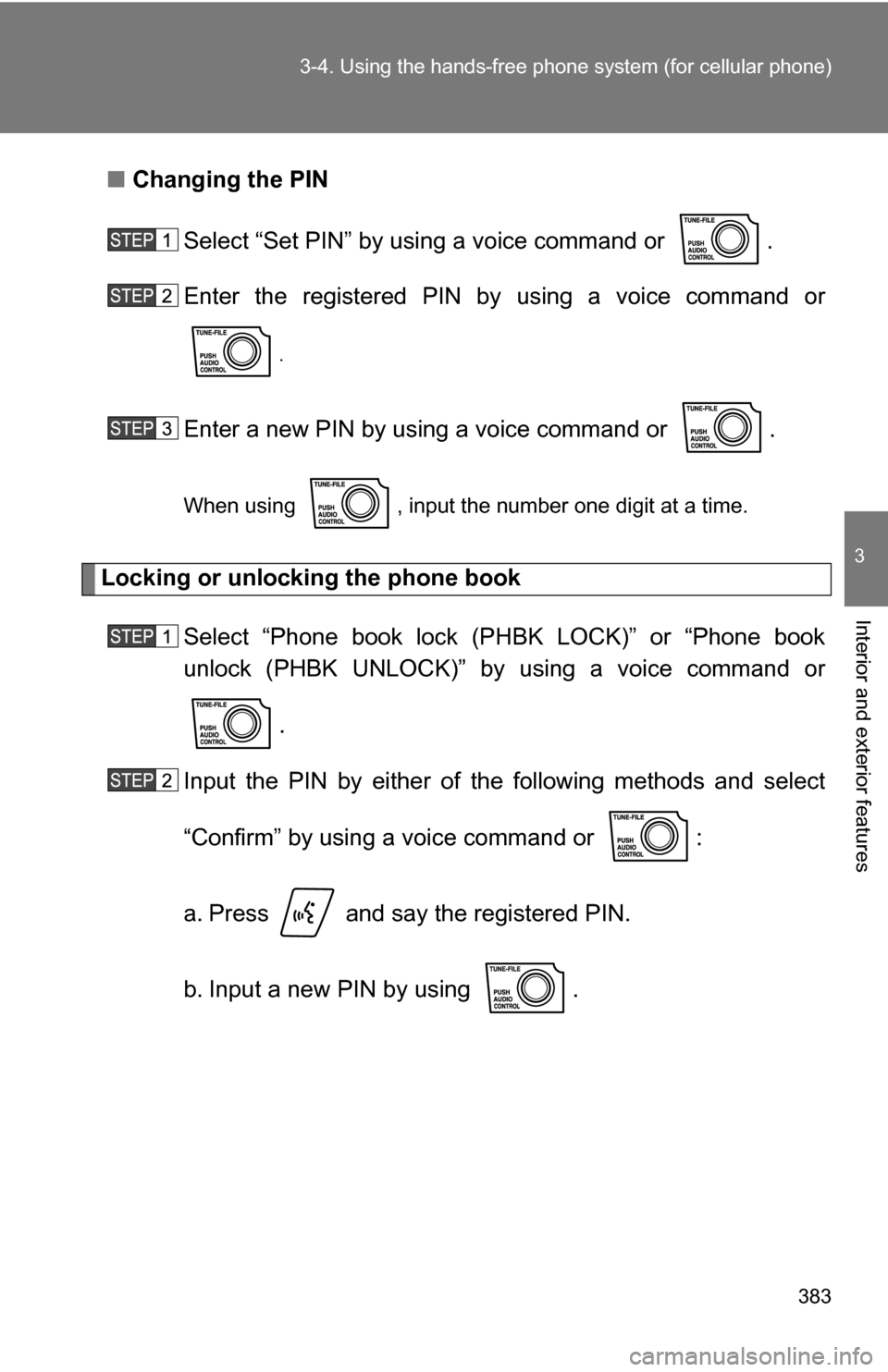

383
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features
■Changing the PIN
Select “Set PIN” by using a voice command or .
Enter the registered PIN by using a voice command or
.
Enter a new PIN by using a voice command or .
When using , input the number one digit at a time.
Locking or unlocking the phone book
Select “Phone book lock (PHBK LOCK)” or “Phone book
unlock (PHBK UNLOCK)” by using a voice command or .
Input the PIN by either of the following methods and select
“Confirm” by using a voice command or :
a. Press and say the registered PIN.
b. Input a new PIN by using .

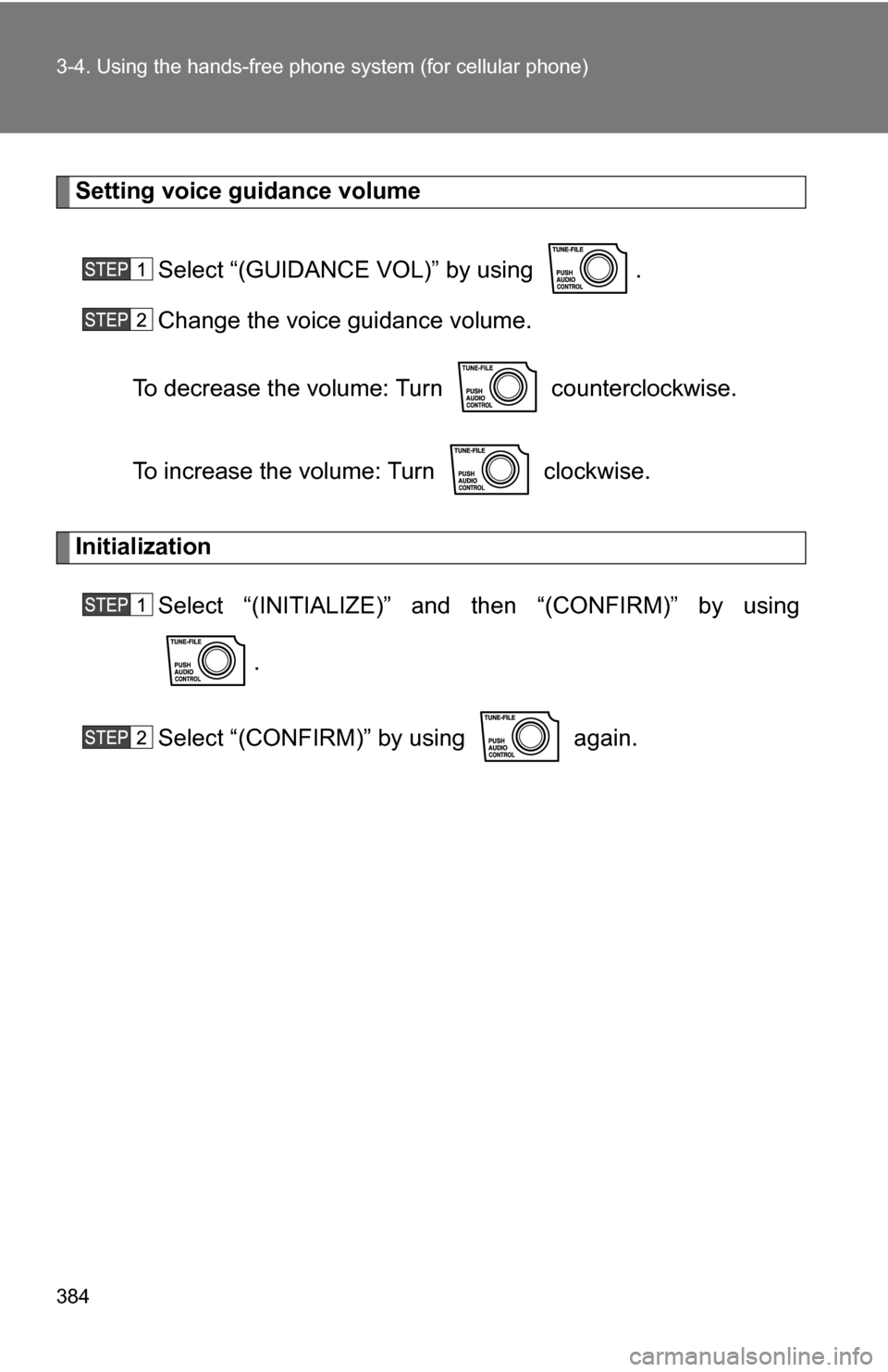

384 3-4. Using the hands-free phone system (for cellular phone)
Setting voice guidance volume
Select “(GUIDANCE VOL)” by using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Initialization Select “(INITIALIZE)” and then “(CONFIRM)” by using .
Select “(CONFIRM)” by using again.
