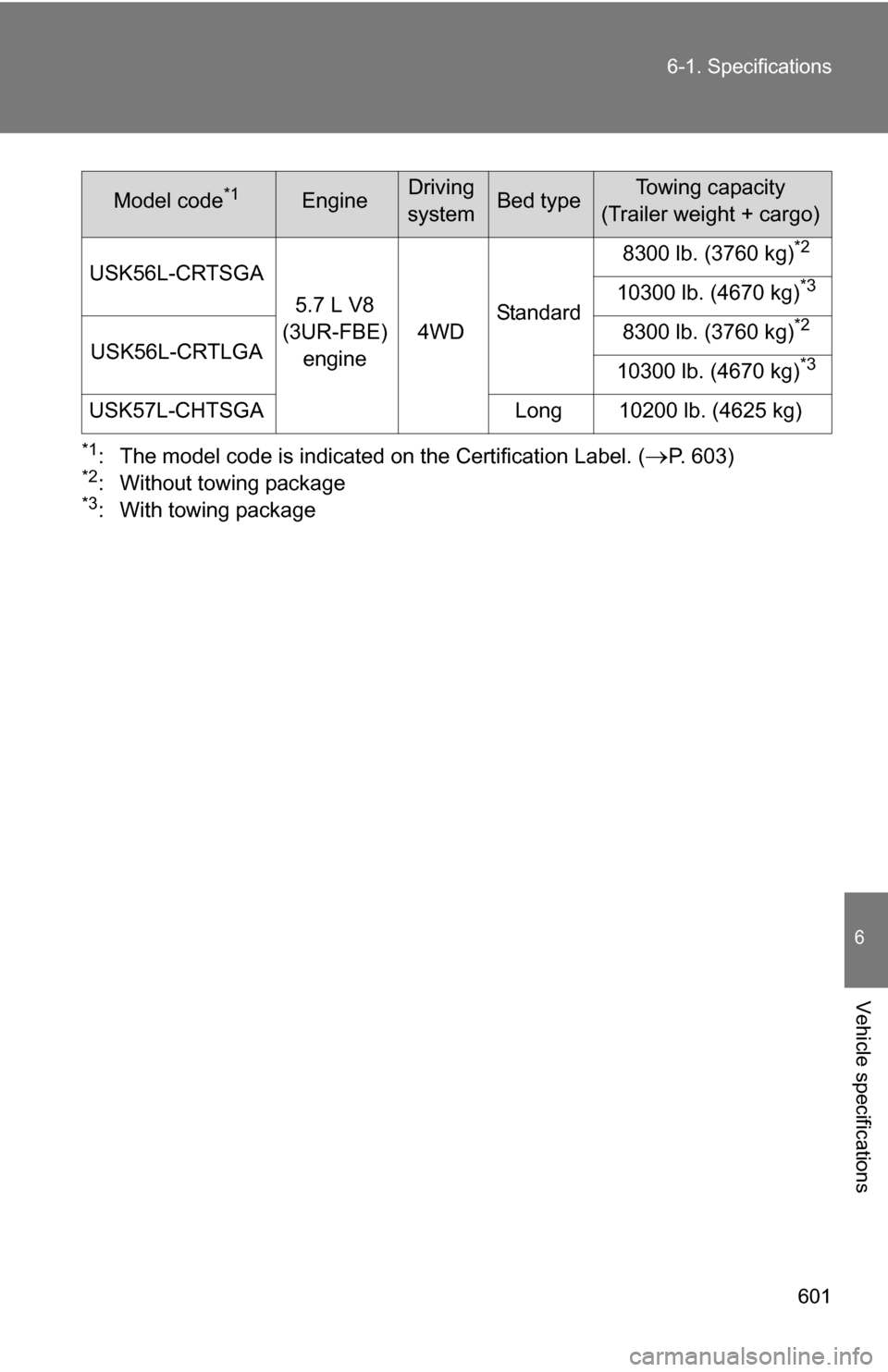

2009 TOYOTA TUNDRA Owners Manual

601
6-1. Specifications
6
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package
USK56L-CRTSGA
5.7 L V8
(3UR-FBE) engine 4WD
Standard 8300 lb. (3760 kg)
*2
10300 lb. (4670 kg)*3
USK56L-CRTLGA
8300 lb. (3760 kg)
*2
10300 lb. (4670 kg)*3
USK57L-CHTSGA
Long 10200 lb. (4625 kg)
Model code*1EngineDriving
systemBed typeTowing capacity
(Trailer weight + cargo)

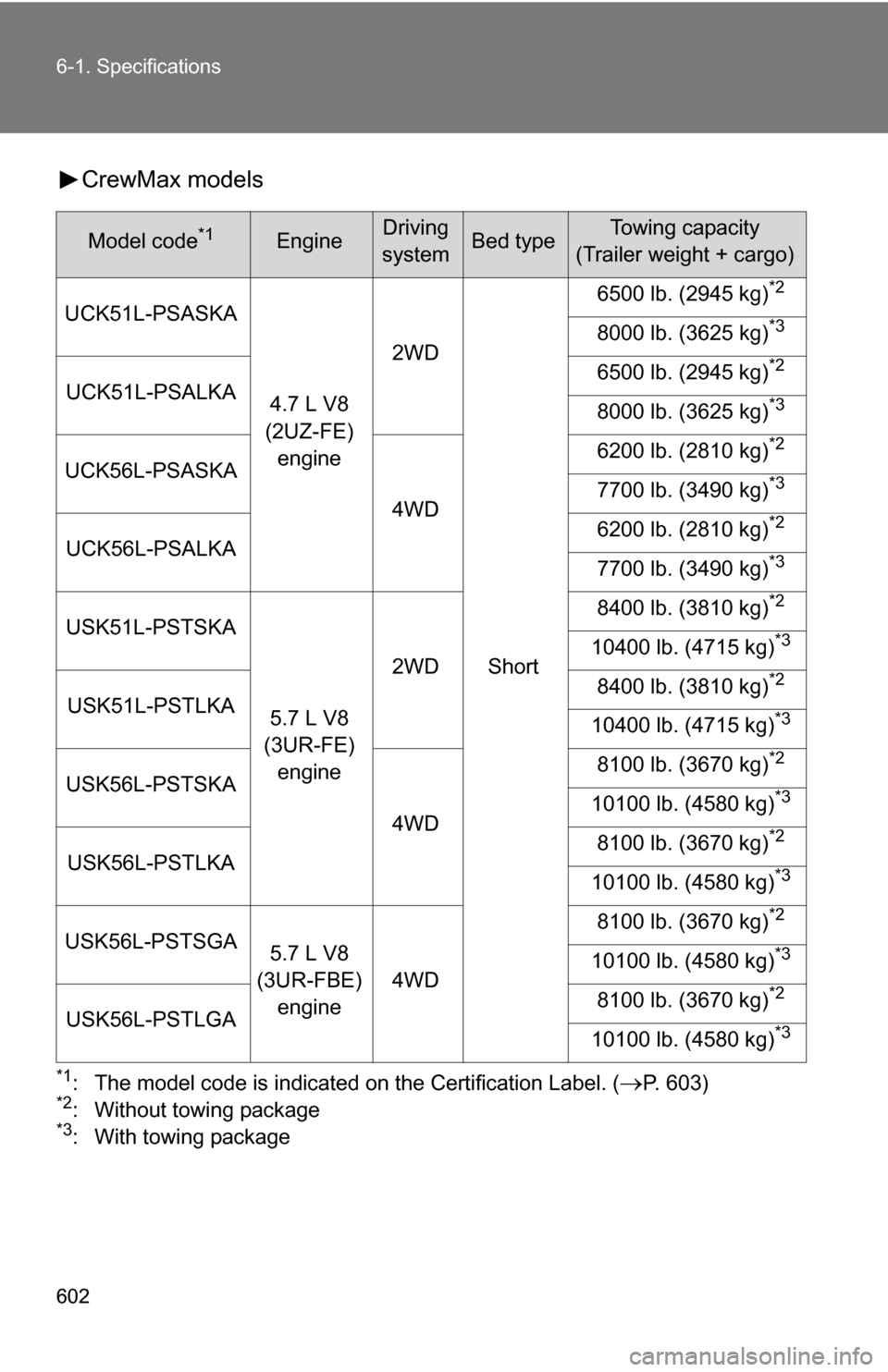

602 6-1. Specifications
CrewMax models
*1: The model code is indicated on the Certification Label. (P. 603)*2: Without towing package*3: With towing package
Model code*1EngineDriving
systemBed typeTowing capacity
(Trailer weight + cargo)
UCK51L-PSASKA
4.7 L V8
(2UZ-FE) engine 2WD
Short 6500 lb. (2945 kg)
*2
8000 lb. (3625 kg)*3
UCK51L-PSALKA
6500 lb. (2945 kg)
*2
8000 lb. (3625 kg)*3
UCK56L-PSASKA
4WD 6200 lb. (2810 kg)
*2
7700 lb. (3490 kg)*3
UCK56L-PSALKA
6200 lb. (2810 kg)
*2
7700 lb. (3490 kg)*3
USK51L-PSTSKA
5.7 L V8
(3UR-FE) engine 2WD
8400 lb. (3810 kg)
*2
10400 lb. (4715 kg)*3
USK51L-PSTLKA
8400 lb. (3810 kg)
*2
10400 lb. (4715 kg)*3
USK56L-PSTSKA
4WD 8100 lb. (3670 kg)
*2
10100 lb. (4580 kg)*3
USK56L-PSTLKA
8100 lb. (3670 kg)
*2
10100 lb. (4580 kg)*3
USK56L-PSTSGA
5.7 L V8
(3UR-FBE) engine 4WD 8100 lb. (3670 kg)
*2
10100 lb. (4580 kg)*3
USK56L-PSTLGA
8100 lb. (3670 kg)
*2
10100 lb. (4580 kg)*3

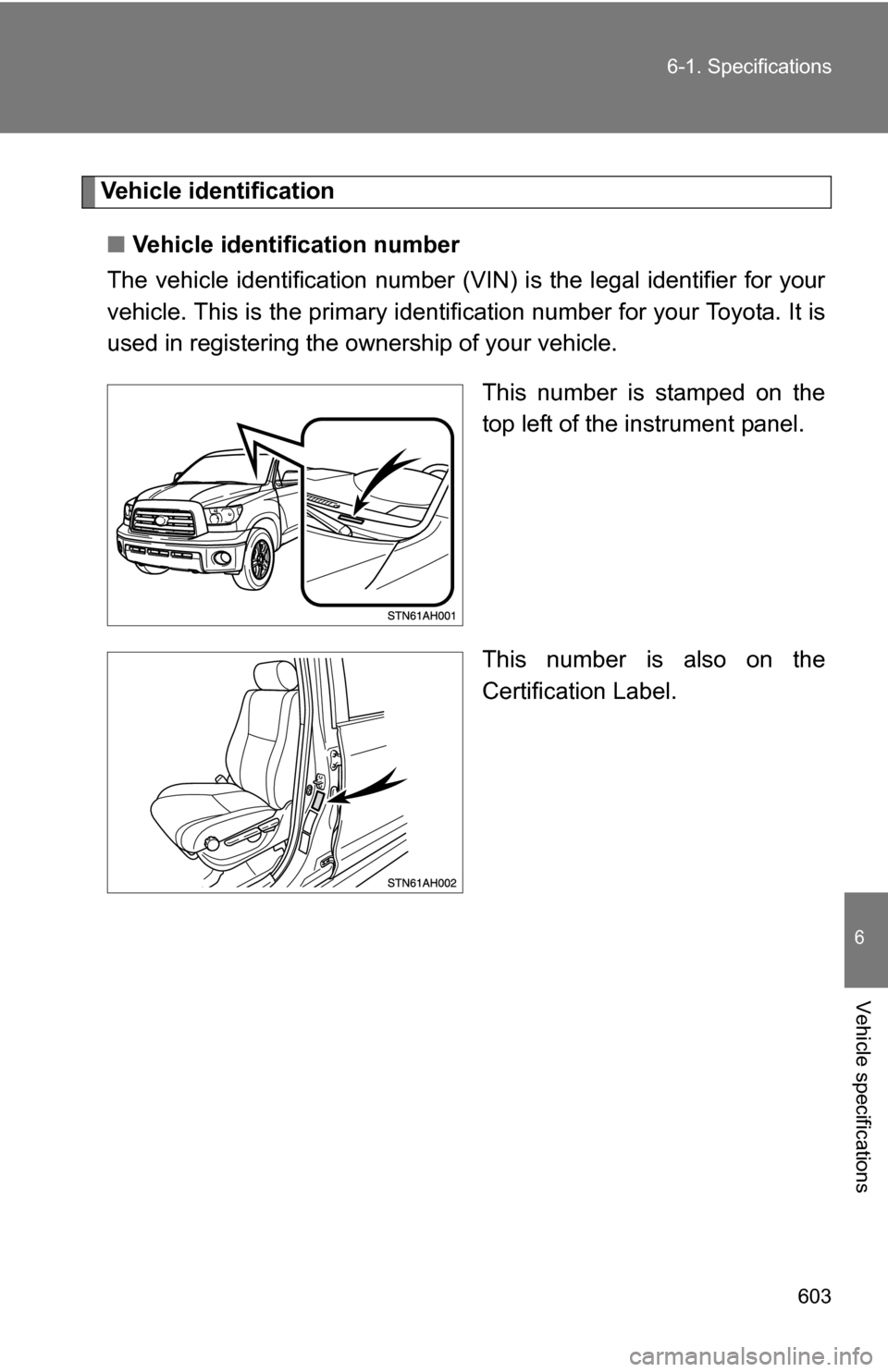

603
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.

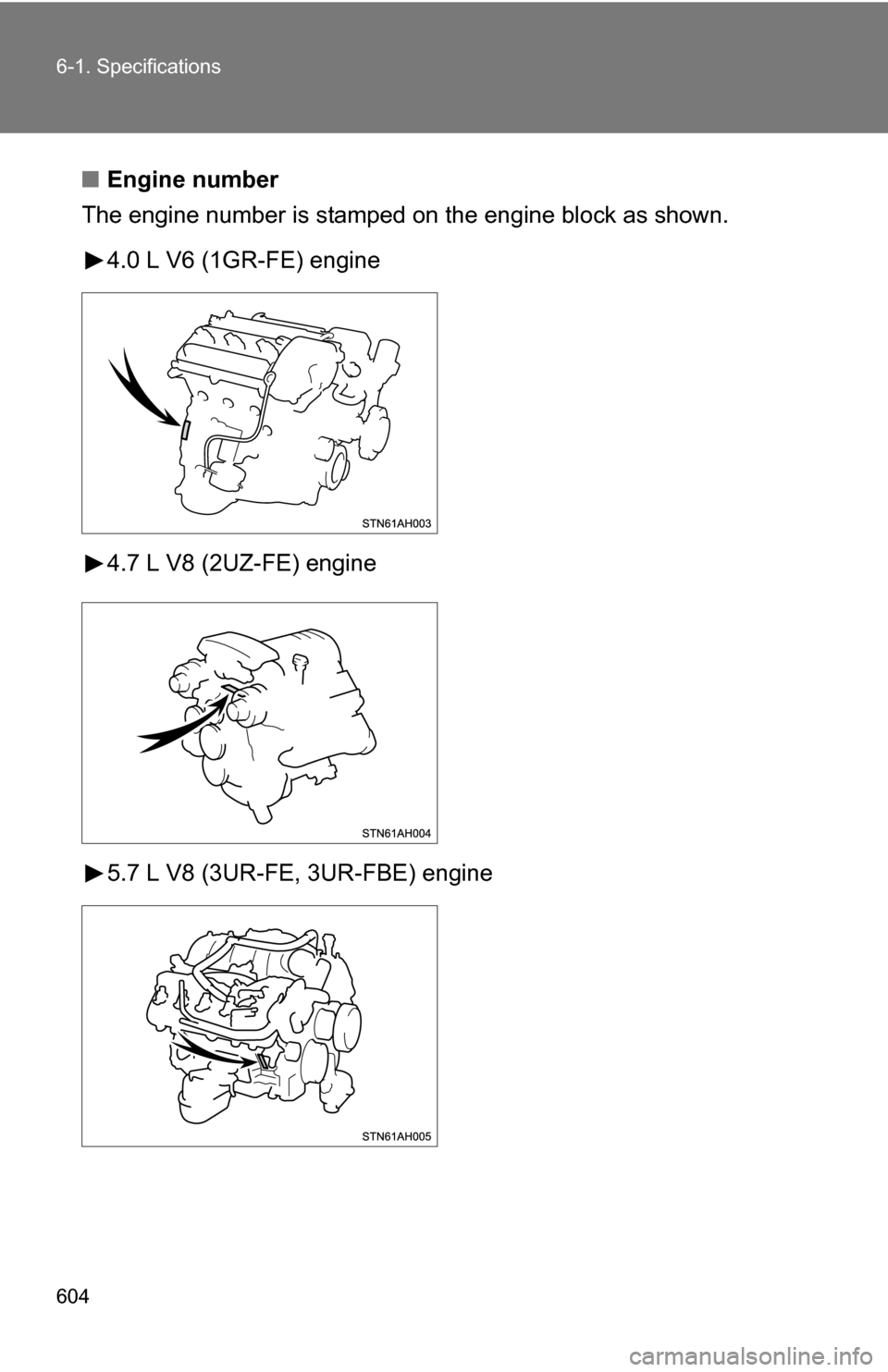

604 6-1. Specifications
■Engine number
The engine number is stamped on the engine bl ock as shown.
4.0 L V6 (1GR-FE) engine
4.7 L V8 (2UZ-FE) engine
5.7 L V8 (3UR-FE, 3UR-FBE) engine

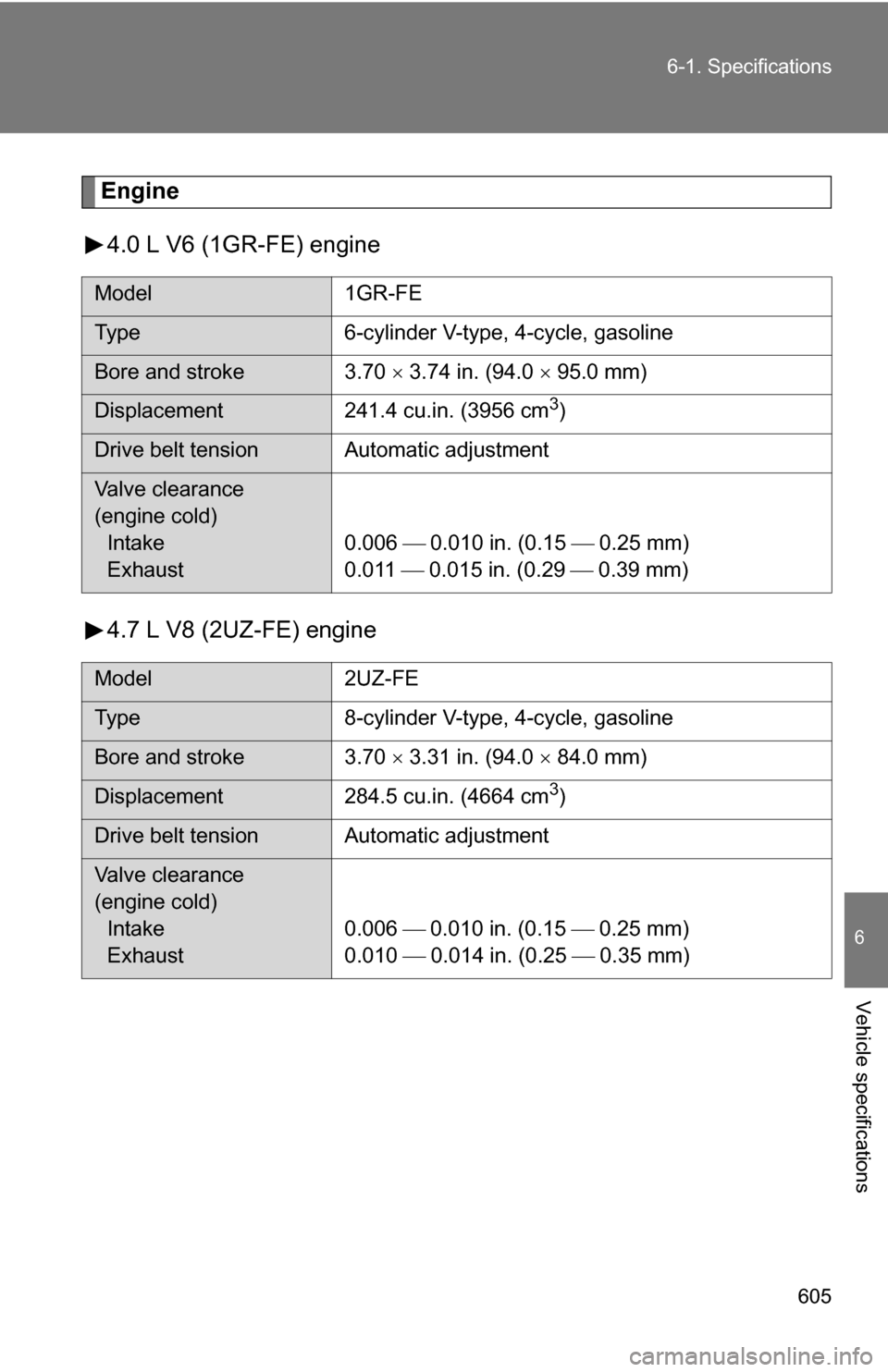

605
6-1. Specifications
6
Vehicle specifications
Engine
4.0 L V6 (1GR-FE) engine
4.7 L V8 (2UZ-FE) engine
Model 1GR-FE
Type 6-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.006 
0.010 in. (0.15  0.25 mm)
0.011  0.015 in. (0.29  0.39 mm)
Model 2UZ-FE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  3.31 in. (94.0  84.0 mm)
Displacement 284.5 cu.in. (4664 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.006 
0.010 in. (0.15  0.25 mm)
0.010  0.014 in. (0.25  0.35 mm)

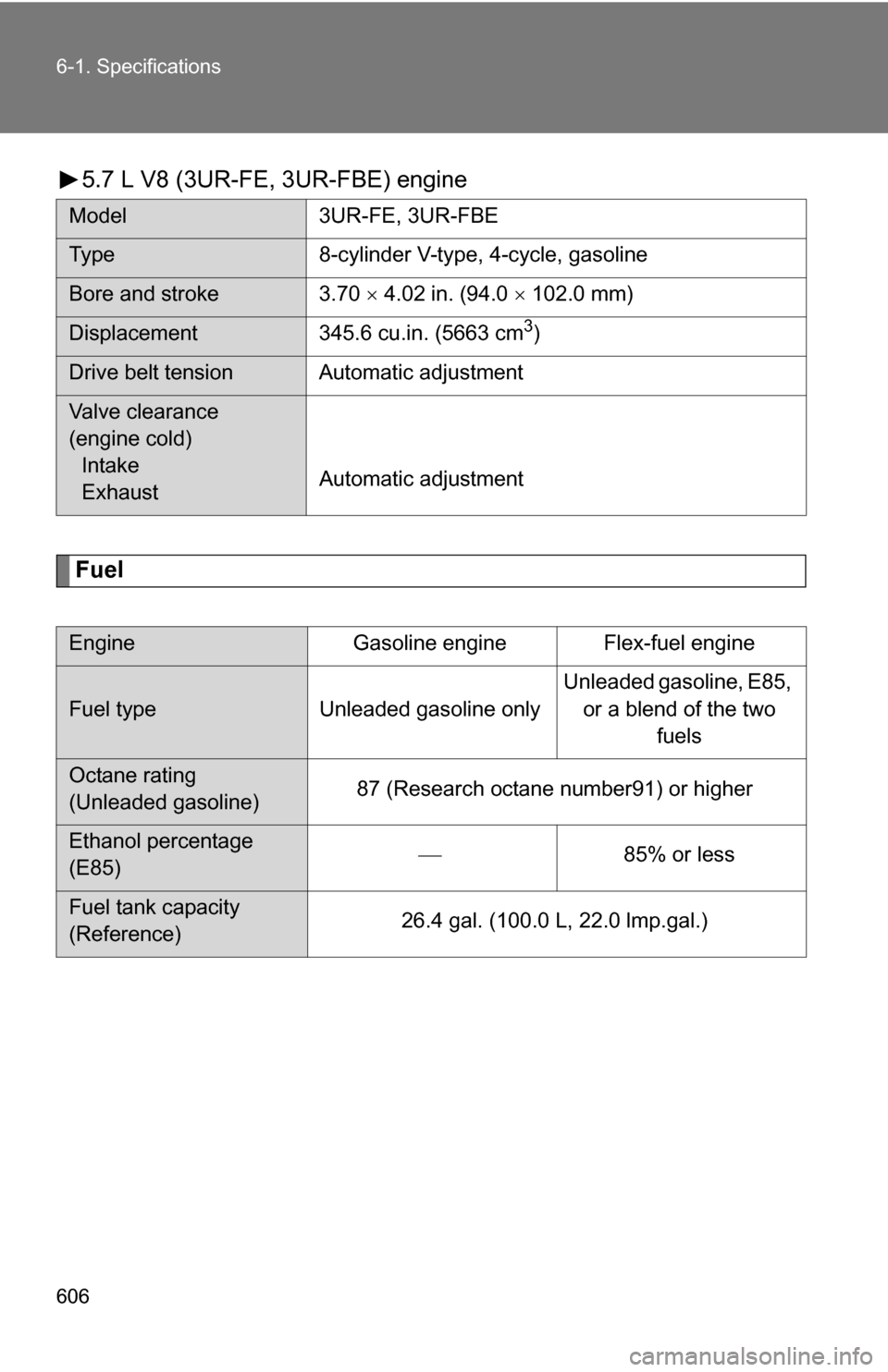

606 6-1. Specifications
5.7 L V8 (3UR-FE, 3UR-FBE) engine
Fuel
Model3UR-FE, 3UR-FBE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement 345.6 cu.in. (5663 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust Automatic adjustment
Engine
Gasoline engine Flex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gasoline) 87 (Research octane number91) or higher
Ethanol percentage
(E85) 
85% or less
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)

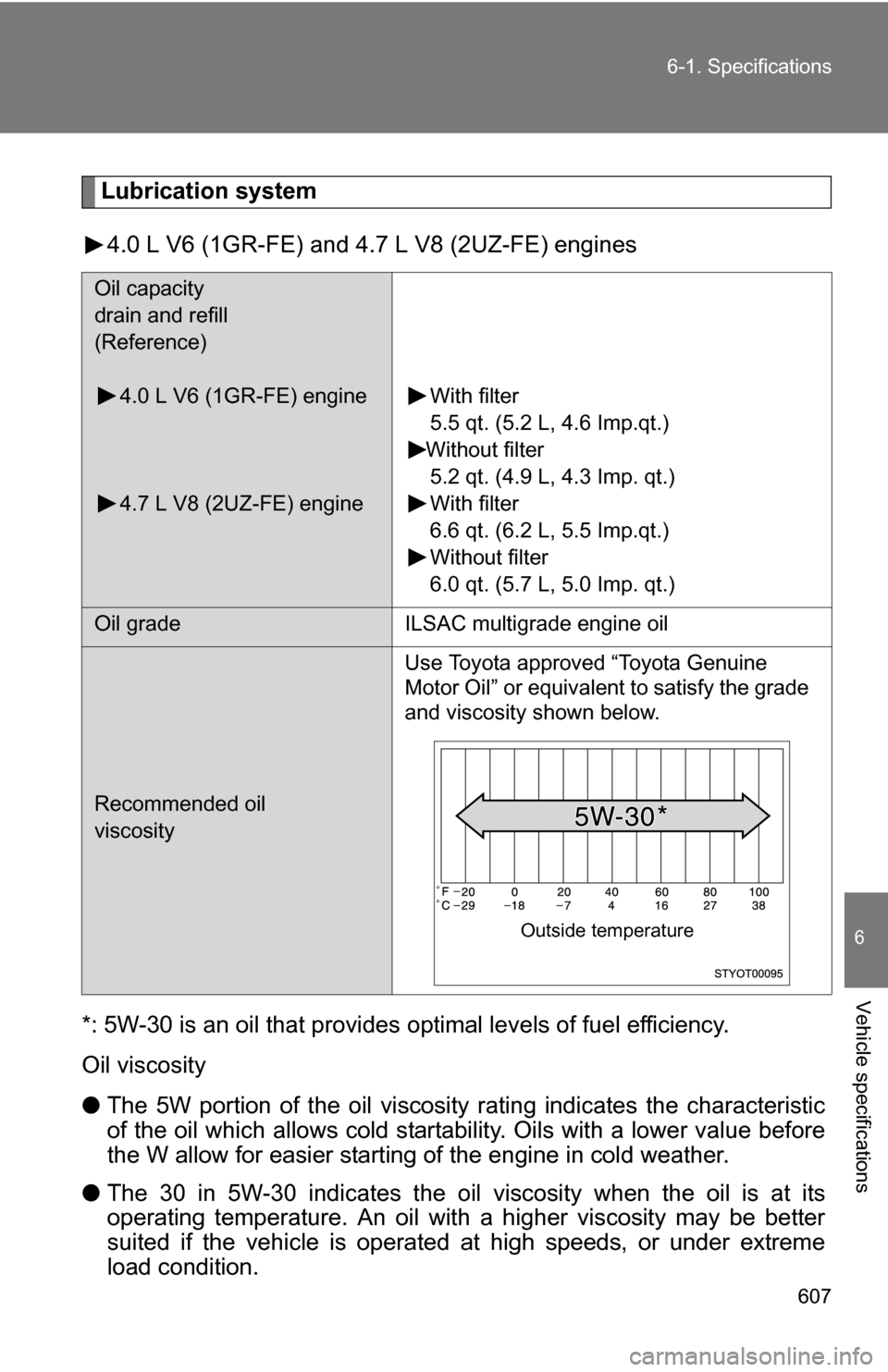

607
6-1. Specifications
6
Vehicle specifications
Lubrication system
4.0 L V6 (1GR-FE) and 4.7 L V8 (2UZ-FE) engines
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference)
4.0 L V6 (1GR-FE) engine
4.7 L V8 (2UZ-FE) engine With filter
5.5 qt. (5.2 L, 4.6 Imp.qt.)
Without filter 5.2 qt. (4.9 L, 4.3 Imp. qt.)
With filter
6.6 qt. (6.2 L, 5.5 Imp.qt.)
Without filter
6.0 qt. (5.7 L, 5.0 Imp. qt.)
Oil grade ILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine
Motor Oil” or equivalent to satisfy the grade
and viscosity shown below.
Outside temperature

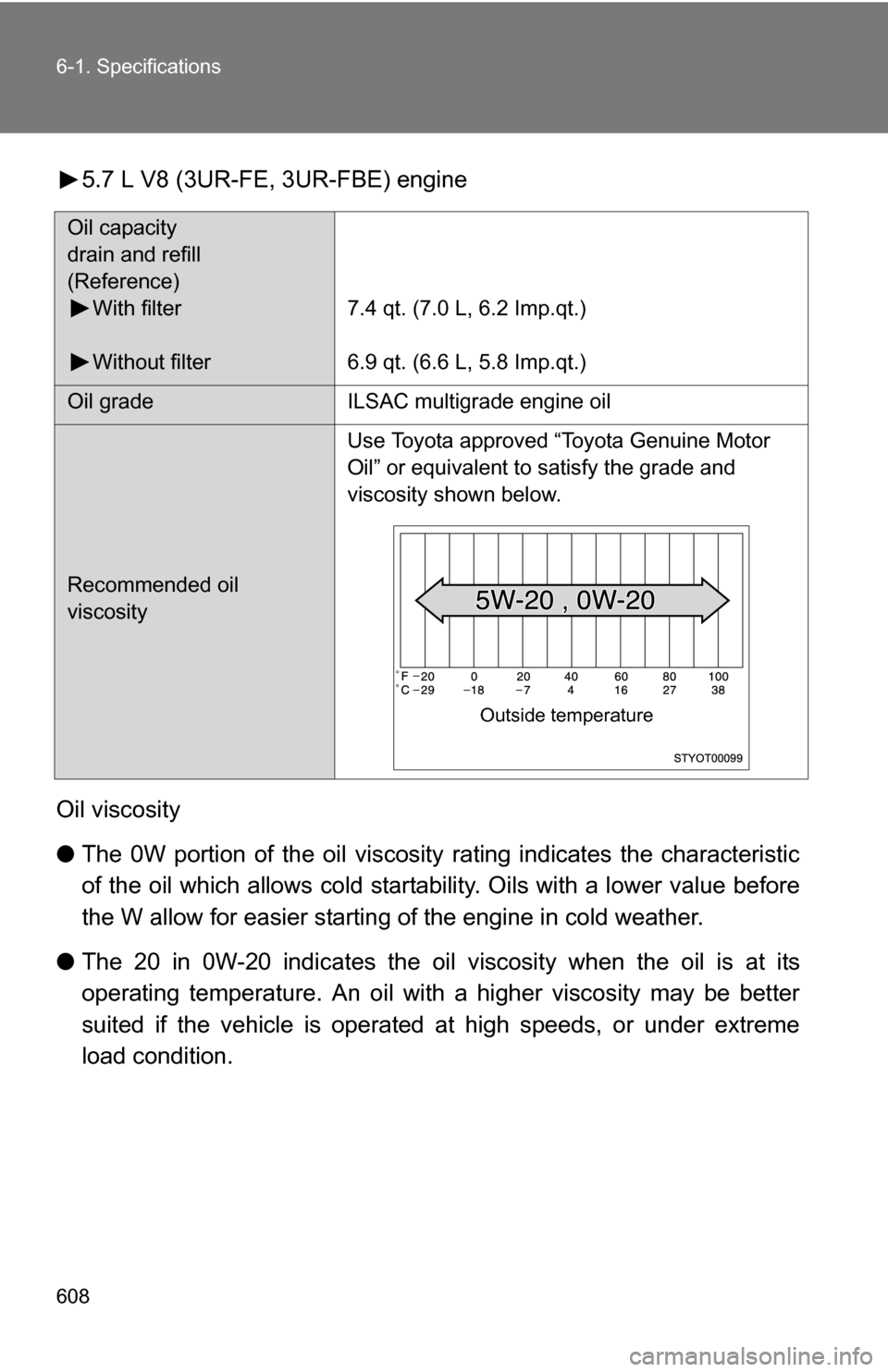

608 6-1. Specifications
5.7 L V8 (3UR-FE, 3UR-FBE) engine
Oil viscosity
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference)
With filter
Without filter 7.4 qt. (7.0 L, 6.2 Imp.qt.)
6.9 qt. (6.6 L, 5.8 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature
