2009 TOYOTA TUNDRA Owners Manual

393
3
Interior and exterior features
3-5. Using the interior lights

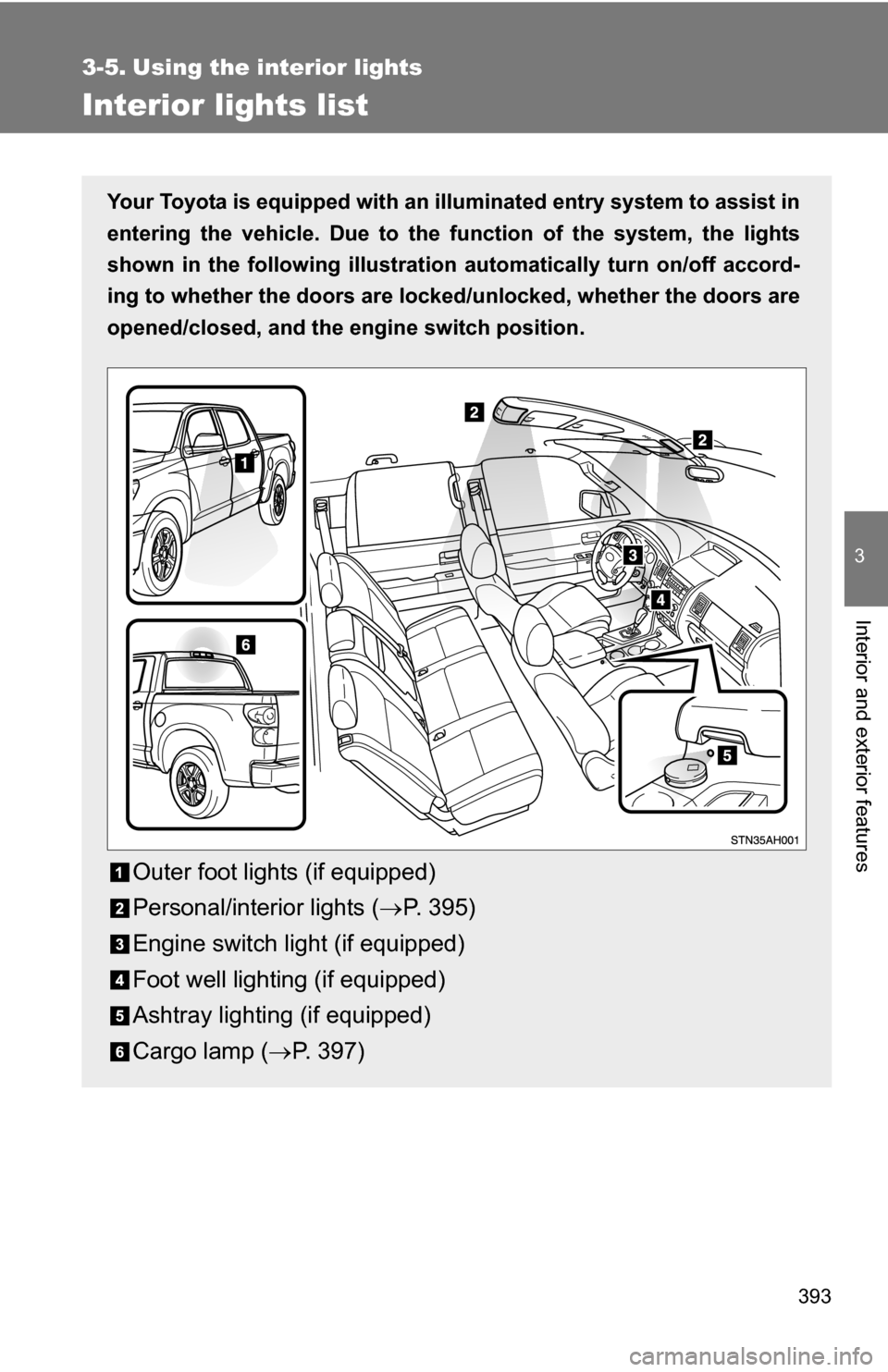

Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Due to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to whether the doo rs are locked/unlocked, whether the doors are
opened/closed, and the en gine switch position.
Outer foot lights (if equipped)
Personal/interior lights (P. 395)
Engine switch light (if equipped)
Foot well lighting (if equipped)
Ashtray lighting (if equipped)
Cargo lamp ( P. 397)

394 3-5. Using the interior lights
Personal/interior light main switchON
The personal/interior lights can-
not be individually turned off.
DOOR position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed.
OFF
The personal/interior lights can
be individually turned on or off.
■

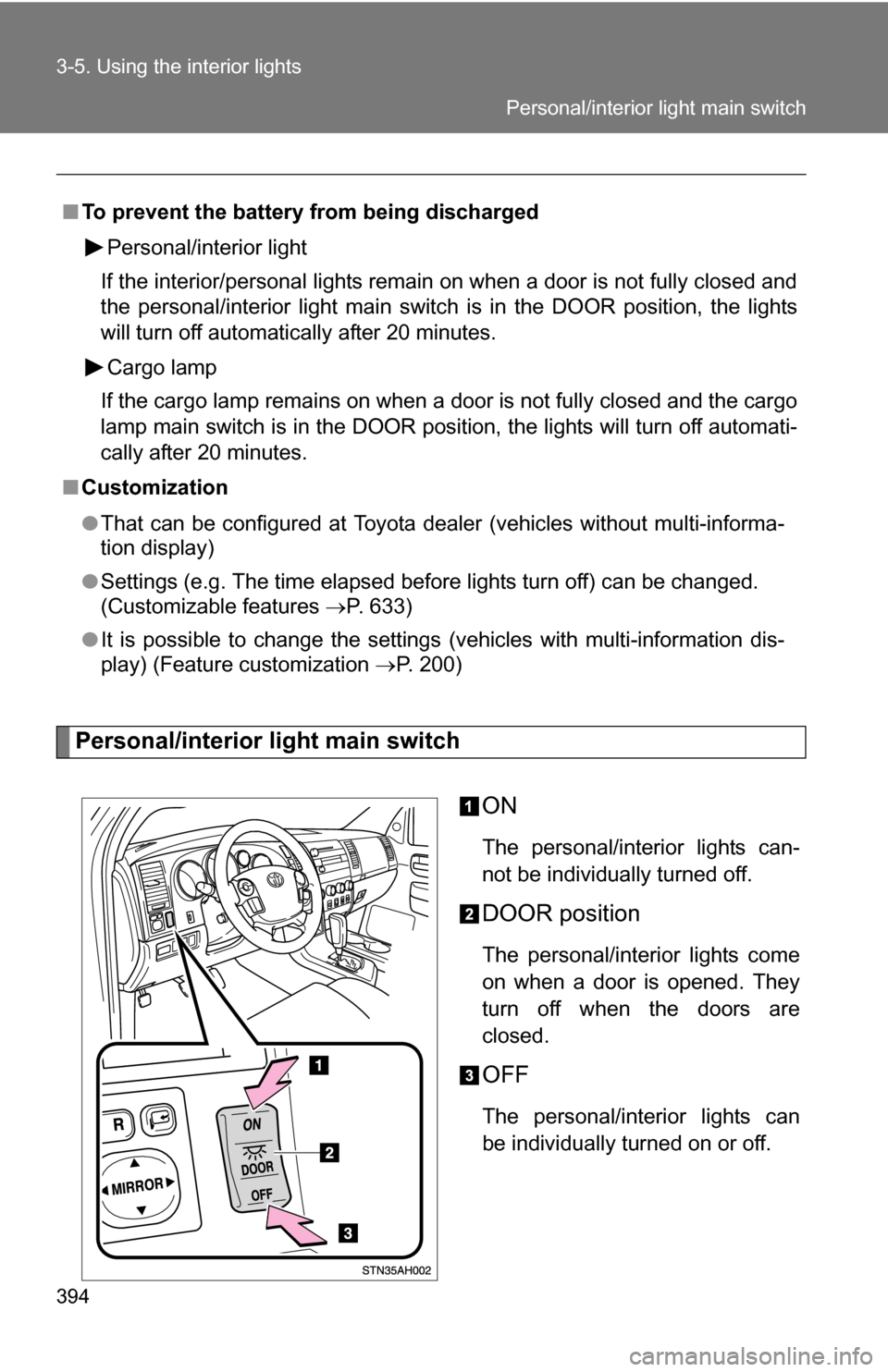

To prevent the battery from being discharged
Personal/interior light
If the interior/personal lights remain on when a door is not fully closed and
the personal/interior light main switch is in the DOOR position, the lights
will turn off automatically after 20 minutes.
Cargo lamp
If the cargo lamp remains on when a door is not fully closed and the cargo
lamp main switch is in the DOOR position, the lights will turn off automati-
cally after 20 minutes.
■ Customization
●That can be configured at Toyota dealer (vehicles without multi-informa-
tion display)
● Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 633)
● It is possible to change the settings (vehicles with multi-information dis-
play) (Feature customization P. 200)
Personal/interior light main switch

395
3-5. Using the interior lights
3
Interior and exterior features

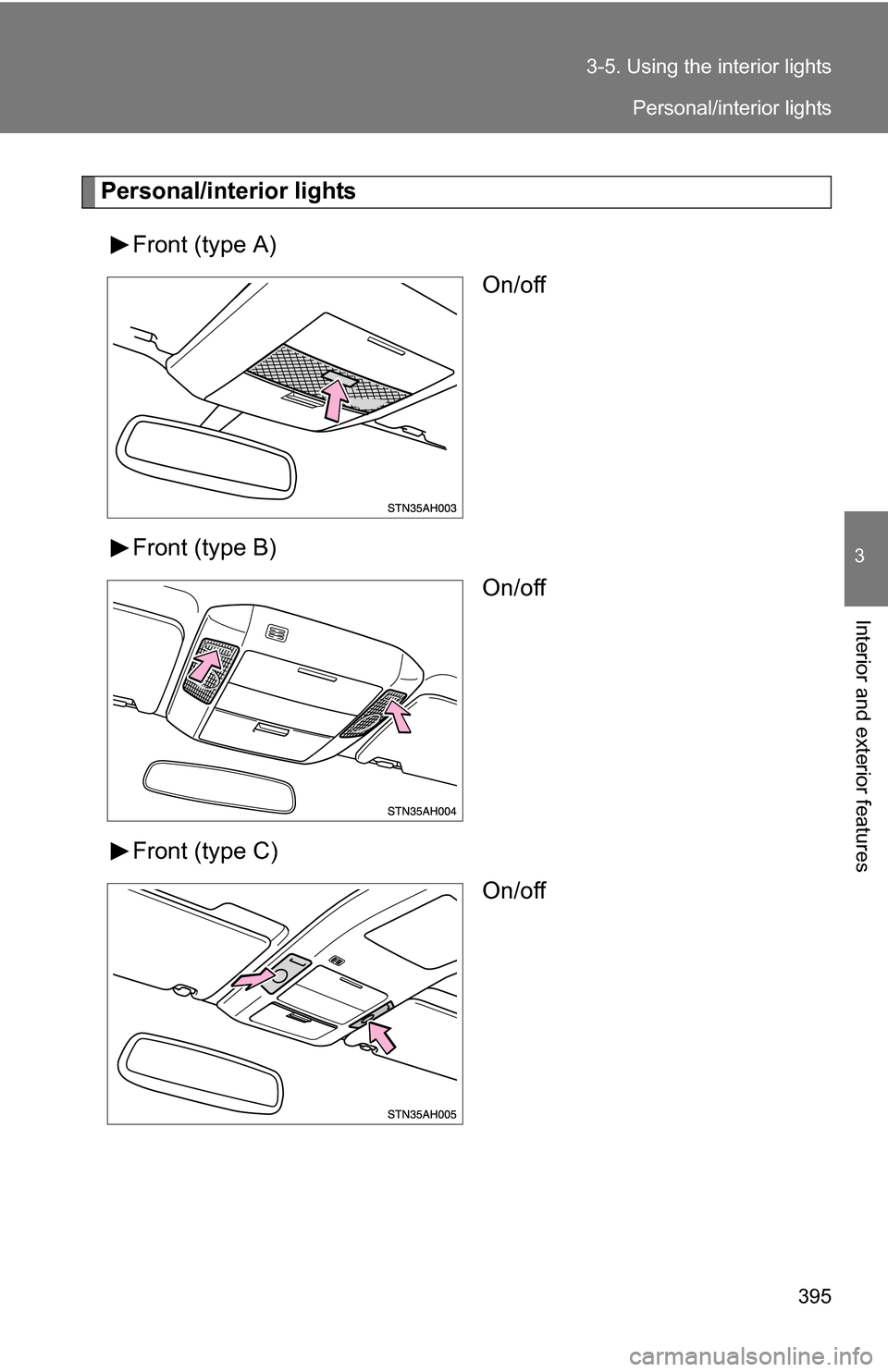

Personal/interior lights
Front (type A) On/off
Front (type B) On/off
Front (type C) On/off
Personal/interior lights

396 3-5. Using the interior lights

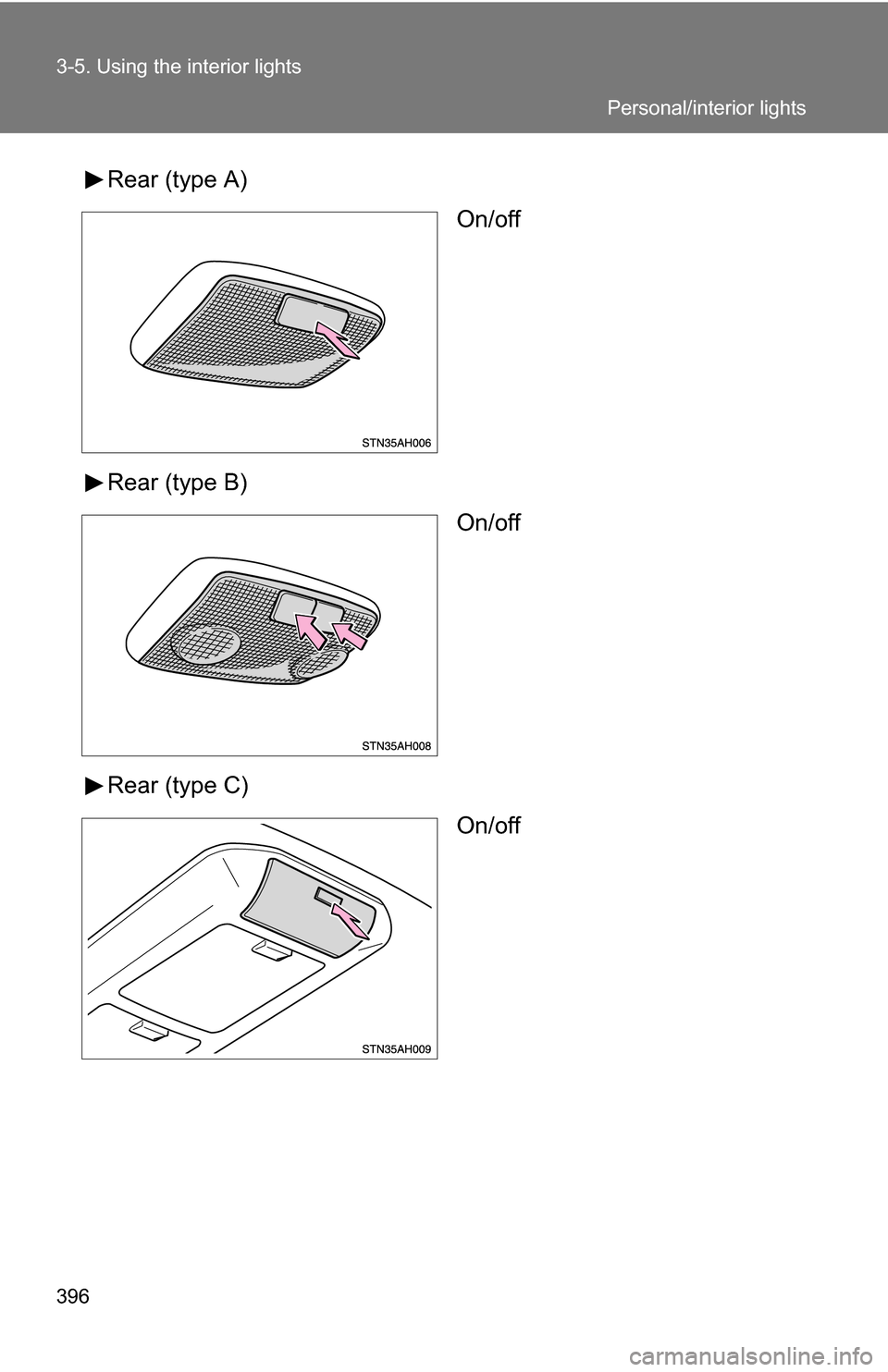

Rear (type A)On/off
Rear (type B) On/off
Rear (type C) On/off
Personal/interior lights

397
3-5. Using the interior lights
3
Interior and exterior features

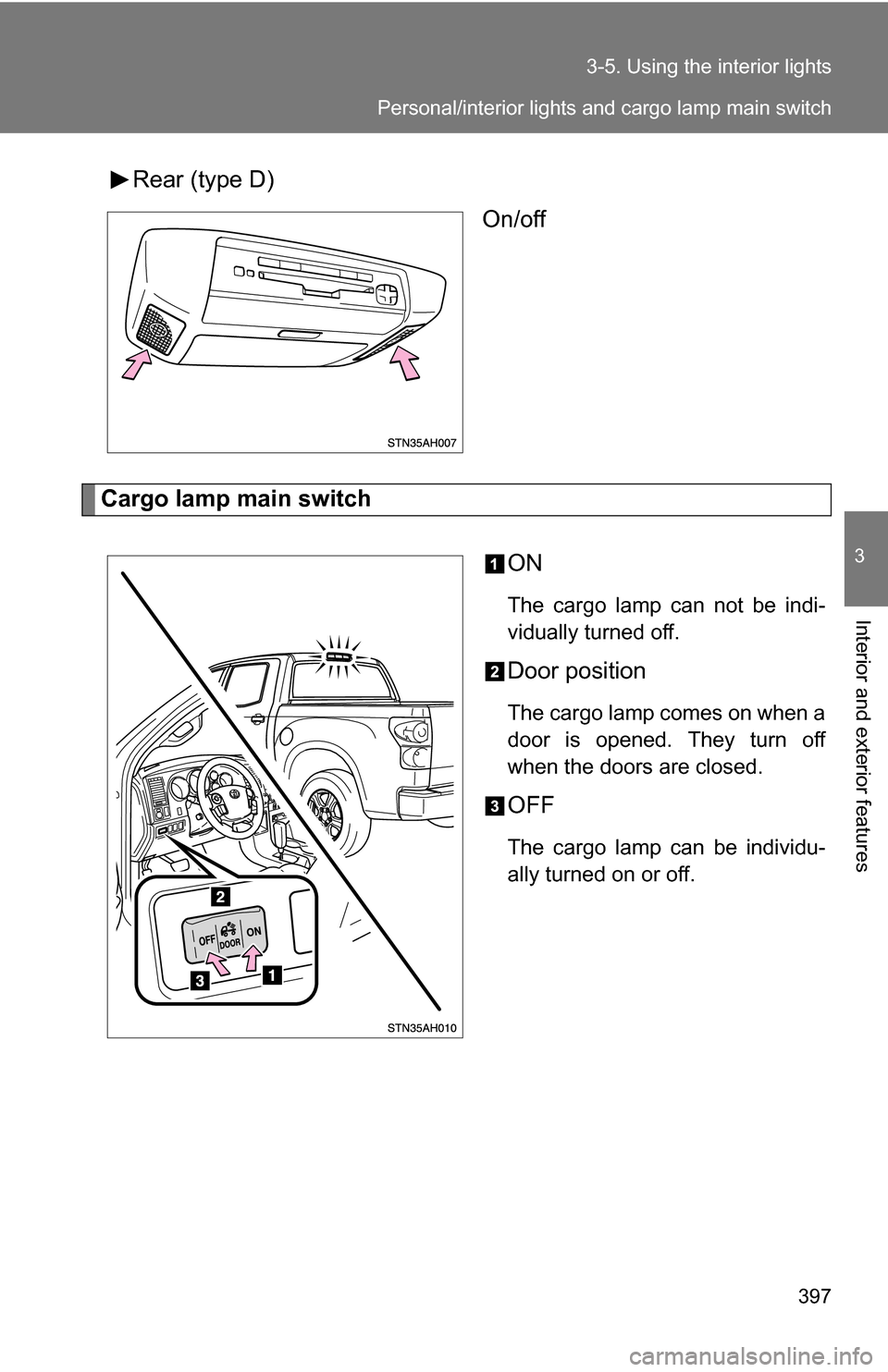

Rear (type D)
On/off
Cargo lamp main switch
ON
The cargo lamp can not be indi-
vidually turned off.
Door position
The cargo lamp comes on when a
door is opened. They turn off
when the doors are closed.
OFF
The cargo lamp can be individu-
ally turned on or off.
Personal/interior lights and cargo lamp main switch

398
3-6. Using the storage features

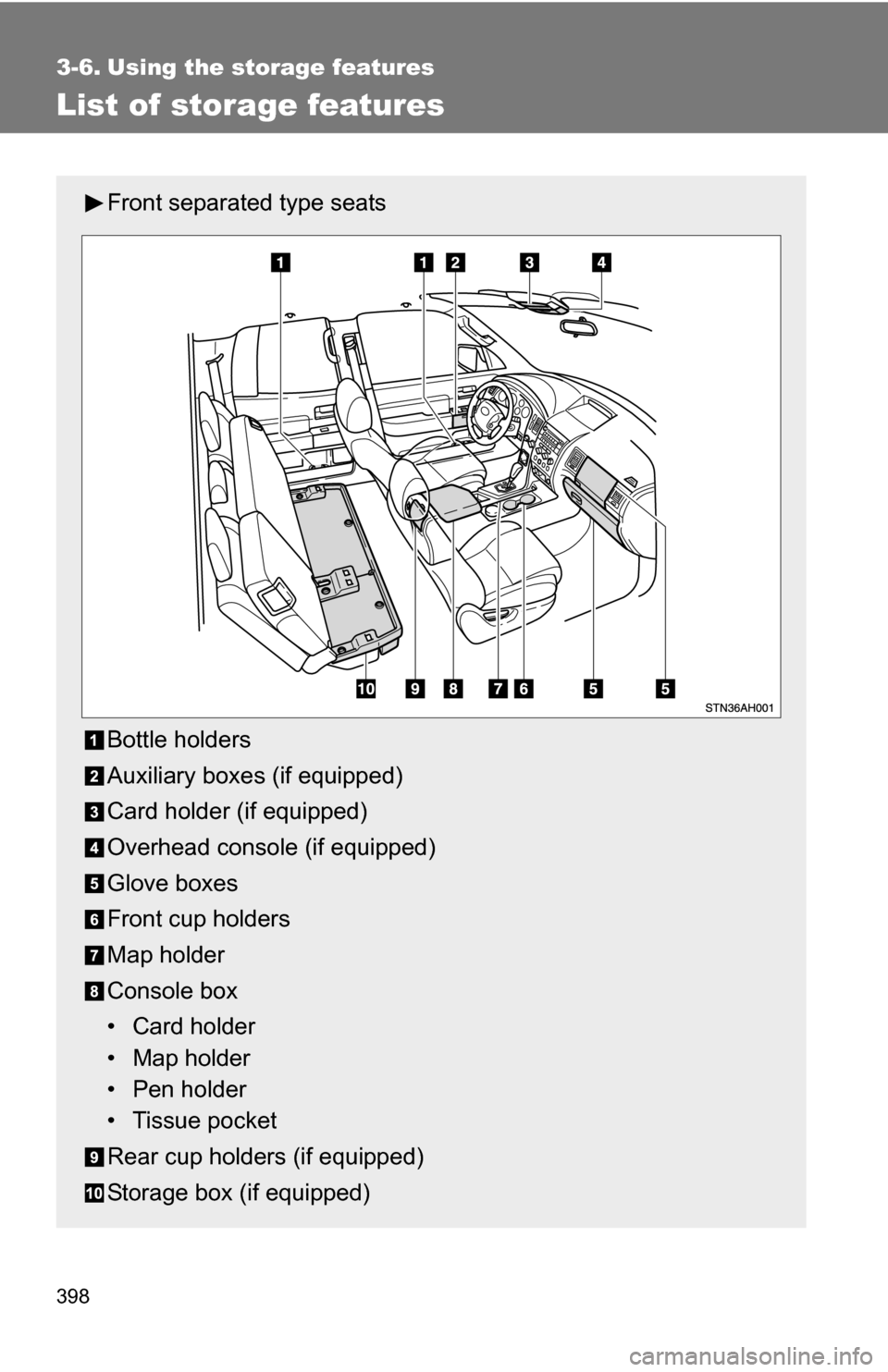

List of storage features
Front separated type seats
Bottle holders
Auxiliary boxes (if equipped)
Card holder (if equipped)
Overhead console (if equipped)
Glove boxes
Front cup holders
Map holder
Console box
• Card holder
• Map holder
• Pen holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

399
3-6. Using the
storage features
3
Interior and exterior features

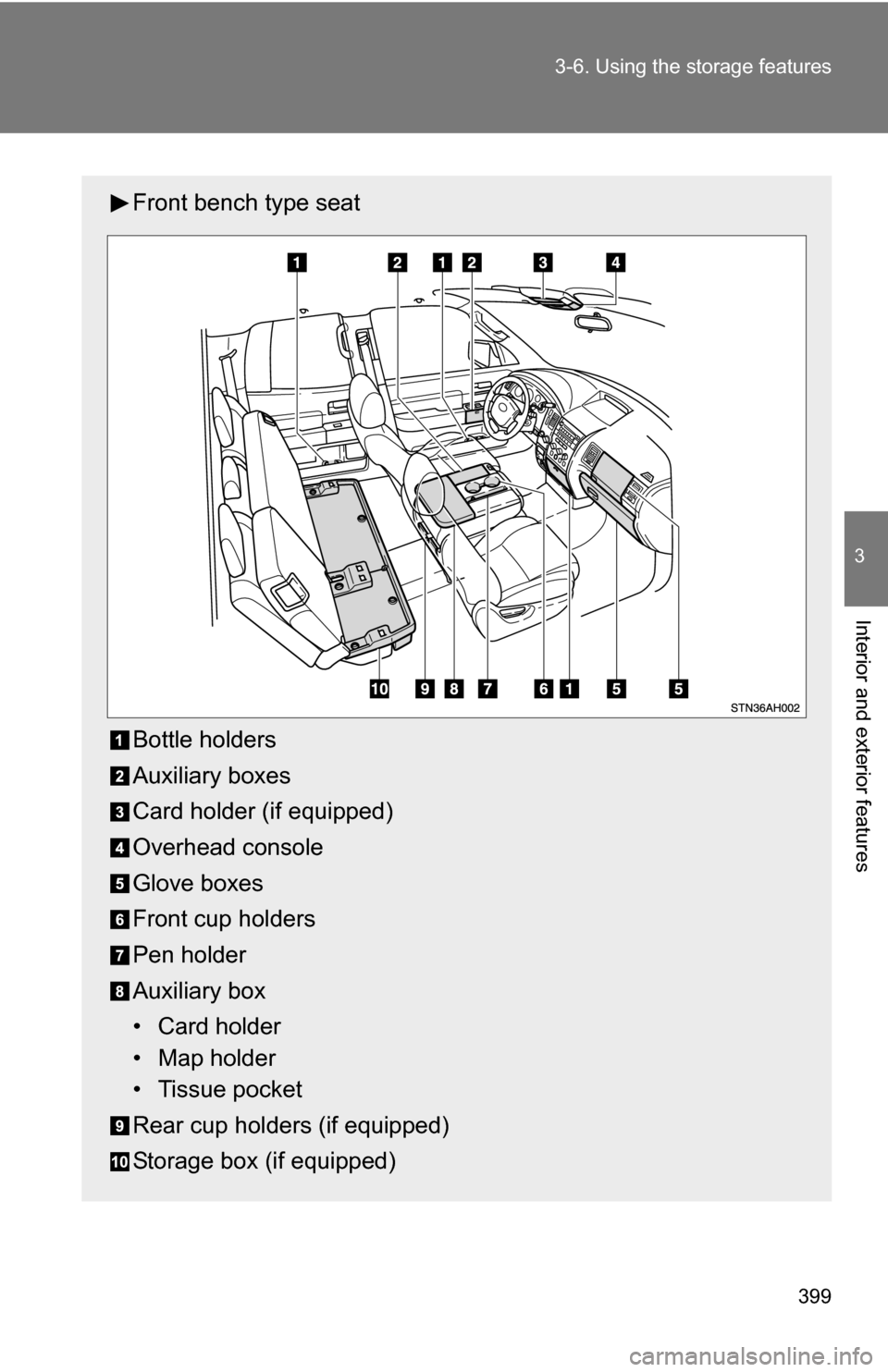

Front bench type seat
Bottle holders
Auxiliary boxes
Card holder (if equipped)
Overhead console
Glove boxes
Front cup holders
Pen holder
Auxiliary box
• Card holder
• Map holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

400 3-6. Using the storage features

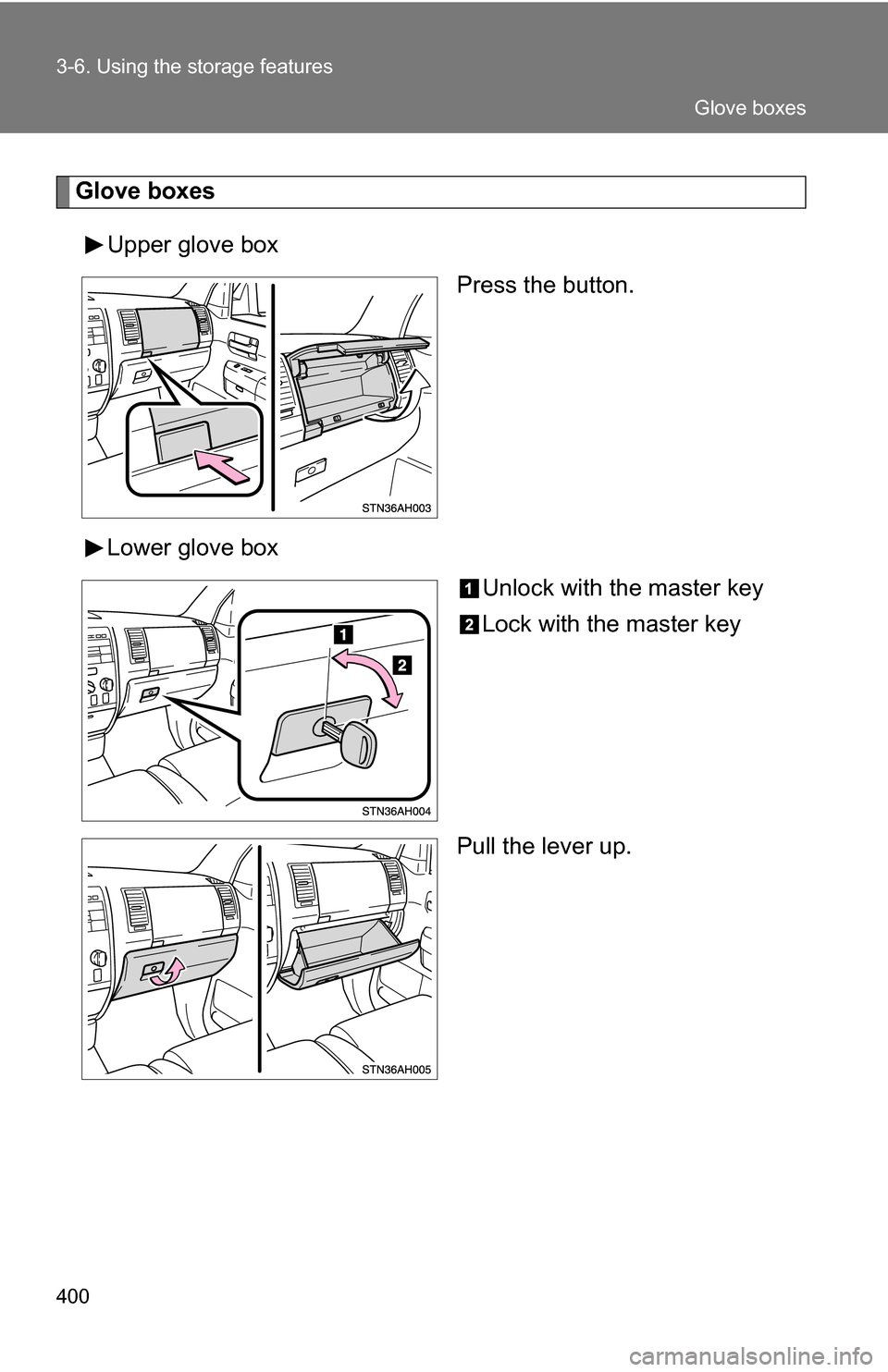

Glove boxesUpper glove box Press the button.
Lower glove box Unlock with the master key
Lock with the master key
Pull the lever up.
Glove boxes
