2009 SUBARU TRIBECA turn signal

LI-5
Turn Signal Light and Hazard Light System
LIGHTING SYSTEM
4. Turn Signal Light and Hazard
Light System
A: WIRING DIAGRAM
1. TURN SIGNAL LIGHT AND HAZARD
LIGHT
and Hazard Light System.>
B: INSPECTION
1. TURN SIGNAL SWITCH
(Light).>
2. HAZARD SWITCH
Measure the resistance between hazard switch ter-
minals.
3. TURN SIGNAL LIGHT AND HAZARD
LIGHT MODULE
Connect the battery and turn signal light bulb to the
module. The module is properly functioning if it
blinks when power is supplied to the circuit.
Switch position Terminal No. Standard
OFF2 and 31 MΩ or more
ON Less than 1 Ω
LI-00527
4321
LI-00262
321
87654

LI-9
Combination Switch (Light)
LIGHTING SYSTEM
8. Combination Switch (Light)
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the screws and remove the steering
column covers (upper and lower).
3) Disconnect the connector from the combination
switch.
4) Remove the screws which secure the switch,
then remove the combination switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance between combination
switch terminals.
1. LIGHTING SWITCH
2. DIMMER & PASSING SWITCH
3. TURN SIGNAL SWITCH
4. FRONT FOG LIGHT
SL-00258
LI-00331
OFFOFF
Switch position Terminal No. Standard
OFF — 1 MΩ or more
Ta i l 1 4 a n d 1 6 L e s s t h a n 1 Ω
Head 13, 14 and 16 Less than 1 Ω
Switch position Terminal No. Standard
Passing 7, 8 and 16 Less than 1 Ω
Low beam 17 and 16 Less than 1 Ω
High beam 7 and 16 Less than 1 Ω
Switch position Terminal No. Standard
Left 1 and 2 Less than 1 Ω
Neutral — 1 MΩ or more
Right 2 and 3 Less than 1 Ω
Switch position Terminal No. Standard
OFF — 1 MΩ or more
ON 10 and 11 Less than 1 Ω
LI-00434
1514131211109171665432187

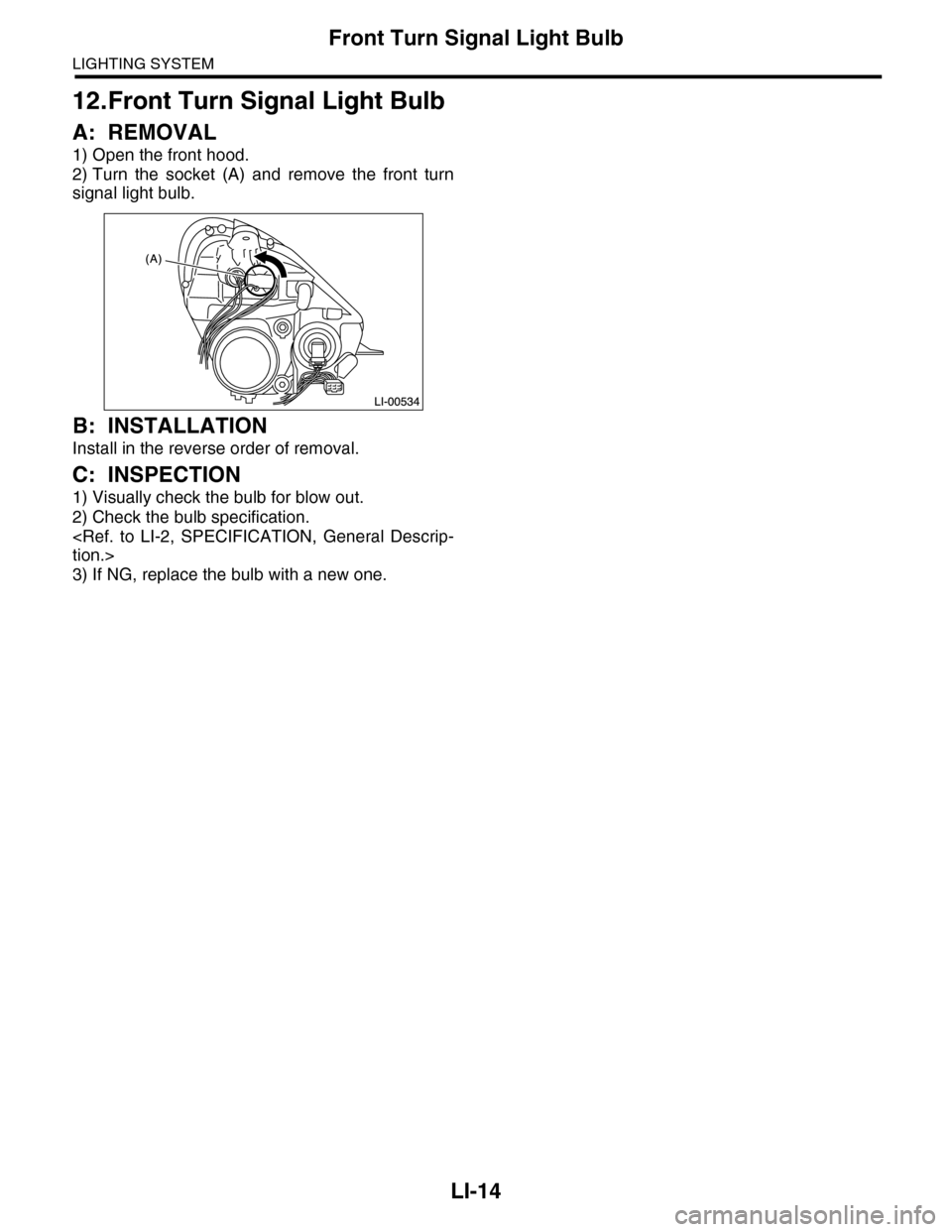

LI-14
Front Turn Signal Light Bulb
LIGHTING SYSTEM
12.Front Turn Signal Light Bulb
A: REMOVAL
1) Open the front hood.
2) Turn the socket (A) and remove the front turn
signal light bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
tion.>
3) If NG, replace the bulb with a new one.

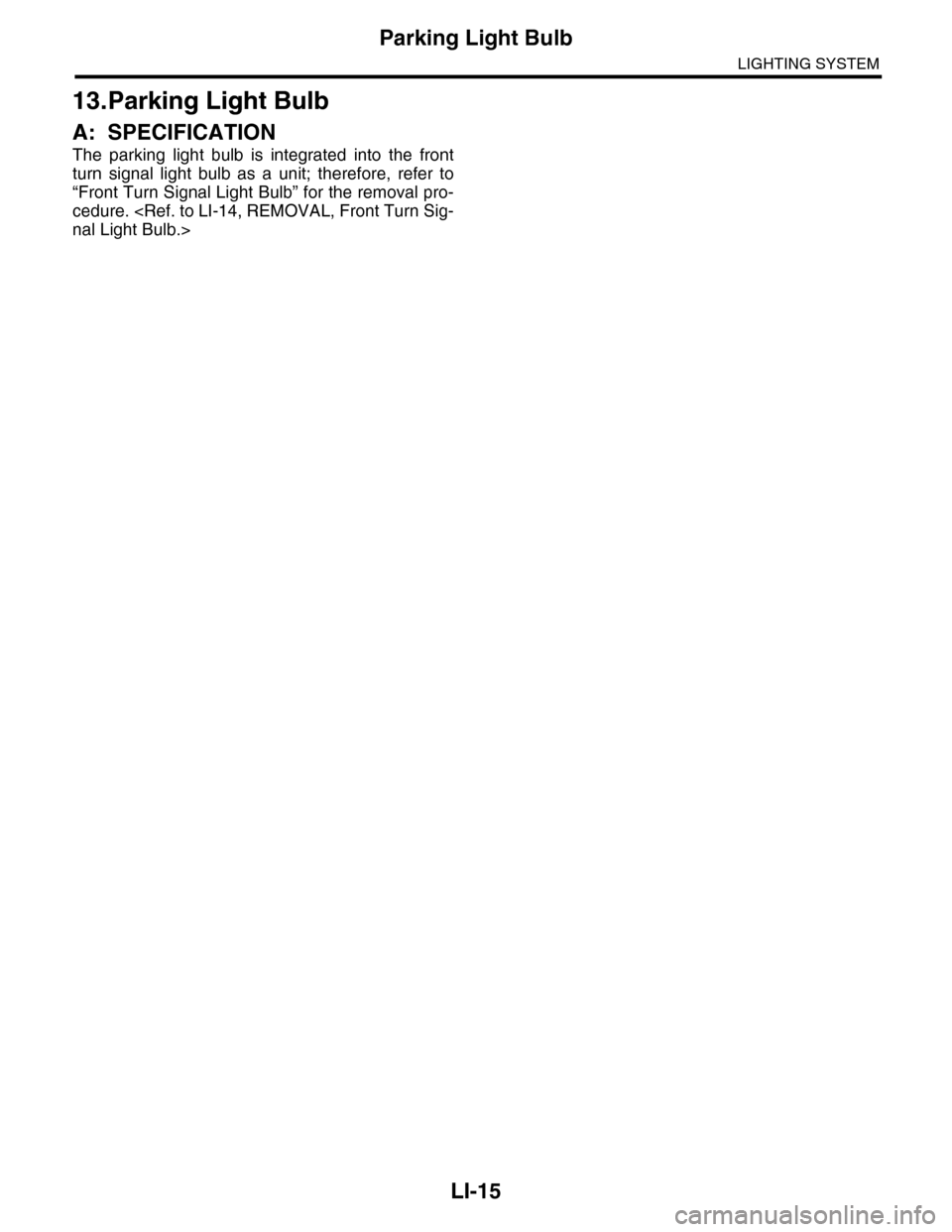

LI-15
Parking Light Bulb
LIGHTING SYSTEM
13.Parking Light Bulb
A: SPECIFICATION
The parking light bulb is integrated into the front
turn signal light bulb as a unit; therefore, refer to
“Front Turn Signal Light Bulb” for the removal pro-
cedure. nal Light Bulb.>

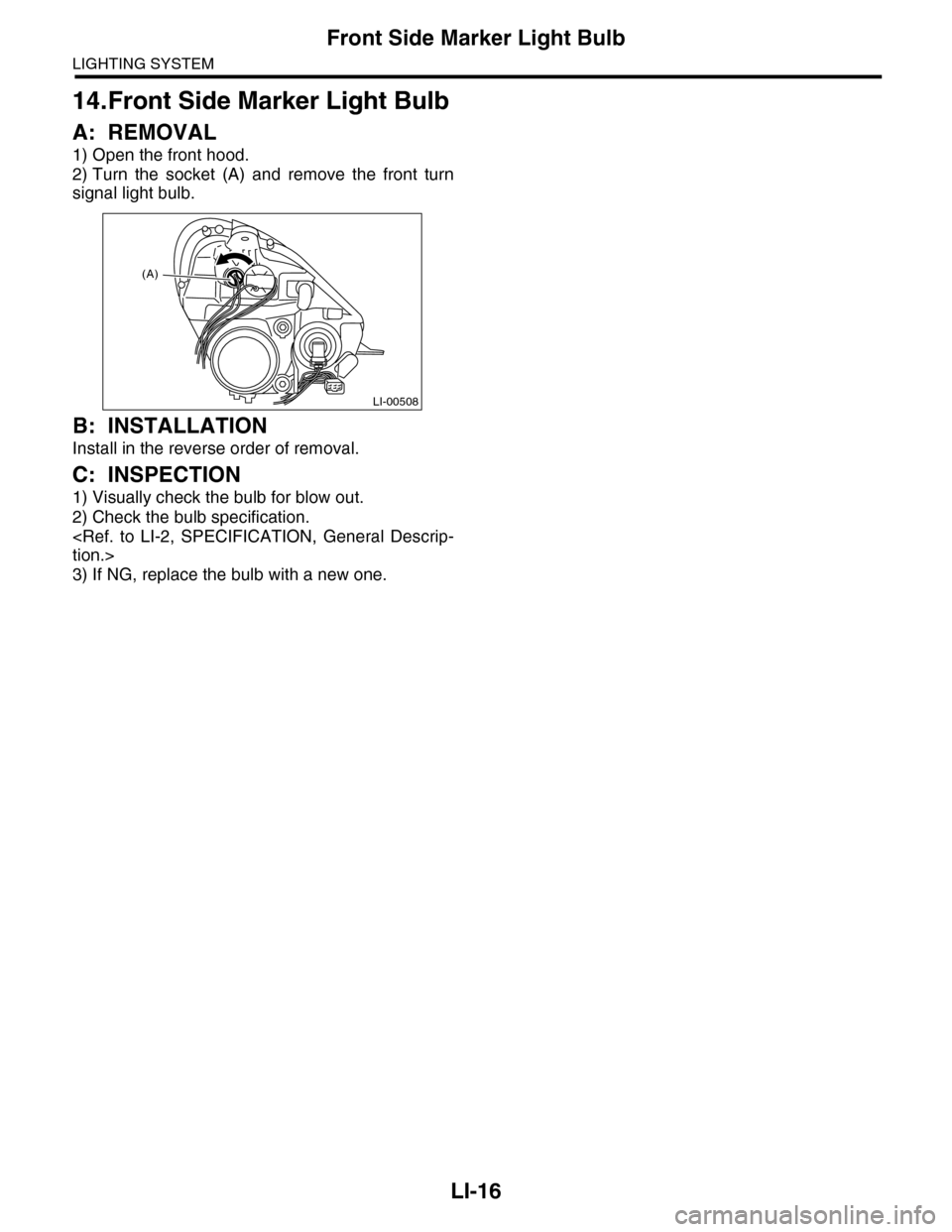

LI-16
Front Side Marker Light Bulb
LIGHTING SYSTEM
14.Front Side Marker Light Bulb
A: REMOVAL
1) Open the front hood.
2) Turn the socket (A) and remove the front turn
signal light bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
tion.>
3) If NG, replace the bulb with a new one.
LI-00508
(A)

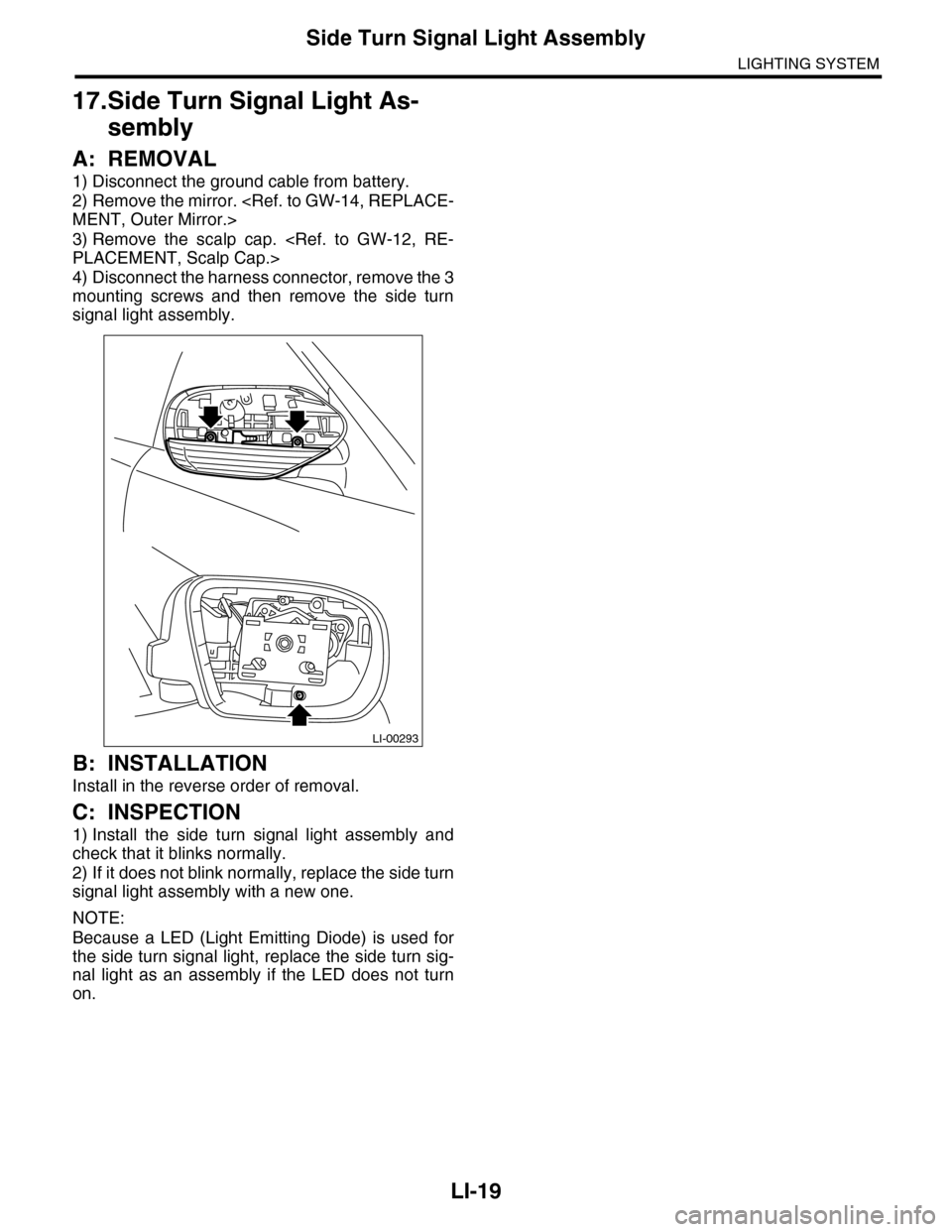

LI-19
Side Turn Signal Light Assembly
LIGHTING SYSTEM
17.Side Turn Signal Light As-
sembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the mirror. MENT, Outer Mirror.>
3) Remove the scalp cap. PLACEMENT, Scalp Cap.>
4) Disconnect the harness connector, remove the 3
mounting screws and then remove the side turn
signal light assembly.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Install the side turn signal light assembly and
check that it blinks normally.
2) If it does not blink normally, replace the side turn
signal light assembly with a new one.
NOTE:
Because a LED (Light Emitting Diode) is used for
the side turn signal light, replace the side turn sig-
nal light as an assembly if the LED does not turn
on.
LI-00293

LI-20
Rear Combination Light Assembly
LIGHTING SYSTEM
18.Rear Combination Light As-
sembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the cover.
3) Remove the two bolts, and then detach the rear
combination light by pulling it to the rear side of ve-
hicle.
4) After turning the sockets of the tail/stop light
bulbs and rear turn signal light bulbs, remove the
rear combination light.
B: INSTALLATION
Install in the reverse order of removal.
LI-00512
LI-00513

LI-22
Rear Turn Signal Light Bulb
LIGHTING SYSTEM
20.Rear Turn Signal Light Bulb
A: REMOVAL
1) Remove the rear combination light assembly.
Assembly.>
2) Turn the socket and remove the bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification. SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.
LI-00515
