EI-5
General Description
EXTERIOR/INTERIOR TRIM

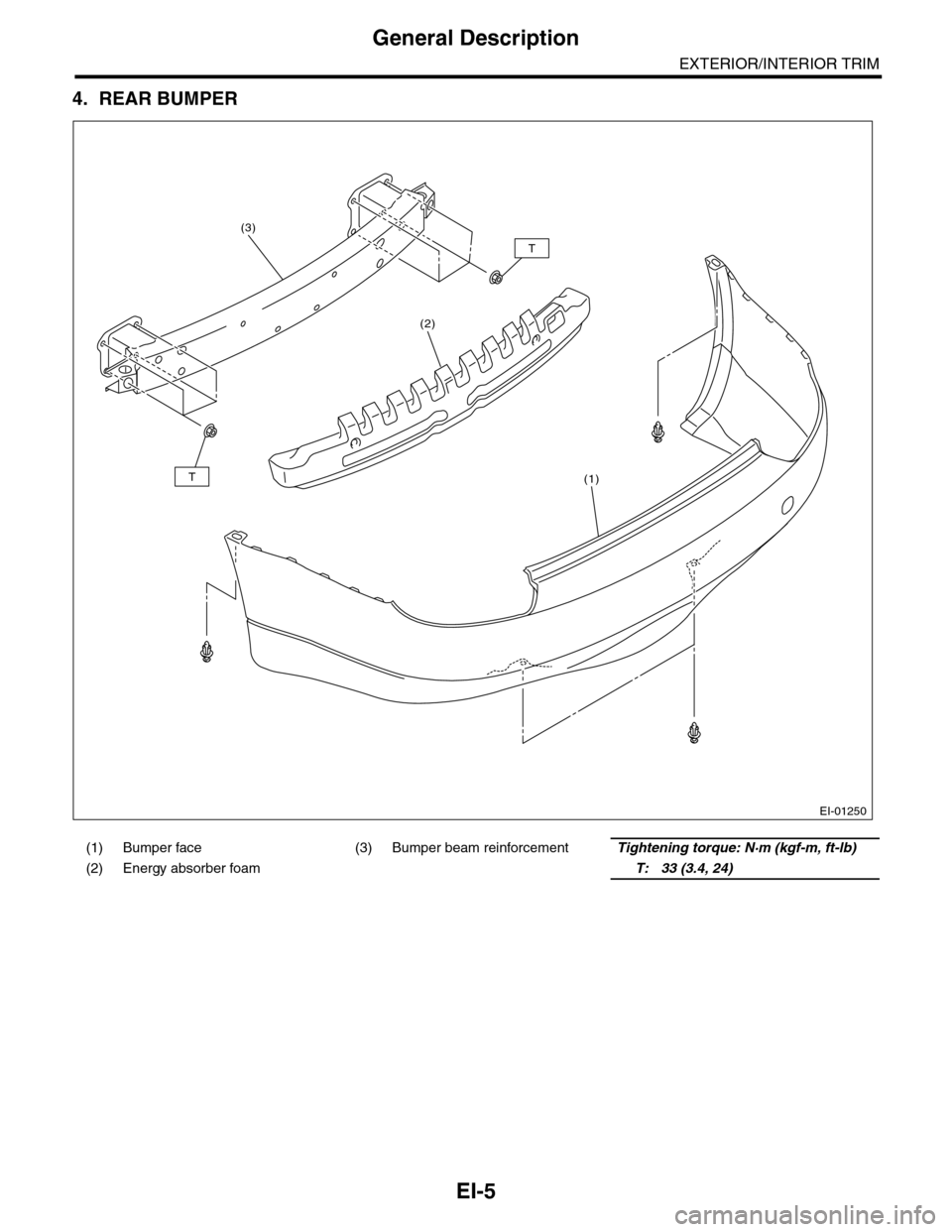

4. REAR BUMPER
(1) Bumper face (3) Bumper beam reinforcementTightening torque: N·m (kgf-m, ft-lb)
(2) Energy absorber foam T: 33 (3.4, 24)
EI-01250
T
T
(2)
(1)
(3)

EI-7
General Description
EXTERIOR/INTERIOR TRIM
7. ROOF SPOILER
(1) Roof spoiler (3) Washer nozzleTightening torque: N·m (kgf-m, ft-lb)
(2) High-mounted stop light T: 4.5 (0.46, 3.32)
EI-01254
T
T
T
(2)
(3)
(1)

EI-8
General Description
EXTERIOR/INTERIOR TRIM
8. ROOF MOLDING
(1) Roof molding (3) ClipTightening torque: N·m (kgf-m, ft-lb)
(2) Roof carrier attachment (4) RivetT:10 (1.0, 7.23)
EI-01255
T
T(2)
(3)
(4)
(3)
(3)
(1)
(2)

EI-11
General Description
EXTERIOR/INTERIOR TRIM
11.CONSOLE BOX
(1) Ring indicator (6) Console frame (11) Console lower lid
(2) Console front panel (7) Console rear panel (12) Lid hinge
(3) Console side panel (8) Rear A/C switch
(4) Cup holder ASSY (9) Console lower pocketTightening torque: N·m (kgf-m, ft-lb)
(5) Console pocket (10) Console upper lidT: 6.5 (0.66, 4.79)
EI-01258
T
T
(1)
(2)
(3)
(4)
(5)
(7)
(10)
(11)
(12)
(8)
(9)
(3)
(6)

EI-12
General Description
EXTERIOR/INTERIOR TRIM
12.INSTRUMENT PANEL
(1) Instrument panel upper ASSY (9)

Instrument panel lower cover
upper
(15) Console side panel upper RH
(2) Meter visor (16) Console side panel lower
(3) Center upper grille panel (10)

Instrument panel lower cover
under
(17) Glove box lid
(4) Air vent duct (18) Glove box panel
(5) Instrument panel side cover (11) Center console frame (19) Glove box lower cover
(6) Air vent side grille (12) Garnish RH
(7) Garnish LH (13) Steering support beam ASSYTightening torque: N·m (kgf-m, ft-lb)
(8) Garnish CTR (14) Console side panel upper LHT: 25 (25.5, 18)
EI-01269
TT
(2)
(5)
(1)
(8)
(6)
(19)
(11)
(12)
(15)
(17)
(5)
(6)
(3)(4)
(7)
(9)
(10)
(14)
(16)
(18)
(13)
(16)

EI-13
General Description
EXTERIOR/INTERIOR TRIM
13.SIDE TRIM
(1) Front pillar upper trim (5) Center pillar lower trim (9) Luggage floor end cover
(2) Front pillar lower trim (6) Rear door scuff plate
(3) Front door scuff plate (7) Rear quarter upper trimTightening torque: N·m (kgf-m, ft-lb)
(4) Center pillar upper trim (8) Rear quarter lower trimT: 7.5 (0.76, 5.4)
EI-01270
(10)
(7)
(8)
(1)
(2)(3)
(6)
(4)
(6)(9)
TT
T

EI-16
General Description
EXTERIOR/INTERIOR TRIM
17.TRAILER HITCH
B: PREPARATION TOOL
(1) Main frameTightening torque: N·m (kgf-m, ft-lb)
(2) Center frameT1: 13 (1.33, 9.4)
(3) Side frame T2: 33 (3.37, 23.9)
(4) Cover T3: 53 (5.4 38.3)
TOOL NAME REMARKS
Clip remover Used for removing trim.
Clip clamp pliers Used for removal of various clips and clamps.
AC-01382
(1)
(4)
(2)
(3)
(3)T1
T2
T2T3
T3

EI-17
Front Under Cover
EXTERIOR/INTERIOR TRIM
2. Front Under Cover
A: REMOVAL
1) Remove the clips and bolts, then remove the un-
dercover.
2) Remove the clips and bolts, then remove the
front lower cover.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. NENT, General Description.>
EI-01263
EI-01264
