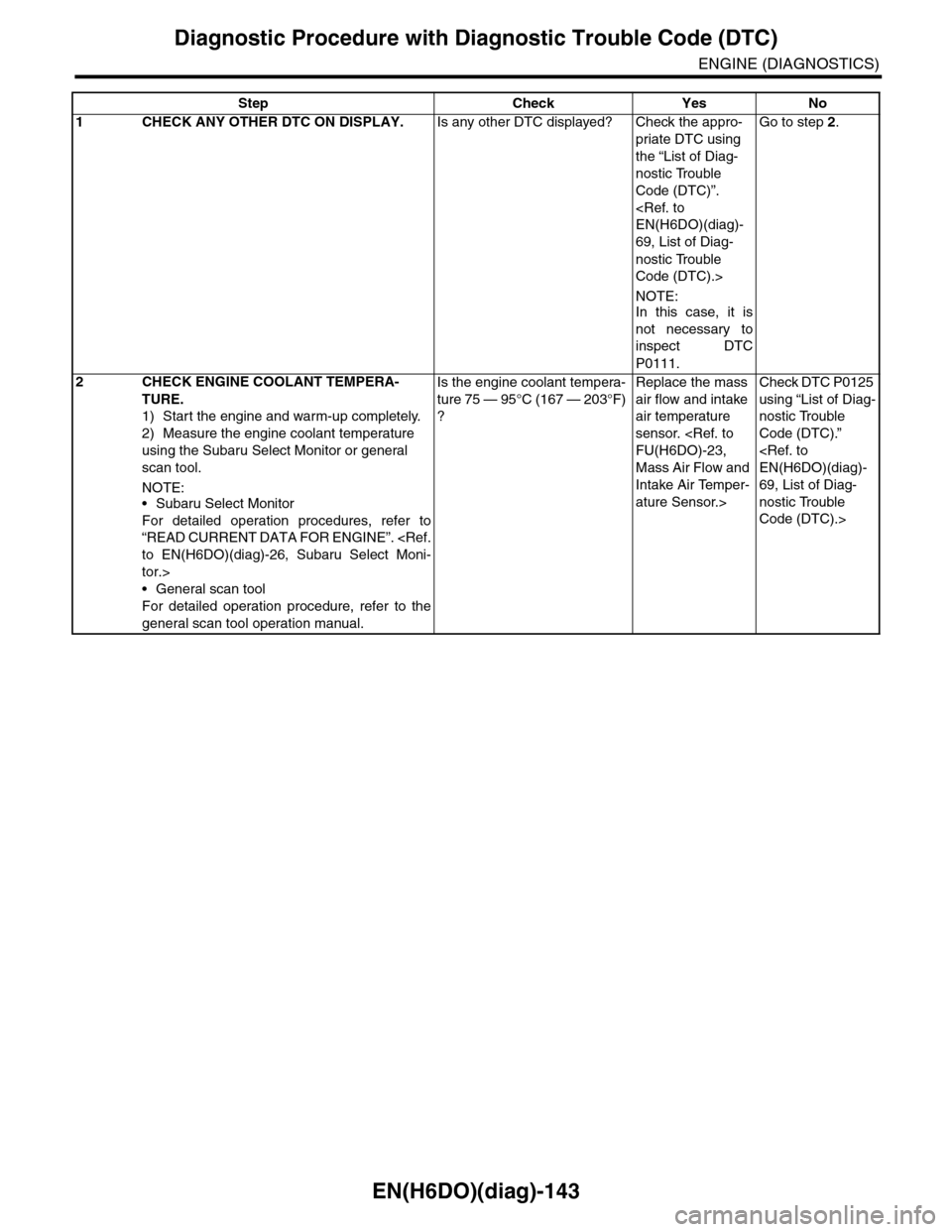

EN(H6DO)(diag)-143
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check the appro-
priate DTC using
the “List of Diag-
nostic Trouble
Code (DTC)”.
EN(H6DO)(diag)-
69, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:In this case, it is
not necessary to
inspect DTC
P0111.
Go to step 2.
2CHECK ENGINE COOLANT TEMPERA-
TURE.
1) Start the engine and warm-up completely.
2) Measure the engine coolant temperature
using the Subaru Select Monitor or general
scan tool.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the engine coolant tempera-
ture 75 — 95°C (167 — 203°F)
?
Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
Check DTC P0125
using “List of Diag-
nostic Trouble
Code (DTC).”
EN(H6DO)(diag)-
69, List of Diag-
nostic Trouble
Code (DTC).>

EN(H6DO)(diag)-144
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
AB:DTC P0112 INTAKE AIR TEMPERATURE CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35

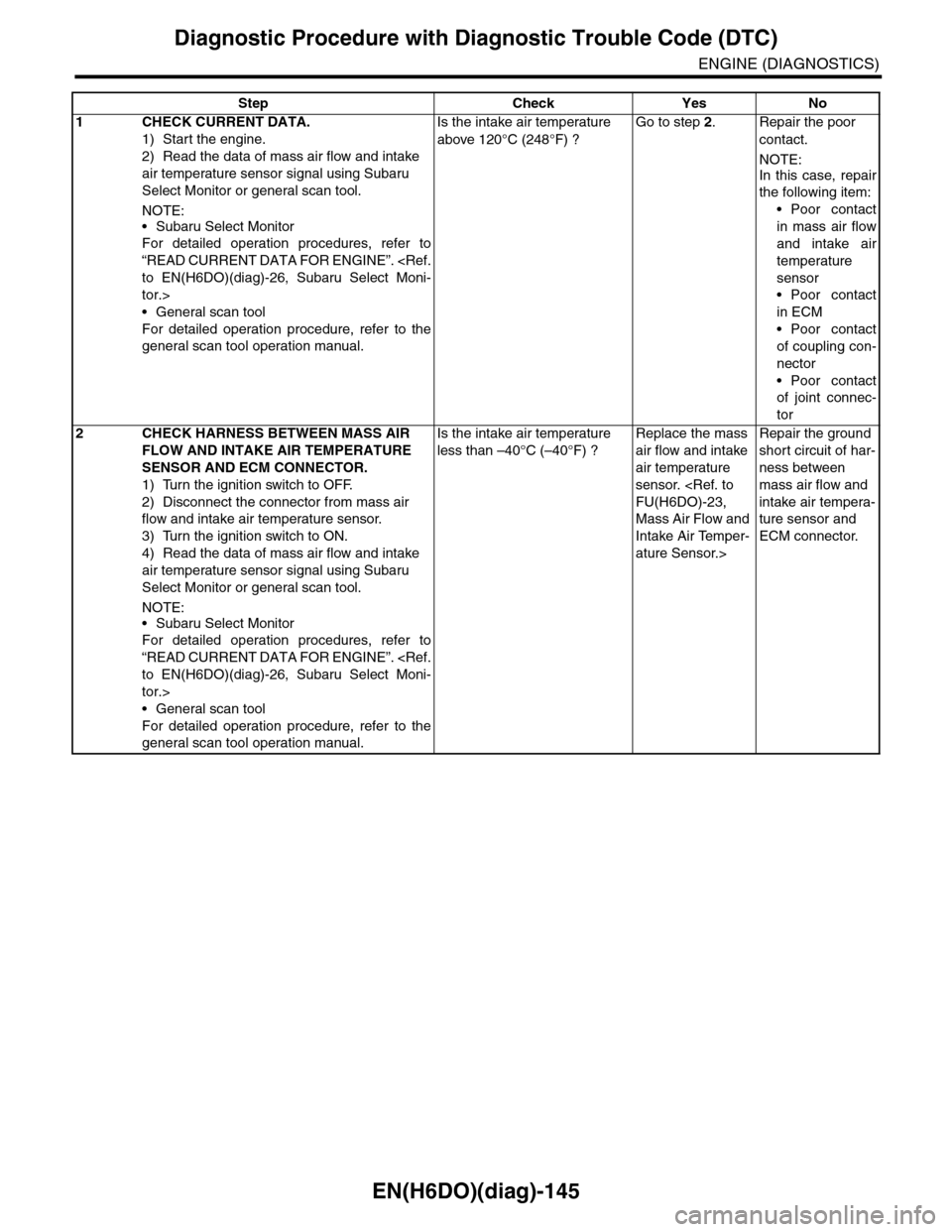

EN(H6DO)(diag)-145
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of mass air flow and intake
air temperature sensor signal using Subaru
Select Monitor or general scan tool.
NOTE:
•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the intake air temperature
above 120°C (248°F) ?
Go to step 2.Repair the poor
contact.
NOTE:
In this case, repair
the following item:
•Poor contact
in mass air flow
and intake air
temperature
sensor
•Poor contact
in ECM
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
2CHECK HARNESS BETWEEN MASS AIR
FLOW AND INTAKE AIR TEMPERATURE
SENSOR AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from mass air
flow and intake air temperature sensor.
3) Turn the ignition switch to ON.
4) Read the data of mass air flow and intake
air temperature sensor signal using Subaru
Select Monitor or general scan tool.
NOTE:
•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the intake air temperature
less than –40°C (–40°F) ?
Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
Repair the ground
short circuit of har-
ness between
mass air flow and
intake air tempera-
ture sensor and
ECM connector.

EN(H6DO)(diag)-146
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
AC:DTC P0113 INTAKE AIR TEMPERATURE CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35

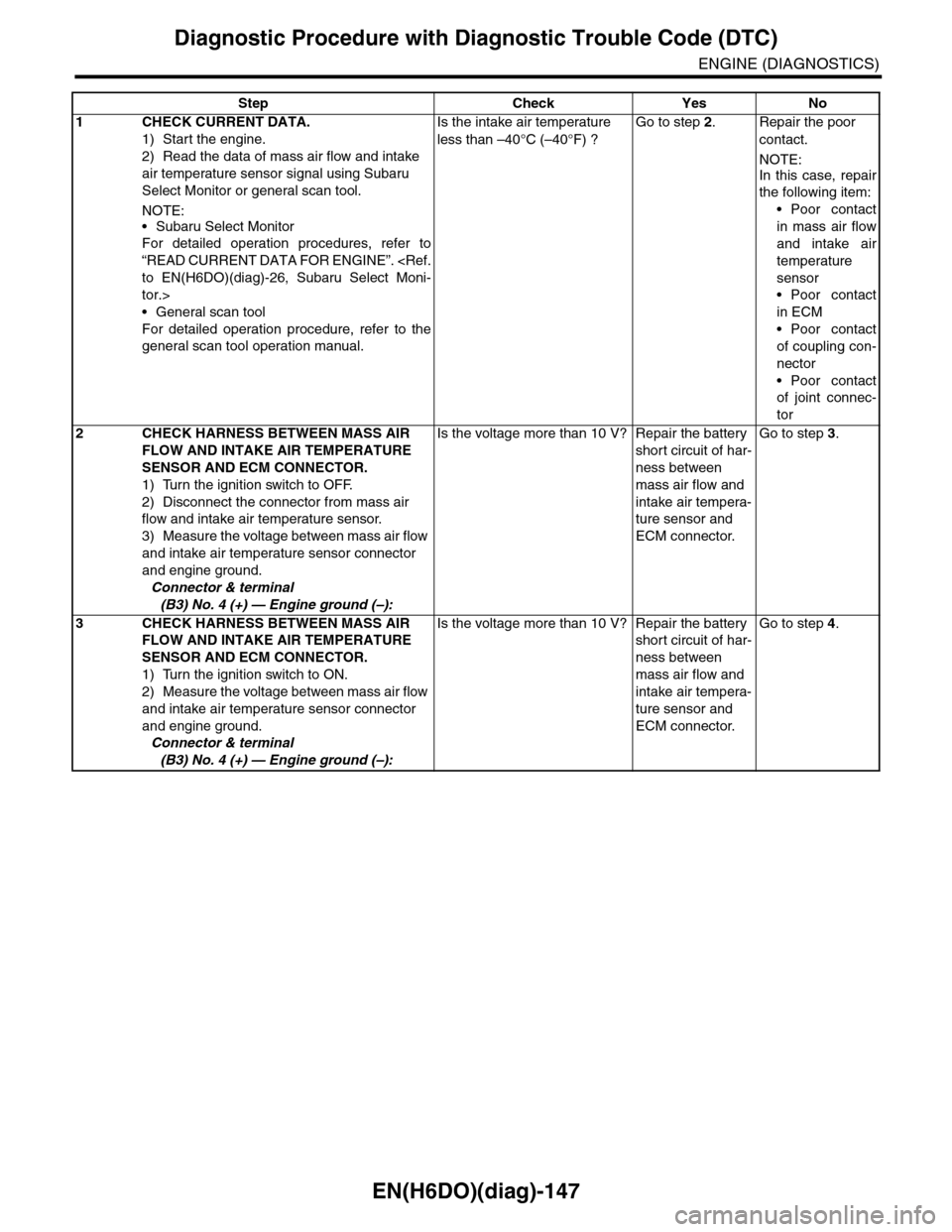

EN(H6DO)(diag)-147
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of mass air flow and intake
air temperature sensor signal using Subaru
Select Monitor or general scan tool.
NOTE:
•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the intake air temperature
less than –40°C (–40°F) ?
Go to step 2.Repair the poor
contact.
NOTE:
In this case, repair
the following item:
•Poor contact
in mass air flow
and intake air
temperature
sensor
•Poor contact
in ECM
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
2CHECK HARNESS BETWEEN MASS AIR
FLOW AND INTAKE AIR TEMPERATURE
SENSOR AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from mass air
flow and intake air temperature sensor.
3) Measure the voltage between mass air flow
and intake air temperature sensor connector
and engine ground.
Connector & terminal
(B3) No. 4 (+) — Engine ground (–):
Is the voltage more than 10 V? Repair the battery
short circuit of har-
ness between
mass air flow and
intake air tempera-
ture sensor and
ECM connector.
Go to step 3.
3CHECK HARNESS BETWEEN MASS AIR
FLOW AND INTAKE AIR TEMPERATURE
SENSOR AND ECM CONNECTOR.
1) Turn the ignition switch to ON.
2) Measure the voltage between mass air flow
and intake air temperature sensor connector
and engine ground.
Connector & terminal
(B3) No. 4 (+) — Engine ground (–):
Is the voltage more than 10 V? Repair the battery
short circuit of har-
ness between
mass air flow and
intake air tempera-
ture sensor and
ECM connector.
Go to step 4.

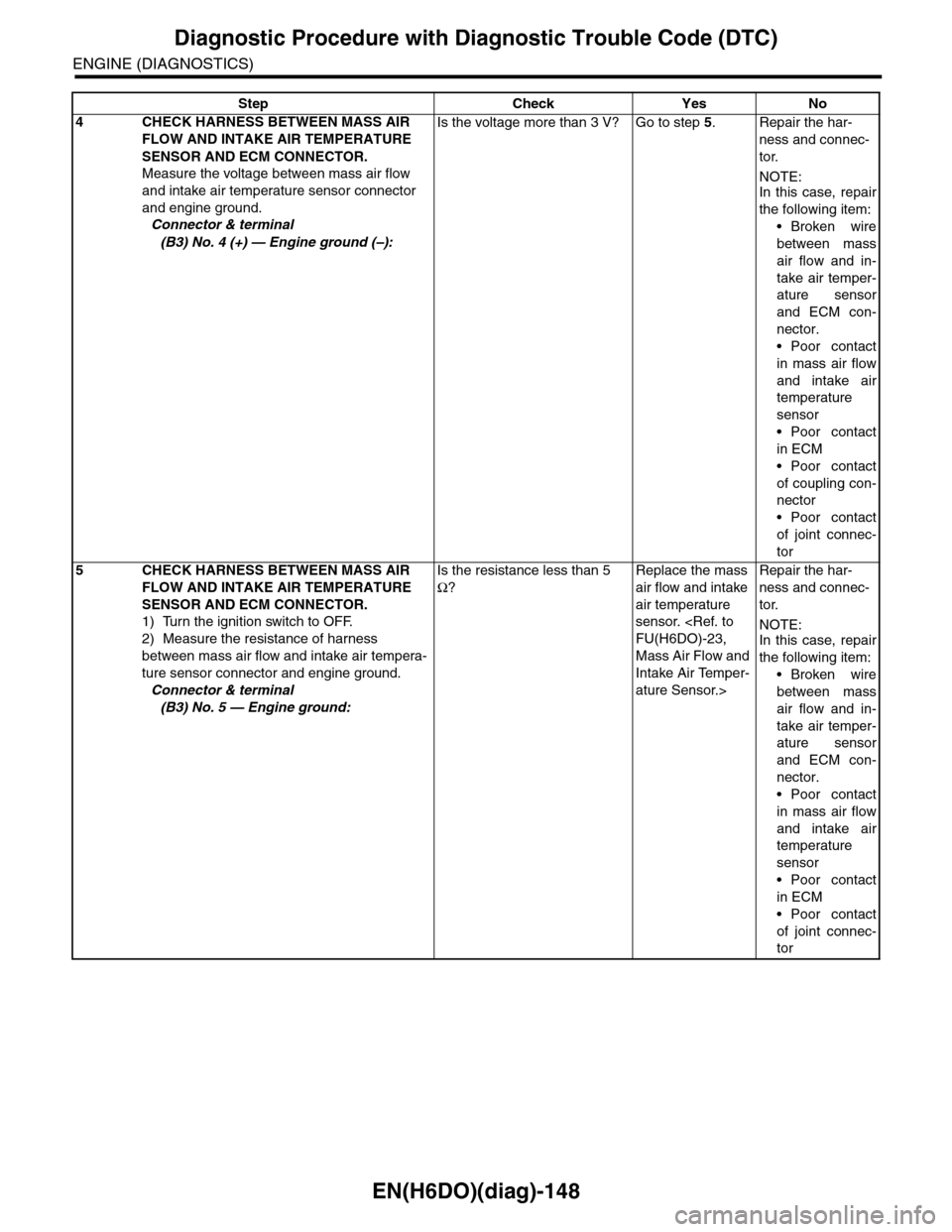

EN(H6DO)(diag)-148
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
4CHECK HARNESS BETWEEN MASS AIR
FLOW AND INTAKE AIR TEMPERATURE
SENSOR AND ECM CONNECTOR.
Measure the voltage between mass air flow
and intake air temperature sensor connector
and engine ground.
Connector & terminal
(B3) No. 4 (+) — Engine ground (–):
Is the voltage more than 3 V? Go to step 5.Repair the har-
ness and connec-
tor.
NOTE:In this case, repair
the following item:
•Broken wire
between mass
air flow and in-
take air temper-
ature sensor
and ECM con-
nector.
•Poor contact
in mass air flow
and intake air
temperature
sensor
•Poor contact
in ECM
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
5CHECK HARNESS BETWEEN MASS AIR
FLOW AND INTAKE AIR TEMPERATURE
SENSOR AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Measure the resistance of harness
between mass air flow and intake air tempera-
ture sensor connector and engine ground.
Connector & terminal
(B3) No. 5 — Engine ground:
Is the resistance less than 5
Ω?
Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
Repair the har-
ness and connec-
tor.
NOTE:In this case, repair
the following item:
•Broken wire
between mass
air flow and in-
take air temper-
ature sensor
and ECM con-
nector.
•Poor contact
in mass air flow
and intake air
temperature
sensor
•Poor contact
in ECM
•Poor contact
of joint connec-
tor
Step Check Yes No

EN(H6DO)(diag)-149
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
AD:DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION CIRCUIT LOW INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Hard to start
•Erroneous idling
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03661
2934
198
B134ECM
12
E2
B21
E8
ENGINECOOLANTTEMPERATURE SENSOR
E8
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
12
B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34

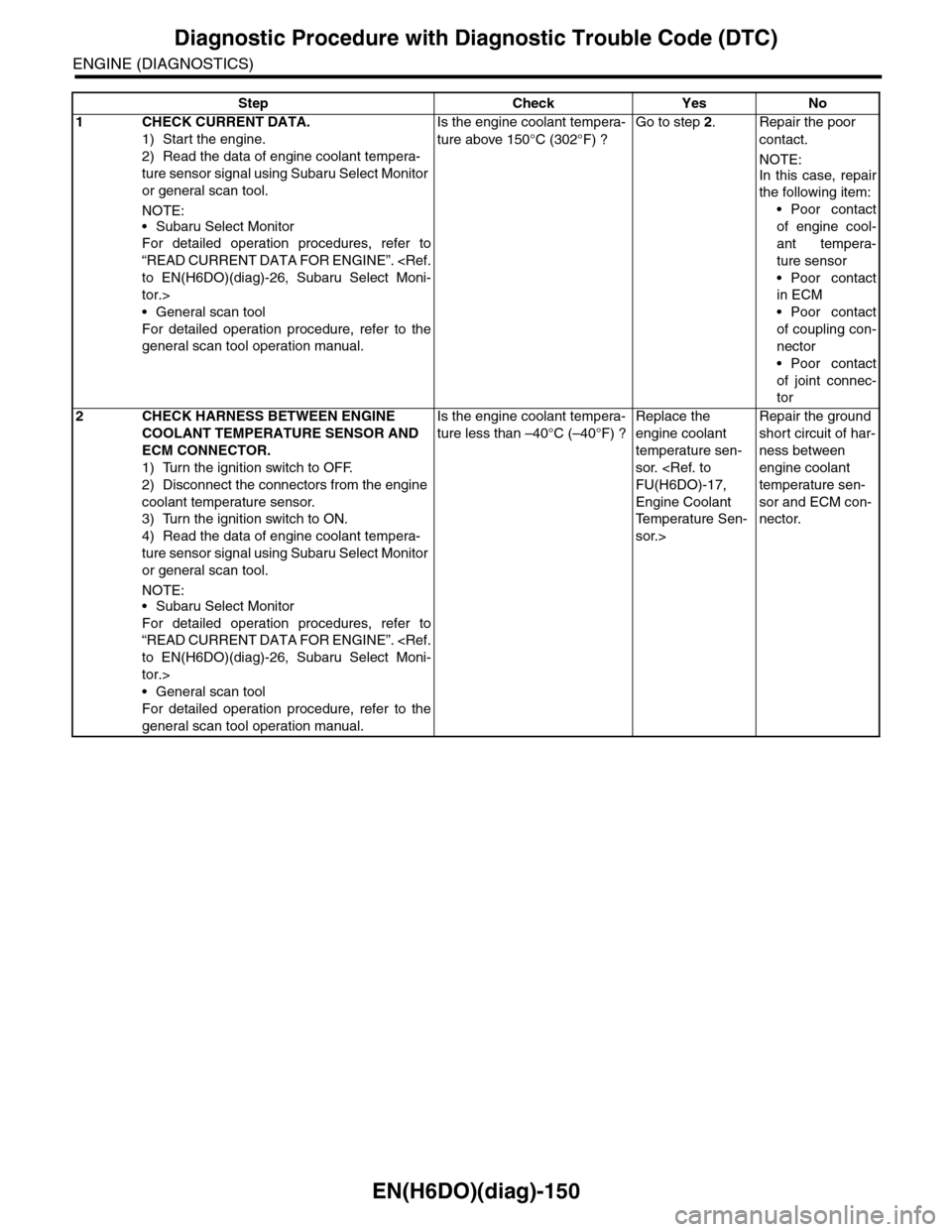

EN(H6DO)(diag)-150
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of engine coolant tempera-
ture sensor signal using Subaru Select Monitor
or general scan tool.
NOTE:
•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the engine coolant tempera-
ture above 150°C (302°F) ?
Go to step 2.Repair the poor
contact.
NOTE:
In this case, repair
the following item:
•Poor contact
of engine cool-
ant tempera-
ture sensor
•Poor contact
in ECM
•Poor contact
of coupling con-
nector
•Poor contact
of joint connec-
tor
2CHECK HARNESS BETWEEN ENGINE
COOLANT TEMPERATURE SENSOR AND
ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from the engine
coolant temperature sensor.
3) Turn the ignition switch to ON.
4) Read the data of engine coolant tempera-
ture sensor signal using Subaru Select Monitor
or general scan tool.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the engine coolant tempera-
ture less than –40°C (–40°F) ?
Replace the
engine coolant
temperature sen-
sor. FU(H6DO)-17,
Engine Coolant
Te m p e r a t u r e S e n -
sor.>
Repair the ground
short circuit of har-
ness between
engine coolant
temperature sen-
sor and ECM con-
nector.
