EN(H6DO)(diag)-119
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Q: DTC P0068 MAP/MAF - THROTTLE POSITION CORRELATION
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION CORRELATION, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03657
29619
MANIFOLD ABSOLUTEPRESSURE SENSOR
19207B21
E2
132E28
ECMB134
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
651E77
E76
E28
123
E77
134562
B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34

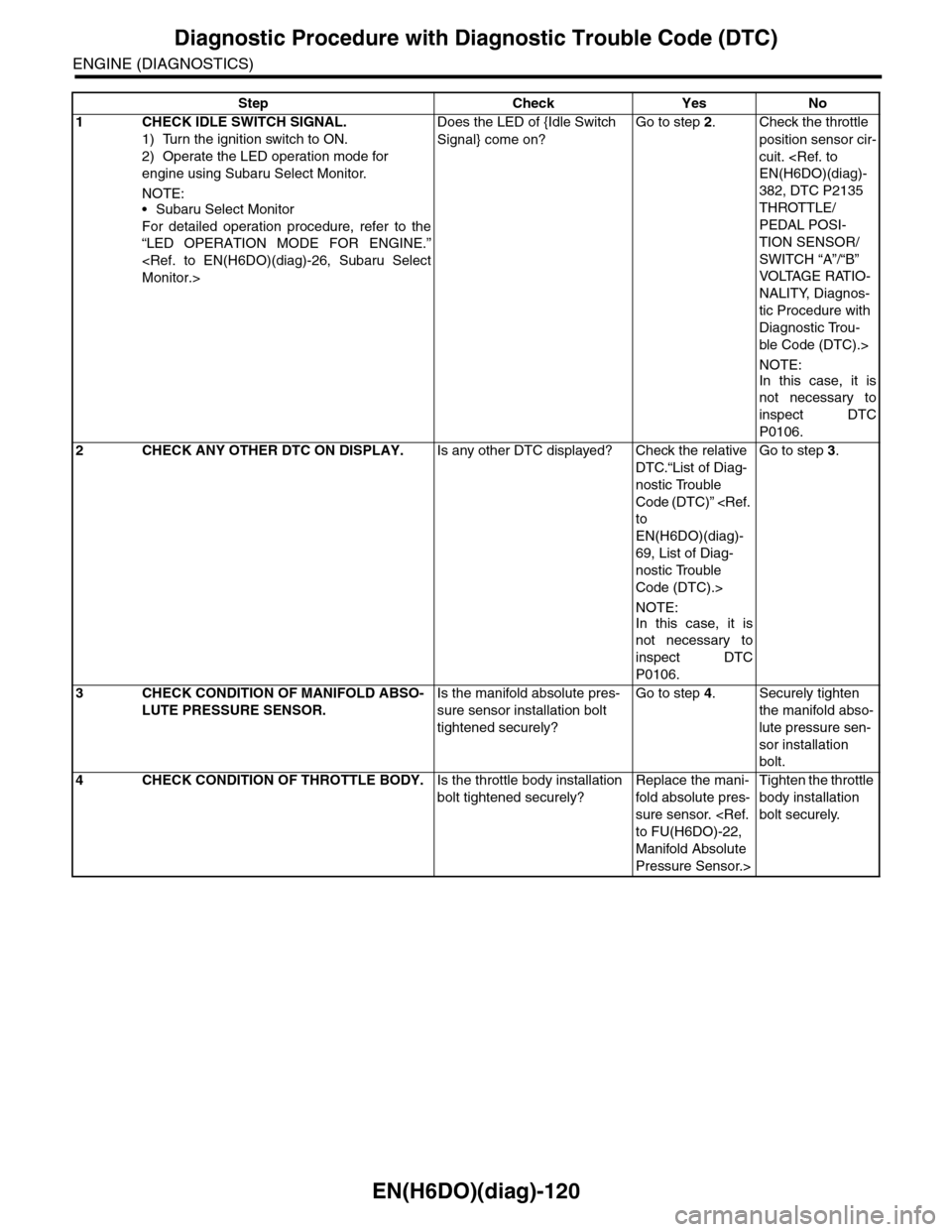

EN(H6DO)(diag)-120
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK IDLE SWITCH SIGNAL.
1) Turn the ignition switch to ON.
2) Operate the LED operation mode for
engine using Subaru Select Monitor.
NOTE:•Subaru Select Monitor
For detailed operation procedure, refer to the
“LED OPERATION MODE FOR ENGINE.”
Monitor.>
Does the LED of {Idle Switch
Signal} come on?
Go to step 2.Check the throttle
position sensor cir-
cuit. EN(H6DO)(diag)-
382, DTC P2135
THROTTLE/
PEDAL POSI-
TION SENSOR/
SWITCH “A”/“B”
VOLTAGE RATIO-
NALITY, Diagnos-
tic Procedure with
Diagnostic Trou-
ble Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.
2CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check the relative
DTC.“List of Diag-
nostic Trouble
Code (DTC)” to
EN(H6DO)(diag)-
69, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.
Go to step 3.
3CHECK CONDITION OF MANIFOLD ABSO-
LUTE PRESSURE SENSOR.
Is the manifold absolute pres-
sure sensor installation bolt
tightened securely?
Go to step 4.Securely tighten
the manifold abso-
lute pressure sen-
sor installation
bolt.
4CHECK CONDITION OF THROTTLE BODY.Is the throttle body installation
bolt tightened securely?
Replace the mani-
fold absolute pres-
sure sensor. to FU(H6DO)-22,
Manifold Absolute
Pressure Sensor.>
Tighten the throttle
body installation
bolt securely.

EN(H6DO)(diag)-129
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
V: DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFOR-
MANCE
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Engine stalls.
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35

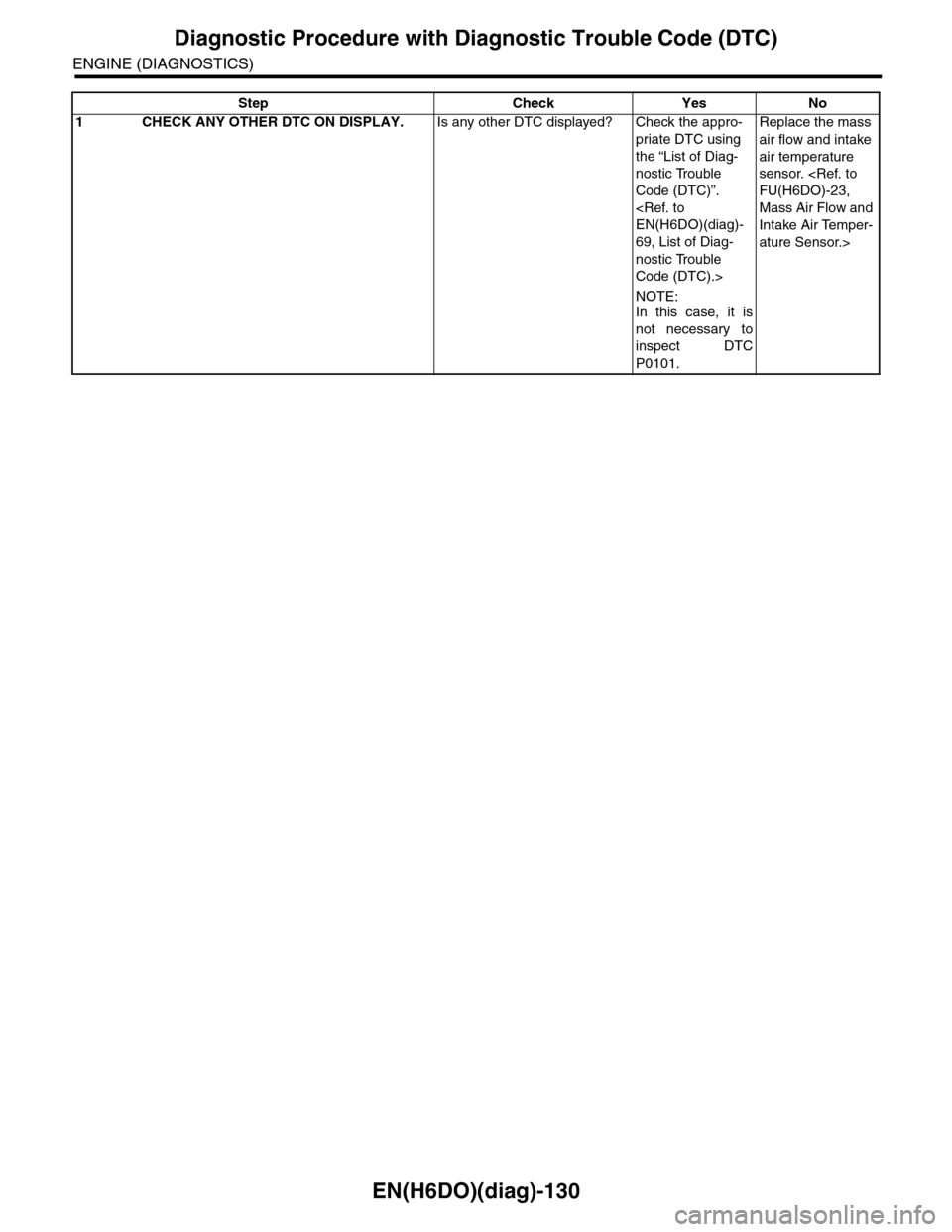

EN(H6DO)(diag)-130
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check the appro-
priate DTC using
the “List of Diag-
nostic Trouble
Code (DTC)”.
EN(H6DO)(diag)-
69, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:In this case, it is
not necessary to
inspect DTC
P0101.
Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>

EN(H6DO)(diag)-131
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
W: DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Engine stalls.
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35

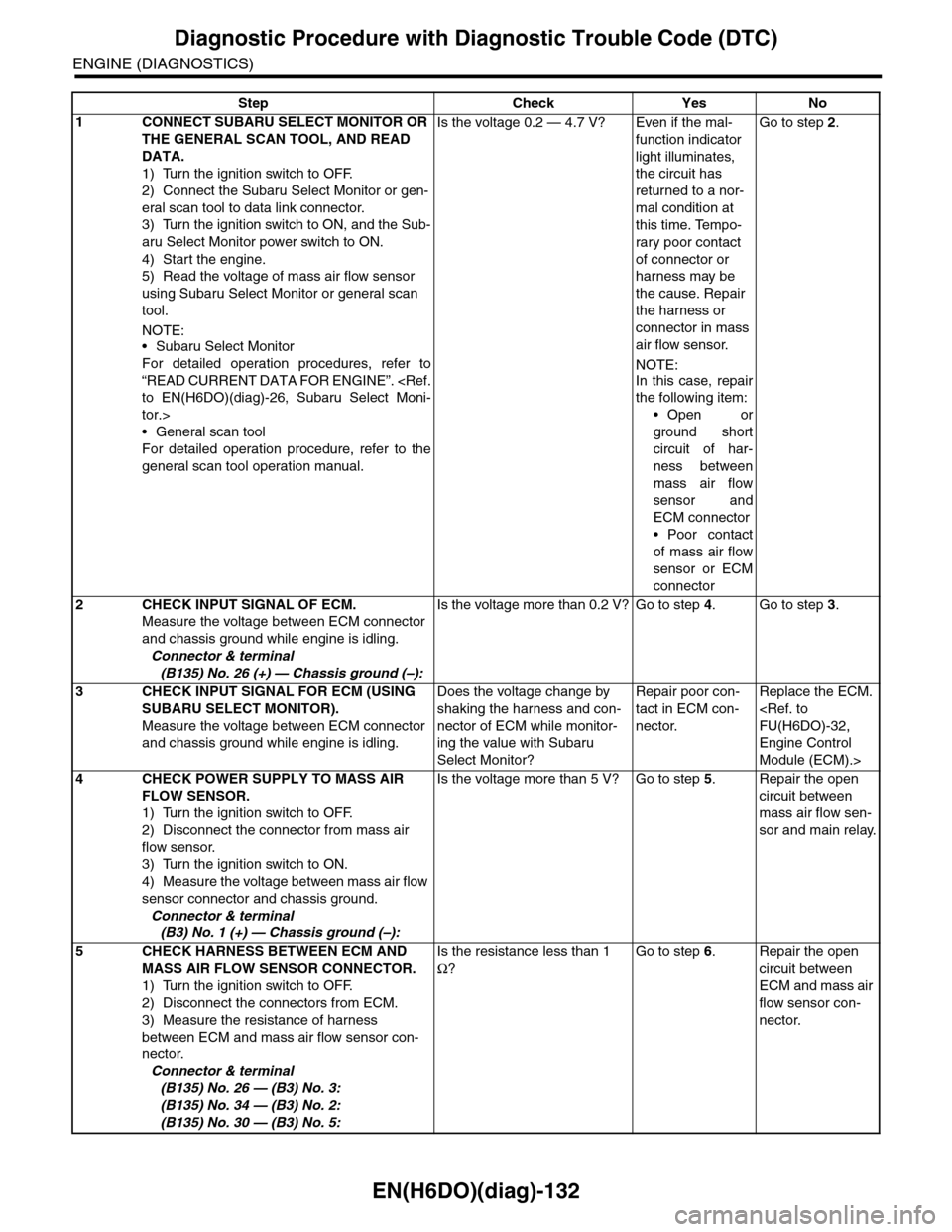

EN(H6DO)(diag)-132
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CONNECT SUBARU SELECT MONITOR OR
THE GENERAL SCAN TOOL, AND READ
DATA.
1) Turn the ignition switch to OFF.
2) Connect the Subaru Select Monitor or gen-
eral scan tool to data link connector.
3) Turn the ignition switch to ON, and the Sub-
aru Select Monitor power switch to ON.
4) Start the engine.
5) Read the voltage of mass air flow sensor
using Subaru Select Monitor or general scan
tool.
NOTE:•Subaru Select Monitor
For detailed operation procedures, refer to
“READ CURRENT DATA FOR ENGINE”. to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>
•General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.
Is the voltage 0.2 — 4.7 V? Even if the mal-
function indicator
light illuminates,
the circuit has
returned to a nor-
mal condition at
this time. Tempo-
rary poor contact
of connector or
harness may be
the cause. Repair
the harness or
connector in mass
air flow sensor.
NOTE:
In this case, repair
the following item:
•Open or
ground short
circuit of har-
ness between
mass air flow
sensor and
ECM connector
•Poor contact
of mass air flow
sensor or ECM
connector
Go to step 2.
2CHECK INPUT SIGNAL OF ECM.
Measure the voltage between ECM connector
and chassis ground while engine is idling.
Connector & terminal
(B135) No. 26 (+) — Chassis ground (–):
Is the voltage more than 0.2 V? Go to step 4.Go to step 3.
3CHECK INPUT SIGNAL FOR ECM (USING
SUBARU SELECT MONITOR).
Measure the voltage between ECM connector
and chassis ground while engine is idling.
Does the voltage change by
shaking the harness and con-
nector of ECM while monitor-
ing the value with Subaru
Select Monitor?
Repair poor con-
tact in ECM con-
nector.
Replace the ECM.
FU(H6DO)-32,
Engine Control
Module (ECM).>
4CHECK POWER SUPPLY TO MASS AIR
FLOW SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from mass air
flow sensor.
3) Turn the ignition switch to ON.
4) Measure the voltage between mass air flow
sensor connector and chassis ground.
Connector & terminal
(B3) No. 1 (+) — Chassis ground (–):
Is the voltage more than 5 V? Go to step 5.Repair the open
circuit between
mass air flow sen-
sor and main relay.
5CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM.
3) Measure the resistance of harness
between ECM and mass air flow sensor con-
nector.
Connector & terminal
(B135) No. 26 — (B3) No. 3:
(B135) No. 34 — (B3) No. 2:
(B135) No. 30 — (B3) No. 5:
Is the resistance less than 1
Ω?
Go to step 6.Repair the open
circuit between
ECM and mass air
flow sensor con-
nector.

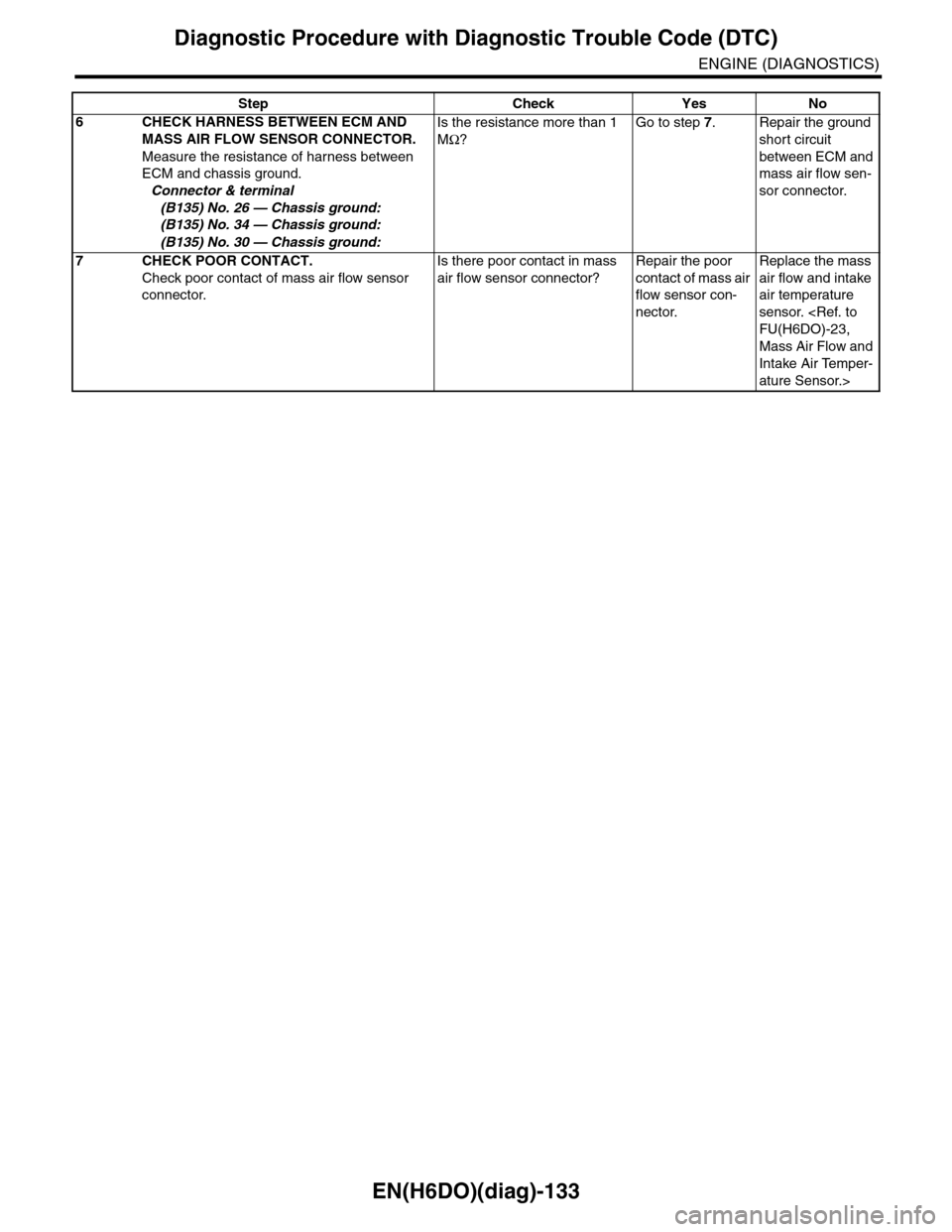

EN(H6DO)(diag)-133
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
6CHECK HARNESS BETWEEN ECM AND
MASS AIR FLOW SENSOR CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B135) No. 26 — Chassis ground:
(B135) No. 34 — Chassis ground:
(B135) No. 30 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 7.Repair the ground
short circuit
between ECM and
mass air flow sen-
sor connector.
7CHECK POOR CONTACT.
Check poor contact of mass air flow sensor
connector.
Is there poor contact in mass
air flow sensor connector?
Repair the poor
contact of mass air
flow sensor con-
nector.
Replace the mass
air flow and intake
air temperature
sensor. FU(H6DO)-23,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>
Step Check Yes No

EN(H6DO)(diag)-134
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
X: DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH INPUT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Engine stalls.
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35
