2009 MITSUBISHI ASX Owners Manual

Filling the fuel tank
E00200202256WARNING
l When handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
l Gasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off
and keep away from flames, sparks, and
smoking materials. Always handle fuel in
well-ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by
touching a metal part of the car or the
fuel pump. Any static electricity on your
body could create a spark that ignites
fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let any other person come near the fuel
tank filler. If you allowed a person to
help you and that person was carrying
static electricity, fuel vapour could be ig-
nited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you
moved away and did something else (for
example, sitting on a seat) part-way
through the refueling process, you could
pick up a fresh charge of static electricity.
l If the tank cap must be replaced, use only
a MITSUBISHI MOTORS original part. Fuel tank capacity
2WD models: 63 litres
4WD models: 60 litres
Refueling
1.

Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left side of your vehicle.
Open the fuel tank filler door by pulling the
release lever located on the side of the driv-
er’s seat. 3. Remove the fuel cap.Open the fuel tank filler tube by slowly turn-
ing the cap anticlockwise.
1- Remove
2-

Close
4. While filling with fuel, hang the fuel cap cord on the hook located on the inside of the
fuel tank filler door. General information
03 LHD RHD

CAUTION
l
Since the fuel system may be under pres-
sure, remove the fuel cap slowly. This re-
lieves any pressure or vacuum that might
have built up in the fuel tank. If you hear
a hissing sound from the cap, wait until it
stops before removing the cap. Other-
wise, fuel may spray out, injuring you or
others.
5. Insert
the gun in the tank port as far as it goes. CAUTION
l
Do not tilt the gun.
6. When
the gun stops automatically, do not fill with fuel any more.
7. Close the fuel cap. To close, turn the fuel cap slowly clockwise
until you hear clicking sounds, then gently
push the fuel tank filler door closed. Installation of accessories
E00200300963
We

recommend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
l The installation of accessories, optional
parts, etc., should only be carried out within
the limits prescribed by law in your country,
and in accordance with the guidelines and
warnings contained within the documents ac-
companying this vehicle.
l Installing electric components incorrectly
could lead to a fire. Please refer to Modifica-
tion/alteration to the electrical or fuel sys-
tems section within this owner’s manual.
l Using a cellular phone or radio set inside the
vehicle without an external antenna may
cause electrical system interference, which
could lead to unsafe vehicle operation.
l Tyres and wheels which do not meet specifi-
cations must not be used.
Refer to the “Specifications” section for in-
formation regarding wheel and tyre sizes.
Important points!
Due to large number of accessory and replacement
parts of different manufactures available in the mar-
ket, it is not possible, not only for MITSUBISHI
MOTORS, but also for a MITSUBISHI MOTORS
Authorized Service Point, to check whether the at-
tachment or installation of such parts affects the
overall safety of your MITSUBISHI-vehicle.
Even when such parts are officially authorized, for
example
by a “general operators permit” (an ap-
praisal for the part) or through the execution of the
part in an officially approved manner of construc-
tion, or when a single operation permit following
the attachment or installation of such parts, it can-
not be deduced from that alone, that the driving safe-
ty of your vehicle has not been affected.

Consider also that there basically exists no liability
on the part of the appraiser or the official. Maxi-
mum safety can only be ensured with parts recom-
mended, sold and fitted or installed by a
MITSUBISHI MOTORS Authorized Service Point
(MITSUBISHI MOTORS genuine replacement
parts and MITSUBISHI MOTORS accessories).
The same also pertains to modifications of
MITSUBISHI vehicles with respect to the produc-
tion specifications. For safety reasons, do not at-
tempt any modifications other than those that fol-
low the recommendations of a MITSUBISHI
MOTORS Authorized Service Point. General information
04

Modification/alterations to the
electrical or fuel systems E00200400368
MITSUBISHI MOTORS CORPORATION
has al-
ways manufactured safe, high quality vehicles. In
order to maintain this safety and quality, it is impor-
tant that any accessory that is to be fitted, or any
modifications carried out which involve the electri-
cal or fuel systems, should be carried out in accord-
ance with MITSUBISHI guidelines. CAUTION
l
If
the wires interfere with the vehicle
body or improper installation methods
are used (protective fuses not included,
etc.), electronic devices may be adversely
affected, resulting in a fire or other acci-
dent. Genuine parts
E00200500499
MITSUBISHI MOTORS

has gone to great lengths
to bring you a superbly crafted automobile offering
the highest quality and dependability.
Use MITSUBISHI MOTORS Genuine Parts, de-
signed and manufactured to maintain your
MITSUBISHI MOTORS automobile at top per-
formance. MITSUBISHI MOTORS Genuine Parts
are identified by this mark and are available at all
MITSUBISHI MOTORS Authorized Service
Points. Safety and disposal information
for used engine oil E00200600155 WARNING
l Prolonged
and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
l Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.
l Keep used engine oils out of reach of chil-
dren.
Protect the environment
It
is illegal to pollute drains, water courses and soil.
Use authorized waste collection facilities, includ-
ing civic amenity sites and garages providing facili-
ties for disposal of used oil and used oil filters. If in
doubt, contact your local authority for advice on dis-
posal. General information
05

Disposal information for used
batteries E00201300032 Your vehicle contains batteries
and/or accumulators.
Do
not mix with general house-
hold waste.
For proper treatment, recovery
and recycling of used batteries,
please take them to applicable col-
lection points, in accordance
with your national legislation
and the Directives 2006/66/EC.
By disposing of these batteries
correctly, you will help to save
valuable resources and prevent
any potential negative effects on
human health and the environ-
ment which could otherwise
arise from inappropriate waste
handling. Auto Stop & Go (AS&G) system*
E00201500021
This

paragraph summarizes the major items of the
Auto Stop & Go (AS&G) system such as the char-
acteristics, operating procedures, etc. For details, re-
fer to “Auto Stop & Go (AS&G) system” on page
4-17.
The Auto Stop & Go (AS&G) system reduces the
emission of exhaust gases and increases fuel effi-
ciency.
The Auto Stop & Go (AS&G) system automatical-
ly stops and restarts the engine without the use of
the ignition switch or the engine switch when the
vehicle is stopped, such as at traffic lights or in a
traffic jam.
Activation E00201600022
The Auto Stop & Go (AS&G) system is automati-
cally activated when the ignition switch is turned to
the

“ON” position or the operation mode is put in
ON. Deactivation
E00201700036
You

can deactivate the system by pressing the “Au-
to Stop & Go (AS&G) OFF” switch. Then the “ ”
display/indicator will turn on. Auto stop
E00201800024
1. Stop the vehicle. General information
06

2. Place the gearshift lever in the “N” (Neutral)
position.
Vehicles with 5M/T Vehicles with 6M/T 3. Release the clutch pedal.
4.
The

“ ” display/indicator will turn on and
the engine will stop automatically. Auto go
E00201900025
Depress the clutch pedal while the gearshift lever is
in

the “N” (Neutral) position. The “ ” display/indi-
cator

turns off and the engine restarts automatically. System characteristics
E00202300026
The principle of the Auto Stop & Go (AS&G) sys-
tem

is that it adapts to the vehicle’s needs (i.e. ener-
gy supply). This means that in certain circumstan-
ces the engine will not stop and in other circumstan-
ces the engine will restart by itself.
Circumstances when the engine will restart by itself E00202400027
l The
interior temperature rises and the air con-
ditioning starts operating in order to lower
the temperature.
l Electric power consumption is high.
l The brake pedal is depressed repeatedly. l
Vehicle
speed is 3 km/h (2 mph) or higher
when coasting on a slope.
l Mode selection dial is set to the demister po-
sition.
l When the air conditioning is operated by
pressing the air conditioning switch.
l When the preset temperature of the air condi-
tioning is changed significantly.
l When the air conditioning is operated in AU-
TO mode where the temperature control dial
is set to the max. hot or the max. cool posi-
tion (for vehicles with automatic air condi-
tioning).
Other than the conditions mentioned above, the en-
gine may restart automatically. For details, refer to
“Auto Stop & Go (AS&G) system” on page 4-17.
Circumstances when the engine will not stop E00202500028
l Ambient
temperature is lower than approxi-
mately 3 °C.
l After the engine restarts automatically and
the vehicle stops again within 10 seconds.
l After the engine restarts automatically and
the vehicle remains stationary.
l Mode selection dial is set to the demister po-
sition (see illustration below). General information
07

l
When the air conditioning is operated in AU-
TO mode where the temperature control dial
is set to the max. hot or the max. cool posi-
tion (for vehicles with automatic air condi-
tioning).
Other than the conditions mentioned above, the en-
gine may not stop automatically. For details, refer
to “Auto Stop & Go (AS&G) system” on page 4-17. General information
08

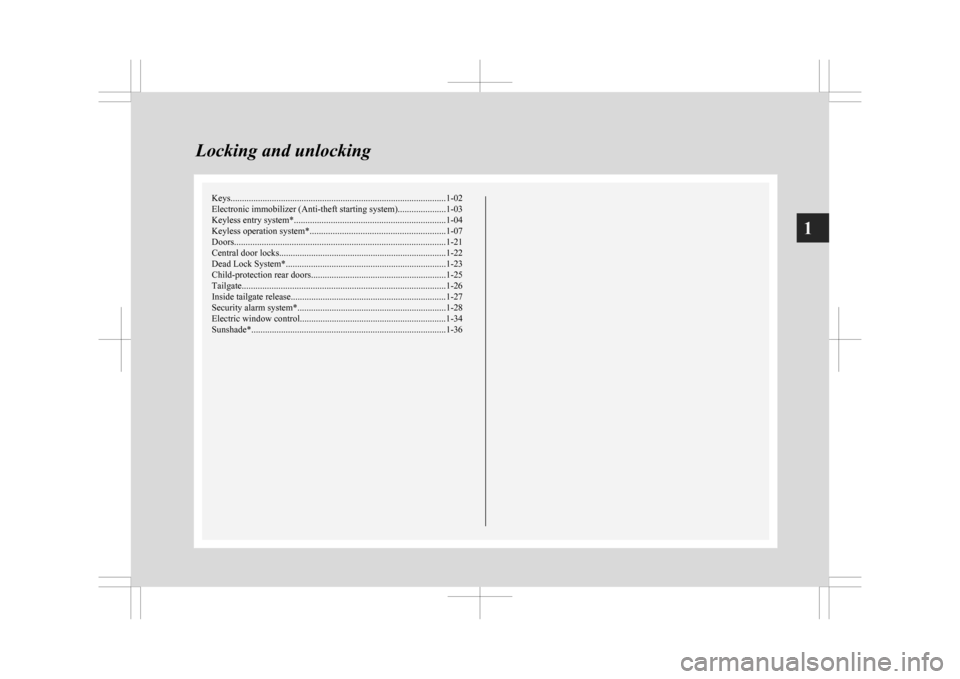

Keys..............................................................................................
1-02
Electronic immobilizer (Anti-theft starting system) .....................1-03
Keyless entry system*.................................................................. 1-04
Keyless operation system* ........................................................... 1-07
Doors............................................................................................ 1-21
Central door locks ......................................................................... 1-22
Dead Lock System* ...................................................................... 1-23
Child-protection rear doors ........................................................... 1-25
Tailgate ......................................................................................... 1-26
Inside tailgate release
.................................................................... 1-27
Security alarm system* ................................................................. 1-28
Electric window control................................................................1-34
Sunshade*..................................................................................... 1-36Locking and unlocking
1

Keys
E00300102269
Type 1
The key fits all locks. 1- Keyless entry key
(with electronic immobilizer)
2-
Key number tag Type 2
The emergency key fits all locks. 1- Keyless operation key
(with
electronic immobilizer and keyless en-
try system function)
2- Emergency key
3- Key number tag WARNING
l When
taking a key on flights, do not
press any switches on the key while on
the plane. If a switch is pressed on the
plane, the key emits electromagnetic
waves, which could adversely affect the
plane’s flight operation.
When carrying a key in a bag, be careful
that no switches on the key can be easily
pressed by mistake. NOTE
l The

key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla-
ces, so that you can order a key in the event
the original keys are lost.
l The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc-
tion.
• Do not leave in a place that is exposed todirect sunlight, for example on the dash-
board.
• Do not disassemble or modify.
• Do not excessively bend the key or sub- ject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key rings.
• Keep away from audio systems, personal computers, TVs, and other equipment
that generates a magnetic field.
• Keep away from devices that emit strong electromagnetic waves, such as cellular
phones, wireless devices and high frequen-
cy equipment (including medical devices).
• Do not clean with ultrasonic cleaners or similar equipment.
• Do not leave the key where it may be ex- posed to high temperature or high humid-
ity.
l The engine is designed so that it will not
start if the ID code registered in the immobil-
izer computer and the key’s ID code do not
match. Refer to the “Electronic immobilizer”
section for details and key usage.
l [For vehicles equipped with the security
alarm system] Locking and unlocking
1-02
1
