2009 MITSUBISHI ASX Owners Manual

Fuel consumption
E01101100544Item Combined Urban conditions Extra-urban condi-
tions CO
2
(g/km) Fuel consumption
(L/100km) Fuel consumption
(L/100km) Fuel consumption
(L/100km) Petrol-powered ve-
hicles 1600 models Without AS&G
139, 141* 6.0, 6.1* 7.8, 8.0* 5.0With AS&G
1355.97.54.9 1800 models
1817.69.86.4 2000 models 2WD
1817.710.1 6.3 4WD M/T
1867.910.3 6.5 CVT
1928.110.5 6.8Diesel-powered
vehicles 2WD Without AS&G
1505.77.04.9 With AS&G
1455.56.74.8 4WD
1505.76.95.0*: Vehicles for Russia, Kazakhstan and Ukraine
AS&G: Auto Stop & Go (AS&G) system
NOTE
l The results given do not express or imply any guarantee of the fuel consumption your particular vehicle.
The
vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road traffic conditions, as well as the extent to which the vehicle has been driven and the
standard of maintenance, will alla ffect its fuel consumption. Specifications
9-13 9

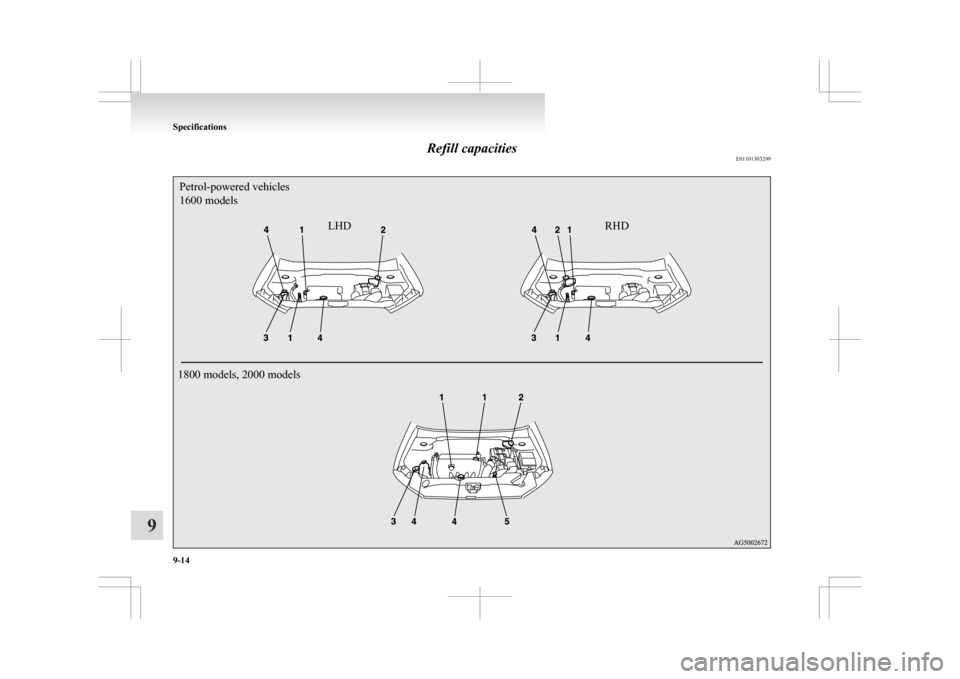

Refill capacities
E01101303299LHDRHD
Petrol-powered vehicles
1600 models
1800 models, 2000 models Specifications
9-14
9

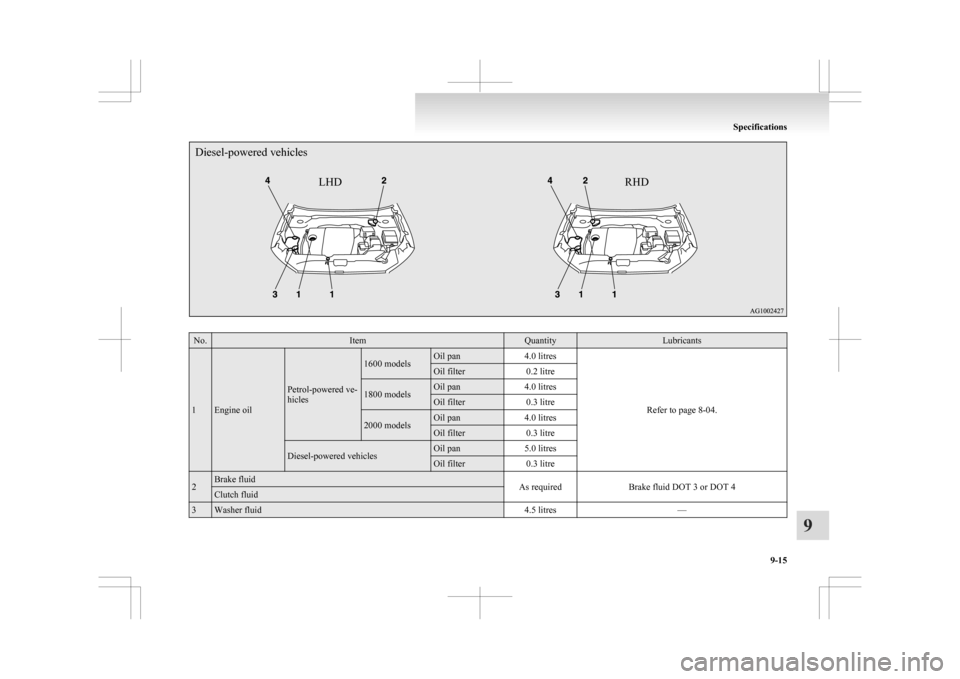

Diesel-powered vehiclesLHD RHDNo. Item Quantity Lubricants
1 Engine oil Petrol-powered ve-
hicles 1600 models Oil pan
4.0 litres
Refer to page 8-04. Oil filter
0.2 litre 1800 models Oil pan
4.0 litres Oil filter
0.3 litre 2000 models Oil pan
4.0 litres Oil filter
0.3 litre Diesel-powered vehicles Oil pan
5.0 litres Oil filter
0.3 litre2 Brake fluid
As requiredBrake fluid DOT 3 or DOT 4Clutch fluid
3 Washer fluid
4.5 litres— Specifications
9-15 9

No. Item Quantity Lubricants
4 Engine oil Petrol-powered vehicles 1600 models
6.0 litres
[includes 0.65 litre in the reserve tank]
DIA QUEEN SUPER LONG LIFE COOLANT PRE-MIUM or equivalent* 1800 models,
2000 models
7.5 litres
[includes 0.65 litre in the reserve tank] Diesel-powered vehicles
7.5 litres
[includes 0.62 litre in the reserve tank] 5 CVT fluid
7.1 litresDIA QUEEN CVTF-J16 Manual transmission
oil 5 M/T 1600 models
2.0 litres
DIA QUEEN NEW MULTI GEAR OIL API classifica-tion GL-3, SAE 75W-80 2000 models
2.5 litres 6 M/T
2.2 litres7 Transfer oil
0.49 litre Hypoid gear oil API classification GL-5 SAE 808 Rear differential oil
0.5 litreHypoid gear oil API classification GL-5 SAE 809 Refrigerant (air conditioning)
480 - 520 gHFC-134a*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technologySpecifications
9-16
9

4
4-wheel drive operation 4-31
AAccessory (Installation) 04
Accessory socket 5-61
Active stability control (ASC)
4-40
Additional equipment 8-17
Air conditioning 5-03 Important operation tips for the air condition-
ing 5-09
Air purifier 5-10
Airbag 2-24
Antenna 5-39
Anti-lock brake system (ABS) 4-38 Display 4-38
Warning lamp 4-38
Ashtray 5-60
Assist grips 5-70
Audio 5-10 Error codes 5-35
External audio input function 5-32
Handling of compact discs 5-38
Steering wheel audio remote control
switches 5-33
Auto Stop & Go (AS&G) system 4-17
Automatic transmission Fluid 9-14
Selector lever operation 4-24
Selector lever position 4-25
Sports mode 4-26
BBattery 8-08
Charge warning lamp 3-42 Discharged battery (Emergency starting) 6-02
Disposal information for used batteries

06
Specification 9-11
Bluetooth® 2.0 interface 5-41
Bonnet 8-03
Bottle holder 5-69
Brake assist system 4-36
Brake Anti-lock brake 4-38
Braking 4-34
Fluid 8-07,9-14
Parking brake 4-06
Bulb capacity 8-23
C Capacities 9-14
Card holder 5-59,5-66
Cargo loads 4-52
Catalytic converter

8-02
Cautions on handling of 4-wheel drive vehi-
cles 4-33
Central door locks 1-22
Charge warning lamp 3-42
Chassis number 9-02
Check engine warning lamp 3-41
Child restraint 2-15
Child-protection rear doors 1-25
Cigarette lighter 5-60
Cleaning Exterior of your vehicle 7-03
Interior of your vehicle 7-02
Clock 5-39
Clutch Fluid 8-07
Coat hook 5-70
Combination headlamps and dipper switch 3-44
Coolant (engine) 8-06,9-14
Cruise control 4-43 Cup holder 5-68
D Daytime running lamps
Bulb capacity
8-24
Replacement 8-30
Demister (rear window) 3-57
Diesel particulate filter (DPF) 4-15
Dimensions 9-04
Dipper (High/Low beam change) 3-47
Doors Central door locks 1-22
Child-protection 1-25
Dead Lock System 1-23
Lock and unlock 1-21
Driving, alcohol and drugs 4-02
E Economical driving 4-02
Electric power steering system (EPS)

4-40
Electric window control 1-34
Electrical system 9-11
Electronic immobilizer (Anti-theft starting sys-
tem) 1-03
Electronically controlled 4WD system 4-29
Emergency starting 6-02
Emergency stop signal system 4-37
Engine specifications 9-10
Engine switch 1-11
Engine Coolant 8-06,9-14
Number 9-02
Oil 8-04
Oil and filter 9-14
Overheating 6-04
Specifications 9-10 Alphabetical index
