2009 JEEP LIBERTY Owners Manual

NOTE:Keep in mind that you have to press the VR
button first and wait for the beep before speaking the
“Barge In” commands.
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, uconnect
phone Voice Training feature may be used.
1. Press the VR button, say “System Setup” and once you
are in that menu then say “Voice Training.” This will train
your own voice to the system and will improve recogni-
tion.
2. Repeat the words and phrases when prompted by
uconnect phone. For best results, the Voice Training
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.
SEATS
Manual Front Seat Adjustments
The manual seat adjustment bar is at the front of the seat,
near the floor.
Pull the bar upward to move the seat forward or rear-
ward. Release the bar once the seat is in the position
Manual Seat Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

desired. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.

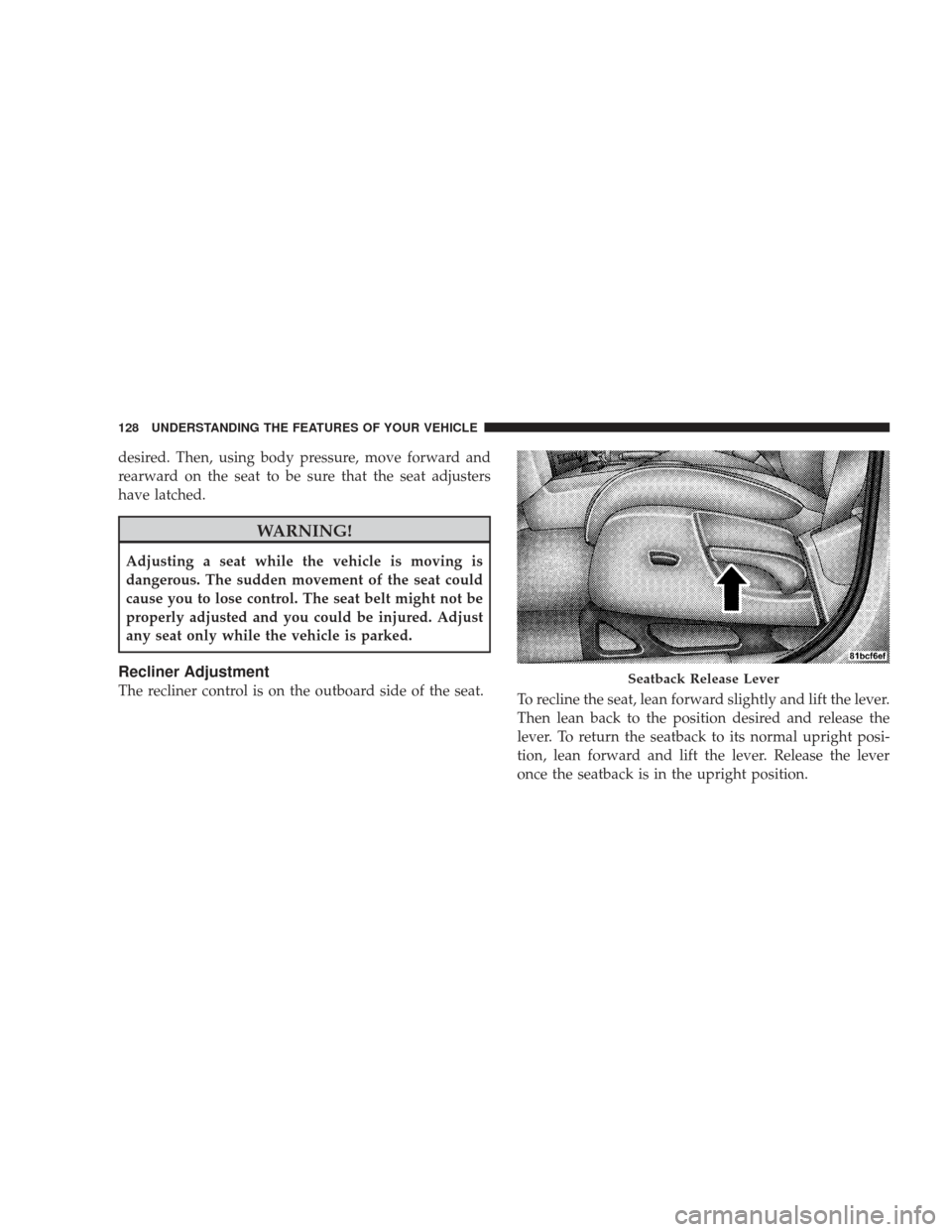

Recliner Adjustment
The recliner control is on the outboard side of the seat.To recline the seat, lean forward slightly and lift the lever.
Then lean back to the position desired and release the
lever. To return the seatback to its normal upright posi-
tion, lean forward and lift the lever. Release the lever
once the seatback is in the upright position.Seatback Release Lever
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Lumbar Support — If Equipped
This feature allows you to increase or decrease the
amount of lumbar support. The control lever is on the
inboard side of the seat. Turn the control lever downward
to increase and upward to decrease the desired amount
of lumbar support.

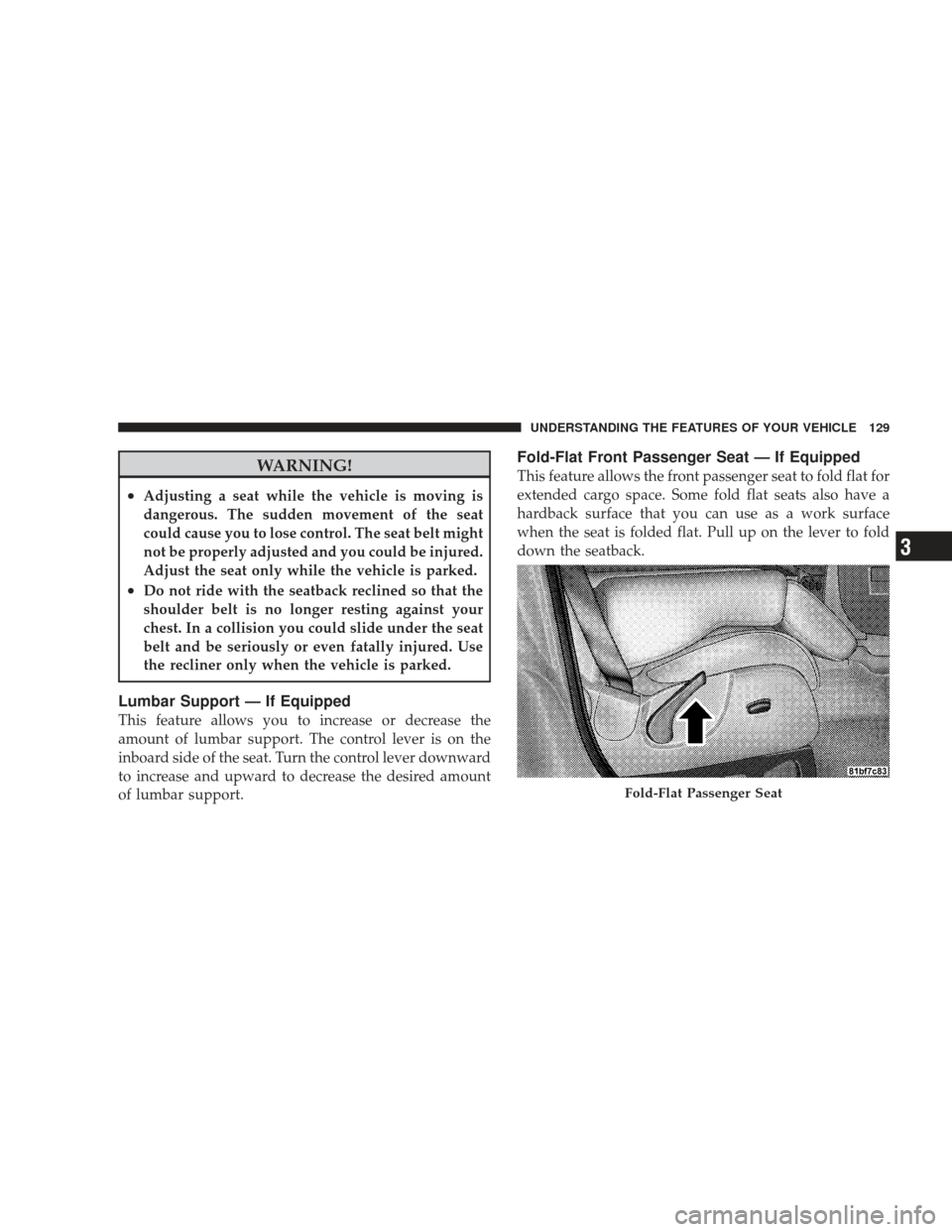

Fold-Flat Front Passenger Seat — If Equipped
This feature allows the front passenger seat to fold flat for
extended cargo space. Some fold flat seats also have a
hardback surface that you can use as a work surface
when the seat is folded flat. Pull up on the lever to fold
down the seatback.
Fold-Flat Passenger Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

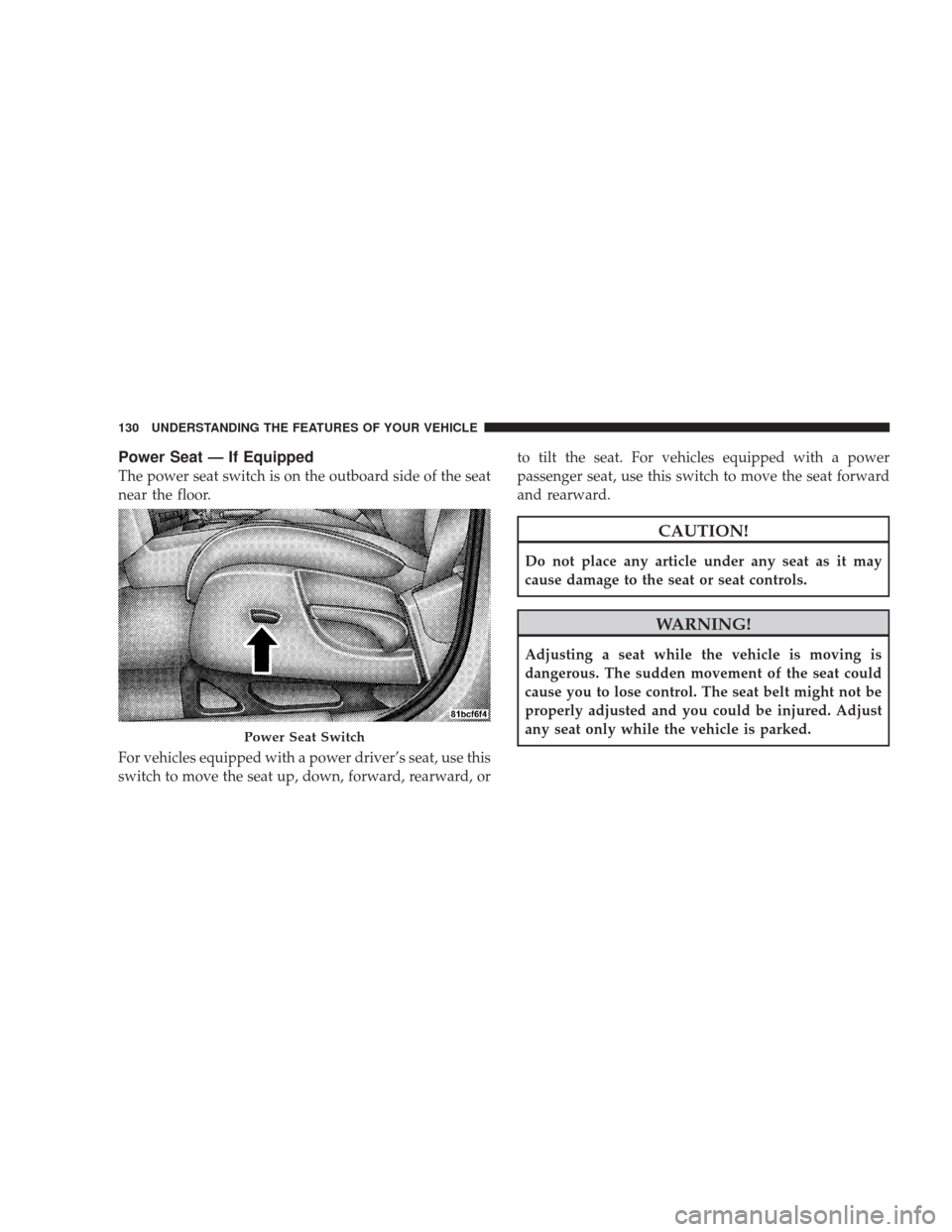

Power Seat — If Equipped
The power seat switch is on the outboard side of the seat
near the floor.
For vehicles equipped with a power driver’s seat, use this
switch to move the seat up, down, forward, rearward, orto tilt the seat. For vehicles equipped with a power
passenger seat, use this switch to move the seat forward
and rearward.
CAUTION!
Do not place any article under any seat as it may
cause damage to the seat or seat controls.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Power Seat Switch
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of a rear impact. Adjust the head restraints so
that the upper edge is as high as practical. The head
restraints have a locking button that must be pushed
inward to lower the head restraint. However, the head
restraints may be raised without pushing in the button.
Adjustable Head Restraint
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

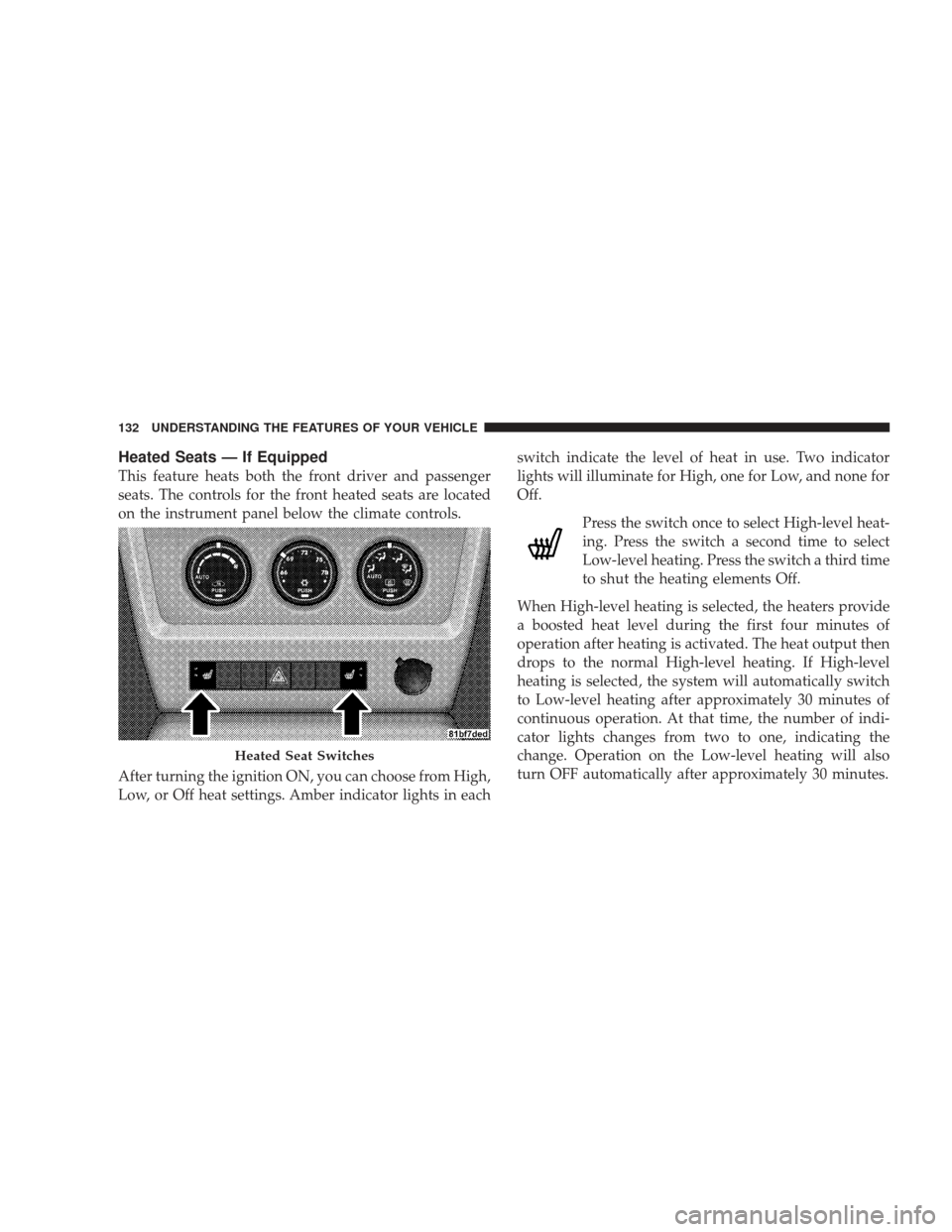

Heated Seats — If Equipped
This feature heats both the front driver and passenger
seats. The controls for the front heated seats are located
on the instrument panel below the climate controls.
After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in eachswitch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.
Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off.
When High-level heating is selected, the heaters provide
a boosted heat level during the first four minutes of
operation after heating is activated. The heat output then
drops to the normal High-level heating. If High-level
heating is selected, the system will automatically switch
to Low-level heating after approximately 30 minutes of
continuous operation. At that time, the number of indi-
cator lights changes from two to one, indicating the
change. Operation on the Low-level heating will also
turn OFF automatically after approximately 30 minutes.
Heated Seat Switches
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

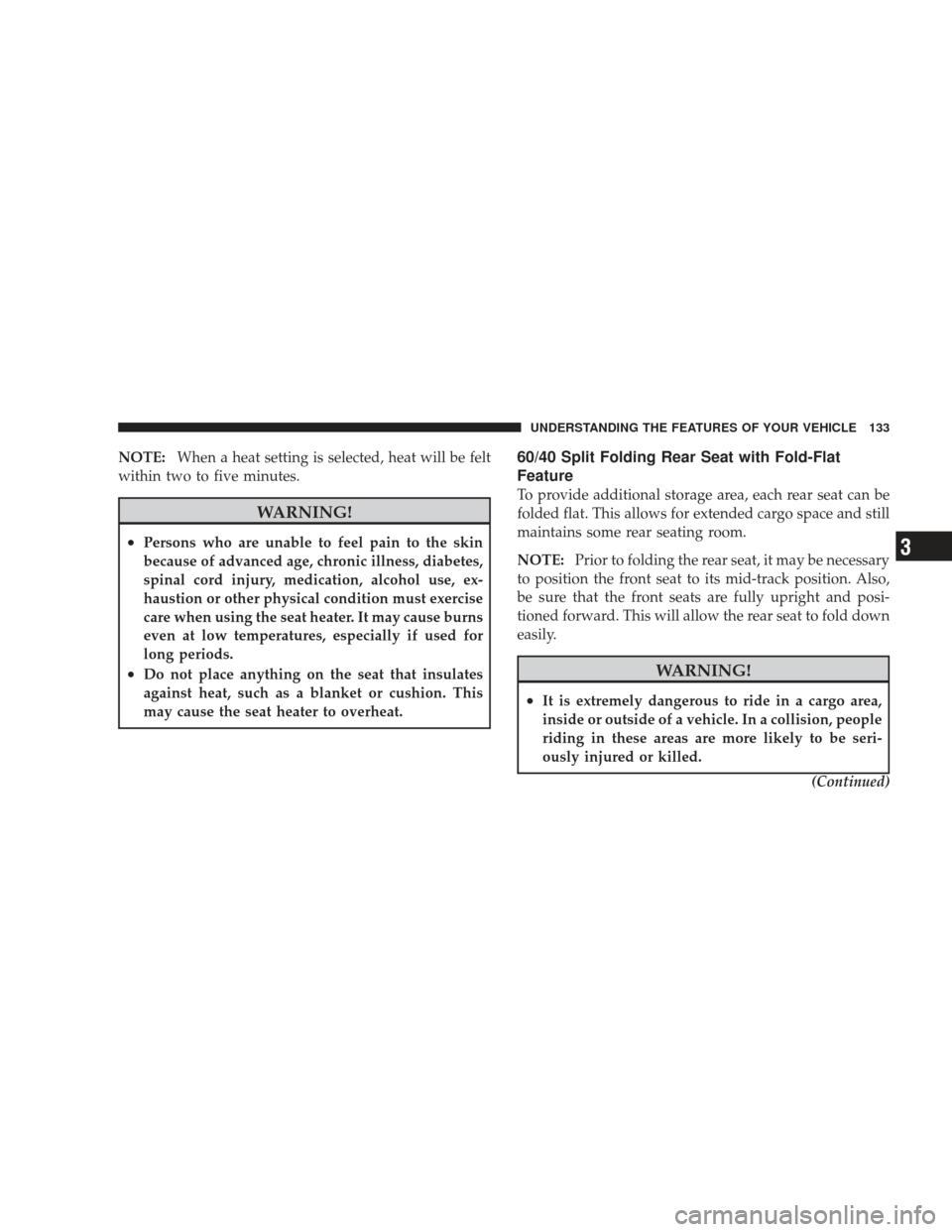

NOTE:When a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.
60/40 Split Folding Rear Seat with Fold-Flat
Feature
To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room.
NOTE: Prior to folding the rear seat, it may be necessary
to position the front seat to its mid-track position. Also,
be sure that the front seats are fully upright and posi-
tioned forward. This will allow the rear seat to fold down
easily.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

WARNING! (Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
To Lower the Rear Seat
1. Locate the release strap on the lower outboard side of
each rear seatback.
2. Pull the release strap (toward the front of the vehicle).3. Fold the rear seat completely forward.
4. If desired, push down on the seatback to lock it in the
folded position.
Rear Seat Release Strap
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
