2009 JEEP LIBERTY Owners Manual

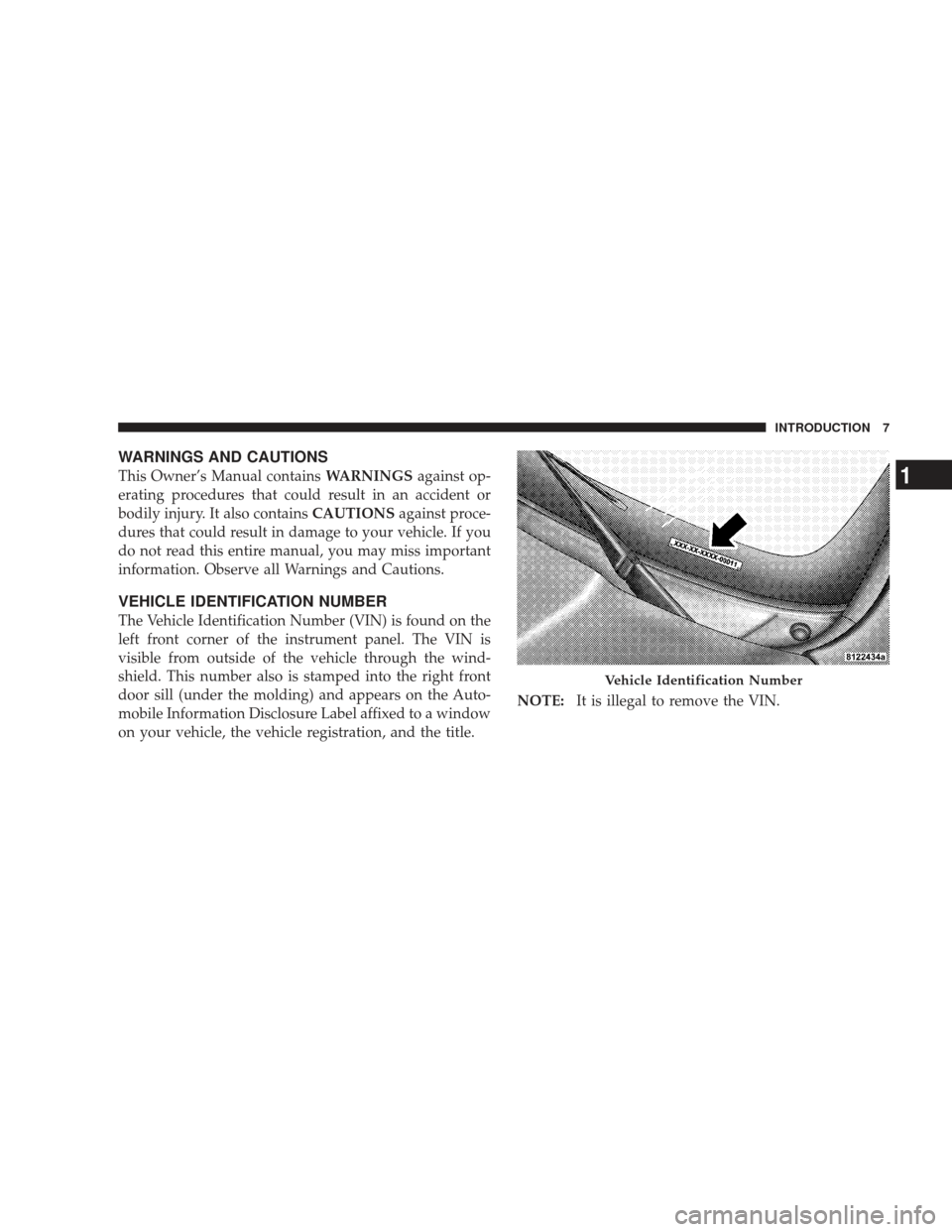

WARNINGS AND CAUTIONS
This Owner’s Manual containsWARNINGSagainst op-
erating procedures that could result in an accident or
bodily injury. It also contains CAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel. The VIN is
visible from outside of the vehicle through the wind-
shield. This number also is stamped into the right front
door sill (under the molding) and appears on the Auto-
mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration, and the title. NOTE:
It is illegal to remove the VIN.
Vehicle Identification Number
INTRODUCTION 7
1

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
8 INTRODUCTION

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

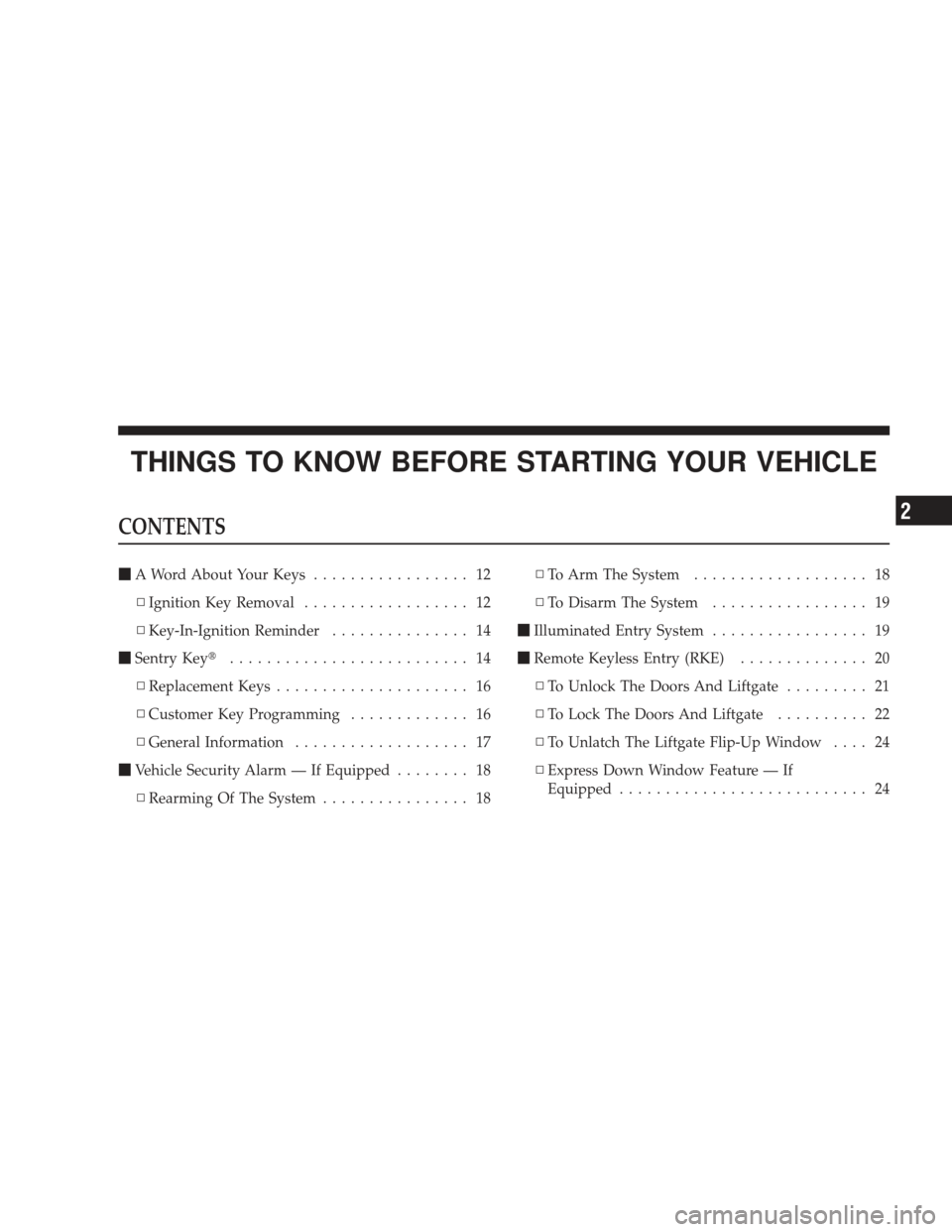

CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Key-In-Ignition Reminder ............... 14
 Sentry Key .......................... 14
▫ Replacement Keys ..................... 16
▫ Customer Key Programming ............. 16
▫ General Information ................... 17
 Vehicle Security Alarm — If Equipped ........ 18
▫ Rearming Of The System ................ 18 ▫
To Arm The System ................... 18
▫ To Disarm The System ................. 19
 Illuminated Entry System ................. 19
 Remote Keyless Entry (RKE) .............. 20
▫ To Unlock The Doors And Liftgate ......... 21
▫ To Lock The Doors And Liftgate .......... 22
▫ To Unlatch The Liftgate Flip-Up Window .... 24
▫ Express Down Window Feature — If
Equipped ........................... 24
2

▫Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 25
▫ Battery Replacement ................... 25
▫ General Information ................... 26
 Remote Starting System — If Equipped ....... 27
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
▫ Child-Protection Door Lock System
(Rear Doors) ......................... 33
 Windows ............................ 35
▫ Power Windows ...................... 35 ▫
Wind Buffeting ....................... 39
 Liftgate ............................. 40
▫ Liftgate Flipper Glass .................. 41
 Occupant Restraints ..................... 42
▫ Lap/Shoulder Belts .................... 43
▫ Lap/Shoulder Belt Untwisting Procedure .... 48
▫ Seat Belt Pretensioner — If Equipped ....... 49
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 49
▫ Automatic Locking Mode — If Equipped .... 51
▫ Energy Management Feature ............. 51
▫ Seat Belts And Pregnant Women .......... 52
▫ Seat Belt Extender ..................... 52
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

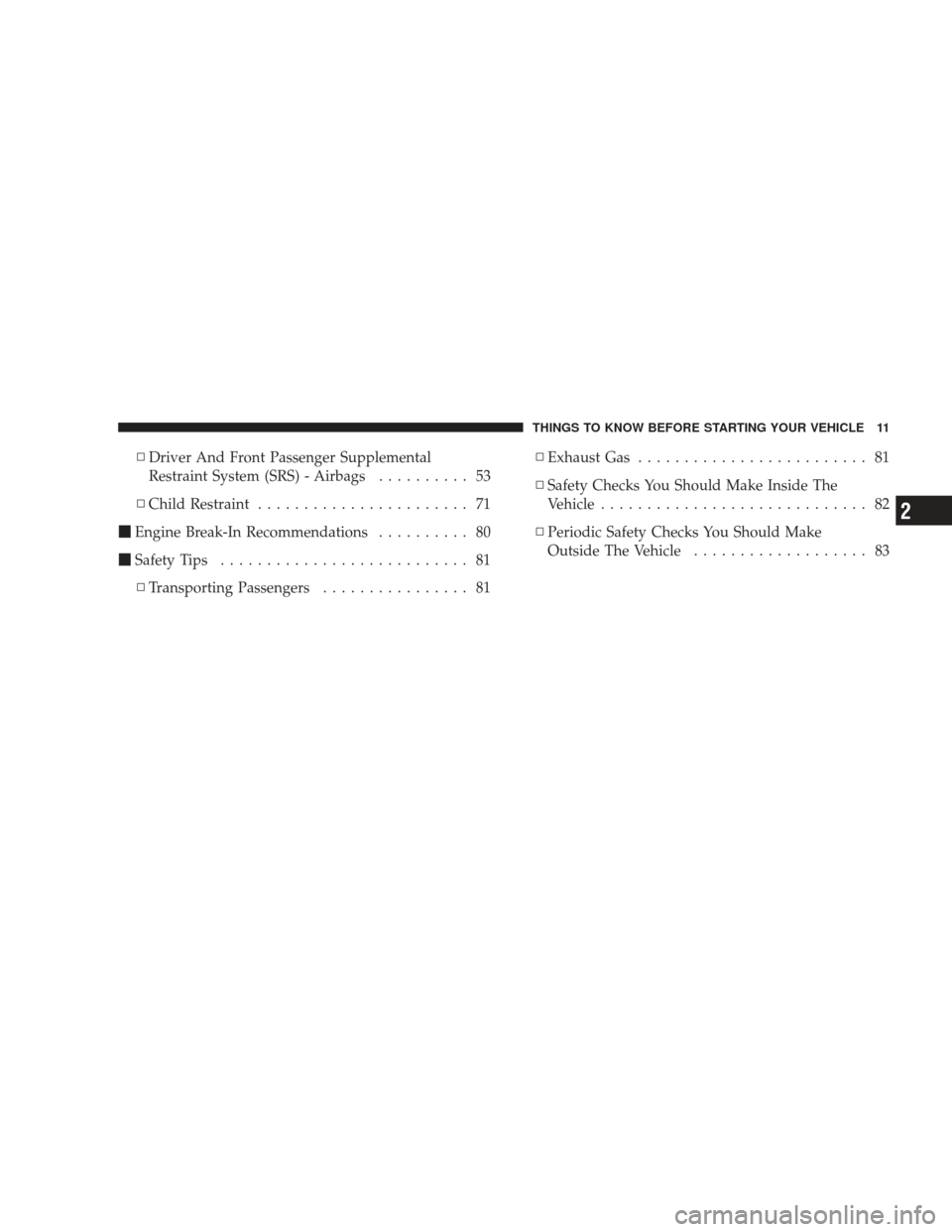

▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbags .......... 53
▫ Child Restraint ....................... 71
 Engine Break-In Recommendations .......... 80
 Safety Tips ........................... 81
▫ Transporting Passengers ................ 81 ▫
Exhaust Gas ......................... 81
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 82
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 83
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

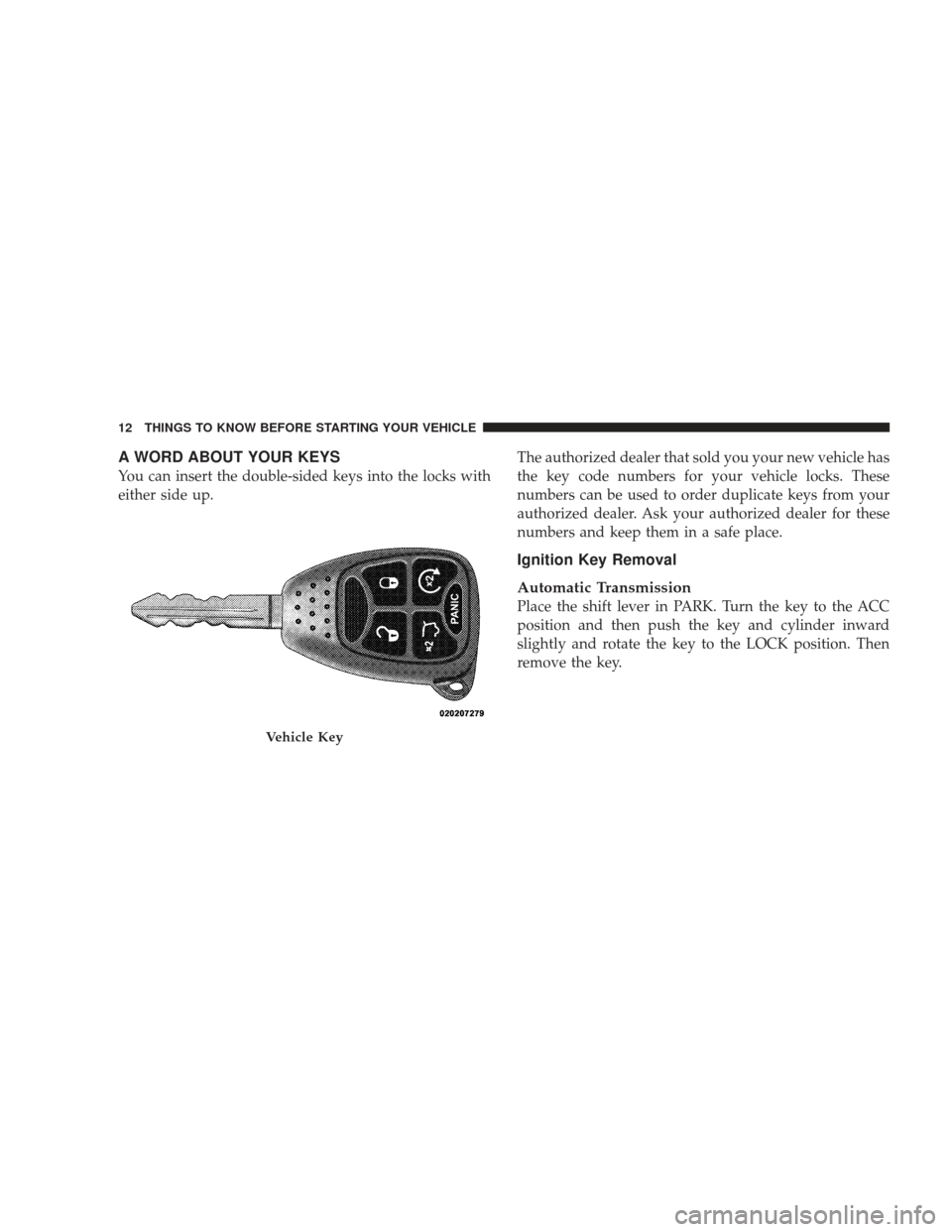

A WORD ABOUT YOUR KEYS
You can insert the double-sided keys into the locks with
either side up.The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
Ignition Key Removal
Automatic Transmission
Place the shift lever in PARK. Turn the key to the ACC
position and then push the key and cylinder inward
slightly and rotate the key to the LOCK position. Then
remove the key.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), features such as the power
window switches, radio, power sunroof or Sky Slider(if equipped), and power outlets will remain active for
45 seconds after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
•For vehicles equipped with the EVIC, features such as
the power window switches, radio, power sunroof or
Sky Slider
(if equipped), and power outlets will
remain active for up to 10 minutes after the ignition
switch is turned to the LOCK position. Opening either
front door will cancel this feature. The time for this
feature is programmable. For details, refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features)” under
“Electronic Vehicle Information Center (EVIC)” in
Section 4 of this manual.
Ignition Switch Positions
1 — Lock 3 — On
2 — Acc 4 — Start THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

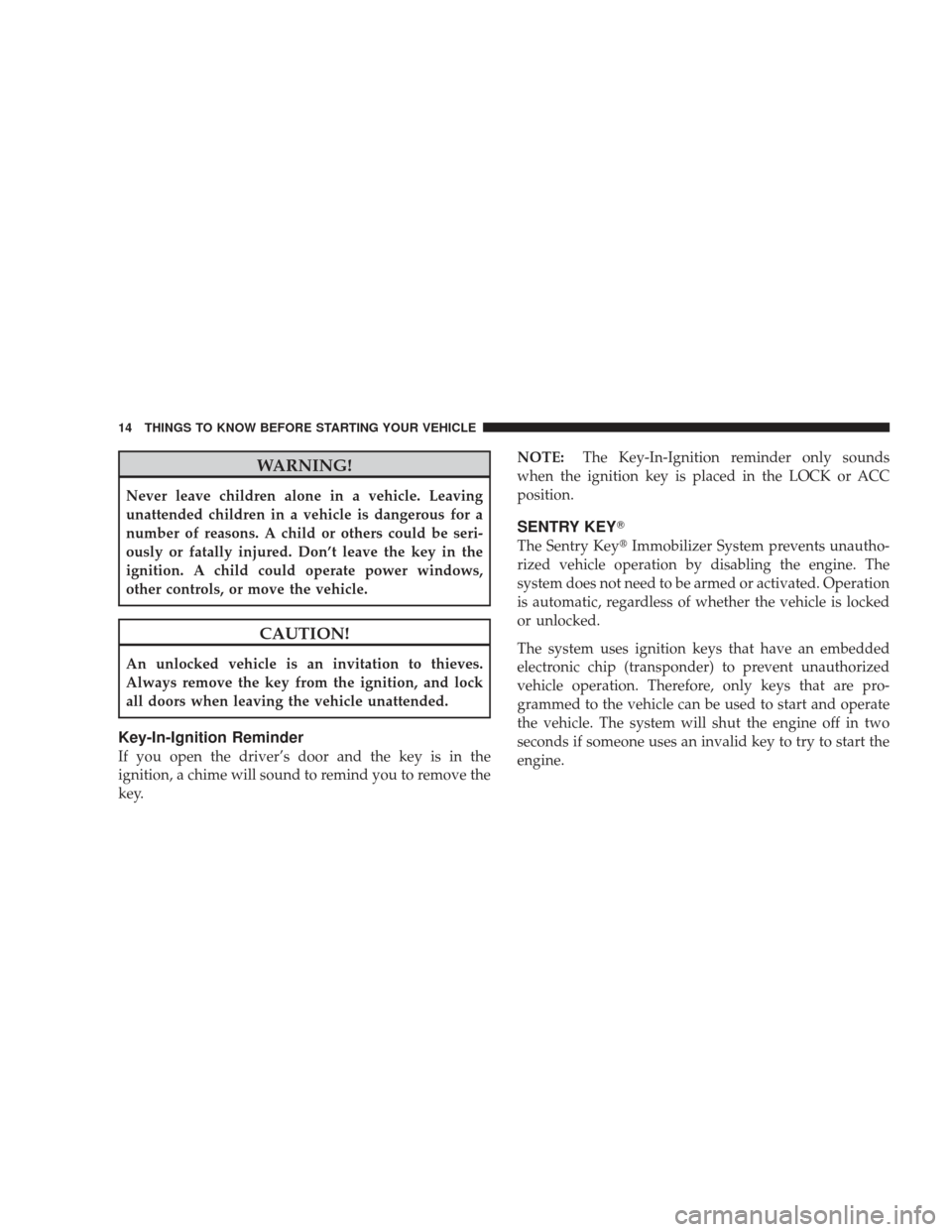

WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition, and lock
all doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.NOTE:
The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
