2009 JEEP LIBERTY Owners Manual

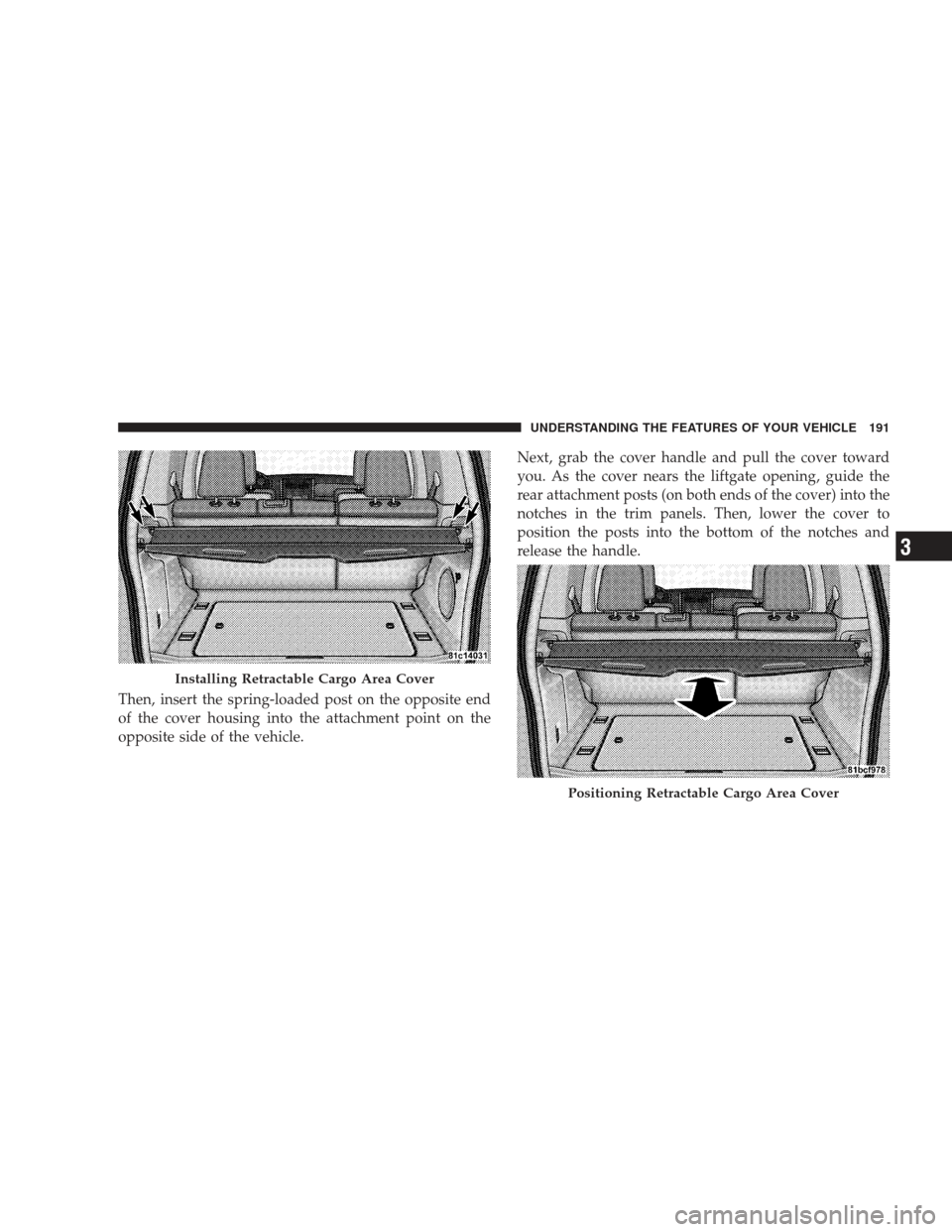

Then, insert the spring-loaded post on the opposite end
of the cover housing into the attachment point on the
opposite side of the vehicle.Next, grab the cover handle and pull the cover toward
you. As the cover nears the liftgate opening, guide the
rear attachment posts (on both ends of the cover) into the
notches in the trim panels. Then, lower the cover to
position the posts into the bottom of the notches and
release the handle.
Installing Retractable Cargo Area Cover
Positioning Retractable Cargo Area Cover
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191
3

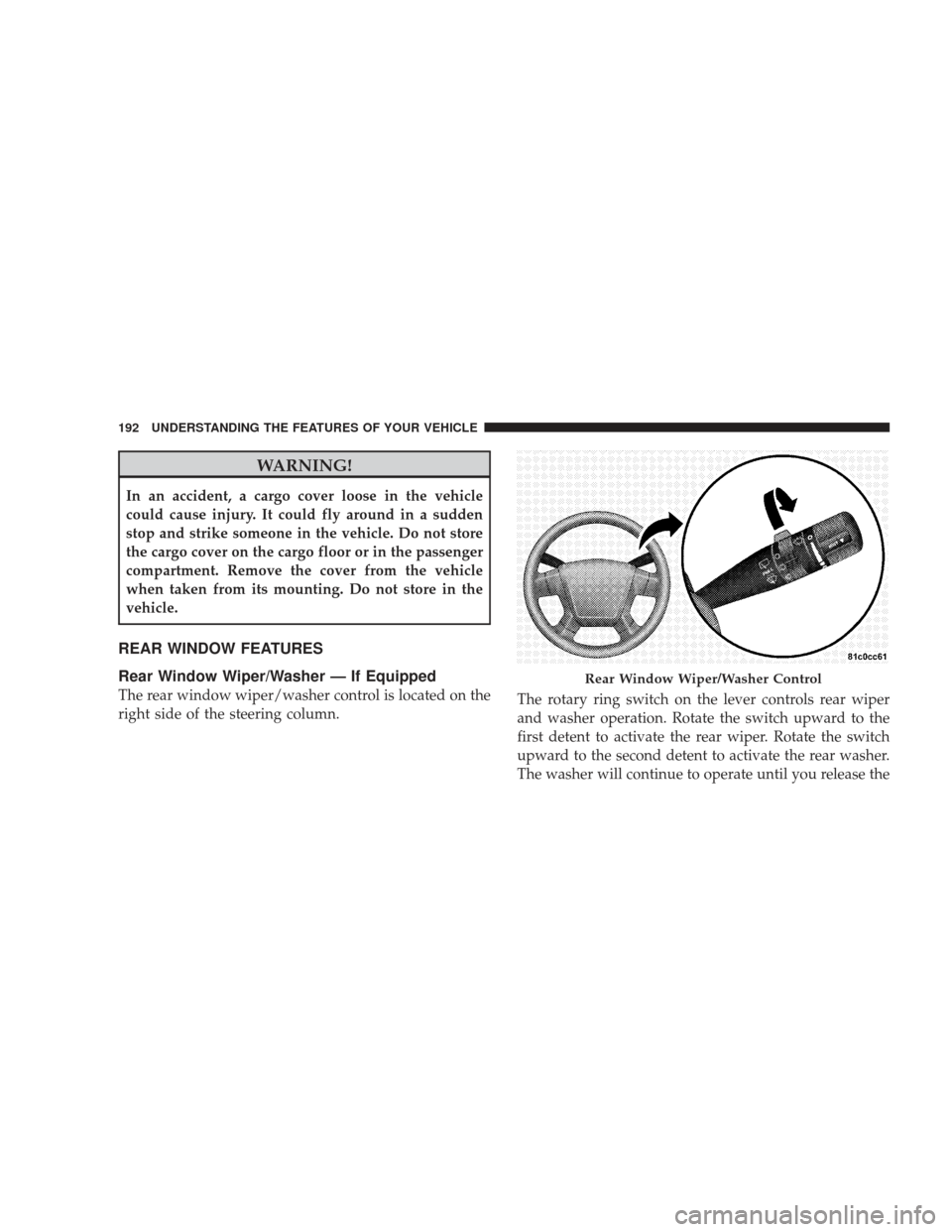

WARNING!
In an accident, a cargo cover loose in the vehicle
could cause injury. It could fly around in a sudden
stop and strike someone in the vehicle. Do not store
the cargo cover on the cargo floor or in the passenger
compartment. Remove the cover from the vehicle
when taken from its mounting. Do not store in the
vehicle.
REAR WINDOW FEATURES
Rear Window Wiper/Washer — If Equipped
The rear window wiper/washer control is located on the
right side of the steering column.The rotary ring switch on the lever controls rear wiper
and washer operation. Rotate the switch upward to the
first detent to activate the rear wiper. Rotate the switch
upward to the second detent to activate the rear washer.
The washer will continue to operate until you release the
Rear Window Wiper/Washer Control
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

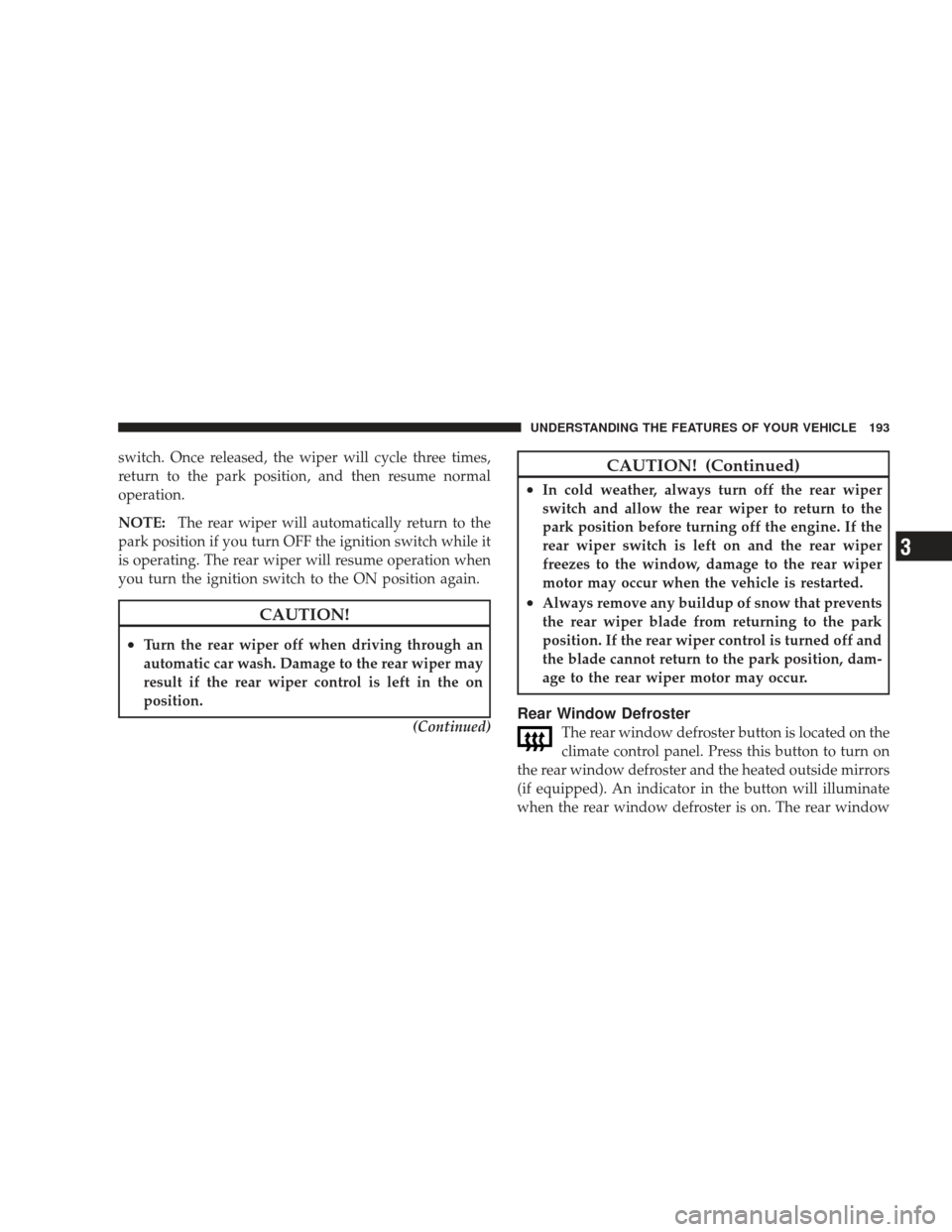

switch. Once released, the wiper will cycle three times,
return to the park position, and then resume normal
operation.
NOTE:The rear wiper will automatically return to the
park position if you turn OFF the ignition switch while it
is operating. The rear wiper will resume operation when
you turn the ignition switch to the ON position again.
CAUTION!
•Turn the rear wiper off when driving through an
automatic car wash. Damage to the rear wiper may
result if the rear wiper control is left in the on
position.
(Continued)
CAUTION! (Continued)
•In cold weather, always turn off the rear wiper
switch and allow the rear wiper to return to the
park position before turning off the engine. If the
rear wiper switch is left on and the rear wiper
freezes to the window, damage to the rear wiper
motor may occur when the vehicle is restarted.
•Always remove any buildup of snow that prevents
the rear wiper blade from returning to the park
position. If the rear wiper control is turned off and
the blade cannot return to the park position, dam-
age to the rear wiper motor may occur.
Rear Window Defroster
The rear window defroster button is located on the
climate control panel. Press this button to turn on
the rear window defroster and the heated outside mirrors
(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193
3

defroster automatically turns off after approximately
10 minutes. For an additional five minutes of operation,
press the button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
(Continued)
CAUTION! (Continued)
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
NOTE:Roof rack and crossbars cannot be used on
vehicles equipped with Skyslider.
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.
Crossbars should always be used whenever cargo is
placed on the roof rack. Check the straps frequently to be
sure that the load remains securely attached.
NOTE: Crossbars are offered by MOPAR accessories.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

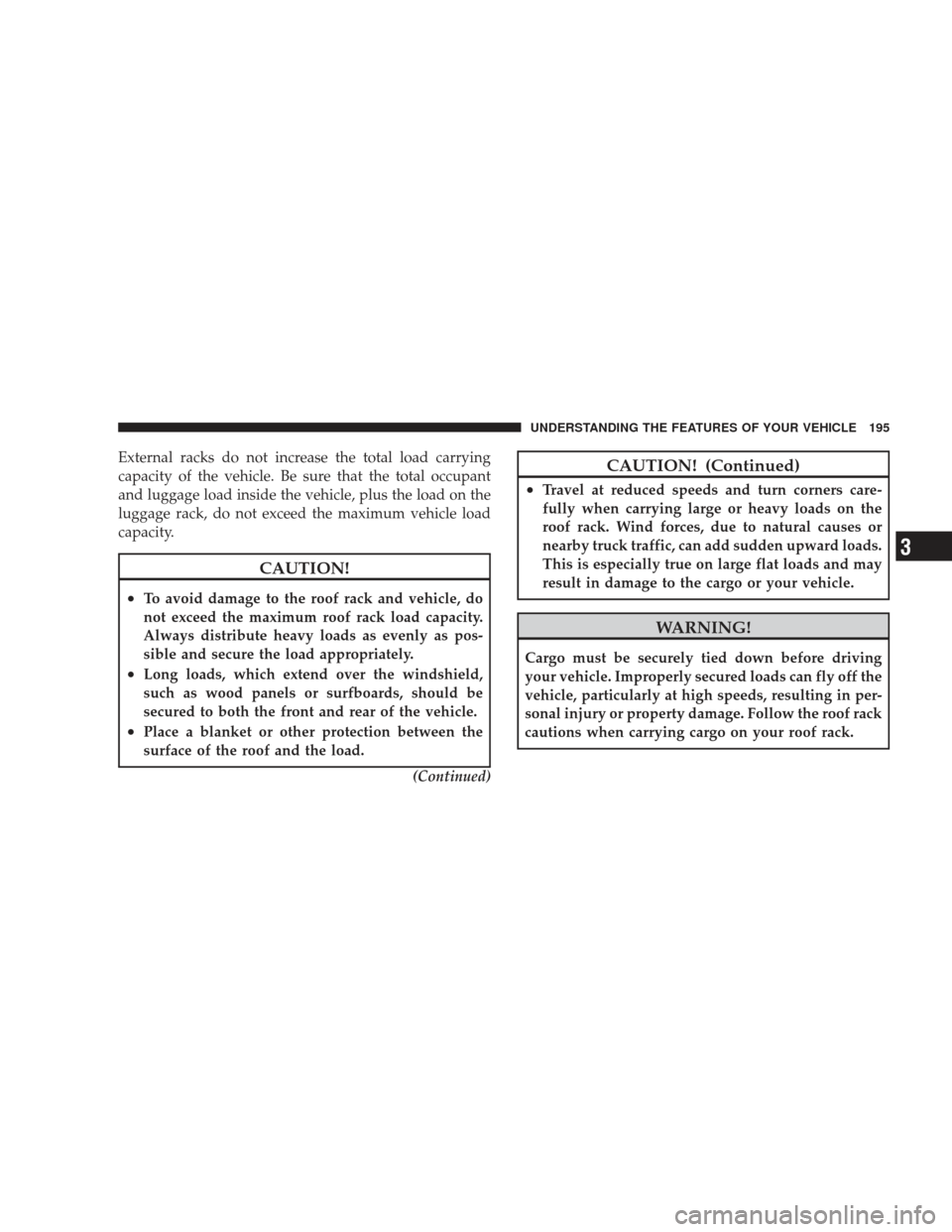

External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.
CAUTION!
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity.
Always distribute heavy loads as evenly as pos-
sible and secure the load appropriately.
•Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.(Continued)
CAUTION! (Continued)
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward loads.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied down before driving
your vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195
3

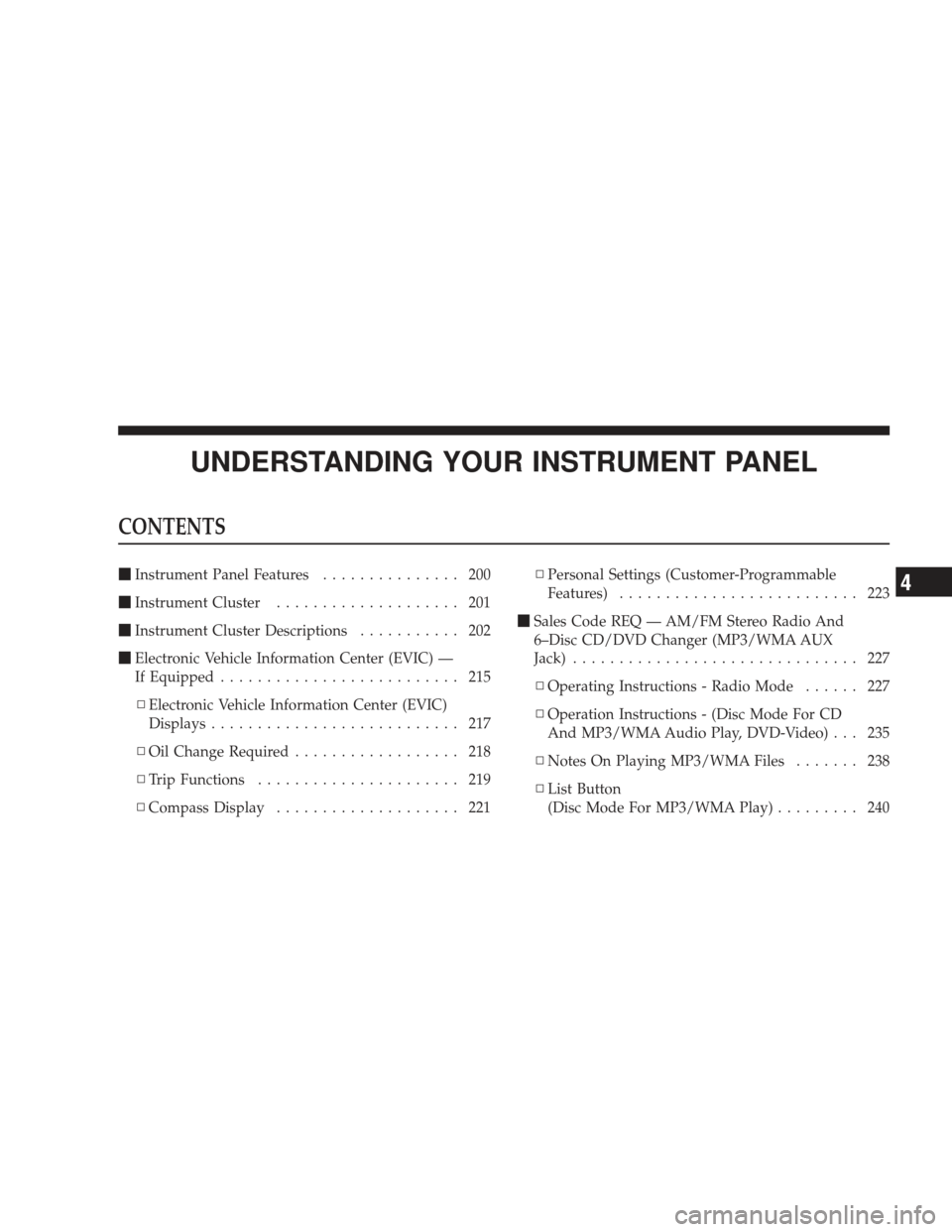

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 200
 Instrument Cluster .................... 201
 Instrument Cluster Descriptions ........... 202
 Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 215
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 217
▫ Oil Change Required .................. 218
▫ Trip Functions ...................... 219
▫ Compass Display .................... 221 ▫
Personal Settings (Customer-Programmable
Features) .......................... 223
 Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack) ............................... 227
▫ Operating Instructions - Radio Mode ...... 227
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 235
▫ Notes On Playing MP3/WMA Files ....... 238

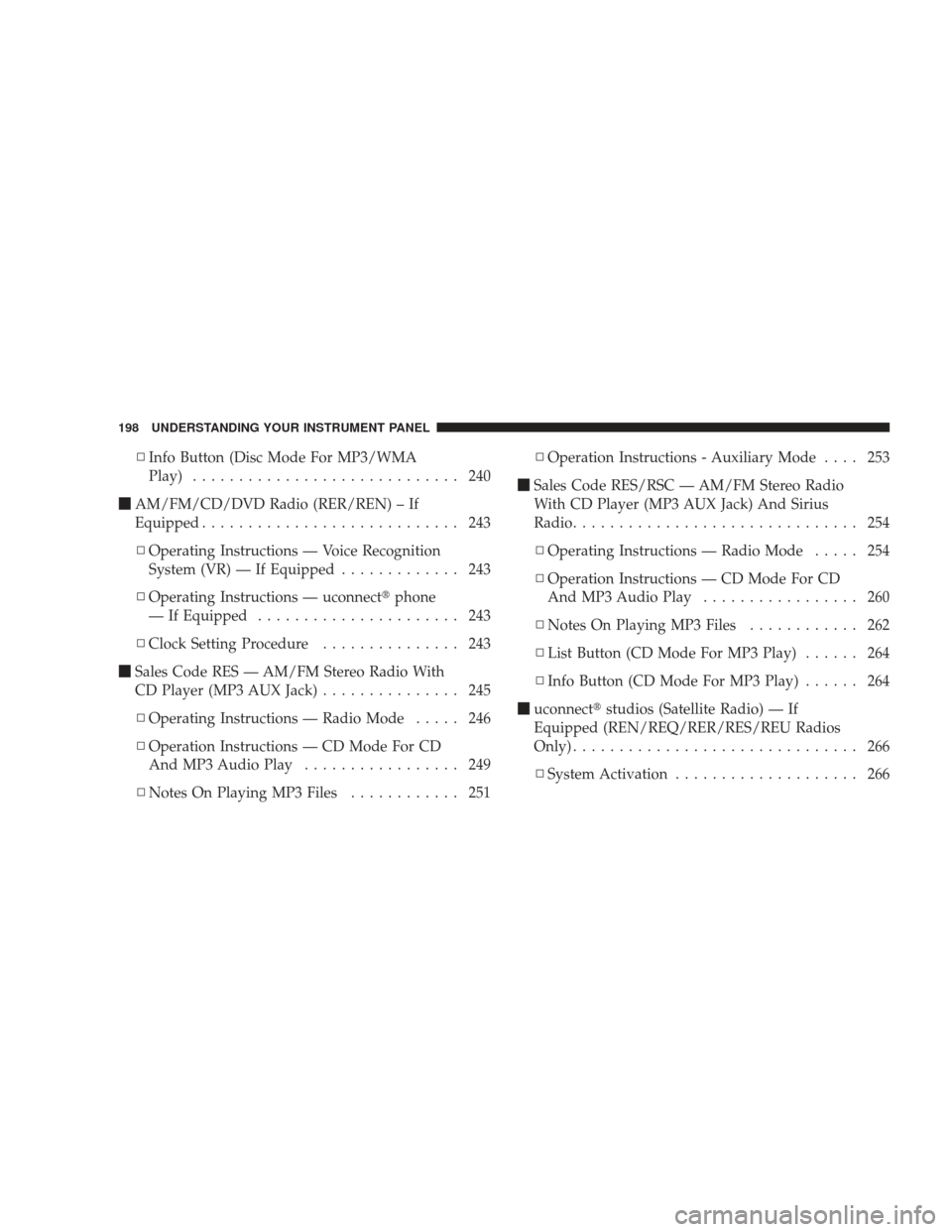

▫ List Button
(Disc Mode For MP3/WMA Play) ......... 2404

▫Info Button (Disc Mode For MP3/WMA
Play) ............................. 240
 AM/FM/CD/DVD Radio (RER/REN) – If
Equipped ............................ 243
▫ Operating Instructions — Voice Recognition
System (VR) — If Equipped ............. 243
▫ Operating Instructions — uconnect phone
— If Equipped ...................... 243
▫ Clock Setting Procedure ............... 243
 Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack) ............... 245
▫ Operating Instructions — Radio Mode ..... 246
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 249
▫ Notes On Playing MP3 Files ............ 251▫
Operation Instructions - Auxiliary Mode .... 253
 Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio ............................... 254
▫ Operating Instructions — Radio Mode ..... 254
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 260
▫ Notes On Playing MP3 Files ............ 262
▫ List Button (CD Mode For MP3 Play) ...... 264
▫ Info Button (CD Mode For MP3 Play) ...... 264
 uconnect studios (Satellite Radio) — If
Equipped (REN/REQ/RER/RES/REU Radios
Only) ............................... 266
▫ System Activation .................... 266
198 UNDERSTANDING YOUR INSTRUMENT PANEL
