2009 JEEP LIBERTY Owners Manual

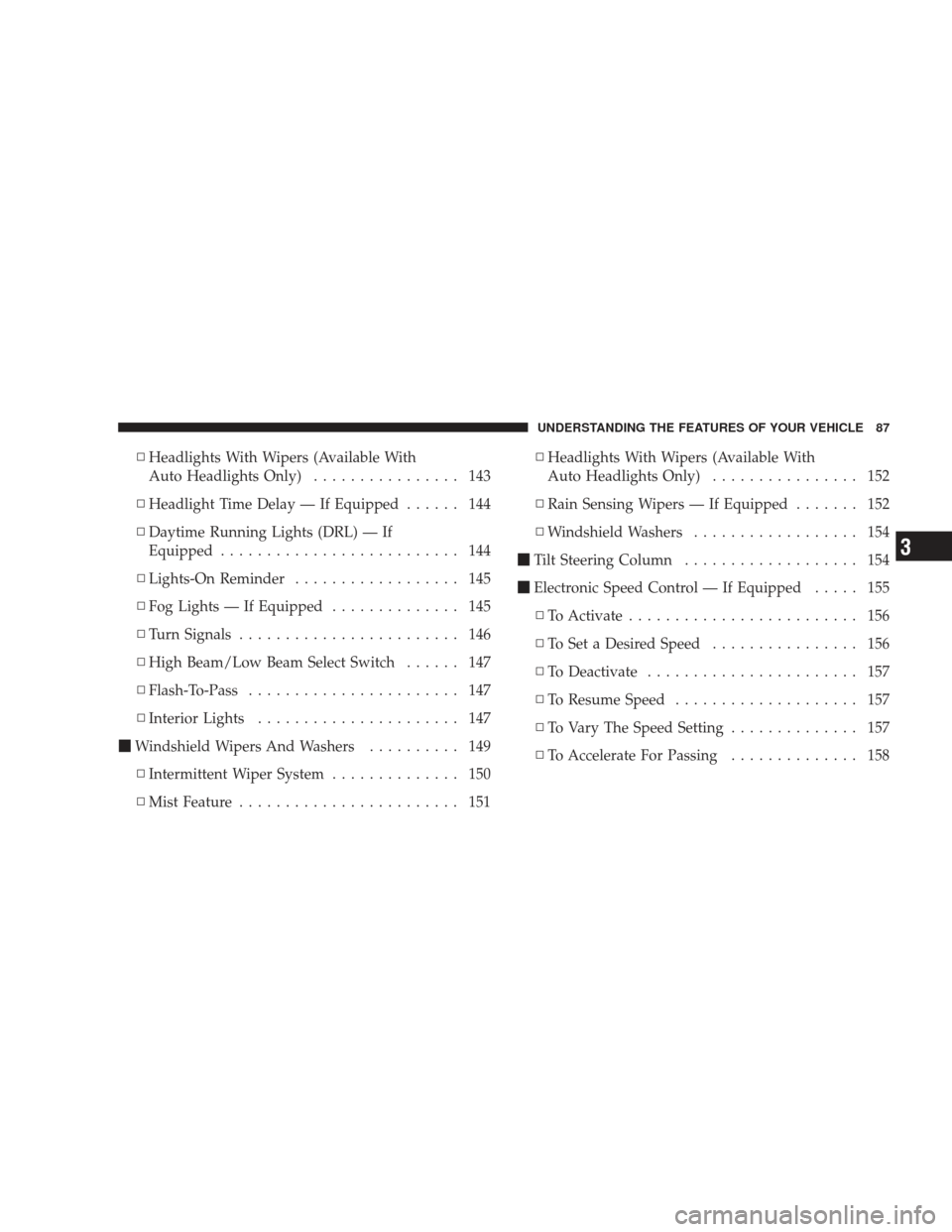

▫Headlights With Wipers (Available With
Auto Headlights Only) ................ 143
▫ Headlight Time Delay — If Equipped ...... 144
▫ Daytime Running Lights (DRL) — If
Equipped .......................... 144
▫ Lights-On Reminder .................. 145
▫ Fog Lights — If Equipped .............. 145
▫ Turn Signals ........................ 146
▫ High Beam/Low Beam Select Switch ...... 147
▫ Flash-To-Pass ....................... 147
▫ Interior Lights ...................... 147
 Windshield Wipers And Washers .......... 149
▫ Intermittent Wiper System .............. 150
▫ Mist Feature ........................ 151 ▫
Headlights With Wipers (Available With
Auto Headlights Only) ................ 152
▫ Rain Sensing Wipers — If Equipped ....... 152
▫ Windshield Washers .................. 154
 Tilt Steering Column ................... 154
 Electronic Speed Control — If Equipped ..... 155
▫ To Activate ......................... 156
▫ To Set a Desired Speed ................ 156
▫ To Deactivate ....................... 157
▫ To Resume Speed .................... 157
▫ To Vary The Speed Setting .............. 157
▫ To Accelerate For Passing .............. 158
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

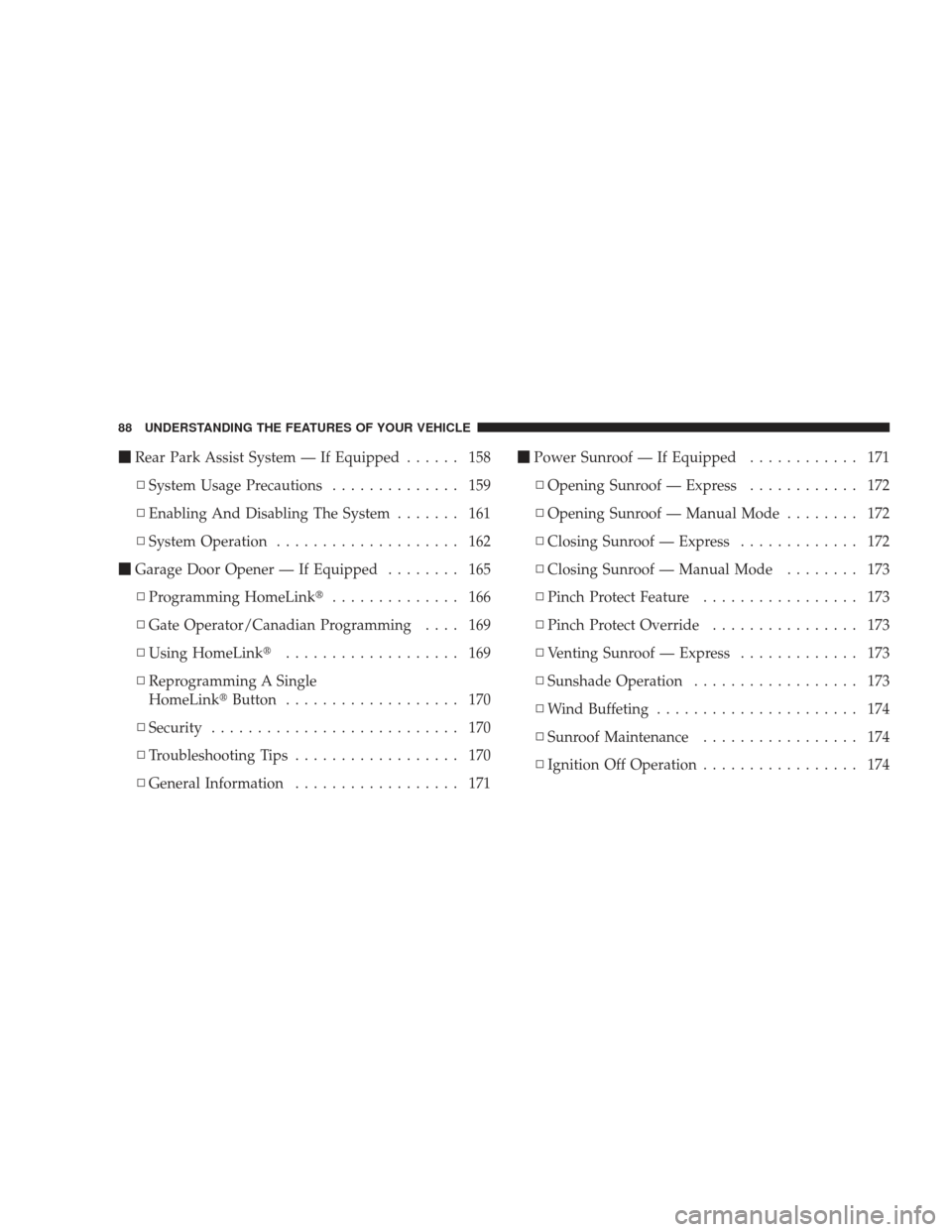

Rear Park Assist System — If Equipped ...... 158
▫ System Usage Precautions .............. 159
▫ Enabling And Disabling The System ....... 161
▫ System Operation .................... 162
 Garage Door Opener — If Equipped ........ 165
▫ Programming HomeLink .............. 166
▫ Gate Operator/Canadian Programming .... 169
▫ Using HomeLink ................... 169
▫ Reprogramming A Single
HomeLink Button................... 170
▫ Security ........................... 170
▫ Troubleshooting Tips .................. 170
▫ General Information .................. 171
Power Sunroof — If Equipped ............ 171
▫ Opening Sunroof — Express ............ 172
▫ Opening Sunroof — Manual Mode ........ 172
▫ Closing Sunroof — Express ............. 172
▫ Closing Sunroof — Manual Mode ........ 173
▫ Pinch Protect Feature ................. 173
▫ Pinch Protect Override ................ 173
▫ Venting Sunroof — Express ............. 173
▫ Sunshade Operation .................. 173
▫ Wind Buffeting ...................... 174
▫ Sunroof Maintenance ................. 174
▫ Ignition Off Operation ................. 174
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Sky Slider Full Length Open Roof ......... 174
▫ Sky Slider Usage Precautions ........... 175
▫ Sky Slider Control................... 177
▫ Opening The Sky Slider ............... 177
▫ Closing The Sky Slider ............... 178
▫ Anti-Pinch Protect Feature .............. 179
▫ Wind Buffeting ...................... 179
▫ Sky Slider Maintenance ............... 179
 Electrical Power Outlet ................. 180
 Power Inverter — If Equipped ............ 182
 Cupholders .......................... 184
Storage ............................. 185
▫ Front Storage Compartment ............. 185
▫ Console Storage Compartment ........... 185
 Cargo Area Features ................... 186
▫ Cargo Load Floor .................... 186
 Rear Window Features .................. 192
▫ Rear Window Wiper/Washer —
If Equipped ........................ 192
▫ Rear Window Defroster ................ 193
 Roof Luggage Rack — If Equipped ......... 194
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.
Adjusting Rearview Mirror
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Automatic Dimming Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

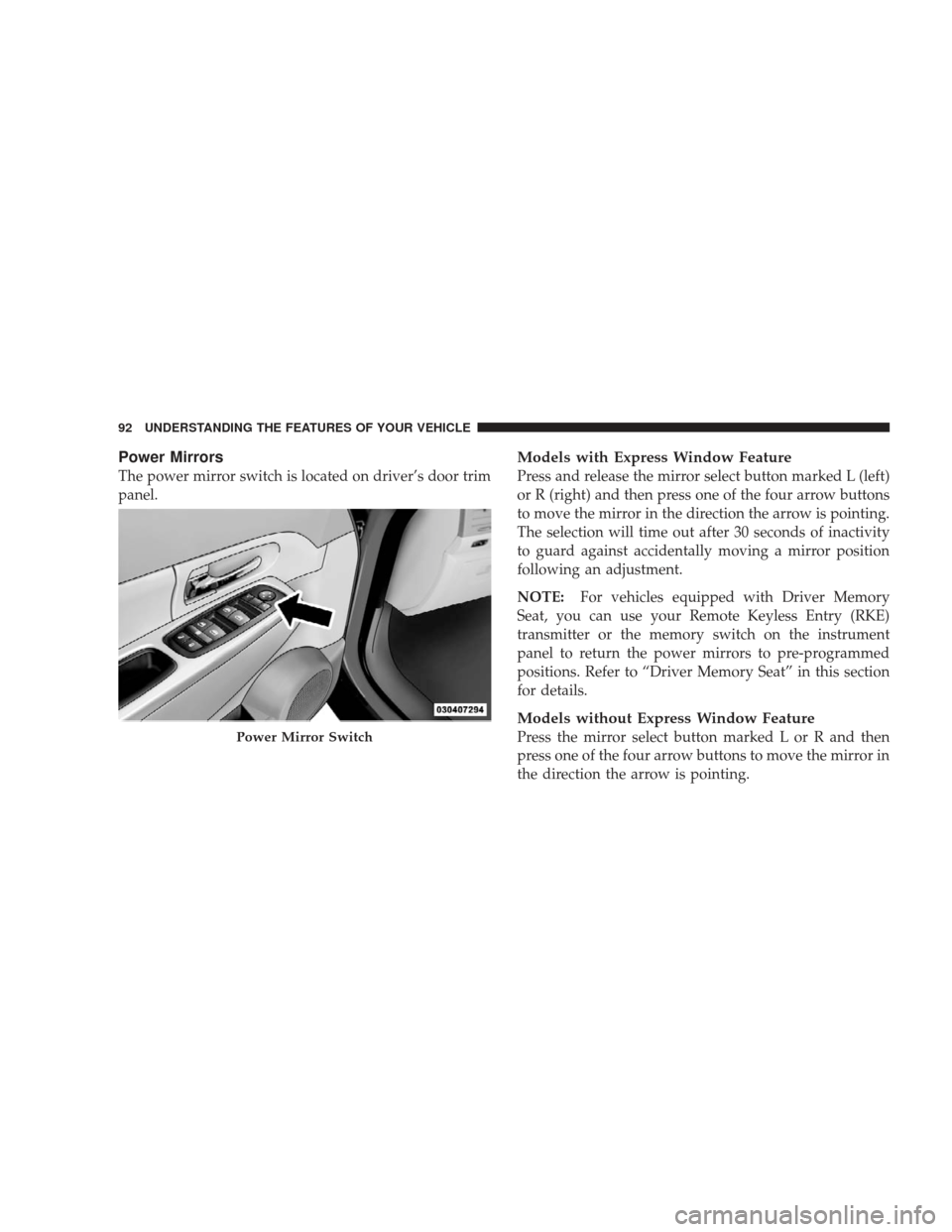

Power Mirrors
The power mirror switch is located on driver’s door trim
panel.
Models with Express Window Feature
Press and release the mirror select button marked L (left)
or R (right) and then press one of the four arrow buttons
to move the mirror in the direction the arrow is pointing.
The selection will time out after 30 seconds of inactivity
to guard against accidentally moving a mirror position
following an adjustment.
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your Remote Keyless Entry (RKE)
transmitter or the memory switch on the instrument
panel to return the power mirrors to pre-programmed
positions. Refer to “Driver Memory Seat” in this section
for details.
Models without Express Window Feature
Press the mirror select button marked L or R and then
press one of the four arrow buttons to move the mirror in
the direction the arrow is pointing.Power Mirror Switch
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
this section, for further information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover will turn off the light.
Sun Visor “Slide-On Rod” Feature — If Equipped
The sun visor “Slide-On Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.
1. Fold down the sun visor.
Illuminated Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

2. Unclip the visor from the center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend it.
uconnectphone — IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated uconnect phone. Refer to your “Navigation
User’s Manual” for uconnect phone operating instruc-
tions for these radios. Radio sales code can be located
on the lower right corner of the Radio faceplate.
uconnect phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect allows you to
dial a phone number with your cellular phone using
simple voice commands (e.g., Call”“Mike” ”Work or
Dial” “248-555-1212). Your cellular phone’s audio is
transmitted through your vehicle’s audio system; the
system will automatically mute your radio when using
the uconnect phone. NOTE:
The uconnect phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnect website for sup-
ported phones.
For uconnect customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
uconnect allows you to transfer calls between the sys-
tem and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The uconnect phone is driven through your Bluetooth
“Hands-Free Profile” cellular phone. uconnect features
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
