2009 JEEP LIBERTY Owners Manual

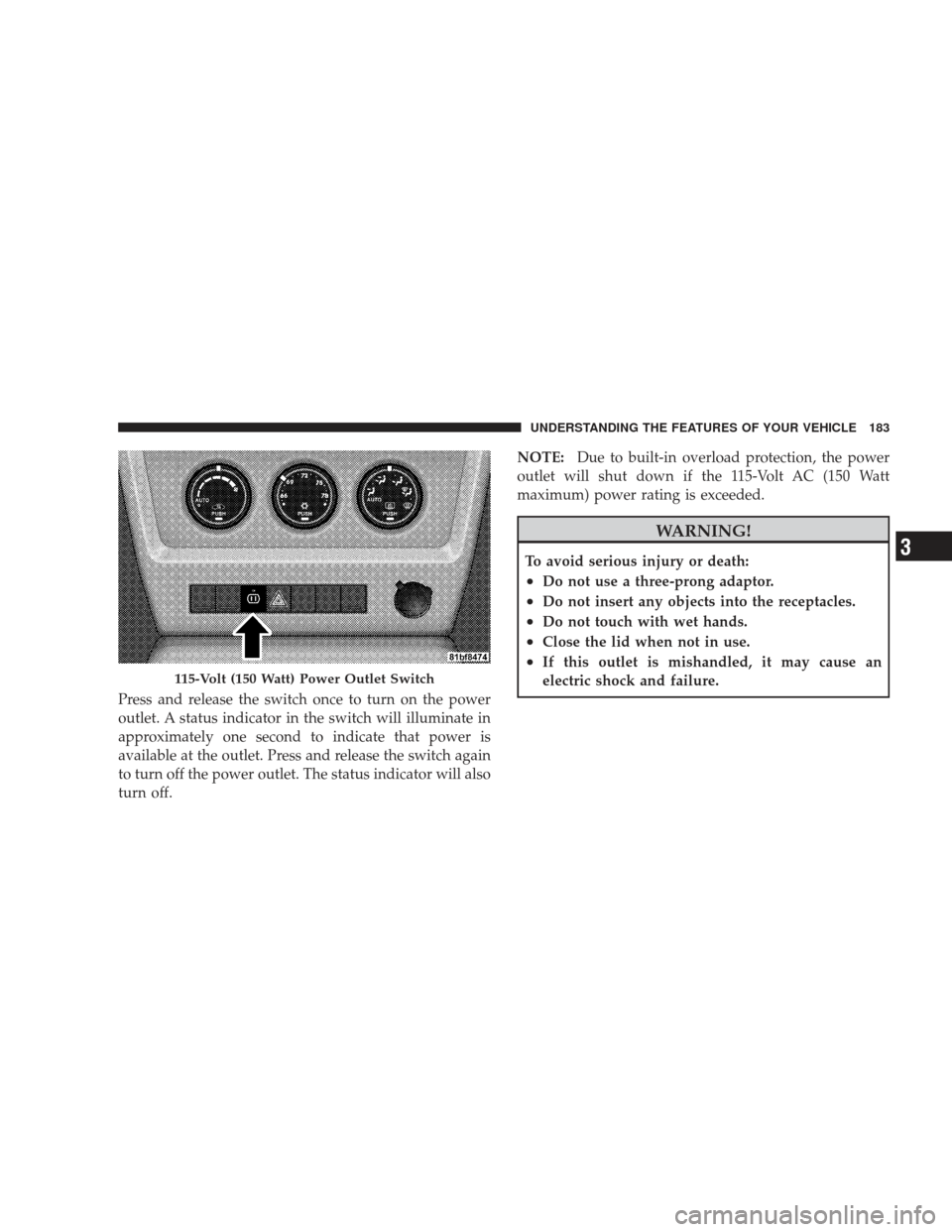

Press and release the switch once to turn on the power
outlet. A status indicator in the switch will illuminate in
approximately one second to indicate that power is
available at the outlet. Press and release the switch again
to turn off the power outlet. The status indicator will also
turn off.NOTE:
Due to built-in overload protection, the power
outlet will shut down if the 115-Volt AC (150 Watt
maximum) power rating is exceeded.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an
electric shock and failure.
115-Volt (150 Watt) Power Outlet Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183
3

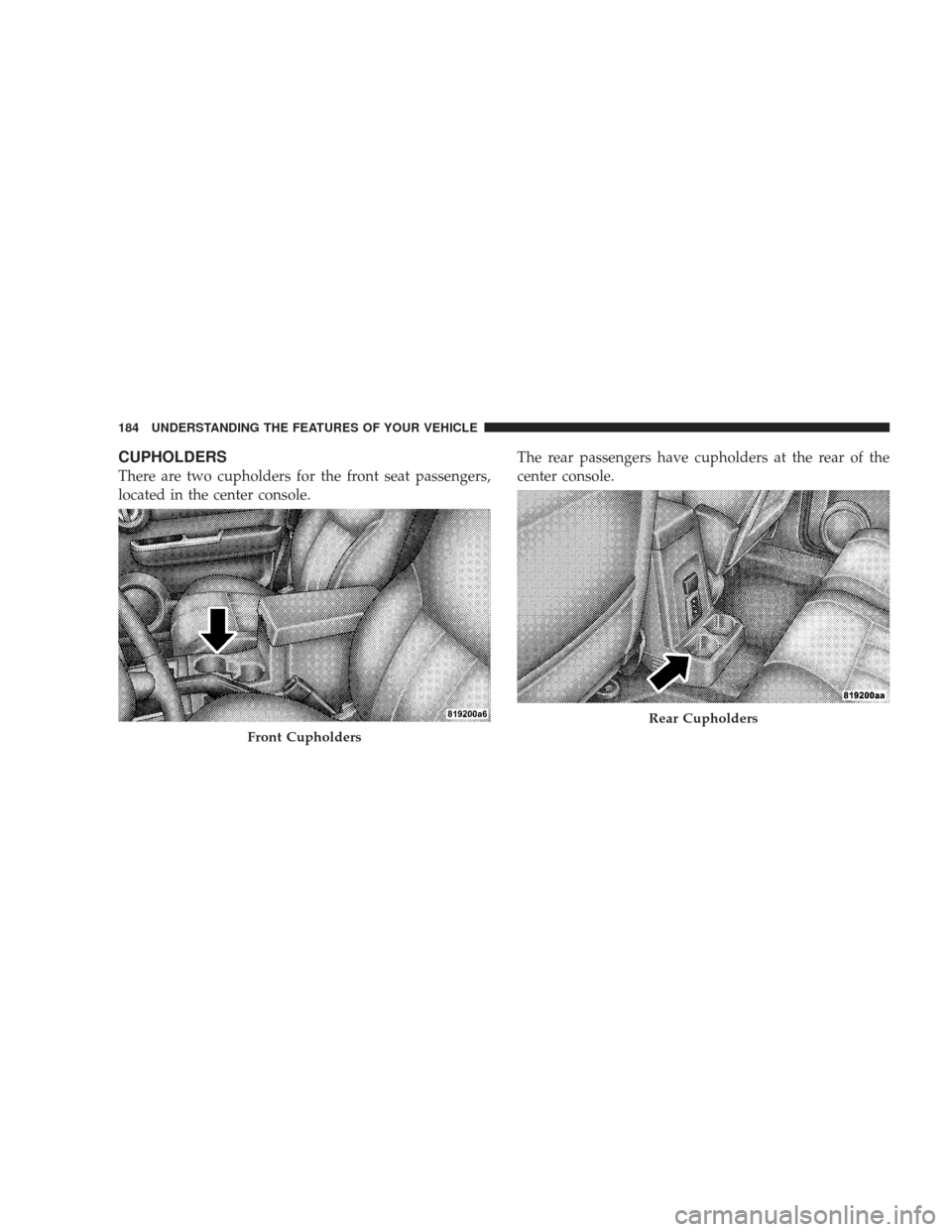

CUPHOLDERS
There are two cupholders for the front seat passengers,
located in the center console.The rear passengers have cupholders at the rear of the
center console.
Front Cupholders
Rear Cupholders
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

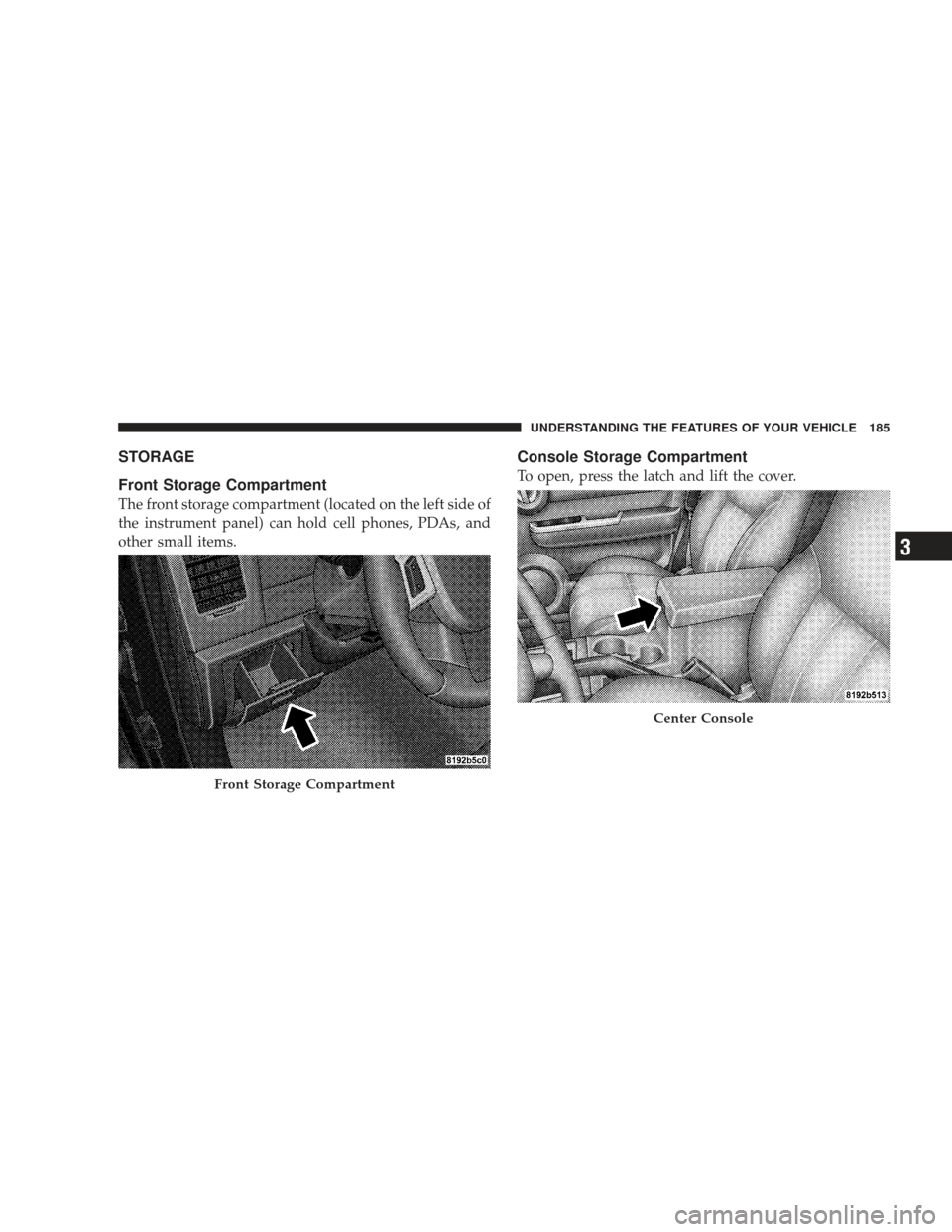

STORAGE
Front Storage Compartment
The front storage compartment (located on the left side of
the instrument panel) can hold cell phones, PDAs, and
other small items.
Console Storage Compartment
To open, press the latch and lift the cover.
Front Storage Compartment
Center Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
3

The center console has a removable storage tray which
can hold cell phones, PDAs, and other small items.CARGO AREA FEATURES
Cargo Load Floor
The cargo load floor system has a load capacity of 400 lbs
(181 kg). The load floor has a built-in storage bin that can
hold a variety of items. The underside of the storage bin
cover also contains a plastic lined tray. The cover can be
installed with either side facing up for added utility.
To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room. Refer to “Seats” in this
Section for additional information on the 60/40 Split
Folding Rear Seat with Fold Flat feature.
Accessing the Storage Bin
NOTE: The spring-loaded latches that retain the
storage bin cover to the cargo load floor should not be
used as cargo tie-downs.
Removable Storage Tray
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

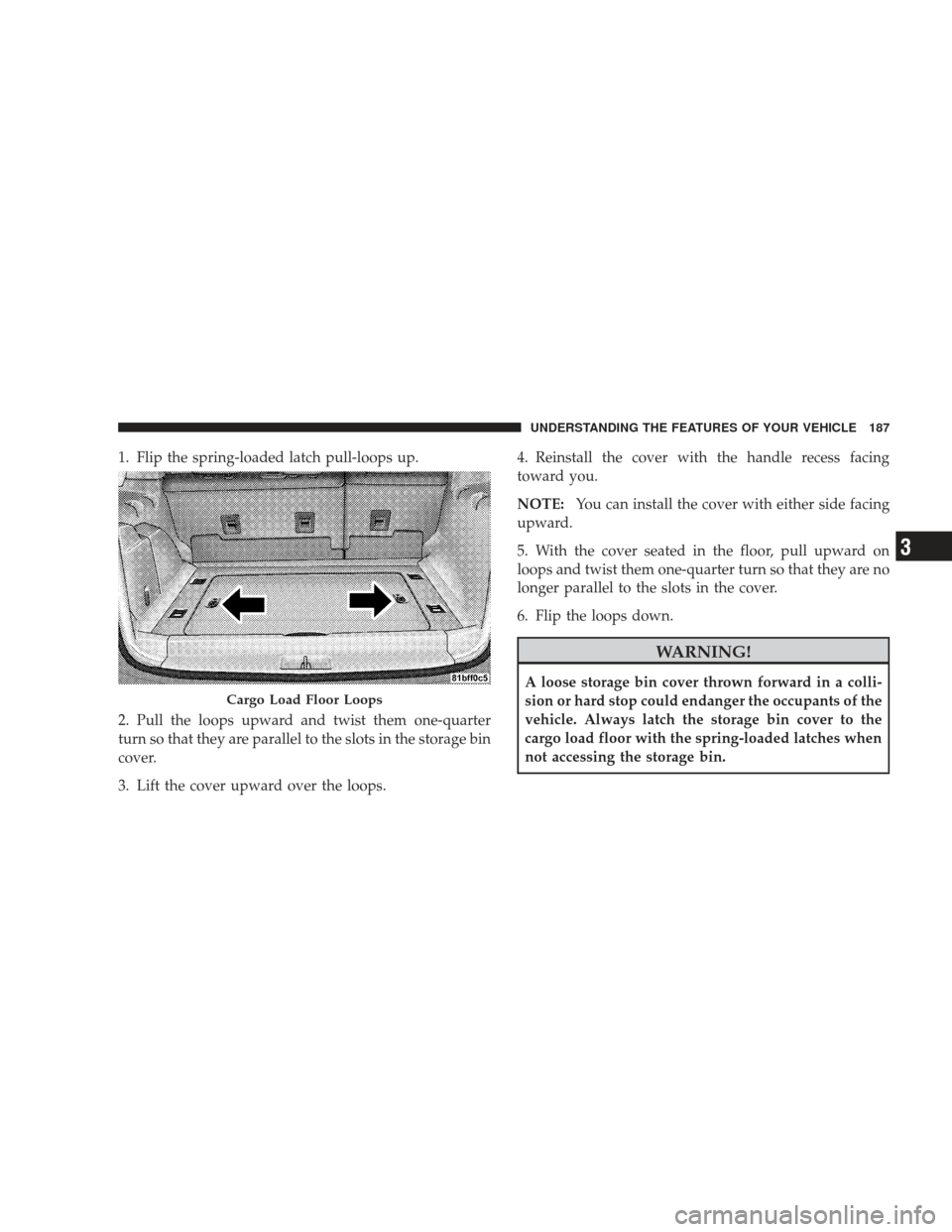

1. Flip the spring-loaded latch pull-loops up.
2. Pull the loops upward and twist them one-quarter
turn so that they are parallel to the slots in the storage bin
cover.
3. Lift the cover upward over the loops.4. Reinstall the cover with the handle recess facing
toward you.
NOTE:
You can install the cover with either side facing
upward.
5. With the cover seated in the floor, pull upward on
loops and twist them one-quarter turn so that they are no
longer parallel to the slots in the cover.
6. Flip the loops down.
WARNING!
A loose storage bin cover thrown forward in a colli-
sion or hard stop could endanger the occupants of the
vehicle. Always latch the storage bin cover to the
cargo load floor with the spring-loaded latches when
not accessing the storage bin.
Cargo Load Floor Loops
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

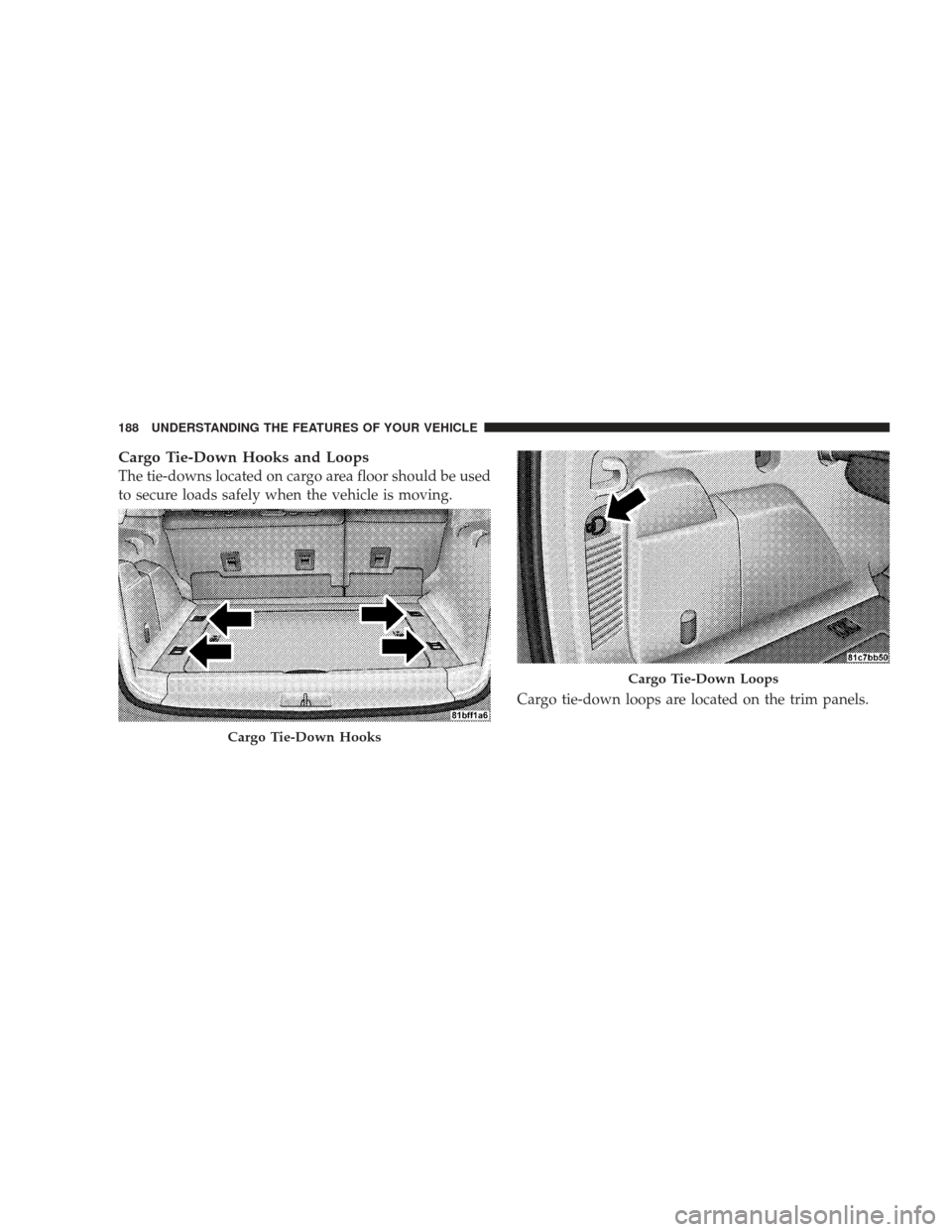

Cargo Tie-Down Hooks and Loops
The tie-downs located on cargo area floor should be used
to secure loads safely when the vehicle is moving.Cargo tie-down loops are located on the trim panels.
Cargo Tie-Down Hooks
Cargo Tie-Down Loops
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
•Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or collision, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
•Do not carry loads that exceed the load limits
described on the label attached to the left door or
left door center pillar.
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
vehicle to sway.(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189
3

WARNING! (Continued)
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
Retractable Cargo Area Cover — If Equipped
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
The removable retractable cargo area cover mounts in the
cargo area behind the top of the rear seats. The cover, when extended, covers the cargo area to keep
items out of sight. Notches in the trim panels near the
liftgate opening secure the extended cover in place.
The cover rolls away neatly inside its housing when not
in use. You can also remove the cover from the vehicle to
make more room in the cargo area.
To install the cover, position it in the vehicle so that the
flat side of the housing faces upward. Then, insert either
the left or the right spring-loaded post (located on the
ends of the cover housing) into either of the left or the
right attachment points shown.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
