2009 Hyundai Getz Owner's Manual - RHD (UK, Australia)

YOUR VEHICLE AT A GLANCE
F9
1. Glove Box
2. Passenger's Airbag (If installed)
3. Audio System (If installed)
4. Hazard Warning Light
5. Digital Clock
6. Windshield Wiper/Washer Switch
7. Horn and Driver's Airbag (If installed)
8. Instrument Cluster
9. Multi-Function Light Switch
10. Front Fog Light Switch (If installed)
11. Rear Drink Holder
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the airfreshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 12. Hand Brake Lever
13. Shift Lever (If installed)
14. Front Drink Holder
15. Ashtray
16. Power Outlelet
17. Heating/Air Conditioning Control Panel
(If installed)
18. Audio Remote Control Switch (If installed)
19. Fuse Box
20. Bonnet Release Lever
!

YOUR VEHICLE AT A GLANCE
F10
G255A01TB-DAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detailed explanation of these items will be found on page 1-37
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Hand Brake/Brake Fluid Level Warning Light Charging System Warning LightTail Gate Open Warning Light
Door Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Immobiliser Indicator Light
Electronic Stability Program Indicator Lights (If Installed)
Engine Coolant Temperature Indicator

F11
TABLE OF CONTENTS
SECTION PAGE
1. FEATURES OF YOUR HYUNDAI ....................................................................... 1-1
2. DRIVING YOUR HYUNDAI .................................................................................. 2-1
3. WHAT TO DO IN AN EMERGENCY ................................................................... 3-1
4. CORROSION PREVENTION & APPEARANCE CARE ...................................... 4-1
5. VEHICLE MAINTENANCE REQUIREMENTS ..................................................... 5-1
6. DO-IT-YOURSELF MAINTENANCE ................................................................... 6-1
7. EMISSION CONTROL SYSTEMS ....................................................................... 7-1
8. CONSUMER INFORMATION .............................................................................. 8-1
9. VEHICLE SPECIFICATIONS ............................................................................... 9-1
10. INDEX ................................................................................................................ 10-1
1
2
3
4
5
6
7
8
9
10

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Running in Your New Hyundai ......................................................... 1-3
Immobiliser system .......................................................................... 1-3
Door locks ........................................................................................ 1-4Power windows.............................................................................. 1-11
Seat ................................................................................................ 1-11
Seat Belt ..... .................................................................................... 1-18
Child restraint system .................................................................... 1-23
Supplemental restraint (AIRBAG) system .....................................1-28
Instrument cluster and indicator lights ............................................1-35
Warning Light and Indicator ............................................................ 1-37
Trip computer ................................................................................. 1-44
Multi-Function Light Switch............................................................ 1-46
Windshield wiper/Washer Switch ...................................................1-48
Sunroof ........................................................................................... 1-54
Mirror ......... ..................................................................................... 1-58
Bonnet Release .............................................................................. 1-62
How to use luggage Room ............................................................. 1-66
Heating and cooling control ............................................................ 1-71
Stereo sound system ..................................................................... 1-80
Antenna .......................................................................................... 1-84
1

1- 2 FEATURES OF YOUR HYUNDAI
B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
Unleaded petrol with a Pump Octane Rating of 87 (Research Octane Num- ber 91) or higher must be used inyour Hyundai. If leaded petrol is used, it will cause the catalytic converter to become ineffec-tive and the emission control system to malfunction. This can also result in increased maintenance expense. To avoid accidental use of leaded fuel, the larger nozzle used with leadedpetrol at service stations cannot be inserted into the fuel tank opening of your Hyundai.
B010A01A-DAT FUEL RECOMMENDATIONS Use Unleaded Petrol
B010A02TB B010E01A-DAT Petrol for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you usepetrol treated with detergent additives, which help prevent deposit formation in the engine. This petrol will help theengine run cleaner and the Emission Control System performance.
B010D01A-DAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in your Hyundai. This type of fuel can reducevehicle performance and damage com- ponents of the fuel system.
! CAUTION:
Hyundai Warranty Policy will not cover the damage of the fuel sys- tem and performance problems thatare caused by the use of methanol or fuels containing methanol.
UNLEADED FUEL ONLY
B010B01A-AAT What About Gasohol?[E-10] Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grainalcohol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol,should not be used.

FEATURES OF YOUR HYUNDAI 1- 3
B020A01S-DAT RUNNING IN YOUR NEW HYUNDAIDuring the First 2,000 km No formal running in period is required with your new Hyundai. However, you can contribute to the economical op-eration and durability of your Hyundai by observing the following recommen- dations during the first 2,000 km.
o Don't drive faster than 88 km/h.
o While driving, keep your engine
speed or revolutions per minute between 2,000 and 4,000 rpm.
o Use moderate acceleration. Don't use full-throttle starts.
o For the first 300 km, try to avoid
hard braking.
o Don't labour the engine (in other words, don't drive so slowly in too high a gear that the engine jumps:shift to a lower gear).
o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than 3 minutes.
o Do not tow a trailer during the first 2,000 km of operation. B880A01A-DAT IMMOBILISER SYSTEM The immobiliser system is an anti-theft device, designed to deter automobile theft. B880B07A-GAT Keys
!
CAUTION:
o When starting the engine, do not use the key with other immobi- lizer keys in close proximity. Oth- erwise, the engine may not start or may stop soon after it starts.Keep each key separately not to have any malfunction after you receive your new vehicle.
o Do not put metal accessories near the key or ignition switch.The engine may not start for themetal accessories may interrupt the transponder signal from nor- mally transmitting.
OTB028002
All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake.
!WARNING:
In order to prevent theft of your ve- hicle, do not leave spare keys any- where in your vehicle.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.

1- 4 FEATURES OF YOUR HYUNDAI
!
HNF2011
B880D03A-DAT Limp home procedures In case the immobiliser warning indica- tor blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobiliser sys- tem is out of order. Should the immobiliser system be out of order,your vehicle will need to be towed to a Hyundai dealer for rectification. B040A01A-AAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that doors will not be opened accidentally. Also, when combined with the properuse of seat belts, locking the doors helps keep occupants from being ejected from the car in caseof an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of an accident, all doors
will unlock automatically.(If Installed)

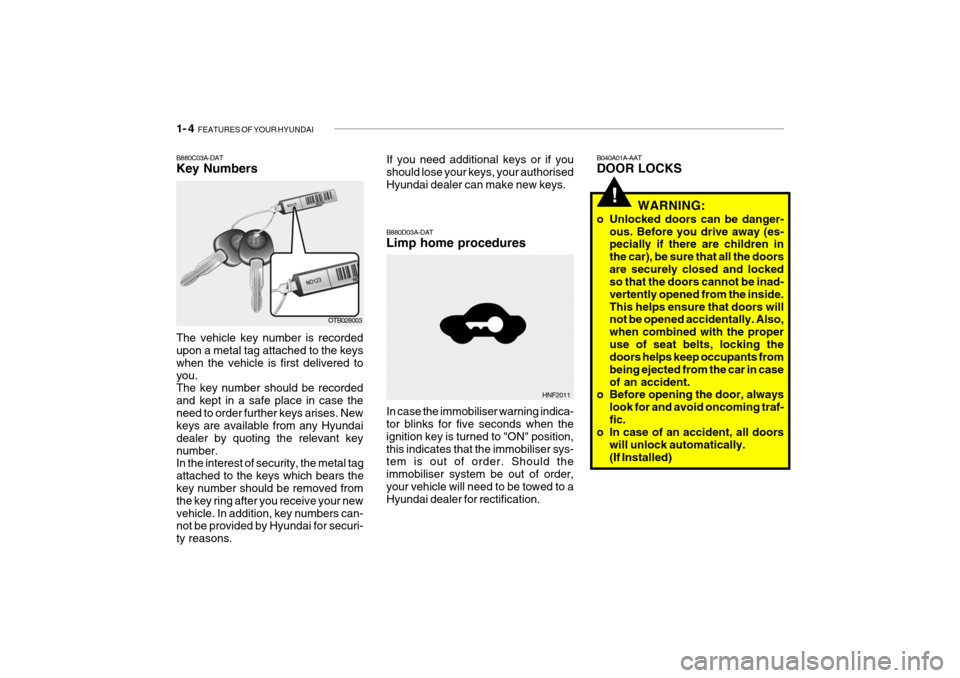

B880C03A-DAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou. The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for securi- ty reasons.
OTB028003
If you need additional keys or if you should lose your keys, your authorised Hyundai dealer can make new keys.

FEATURES OF YOUR HYUNDAI 1- 5
LOCK

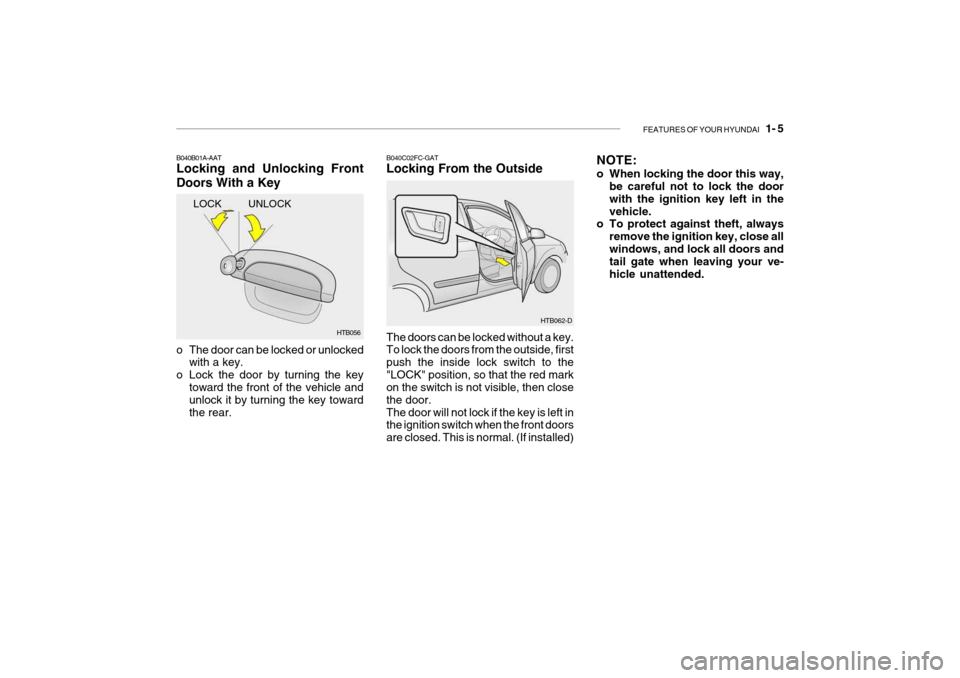

B040B01A-AAT Locking and Unlocking Front Doors With a Key
HTB056
UNLOCK
o The door can be locked or unlocked with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.
B040C02FC-GAT Locking From the Outside The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the"LOCK" position, so that the red mark on the switch is not visible, then close the door.The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal. (If installed) HTB062-DNOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors and tail gate when leaving your ve- hicle unattended.
