NOTE: It is recommended that the manual transaxle oil should be checked by an authorised Hyundai dealer. G110A01A-AAT CHECKING THE TRANSAXLE FLUID (AUTOMATIC) Transaxle fluid in the automatic transaxle should be checked at those intervals specified in the vehicle main-tenance schedule in Section 5. NOTE: Automatic transaxle fluid is basi- cally red color. As driving distance increases, the fluid color turns dark- ish red gradually. It is a normal con-dition and you should not judge the need to replace based upon the changing color.You must replace the automatic transaxle fluid in accordance with intervals specified in the vehiclemaintenance schedule in section 5.
WARNING:
It is always better to check the transaxle oil level when the engine is cool or cold. If the engine is hot, youshould exercise great caution to avoid burning yourself on hot en- gine or exhaust parts. G110B04A-AAT Recommended Fluid Your Hyundai automatic transaxle is specially designed to operate withHyundai Genuine ATF SP-III, DIA- MOND ATF SP-III, SK ATF SP-III or other brands approved by Hyundai MotorCo., Damage caused by a nonspecified fluid is not covered by your new vehicle limited warranty.
!
G110C01TB-DAT Transaxle Fluid Capacity The fluid capacity of the automatic transaxle is 6.1 litres.
WARNING:
The transaxle fluid level should bechecked when the engine is at nor- mal operating temperature. Thismeans that the engine, radiator, exhaust system etc., are very hot. Exercise great care not to burn your-self during this procedure.

6- 12 DO-IT-YOURSELF MAINTENANCE
!
G110D03L-DAT Checking the automatic transaxle fluid level The automatic transaxle fluid level should be checked regularly.Keep the vehicle on the level ground with the hand brake applied and check the fluid level according to the followingprocedure.
1. Place the selector lever in N (Neu-
tral) position and confirm the engine is running at normal idle speed.
2. After the transaxle is warmed up sufficiently (fluid temperature70~80°C (158~176°F)), for example by 10 minutes usual driving, shift theselector lever through all positions then place the selector lever in N (Neutral) or P (Park) position. C090A03FC

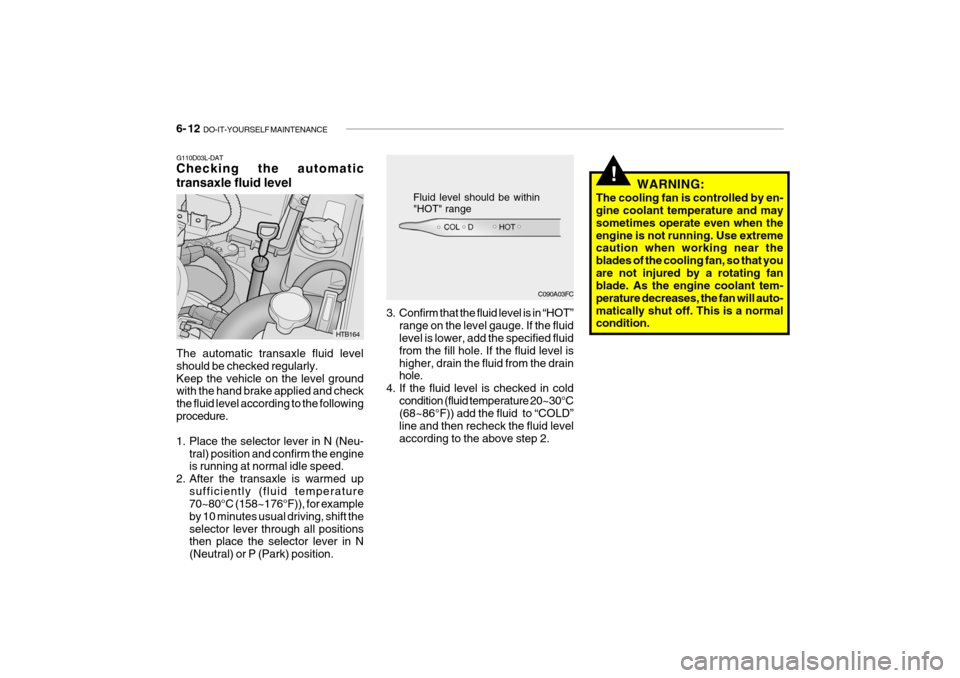

Fluid level should be within "HOT" range
HTB164 3. Confirm that the fluid level is in “HOT”
range on the level gauge. If the fluid level is lower, add the specified fluid from the fill hole. If the fluid level ishigher, drain the fluid from the drain hole.
4. If the fluid level is checked in cold
condition (fluid temperature 20~30°C(68~86°F)) add the fluid to “COLD” line and then recheck the fluid levelaccording to the above step 2. WARNING:
The cooling fan is controlled by en- gine coolant temperature and may sometimes operate even when theengine is not running. Use extreme caution when working near the blades of the cooling fan, so that youare not injured by a rotating fan blade. As the engine coolant tem- perature decreases, the fan will auto-matically shut off. This is a normal condition.

DO-IT-YOURSELF MAINTENANCE 6- 13
G120A01A-AAT CHECKING THE BRAKES
!
CAUTION:
Because brakes are essential to the safe operation of the car, it is sug- gested that they be checked and inspected by your Hyundai dealer.The brakes should be checked and inspected for wear at those inter- vals specified in the vehicle mainte-nance schedule in Section 5.!
G120B01A-AAT Checking the Brake Fluid Level
WARNING:
Use caution when handling brake fluid. It can damage your vision if itgets into your eyes. It will also dam- age your vehicle's paint if spilled on it and not removed immediately. G120C02A-AAT Recommended Brake Fluid Use only hydraulic brake fluid con- forming to DOT 3 or DOT 4 specifica- tions in your braking system. Follow the instructions printed on the con-tainer. G120D01A-AAT To Check the Fluid Level
HTB166
The fluid level in the brake fluid reser- voir should be checked periodically. The level should be between the "MIN" and "MAX" marks on the side of thereservoir. If the level is at or below the "MIN" mark, carefully add fluid to bring it up to "MAX". Do not overfill.

6- 14 DO-IT-YOURSELF MAINTENANCE
G140A01A-DAT AIR CONDITIONING CARE Keeping the Condenser Clean The air conditioning condenser (and engine radiator) should be checkedperiodically for accumulation of dirt, dead insects, leaves, etc. These can interfere with maximum cooling effi-ciency. When removing such accumu- lations, brush or hose them away care- fully to avoid bending the cooling fans. Replacement of the filter drier To comply with local Australian State codes and Laws the filter drier must be replaced if the system has been opened to the atmosphere for any reason or ifduring servicing no refrigerant is found in the system.
!
G120E01TB-AAT Adding Brake Fluid
WARNING:
Handle brake fluid carefully. It can damage your vision if it gets intoyour eyes. Use only DOT 3 or DOT 4 specification fluid from a sealed con- tainer. Do not allow the fluid can orreservoir to remain open any longer than required. This will prevent entry of dirt and moisture which can dam-age the brake system and cause im- proper operation.
To add brake fluid;
1) If it is necessary, remove the air cleaner cover.
2) Wipe away any dirt then unscrew the fluid reservoir cap.
3) Slowly pour the recommended fluid
into the reservoir using by a funnel. Do not overfill.
4) Carefully replace the cap on the res-
ervoir and tighten.
!
G140B01A-AAT Checking the Air Conditioning Operation
1. Start the engine and let it run at fast
idle for several minutes with the air conditioning set at the maximumcold setting.
2. If the air coming out of the in-dash
vents is not cold, have the air condi-tioning system inspected by your Hyundai dealer.
CAUTION:
Running the air conditioning system for extended periods of time with alow refrigerant level may damage the compressor.

DO-IT-YOURSELF MAINTENANCE 6- 15
CRANK PULLEY
G140C01A-AAT Lubrication To lubricate the compressor and the seals in the system, the air condition-ing should be run for at least 10 min- utes each week. This is particularly important during cool weather whenthe air conditioning system is not oth- erwise in use.
G140D01S-GAT Checking the Compressor Drive Belt
HTB219
A/C
TENSION PULLEY 8mm

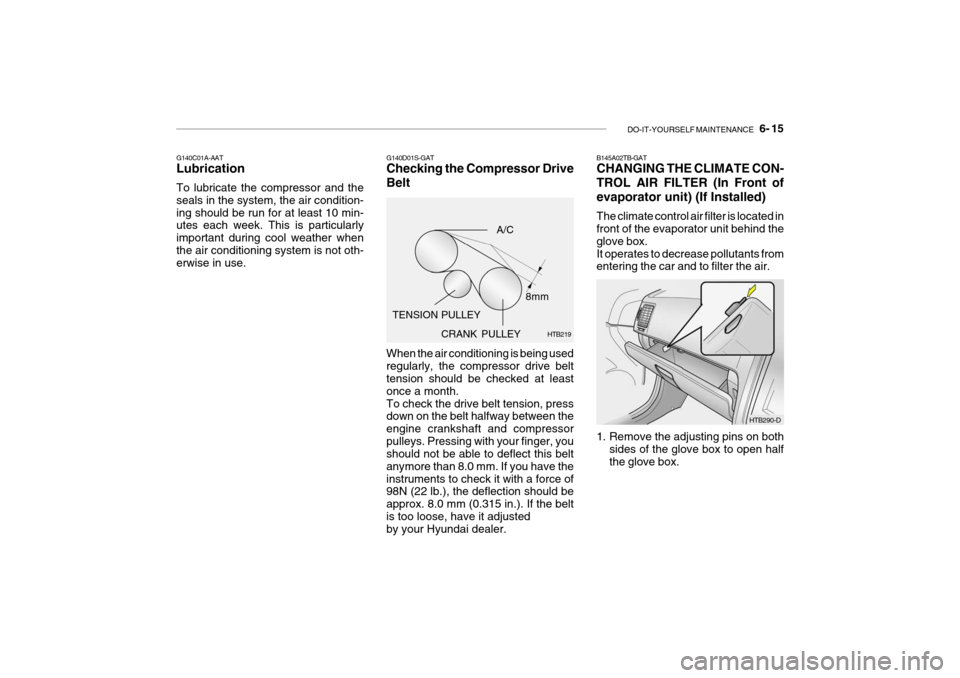

When the air conditioning is being used regularly, the compressor drive belt tension should be checked at least once a month.To check the drive belt tension, press down on the belt halfway between the engine crankshaft and compressorpulleys. Pressing with your finger, you should not be able to deflect this belt anymore than 8.0 mm. If you have theinstruments to check it with a force of 98N (22 lb.), the deflection should be approx. 8.0 mm (0.315 in.). If the beltis too loose, have it adjusted by your Hyundai dealer. HTB290-D
B145A02TB-GAT CHANGING THE CLIMATE CON-
TROL AIR FILTER (In Front ofevaporator unit) (If Installed) The climate control air filter is located in front of the evaporator unit behind the glove box.It operates to decrease pollutants from entering the car and to filter the air.

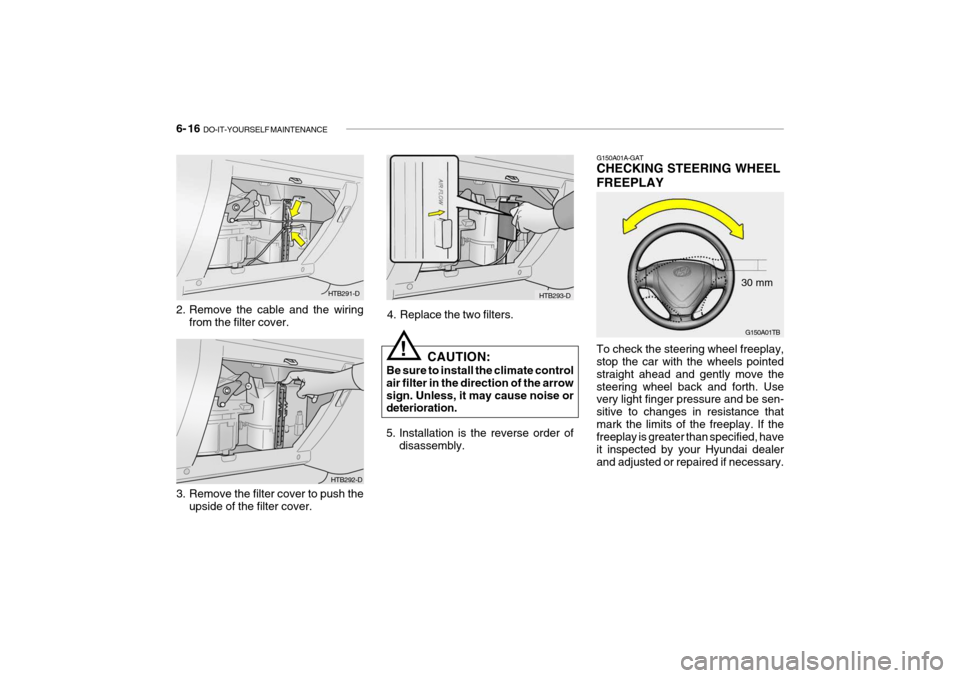

1. Remove the adjusting pins on both
sides of the glove box to open half the glove box.

6- 16 DO-IT-YOURSELF MAINTENANCE
G150A01A-GAT CHECKING STEERING WHEEL FREEPLAY To check the steering wheel freeplay, stop the car with the wheels pointed straight ahead and gently move thesteering wheel back and forth. Use very light finger pressure and be sen- sitive to changes in resistance thatmark the limits of the freeplay. If the freeplay is greater than specified, have it inspected by your Hyundai dealerand adjusted or repaired if necessary. G150A01TB
30 mm
HTB293-D
4. Replace the two filters.
CAUTION:
Be sure to install the climate controlair filter in the direction of the arrowsign. Unless, it may cause noise or deterioration.
5. Installation is the reverse order of disassembly.
!
HTB291-D
2. Remove the cable and the wiring from the filter cover.
HTB292-D
3. Remove the filter cover to push the upside of the filter cover.

DO-IT-YOURSELF MAINTENANCE 6- 17
G160A01A-GAT CHECKING CLUTCH PEDAL FREEPLAY
G160A01E
6 ~ 13 mm

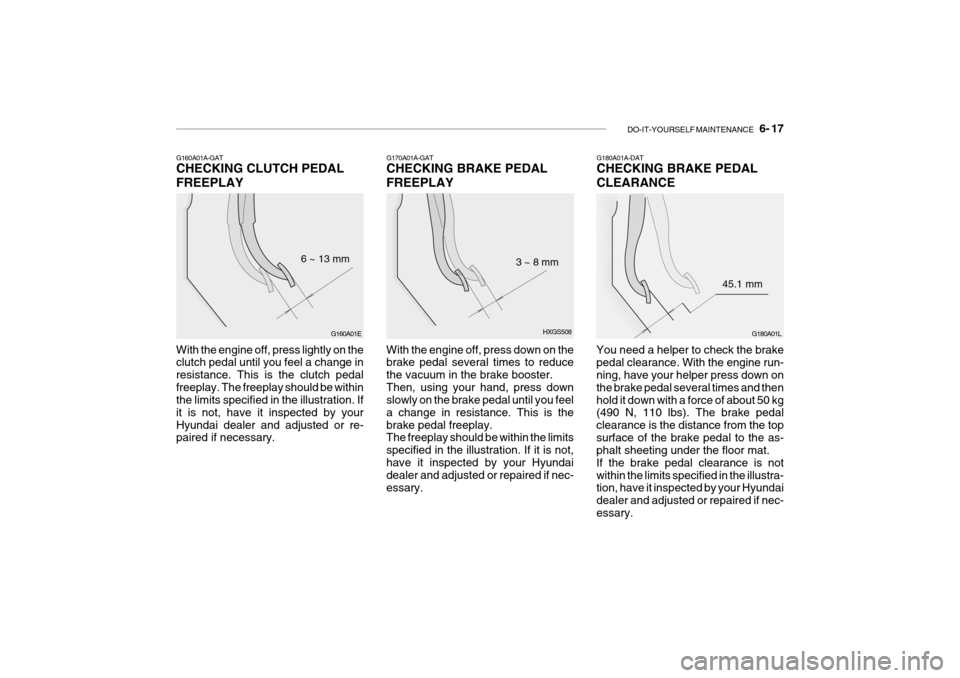

With the engine off, press lightly on the clutch pedal until you feel a change in resistance. This is the clutch pedalfreeplay. The freeplay should be within the limits specified in the illustration. If it is not, have it inspected by yourHyundai dealer and adjusted or re- paired if necessary.G180A01A-DAT CHECKING BRAKE PEDAL CLEARANCE
G180A01L
45.1 mm
You need a helper to check the brake pedal clearance. With the engine run- ning, have your helper press down on the brake pedal several times and thenhold it down with a force of about 50 kg (490 N, 110 lbs). The brake pedal clearance is the distance from the topsurface of the brake pedal to the as- phalt sheeting under the floor mat. If the brake pedal clearance is notwithin the limits specified in the illustra- tion, have it inspected by your Hyundai dealer and adjusted or repaired if nec-essary.G170A01A-GAT CHECKING BRAKE PEDAL FREEPLAY With the engine off, press down on the brake pedal several times to reduce the vacuum in the brake booster.Then, using your hand, press down slowly on the brake pedal until you feel a change in resistance. This is thebrake pedal freeplay. The freeplay should be within the limits specified in the illustration. If it is not,have it inspected by your Hyundai dealer and adjusted or repaired if nec- essary. HXGS508
3 ~ 8 mm

6- 18 DO-IT-YOURSELF MAINTENANCE
A fusible link will melt if the electrical circuits from the battery are ever over-loaded, thus preventing damage to the entire wiring harness. (This could be caused by a short in the system draw-ing too much current.) If this ever happens, have a Hyundai dealer de- termine the cause, repair the systemand replace the fusible link. The fusible links are located in a fuse box for easy inspection. CAUTION:
When replacing a fusible link, neveruse anything but a new fusible linkwith the same or lower amperage rating. Never use a piece of wire or a higher-rated fusible link. Thiscould result in serious damage and create a fire hazard.
!
G200A01A-AAT CHECKING AND REPLACING FUSESReplacing a Fusible Link
G200A01L
Melted
Good
Water Pump Pulley
Alternator Pulley
Crankshaft Pulley 5.1~6 mm

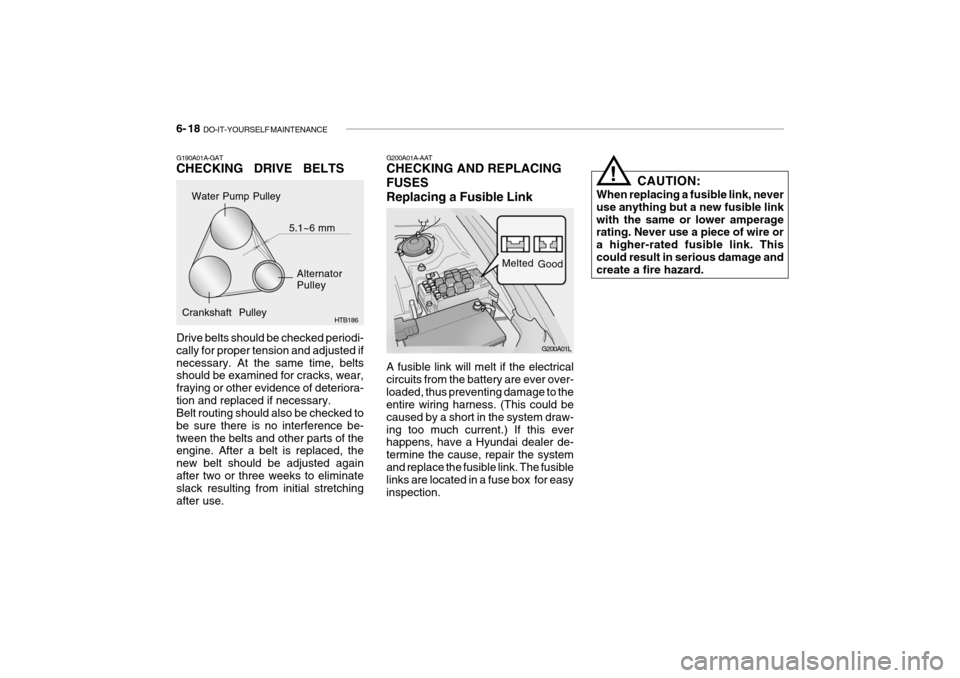

G190A01A-GAT CHECKING DRIVE BELTS Drive belts should be checked periodi- cally for proper tension and adjusted ifnecessary. At the same time, belts should be examined for cracks, wear, fraying or other evidence of deteriora-tion and replaced if necessary. Belt routing should also be checked to be sure there is no interference be-tween the belts and other parts of the engine. After a belt is replaced, the new belt should be adjusted againafter two or three weeks to eliminate slack resulting from initial stretching after use. HTB186
