2009 HONDA CIVIC COUPE Owners Manual

When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
1.
2.
Checking Seat Belt Fit
Protecting L arger Children
46
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
——y
y
(+y
y
2009 Civic Coupe

Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible, and be
sure the child is wearing the seat
belt properly.
3.
4.
5.
39
CONT INUED
Using a Booster Seat
Protecting L arger Children
Driver and Passenger Saf ety
47
——y

y
(+yy
2009 Civic Coupe

A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in the back seat.
1446
When Can a L arger Child Sit in
Front
Physical Size
Maturity
Protecting L arger Children
48
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly. This could result
in serious neck injuries during a
crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
Additional Saf ety Precautions
Do not let a child wear a seat belt
across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt . Do not put any accessories on a
seat belt.
Protecting L arger Children
Driver and Passenger Saf ety
49
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system
as shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. 1.
2.
3.
4.
Carbon Monoxide Hazard
50
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
\f—\f—\fy
\f\f\fy
(+\fy\f\fy
2009 Civic Coupe

CONT INUED

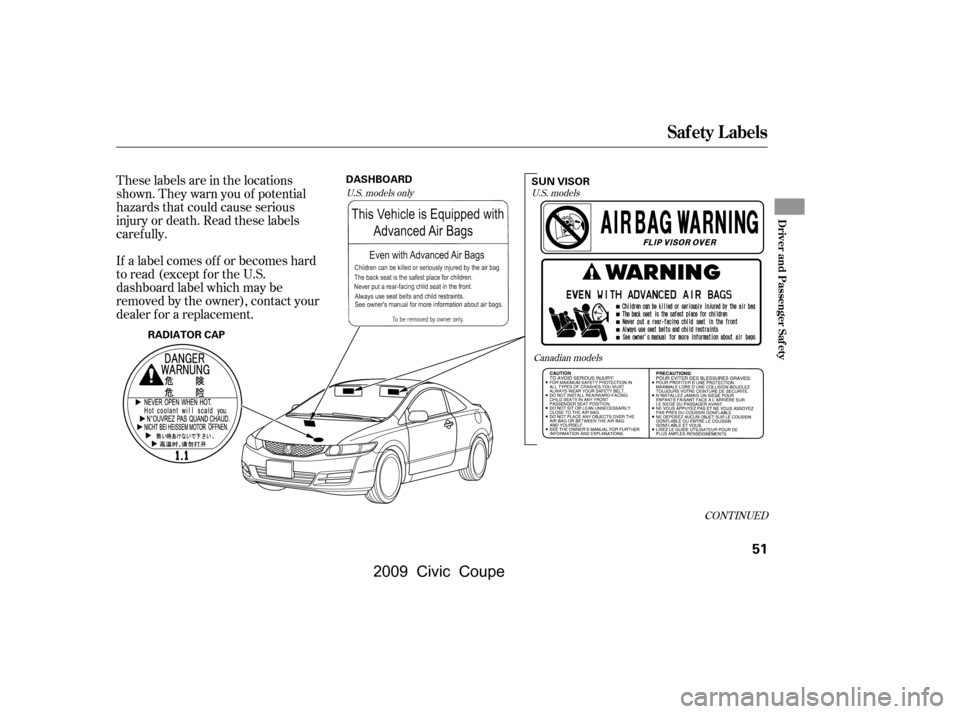

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.U.S. models
U.S. models only
Canadian models
Saf ety L abels
Driver and Passenger Saf ety
51
RADIATOR CAP SUN VISOR
DASHBOARD
\f—\f—\fy
\f\f
y
(+\fy\f\fy
2009 Civic Coupe

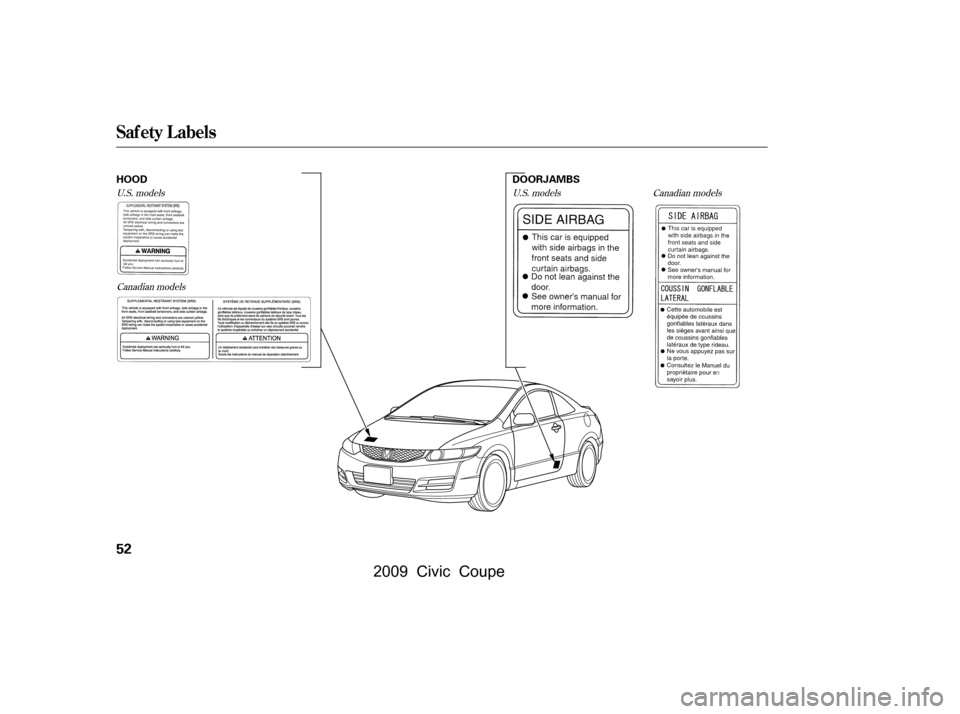

Canadian models
U.S. models
Canadian models U.S. models
Saf ety L abels
52
HOOD
DOORJAMBS
\f—\f—\fy
\f\fy
(+\fy\f\fy
2009 Civic Coupe

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .54
............................
Instrument Panel .55
..........
Instrument Panel Indicators .57
.............................................
Gauges .65
..............
Display Change Button .66
.....................................
Odometer .66
...................................
Trip Meter .66
Outside Temperature
...................................
Indicator .67
..................................
Fuel Gauge .68
...................
Temperature Gauge .68
..........
Check Fuel Cap Message .68
..................
Maintenance Minder .69
Controls Near the Steering ...........................................
Wheel .70
.
Windshield Wipers and Washers .71
.........
Turn Signals and Headlights .72
........................................
Fog Lights .73
........
Instrument Panel Brightness .74
.................
Hazard Warning Button .75
.................
Rear Window Def ogger .75
........
Steering Wheel Adjustments .76
...............................
Keys and Locks .77
........................
Immobilizer System .78
................................
Ignition Switch .79 ......................................
Door Locks .80
......................
Power Door Locks .81
.
Auto Door Locking/Unlocking .82
.......................
Remote Transmitter .87
................................................
Trunk .91
........
Emergency Trunk Opener .92
.................................................
Seats .93
..................................
Seat Heaters .101
............................
Power Windows .102
.......................................
Moonroof .104
...........................................
Mirrors .106
...............................
Parking Brake .107
.........
Interior Convenience Items .108
.....................
Beverage Holders .109
.............
Console Compartment .109
..................................
Glove Box .109
..................................
Coat Hook .110
........
Accessory Power Sockets .110
............................
Vanity Mirror .111
...................................
Sun Visor .112
...............................
Interior Lights .113
..............................
Ceiling Light .113
...................................
Spotlights .113
..........................
Courtesy Light .114
Instruments and Controls
Inst rument s and Cont rols
53
\f—\f—\fy
\f\fy
(+\fy\f\fy
2009 Civic Coupe
