2009 HONDA CIVIC COUPE Owners Manual

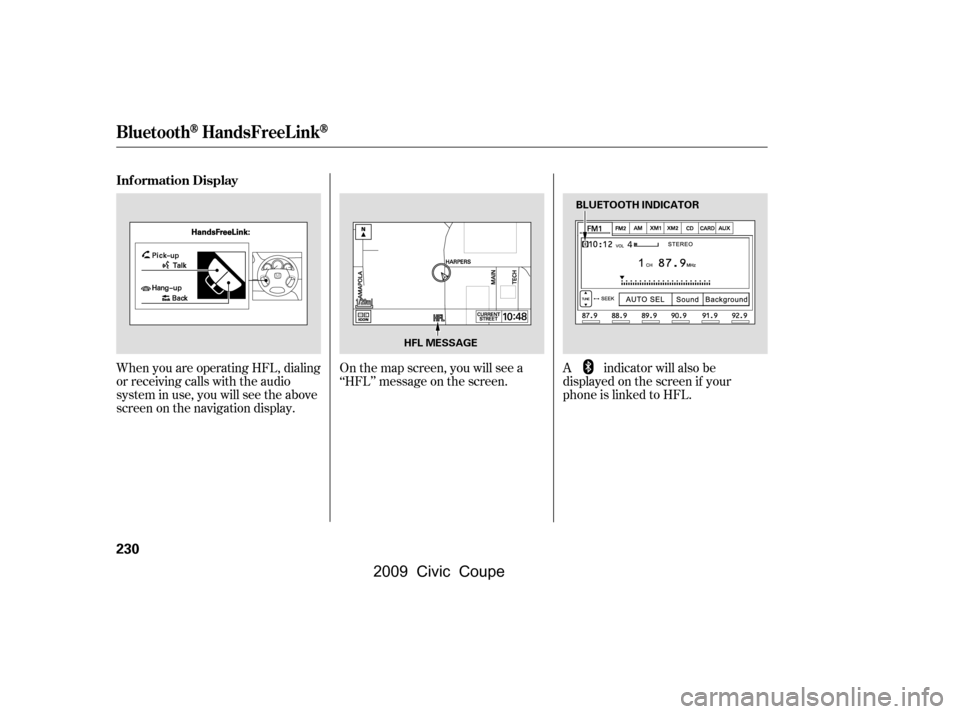

When you are operating HFL, dialing
or receiving calls with the audio
system in use, you will see the above
screen on the navigation display.Onthemapscreen,youwillseea
‘‘HFL’’ message on the screen.
A indicator will also be
displayed on the screen if your
phone is linked to HFL.
BluetoothHandsFreeL ink
Inf ormation Display
230
HFL MESSAGEBLUETOOTH INDICATOR
\f—\f—\fy


y
(+\fy\fy
2009 Civic Coupe

CONT INUED
HFL is operated by the HFL Talk
and Back buttons on the left side of
the steering wheel. The next f ew
pages provide instructions f or all
basic f eatures of the HFL.
Here are some guidelines f or using
voice control:Adjust the airflow from both the
dashboard and side vents so they
do not blow against the
microphone on the ceiling.
Close the windows and the
moonroof . To enter a command, press and
release the HFL Talk button. After
the beep, say your command in a
clear, natural tone.
Lower the A/C f an speed during
voice recognition operation.
If the microphone picks up voices
other than yours, the system may
not interpret your voice
commands correctly.
If HFL does not recognize a
command, its response is ‘‘Pardon.’’
If it doesn’t recognize the
command it plays an appropriate
Help prompt. Response time may
vary depending on the voice
command.
To hear a list of available options
at any time, press the HFL Talk
button, wait f or the beep, and say
‘‘Hands f ree help,’’ or ‘‘Help.’’When you are at the main menu,
you can hear general HFL
inf ormation such as pairing or
setting up the system. Press the
HFL Talk button, wait f or the beep,
and say ‘‘Tutorial.’’
Many commands can be spoken
together. For example, you can
say, ‘‘Dial 123-456-7891.’’
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, and 11.
To skip a voice prompt, press the
HFL Talk button while HFL is
speaking. HFL will then begin
listening f or your next command.
BluetoothHandsFreeL ink
How to Use HFL
A ll phones may not
operate identically, and some
may cause inconsistent operation
of HFL .
Using Voice Control
Features
231
NOTE:
\f—\f—\fy


y
(+\fy\fy
2009 Civic Coupe

To go back one step in a command
process, say ‘‘Go back,’’ or press
the HFL Back button.
If nothing is said while HFL is
listening f or a command, HFL will
time out and stop its voice
recognition, then prompt you with
available options or help
inf ormation. The next time you
press the HFL Talk button, HFL
begins listening f rom the point at
which it timed out.
To end a command sequence at
any time, press and hold the HFL
Back button, or press and release
the HFL Talk button, wait for the
beep, and say ‘‘Cancel.’’ The next
time you press the HFL Talk
button, HFL begins from its main
menu.When you f inish a command
sequence, HFL returns to idle. For
example, when you store the name
‘‘Eric,’’ the HFL system response
is ‘‘Eric has been stored.’’ The
next time you press the HFL Talk
button, HFL begins from its main
menu.
Your Bluetooth
compatible phone
with Hands Free Prof ile must be
paired to HFL bef ore you can make
and receive hands-free calls. To
conf irm that your phone is
Bluetooth
compatible, visit , or call (888)
528-7876. In Canada, call (888) 9-
HONDA-9. Your phone retailer
should also be able to conf irm that
your phone is Bluetooth
compatible. HFL does not allow you to pair
your phone if the vehicle is
moving.
For pairing, your phone must be in
its discovery mode (searching f or
a Bluetooth related device).
Up to six phones can be paired to
HFL.
Your phone’s battery may drain
f aster when it is paired to HFL.
The f ollowing procedure works f or
most phones. If you cannot pair
your phone to HFL with this
procedure, ref er to your phone’s
operating manual, visit
,callthe
HandsFreeLink
consumer
support at (888) 528-7876, or call
your phone retailer. In Canada,
call (888) 9-HONDA-9.
handsf reelink.honda.com
handsf reelink.honda.com
BluetoothHandsFreeL ink
Pairing Your PhoneNOT E:
232
\f—\f—\fy


\fy
(+\fy\fy
2009 Civic Coupe

»¼
ÎÎ
CONT INUED
Press and release the Talk button.
Af ter the beep, if you say ‘‘Yes.’’
HFL responds ‘‘Entering phone
set up: pair menu. The pairing
process requires operation of your
Bluetooth phone. For saf ety, only
perf orm this f unction while the
vehicle is stopped.’’
HFL responds ‘‘For proper system
f unction a compatible Bluetooth
phone is required. Please visit the
HandsFreeLink
website, listed in
the owner’s manual, f or a list of
approved phones and other system
inf ormation. HandsFreeLink is
waiting to pair with a Bluetooth
phone. From your phone, search
f or Bluetooth devices and select
HandsFreeLink.’’
During the pairing process, turn
of f any previously paired phones
bef ore pairing a new phone.
Each time a phone is paired with
HFL, the system selects a pairing
code randomly or sequentialy. You
can switch this setting between
random mode and f ixed mode. To
select a pairing code setting
between Random and Fixed, ref er
to page .
If af ter three minutes your phone
is not ready to pair or a phone is
not f ound, the system will time out
andreturntoidle.
Park your vehicle. With your
phone on and the ignition switch in
the ACCESSORY (I) or ON (II)
position, press and release the
Talk button.
HFL prompts ‘‘Welcome to
Bluetooth HandsFreeLink. This
system enables hands-f ree usage
of a mobile phone. Bef ore using
this system, a phone needs to be
paired or connected with
HandsFreeLink. Would you like to
pair a phone now? Press the
Bluetooth HandsFreeLink Talk
button, and after the beep, say Yes,
to begin the pairing process, or No,
to continue.’’
HFL responds ‘‘When prompted
by your mobile phone, enter the
pairing code: 1234 .’’
Go to Step 4.
1.
2.
238 For example
:
To pair your f irst phone, f ollow the
prompts on the HFL system:
BluetoothHandsFreeL ink
Features
233
\f—\f—\fy



y
(+\fy\fy
2009 Civic Coupe

»¼
Steps 4 and 5 show a
common way to get your phone into
its discovery mode (searching f or a
Bluetooth related device). If these
steps do not work on your phone,
ref er to the phone’s operating
manual. Follow the prompts on your phone
to get it into its discovery mode.
The phone will search f or HFL.
When it comes up, select
HandsFreeLink f rom the list of
options displayed on your phone.
Press and release the Talk button.
Af ter the beep, if you say No, HFL
responds ‘‘Would you like to hear
the Bluetooth HandsFreeLink
tutorial now? Press the Talk
button and af ter the beep, say yes
to begin the tutorial, or say No to
exit HandsFreeLink.’’
If you say Yes, HFL will begin the
tutorial. Follow the prompts on
HFL. When asked by the phone, enter
the four-digit code from step 3 into
your phone.
HFL responds ‘‘HandsFreeLink
has connected to a new phone. A
name is needed to identif y this
phone. Press the Talk button and
say a name. For example, John’s
phone.’’Press and release the Talk button.
After the beep, say the name you
want to use. For example, say
‘‘John’s phone.’’
HFL responds ‘‘ John’s phone
has been successf ully paired.’’
HFL responds ‘‘Would you like to
hear the Bluetooth
HandsFreeLink tutorial now?
Press the Talk button and after
the beep, say Yes to begin the
tutorial, or say No to exit
HandsFreeLink.’’
If you press and release the Talk
button and say ‘‘Yes,’’ HFL begins
Tutorial. If you say ‘‘No,’’ HFL
returns to idle.
3.
6.
4.
5.
BluetoothHandsFreeL ink
234
NOTE:
\f—\f—\fy


y
(+\fy\fy
2009 Civic Coupe

»¼
»¼
CONT INUED
To pair another phone, do this: To rename a paired phone, do this:
With your phone on and the
ignition switch in the
ACCESSORY (I) or ON (II)
position, press and release the
Talk button. After the beep, say
‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Pair.’’
Repeat steps 2 through 6 on pages and . Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Edit.’’ HFL
responds ‘‘Which phone would like
to edit? Press the Talk button, and
say a name, or say List, to hear the
names of the paired phones’’
HFL responds ‘‘The name has
been changed.’’
Press and release the Talk button.
Af ter the beep, say the new name
of the phone. For example, say
‘‘Lisa’s phone.’’
Press and release the Talk button.
After the beep, say the name of
the phone you want to rename.
For example, say ‘‘John’s phone.’’
HFL responds ‘‘What is the new
name f or John’s phone? Press the
Talk button and say a name.’’
With only one paired phone, f or
example, John’s phone , HFL
responds ‘‘What is the new name
f or John’s phone ?’’ Then go to
step 4.
2.
3.
1.
2.3.
1.
4.
233234
BluetoothHandsFreeL ink
Features
235
\f—\f—\fy


y
(+\fy\f\fy
2009 Civic Coupe

»¼
»¼
To delete a paired phone, do this: To list all paired phones, do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’
‘‘Go back’’ or ‘‘Cancel’’ does not
delete the phone.
HFL responds ‘‘The phone has
been deleted.’’
Press and release the Talk button.
Af ter the beep, if you say
‘‘Continue.’’
HFL responds ‘‘Preparing to
delete John’s phone. Press the
Talk button and say Continue;
otherwise say Go Back or Cancel.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
Press and release the Talk button.
After the beep, say the name of
the phone you want to delete. For
example, say ‘‘John’s phone.’’ HFL
responds ‘‘Would you like to delete
John’s phone? Press the Talk
button and say Yes or No.’’
HFL responds ‘‘Which phone
would like to delete? Press the
Talk button and say a name, or say
list, to hear the names of the
paired phone.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Delete.’’
With only one paired phone, f or
example, John’s phone , HFL
responds ‘‘Would you like to delete John’s phone ?’’ Then go to
step 4. HFL responds by listing the name
of each paired phone. When all
phones paired to the system have
been read, HFL responds ‘‘The
entire list has been read.’’
Press and release the Talk button.
Af ter the beep, say ‘‘List.’’
1.
4.
5.
2. 3.
2.
1.
BluetoothHandsFreeL ink
236
\f—\f—\fy


y
(+\fy\f
y
2009 Civic Coupe

»¼
CONT INUED
To f ind out the status of the phone beingused, do this: To change f rom the currently linked
phone to another paired phone, do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’If no other phones are f ound or
paired, the f irst phone remains
linked. For example, HFL
responds ‘‘No other paired phones
were f ound/have been paired.
Returning to John’s phone .’’
Some Phones may not send the
status information to the HFL
system.
Press and release the Talk button.
After the beep, say ‘‘Status.’’ For
example, HFL responds ‘‘John’s
phone is linked. Battery strength
is three bars. Signal strength is
f ive bars, and the phone is
roaming.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Next phone.’’
HFL responds ‘‘Searching f or the
next phone.’’
The system then disconnects the
linkedphoneandsearchesfor
another paired phone. If the
system f inds it, f or example, HFL
responds ‘‘Paul’s phone is linked.’’
2.
1. 1.
2.
BluetoothHandsFreeL ink
Features
237
\f—\f—\fy


y
(+\fy\fy
2009 Civic Coupe
