2009 HONDA CIVIC COUPE Owners Manual

µ
Turn the ignition switch to the ON
(II) position to raise or lower either
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window. To open or close the driver’s window
partially, push down or pull back on
the window switch lightly and hold it.
The window will stop when you
release the switch.
To close the driver’s window f ully,
pull back the window switch f irmly,
then release it. The window
automatically goes all the way up. To
stop the window f rom going all the
way up, push down on the window
switch brief ly.To open the driver’s
window f ully, push the window
switch f irmly down, then release it.
The window automatically goes
down all the way. To stop the
window f rom going all the way down,
pull back on the window switch
brief ly.
The driver’s armrest has a master
power window control panel. To
open the passenger’s window, push
down on the switch and hold it down
until the window reaches the desired
position. To close the window, pull
back on the window switch. Release
the switch when the window gets to
the position you want.
Except DX and Canadian DX-G
Power Windows
AUTO
102
MAIN SWITCH
DRIVER’S WINDOW SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
\f—\f—\fy

\fy
(+\fy\f
\fy
2009 Civic Coupe

µIf your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction could be disabled. If
the power window system needs to
be reset af ter reconnecting the
battery or installing the f use, do this:
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer.
When you push the MAIN switch in,
the switch is OFF, and the
passenger’s window cannot be raised
or lowered. To cancel this f eature,
push on the switch again to get it to
pop out. Keep the MAIN switch off
whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the window
unintentionally.
If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it.
Only on the driver’s window,
the auto reverse f unction is disabled
when you continuously pull up the
switch.
Thewindowsoperateforupto10
minutes after you turn off the
ignition switch. Opening either door
cancels this f unction. 1.
2.
Except DX and Canadian DX-G
All models
Power Windows
AUTO REVERSE
Inst rument s and Cont rols
103
NOTE:
\f—\f—\fy


y
(+\fy\f
\fy
2009 Civic Coupe

µ
The moonroof can be tilted up in the
back f or ventilation, or it can be slid
back into the roof. Use the switch on
the f ront ceiling to operate the
moonroof . You must turn the
ignition switch to the ON (II)
position to operate the moonroof . To tilt up the moonroof , push on the
center of the moonroof switch. To
stop the moonroof f rom tilting up
f ully, push the switch brief ly.
To open the moonroof
f ully, pull back the moonroof switch
f irmly, then release it. The moonroof
automatically opens all the way. To
stop the moonroof f rom opening,
push the switch briefly.
To close the moonroof f ully, f irmly
push the moonroof switch f orward,
then release it. The moonroof
automatically closes all the way. To
stop the moonroof f rom closing,
push the switch briefly.
To open or close the moonroof
partially, lightly pull the switch back
or push it f orward and hold it. The
moonroof will stop when you release
the switch.
To open the moonroof , pull back on
the switch and hold it. Release the
switch when the moonroof reaches
the desired position. To close the
moonroof , push the switch f orward
andholdit.Releasetheswitchto
stop the operation.
If equipped
AUTO
Moonroof
104
MOONROOF SWITCH
Open
Close Tilt
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
\f—\f—\fy
\fy
(+\fy\f
\fy
2009 Civic Coupe

µIf the
moonroof runs into any obstacle
while it is closing automatically, it
will reverse direction and then stop.
To close the moonroof , remove the
obstacle, then use the moonroof
switch again.
Auto reverse stops sensing when the
moonroof is almost closed. You
should always check that all
passengers and objects are away
f rom the moonroof bef ore closing it. The moonroof has a key-of f delay.
You can open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition switch. The
key-of f delay cancels as soon as you
open either door.
AUTO REVERSE
Moonroof
Inst rument s and Cont rols
105
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
\f—\f—\fy
\fy
(+\fy\f

\fy
2009 Civic Coupe

Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving. When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
1.
2. 3.
4.
If equipped
A djusting the Power Mirrors
Mirrors
106
SELECTOR SWITCH
ADJUSTMENT SWITCH
TAB
\f—\f—\fy
\fy
(+\fy\f


y
2009 Civic Coupe

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the rear window def ogger
button. The indicator in the button
comesonasareminder.Pressthe
button again to turn the heaters and
the def ogger of f .
58EX-L model in the U.S.
LX, EX-L and Si models in Canada
Power Mirror Heaters Parking Brake
Mirrors, Parking Brake
Inst rument s and Cont rols
107
PARKING BRAKE LEVER
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
\f—\f—\fy
\fy
(+\fy\f

y
2009 Civic Coupe

ÎÎ Î
Î
Î

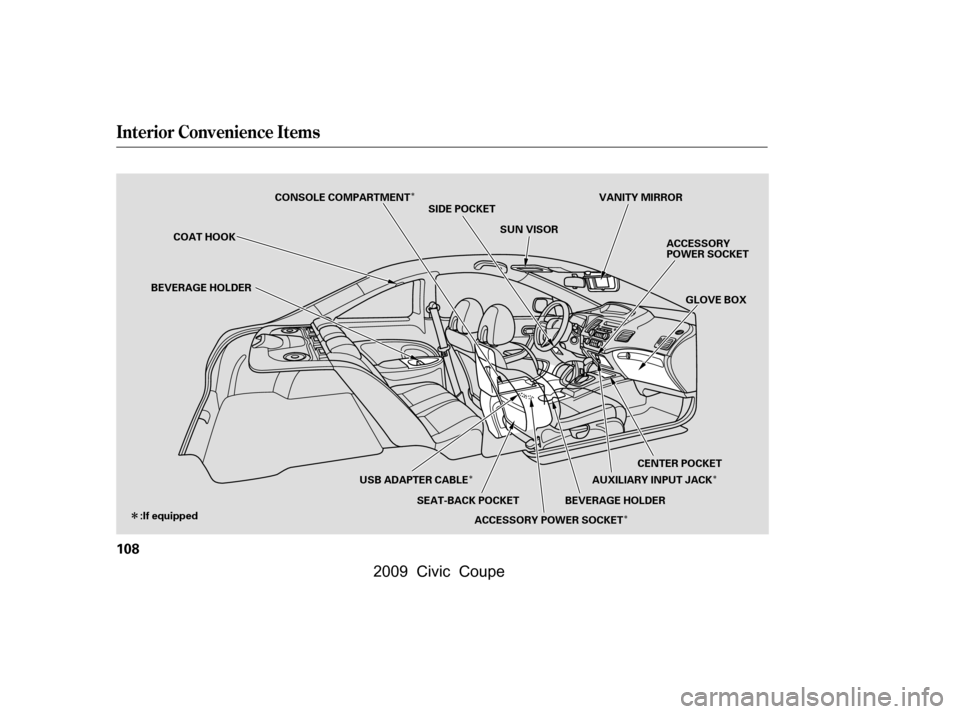

Interior Convenience Items
108
VANITY MIRROR
GLOVE BOX
ACCESSORY
POWER SOCKET
COAT HOOK CONSOLE COMPARTMENT
:If equipped BEVERAGE HOLDER
SUN VISOR
CENTER POCKET
SIDE POCKET
USB ADAPTER CABLE AUXILIARY INPUT JACK ACCESSORY POWER SOCKET
SEAT-BACK POCKET BEVERAGE HOLDER
\f—\f—\fy
\f\f\fy
(+\fy\f

y
2009 Civic Coupe

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.
Open the f ront beverage holder by
sliding the lid.To open the console compartment,
pull up on the lever, and lif t the lid.
To close, lower the lid, and push it
down until it latches.
Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push.
If equipped
CONT INUED
Beverage Holders Console Compartment Glove Box
Interior Convenience Items
Inst rument s and Cont rols
109
LEVER
CONSOLE COMPARTMENT
\f—\f—\fy
\f\fy
(+\fy\f

y
2009 Civic Coupe
