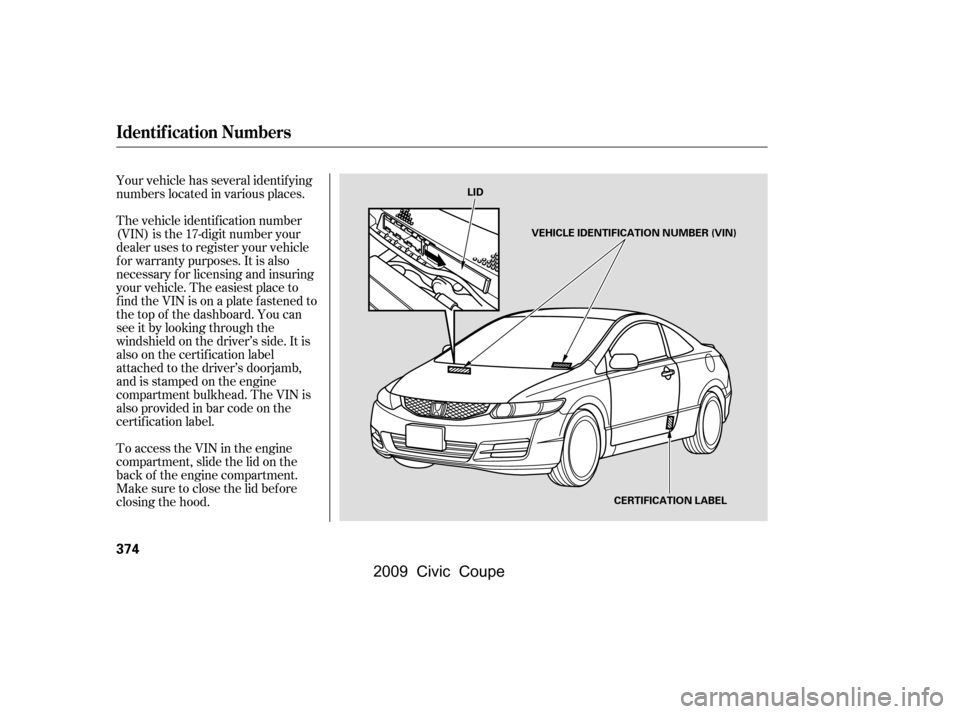

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
To access the VIN in the engine
compartment, slide the lid on the
back of the engine compartment.
Make sure to close the lid bef ore
closing the hood.
Identif ication Numbers
374
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
LID
\f—\f—\fy

y
(+\fy\fy
2009 Civic Coupe

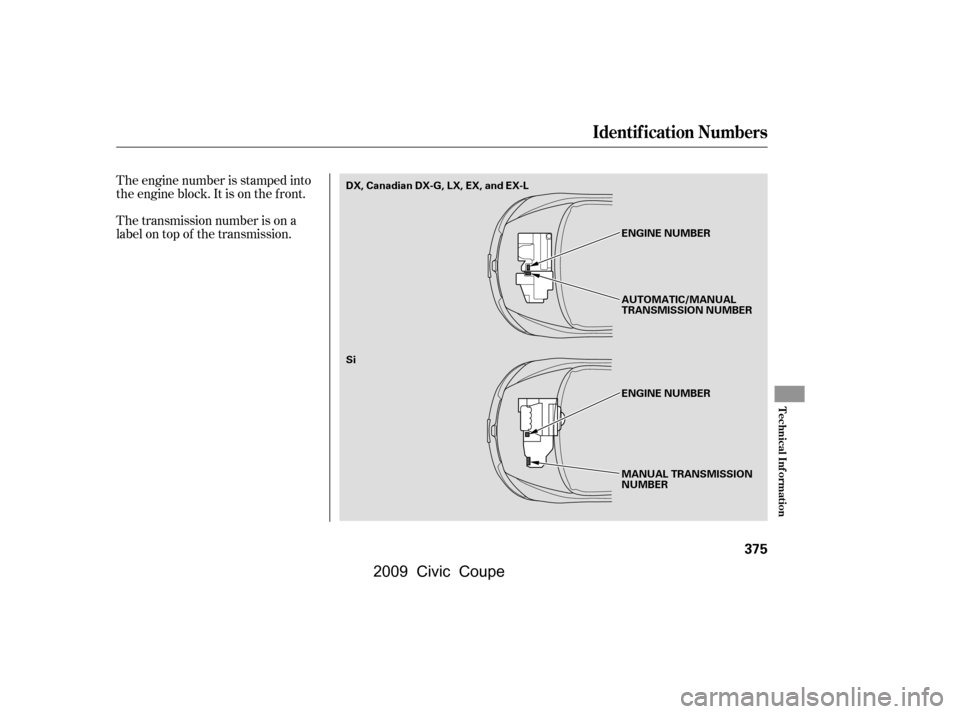

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
375
MANUAL TRANSMISSION
NUMBER
Si
ENGINE NUMBER
ENGINE NUMBER
AUTOMATIC/MANUAL
TRANSMISSION NUMBER
DX, Canadian DX-G, LX, EX, and EX-L
\f—\f—\fy

y
(+\fy\f\fy
2009 Civic Coupe

Î
ÎÎÎ
Î
Î Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Specif ications
376
Dimensions Engine
Weights
Seating Capacities 174.8 in (4,440 mm)
68.9 in (1,751 mm)
53.5 in (1,358 mm)
104.3 in (2,650 mm)
59.0 in (1,499 mm)
59.9 in (1,522 mm)
Length
Width
Height
Wheelbase
Track
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plugsWater cooled 4-stroke
SOHC VTEC , DOHC i-VTEC 4-cylinder gasoline engine
3.19 x 3.44 in (81.0 x 87.3 mm) 3.39x3.39in(86x86mm) 110 cu-in (1,799 cm
)
122 cu-in (1,998 cm)
10.5
11.0
NGK:
DENSO: IZFR6K-11S
SKJ20DR-M11S
IFR7G-11KS
SK22PR-M11S
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.
Total
Front
Rear 3
2
5
60.2 in (1,528 mm)
Front
Rear
NGK:
DENSO:
1:
2: DX, Canadian DX-G, LX, EX, EX-L
Si
1:
2:
LX, Canadian DX-G (M/T), EX, EX-L
DX, Canadian DX-G (A/T)
1
2 12
1
2 1
2
1
2
1
2
\f—\f—\fy

\fy
(+\fy\f
y
2009 Civic Coupe

µµ
Î
Î µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Specif ications
Technical Inf ormation
377
Air Conditioning
Capacities
Lights
Refrigerant type
Charge quantity
Lubricant oil typeHFC-134a (R-134a)
14.1 15.9 oz (400 450 g) SP-10
60 W
12 V
12 V
12 V 51 W
28/8 W
Including the coolant in the reserve tank and that remaining in
the engine
Reserve tank capacity:
Excluding the oil remaining in the engine 13.2 US gal (50)
1.45 US gal (5.5)
1.37 US gal (5.2)
1.19 US gal (4.5)
1.88 US gal (7.1)
1.72 US gal (6.5)
1.80 US gal (6.8)
3.9 US qt (3.7
)
4.6 US qt (4.4)
3.7 US qt (3.5)
4.4 US qt (4.2)
4.8 US qt (4.5)
5.8 US qt (5.5)
1.5 US qt (1.4)
1.6 US qt (1.5)
1.7 US qt (1.6)
1.8 US qt (1.7)
2.5 US qt (2.4)
6.2 US qt (5.9)
2.6 US qt (2.5
)
4.8 US qt (4.5)
0.11 US gal (0.4
)
Fuel tank
Engine
coolant
Engine oil
Manual
transmission
fluid
Automatic
transmission
fluid
Windshield
washer
reservoir
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
5W
8W
8W
3CP
21 W
18 W
3CP
21/5 W
21 W
12 V 55 W
Headlights (HI)
Headlights (LO)
Front turn signal/Side marker/
Parking light
Fog lights
Rear turn signal lights
Stop/Taillights
Rear side marker lights
Back-up lights
High-mount brake light
License plate lights
Ceiling light
Spotlights
Trunk light
Change
Total
Change
Including
filter
Without filter
Total
Change
Total
Change
Total
U.S. Vehicles
Canada
Vehicles Approx.
Si A/T
M/T
A/T
M/T
(HB3)
(HB4)
EX, EX-L, Si:
U.S.: DX, LX, EX, EX-L U.S. DX and LX
Canada: DX, DX-G, LX
1:
Replacement of the light should be done by your
dealer.
2 : If equipped (H11)
1:
2:
3:
4: Canada: DX, DX-G, LX, EX-L (Amber)
(Amber)
2
1
1
2
3
3
4
3
3
4
3
4
3
4
3
4
3
4
3
4
\f—\f—\fy

y
(+\fy\fy
2009 Civic Coupe

µ
µ
Î
Î
Î
µ
µ
µ
µ
Î
Î Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
ÎÎ
ÎÎ
Î
Î
Î
Î
Î
Î
Î
Î Î
Specif ications
378
Battery
Fuses
Alignment
Tires
P195/65R15 89H
Capacity
Interior
Under-hood
0.00 in (0.0 mm)
0.08 in (2.0 mm)0°
12 V 36 AH/5 HR
45 AH/20 HR
38 AH/5 HR
47 AH/20 HR
12 V
12 V
12 V
Toe-in
Camber
Caster 7° 1°30’ 60 psi (420 kPa , 4.2 kgf/cm
)
Size
Pressure 32 psi (220 kPa , 2.2 kgf/cm)
T125/70D16 96M
T135/80R16 101M T125/70D15 95M
215/45ZR17 91W P215/45R17 87V
P205/55R16 89H
0°45’ P195/65R15 89S
See page369or the fuse label
attached to the dashboard.
See page368or the fuse box
cover.
1:
2:
3:
U.S.: DX, LX, EX, EX-L
Si
LX, EX, EX-L
Si (all season tires)
Canada: Si without VSA
Front
Rear
Front
Rear
Front
1:
2: LX, Canadian DX-G (M/T), EX, EX-L
DX, Canadian DX-G (A/T) Front/Rear
Spare
Front/Rear
Spare
U.S.: DX
Canada: DX, DX-G with automatic transmission
Canada: DX-G with manual transmission
Optional for U.S. Si (summer tires)
Canada: DX, DX-G, LX, EX-L
U.S.: EX-L and Si
Canada: EX-L and Si with VSA
1:
2:
3:
4:
5:
6:
7:
8:
U.S.: DX, LX, EX
Canada: DX, DX-G, LX, EX-L without VSA
5
1
1
2, 3
2, 3
8
6
1
2
3
4
1
2 7
\f—\f—\fy


y
(+\fy\fy
2009 Civic Coupe

The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
379
\f—\f—\fy

y
(+\fy\fy
2009 Civic Coupe

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
Temperature
DOT Tire Quality Grading (U.S. Vehicles)
380
\f—\f—\fy

\fy
(+\fy\fy
2009 Civic Coupe

µ
µ
µ
µµ
µ µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Manuf acturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire. Load index (a numerical code
associated with the maximum
load the tire can carry).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Speed symbol (an
alphabetical code indicating
the maximum speed rating).
P
R DOT
B97R
205
55
16 89
H
CONT INUED
T ire Ident if icat ion Number (T IN)
Tire Size
Tire Labeling
Technical Inf ormation
381

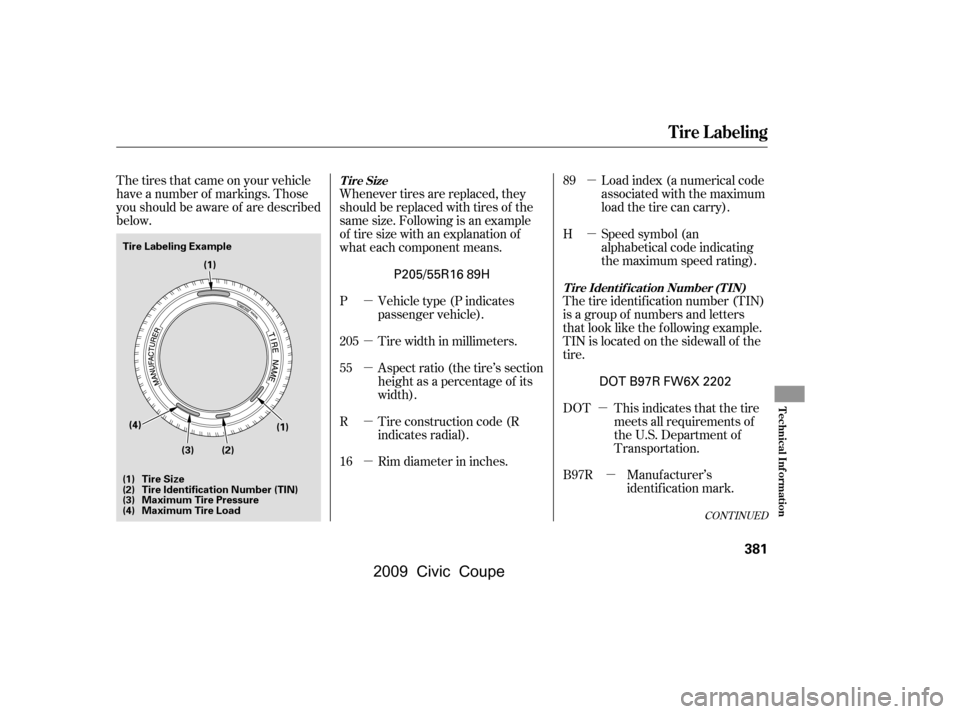

(3)
(4)
Tire Labeling Example
(1)
(2) (1)
(1) Tire Size
(2) Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load
DOT B97R FW6X 2202
