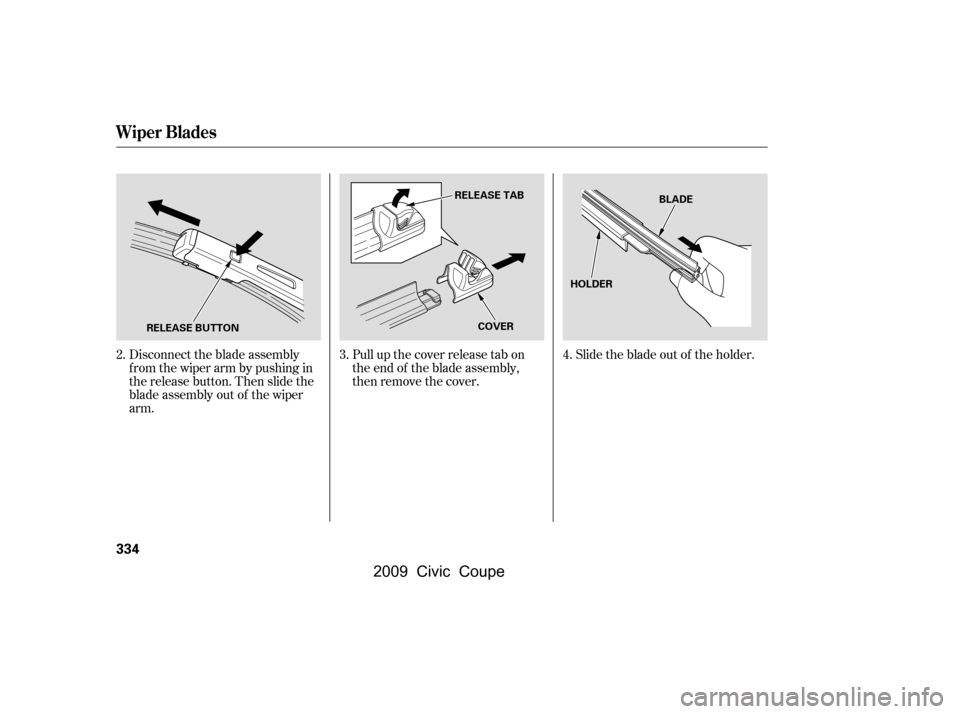

Slidethebladeoutof theholder.
Pull up the cover release tab on
the end of the blade assembly,
then remove the cover.
Disconnect the blade assembly
fromthewiperarmbypushingin
the release button. Then slide the
blade assembly out of the wiper
arm.
2. 3. 4.
Wiper Blades
334
BLADE
HOLDER
RELEASE BUTTON COVER
RELEASE TAB
\f—\f—\fy

\fy
(+\fy\fy
2009 Civic Coupe

Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Align the slots in the new blade
with the retaining edges on the
holder, then slide the blade onto
the holder. Keep about 1 inch of
the holder extended f rom the
blade assembly so you can
reinstall the cover.
Reinstall the cover onto the blade
assembly.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’s side.
5.
6.
7.
8.
CONT INUED
Inf lation Guidelines
Tires
Wiper Blades, Tires
Maint enance
335
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
\f—\f—\fy

\fy
(+\fy\f\fy
2009 Civic Coupe

If you check air pressures when the
tires are hot [driven f or several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf /cm ) higher than the cold
readings. This is normal. Do not let
air out to match the recommended
cold air pressure. The tire will be
underinf lated.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier f or you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
While tubeless tires have some
ability to self -seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressuresonthispage.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day.
The tire pressure monitoring system
(TPMS) warns you when a tire
pressure is low. See page f or
more inf ormation.
296
U.S. models
Tires
336
\f—\f—\fy

y
(+\fy\f
y
2009 Civic Coupe

The following charts show the
recommended cold tire pressures f or
most normal driving conditions.We strongly recommend that you do
not drive faster than the posted
speed limits and conditions allow. If
you ever drive in a sanctionedcompetitive event at sustained high
speeds (over 118 mph or 190 km/h),
be sure to adjust the cold tire
pressuresasshownbelow.If youdo
not, excessive heat can build up and
cause sudden tire f ailure.
For additional inf ormation about
your tires, see page .
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver’s doorjamb.
Thecompactsparetirepressureis: When you return to normal speed
driving, be sure to readjust the tire
pressure f or normal driving. You
should wait until the tires are cold
bef ore adjusting the tire pressure.
Tire pressure f or high speed driving
is the same as f or normal driving.
Front/Rear:
379
Tire Size Cold Tire Pressure
Tire Size Cold Tire Pressure Front/Rear
Tire Size Cold Tire Pressure Front/Rear
Tire Size Cold Tire Pressure Front/Rear
Tire Size Cold Tire Pressure Front/Rear
Si model only Si model only
Except Si model
LX, EX, EX-L Si
DX and Canadian DX-G with automatic
transmission
Canadian DX-G with manual transmission Optional Summer T ire f or U.S. Si
Tires
Recommended Tire Pressures
High Speed Driving
T ire Size·Cold T ire Pressure f or HighSpeed Driving
Maint enance
337
60 psi (420 kPa , 4.2 kgf/cm) P215/45R17 87V
35 psi (240 kPa , 2.4 kgf/cm
)
215/45ZR17 91W 32 psi (220 kPa , 2.2
kgf/cm
)
32 psi (220 kPa , 2.2
kgf/cm
)
P215/45R17 87V
P195/65R15 89H 32 psi (220 kPa , 2.2 kgf/cm
)
P195/65R15 89S 32 psi (220 kPa , 2.2 kgf/cm
)
P205/55R16 89H 32 psi (220 kPa , 2.2 kgf/cm
)
\f—\f—\fy

\f
y
(+\fy\fy
2009 Civic Coupe

Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a 1/2
inch (12.7 mm) wide band across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread lef t on
the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.The service lif e of your tires is
dependent on many f actors,
including, but not limited to, driving
habits, road conditions, vehicle
loading, inf lation pressure,
maintenance history, speed, and
environmental conditions (even
when the tires are not in use).
In addition to your regular
inspections and inf lation pressure
maintenance, it is recommended that
you have annual inspections
perf ormed once the tires reach f ive
years old. It is also recommended
that all tires, including the spare, be
removed from service after 10 years
from the date of manufacture,
regardless of their condition or state
of wear.
Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord.
Excessive tread wear.
Tire Inspection Tire Service Lif e
Tires
338

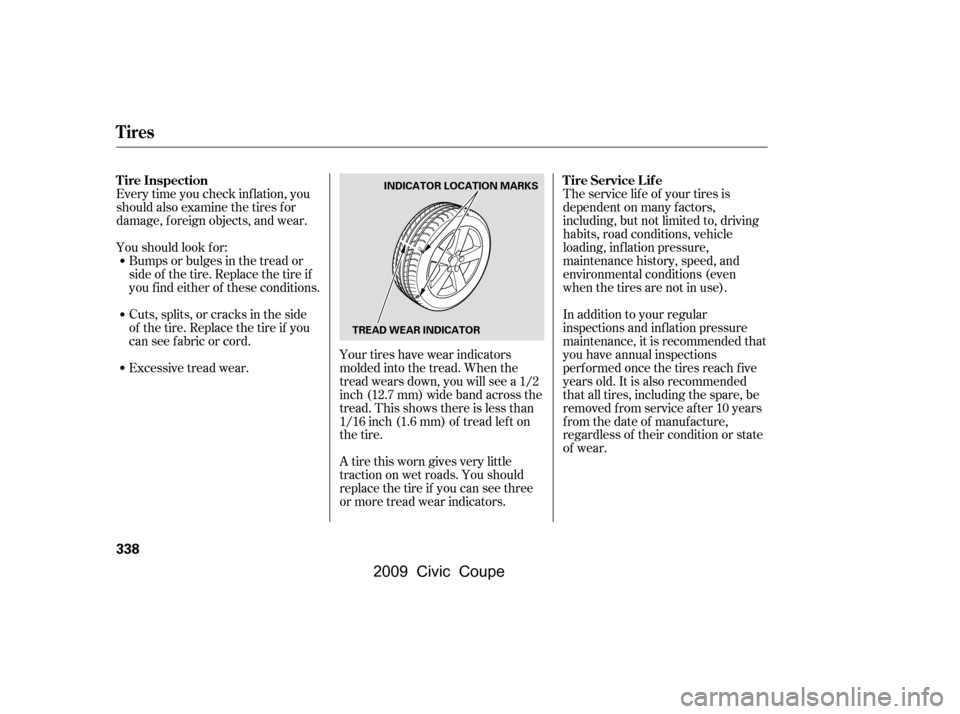

INDICATOR LOCATION MARKS
TREAD WEAR INDICATOR
\f—\f—\fy

\fy
(+\fy\fy
2009 Civic Coupe

The last f our digits of the TIN (tire
identif ication number) are f ound on
the sidewall of the tire and indicate
the date of manufacture (Seeon page ). In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance.
381
For vehicles equipped with aluminum
wheels:
Tire
Labeling T ire Maintenance
Tires
Maint enance
339
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only Honda wheel weights f or
balancing.
\f—\f—\fy

\fy
(+\fy\fy
2009 Civic Coupe

To help increase tire lif e and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display.
Move the tires to the positions
shown in the illustration each time
they are rotated. If you purchase
directional tires, rotate only f ront-to-
back.Themileageyoucanexpectfrom
yourvehicletiresisthesameas
comparable mid-and rear-engine
sports cars, and it will vary greatly
with your driving habits.
If you drive moderately, the f ront
tires could last more than 10,000
miles (16,000 km). However, the
mileage will be substantially less if
you tend to drive your vehicle at the
upper limits of its capabilities.
You should caref ully inspect your
vehicle’s tires f or wear, damage, and
proper inf lation every 7,500 miles
(12,000 km).
As a trade-of f , they will wear more
rapidly than tires used on ordinary
passenger vehicles. Because of the
vehicle’s weight distribution, and the
fact that the front wheels are the
driving wheels, you can expect them
to wear more rapidly than the rear
tires.
The tires that came on your vehicle
were designed and constructed to
provide superior grip during
acceleration, braking, and cornering.
When the tires are rotated, make
sure the air pressures are checked.
Si model only
Tires
Tire Rotation
Tire Wear
340
FrontFront
(For Non-directional
Tires and Wheels) (For Directional
Tires and Wheels)
\f—\f—\fy

\fy
(+\fy\fy
2009 Civic Coupe

Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
ABS and vehicle stability assist
system (VSA) to work inconsistently.
The ABS and VSA system (if
equipped) work by comparing the
speed of each wheel. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
activate.It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Also be sure you use only TPMS
specif ic wheels. If you do not, the
tire pressure monitoring system will
not work.
Replacement wheels are available at
your dealer.
On vehicles with TPMS
Tires
Replacing T ires and Wheels
Maint enance
341
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
