2. Grasp the knob on the load floor and lift the knob until
the load floor unfolds into position.
3. Reverse the procedure to store the load floor.Positioning the Load Floor for Storage Access Under
the Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the
load floor.
3. Lift the load floor up to access storage under the load
floor.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.
Load Floor In Open Position
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

4. Reverse the procedure to put the load floor back in the
secured down position before you operate the vehicle.
PICKUP BOXThe pickup box has many features designed for utility
and convenience.
Load Floor Securing Straps
Pick Up Box Features
1 — Upper Load Floor Indents
2 — Bulk Head Dividers
3 — Cleats
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

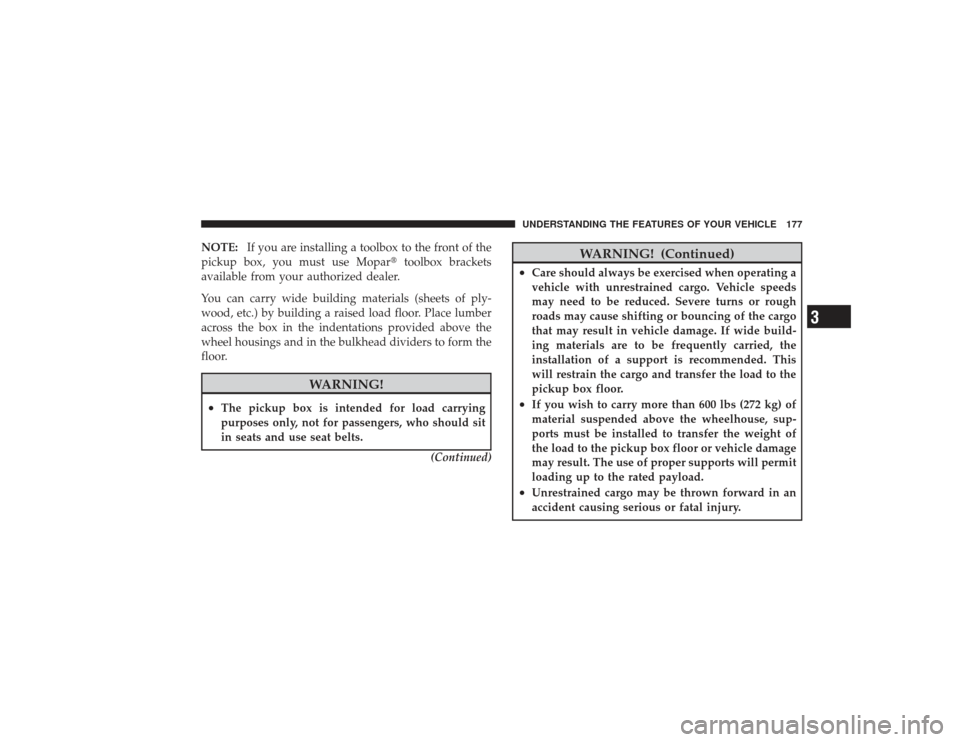

NOTE:If you are installing a toolbox to the front of the
pickup box, you must use Mopar toolbox brackets
available from your authorized dealer.
You can carry wide building materials (sheets of ply-
wood, etc.) by building a raised load floor. Place lumber
across the box in the indentations provided above the
wheel housings and in the bulkhead dividers to form the
floor.
WARNING!
•
The pickup box is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
(Continued)
WARNING! (Continued)
•
Care should always be exercised when operating a
vehicle with unrestrained cargo. Vehicle speeds
may need to be reduced. Severe turns or rough
roads may cause shifting or bouncing of the cargo
that may result in vehicle damage. If wide build-
ing materials are to be frequently carried, the
installation of a support is recommended. This
will restrain the cargo and transfer the load to the
pickup box floor.
•
If you wish to carry more than 600 lbs (272 kg) of
material suspended above the wheelhouse, sup-
ports must be installed to transfer the weight of
the load to the pickup box floor or vehicle damage
may result. The use of proper supports will permit
loading up to the rated payload.
•
Unrestrained cargo may be thrown forward in an
accident causing serious or fatal injury.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

There are stampings in the sheet metal on the inner side
bulkheads of the box in front of and behind both wheel
housings. Place wooden boards across the box from side
to side to create separate load compartments in the
pickup box.
There are four tie-down cleats bolted to the lower sides of
the pickup box that can sustain loads up to 1000 lbs
(450 kg) total.SLIDE-IN CAMPERS
Camper ApplicationsCertain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the “Consumer Information Truck-Camper Load-
ing” document available from your authorized dealer.
For safety reasons, follow all instructions in this impor-
tant document.NOTE:
When a cap or pickup camper is installed on a
vehicle, an alternate Center High-Mounted Stop Light
(CHMSL) must be provided.
EASY-OFF TAILGATETailgate removal is sometimes necessary for loading and
can be easily removed by following these steps:
1. Unlatch the tailgate and open it enough so that there is
some slack in the support cables.
2. Remove the support cables by releasing the locking
tang and rotating them away from the box. Once the
cables are free, move to the right side of the tailgate.
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Raise the right side of the tailgate until the right side
pivot clears the hanger bracket.
4. Slide the entire tailgate to the right to free the left side
pivot.
5. Remove the tailgate from the vehicle.NOTE:
•
Do not carry the tailgate loose in the truck pickup box.
•
Dual rear wheel pickup models require properly
spaced rear clearance lights. If such a vehicle is oper-
ated without a tailgate, suitable lights must be
installed.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap
or Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of
leaks.
Tailgate Support Strap Attachment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3
