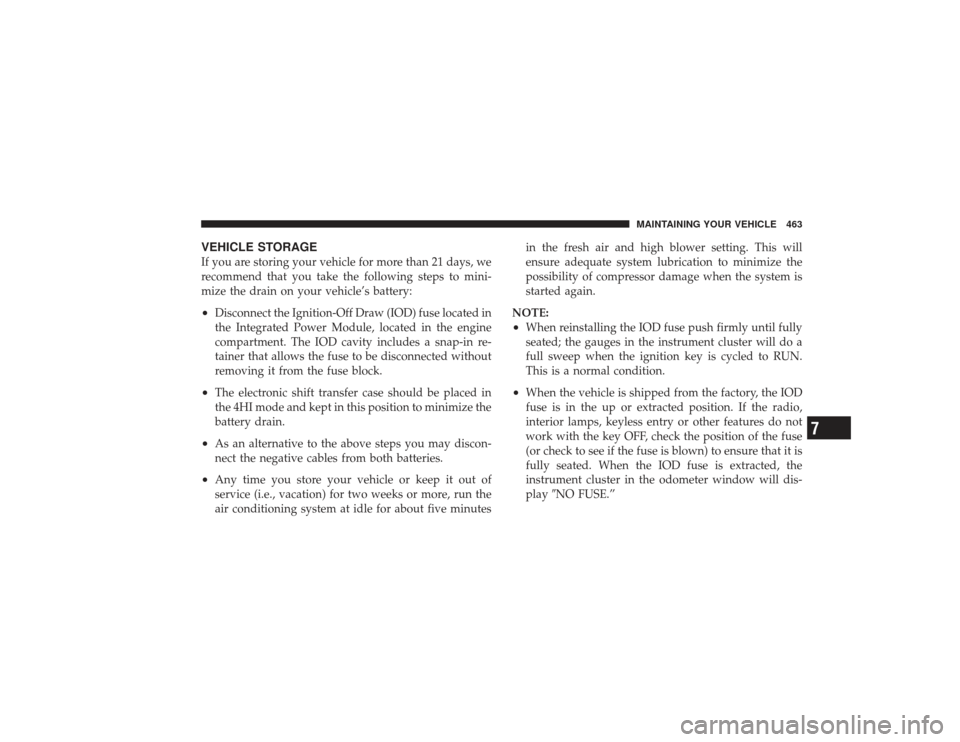

VEHICLE STORAGEIf you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:•
Disconnect the Ignition-Off Draw (IOD) fuse located in
the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.
•
The electronic shift transfer case should be placed in
the 4HI mode and kept in this position to minimize the
battery drain.
•
As an alternative to the above steps you may discon-
nect the negative cables from both batteries.
•
Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutesin the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE:
•
When reinstalling the IOD fuse push firmly until fully
seated; the gauges in the instrument cluster will do a
full sweep when the ignition key is cycled to RUN.
This is a normal condition.
•
When the vehicle is shipped from the factory, the IOD
fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play NO FUSE.”
MAINTAINING YOUR VEHICLE 463
7

REPLACEMENT LIGHT BULBSLIGHT BULBS — InteriorBulb No.
Overhead Console Lights ............... TS212-2
Dome Light ............................ 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved. LIGHT BULBS — Exterior
Bulb No.
Backup ............................... 3057
Center High Mounted Stop Light ............. 912
Fog Light ........................... 9006LL
Headlight (Halogen) ...................... H13
Side Marker, Park & Turn Signal .........3157NAK
Rear License Plate Light .................... 168
Rear Cargo Light ......................... 912
Tail & Stop ............................ 3057
Cab Clearance Lights ...................... 168
Dual Rear Wheel Sidemarker Light ............ 168
Dual Rear Wheel Tailgate ID Lights (3) ......... 168464 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass with
your fingers. Reduced bulb life will result.
1. Open the hood
2. Remove the two bolts from the front of the headlight
housing.
Front Headlight Housing Bolts
MAINTAINING YOUR VEHICLE 465
7

3. Remove the plug from the inner fender well and
remove the nut through the access hole.4. Pull the housing out from the fender to allow room to
disconnect the electrical connectors.
NOTE:For easier removal, pull the headlight assembly
straight forward, applying the greatest amount of force to
the outer edge of the headlight assembly.
Inner Fender Plug
Rear Headlight Housing Nut Access
466 MAINTAINING YOUR VEHICLE

5. Unlock and pull the connector straight from the base
of the headlight halogen bulb.
6. Twist the connector on the side marker/turn signal/
park light bulb
14turn and remove the connector and
bulb from housing.
Headlight Removal
Bulb Removal
MAINTAINING YOUR VEHICLE 467
7

7. Remove the housing from vehicle with the headlight
halogen bulb in housing.
8. Twist the headlight halogen bulb
14turn and remove
the headlight bulb from the housing.
9. Replace headlight or side marker/turn signal/park
light bulb. Do not touch the headlight halogen bulb.
10. Reverse the procedure for installation of bulbs and
housing.
Fog Lights1. Reach under the vehicle, unlock and twist the connec-
tor counterclockwise
14turn and remove the connector
and bulb from the housing.
468 MAINTAINING YOUR VEHICLE

2. Pull the bulb straight from the connector.
3. Reverse the procedure for installation of the bulbs and
housing.
Tail, Stop, Turn and Backup Lights1. Remove the two screws that pass through the bed
sheetmetal.
Removing The Two Screws
MAINTAINING YOUR VEHICLE 469
7

2. Pull the housing straight out from the body, with a
quick motion, to separate the housing from the body. If
not pulled straight, locators may be damaged.3. Rotate the bulb socket counterclockwise to remove
from the housing.
Pulling Housing From Body
Rotating Bulb Socket From Housing
