2009 DODGE RAM 3500 DIESEL Owners Manual

DRL lamp on the same side of the vehicle will turn off for
the duration of the turn signal activation. Once the turn
signal is no longer active, the DRL lamp will illuminate.Lights-on ReminderIf the headlights, parking lights or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver’s door is opened.Fog Lights — If Equipped
The fog lights are turned on by placing the head-
light rotary control in the parking light or low
beam headlight position and pushing in the head-
light rotary control. An indicator light, located in the
instrument cluster, will illuminate when the fog lights are
on. The fog lights will turn off when the switch is pushed
a second time, when the headlight switch is rotated to the
off position, or the high beam headlights are activated.
NOTE: The fog lights will only operate when the
parking lights or low beam headlights are on.
Cargo Light — If EquippedThe cargo lights are turned on by pressing the cargo
button. The interior lights will also turn on when the
cargo lights are on. The cargo lights will also turn ON, for
approximately 30 seconds, as part of the Illuminated
Entry feature when the UNLOCK button is pressed on
the Remote Keyless Entry (RKE) transmitter.
Cargo Light Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

Multifunction LeverThe multifunction lever, located on the left side of the
steering column, is used to activate the turn signals and
high beams headlights.Turn SignalsMove the lever up or down to signal a right-hand or
left-hand turn.
The arrow on either side of the instrument cluster flashes
to indicate the direction of the turn and proper operation
of the front and rear turn signal lights. If a defective bulb
or wiring circuit is detected for the turn signal system, the
arrow indicators will flash at a faster rate. If an indicator
fails to light when the lever is moved, see your autho-
rized dealer.
Turn Signal Lever
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lane Change AssistTap the lever up or down once and the turn signal (left or
right) will flash three times then automatically turn off.Flash-to-PassYou can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.High Beam/Low Beam Select SwitchPull the multifunction lever fully toward the steering
wheel to switch the headlights from high or low beam.
High Beam/Low Beam
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

WINDSHIELD WIPERS AND WASHERSThe wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the handle to select
the desired wiper speed.
Intermittent Wiper SystemThe intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.
The delay interval decreases as you rotate the knob until
it enters the low continual speed position. The delay can
be regulated from a maximum of about 15 seconds
between cycles, to a cycle every two seconds. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.
Windshield Wiper/Washer Switch
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

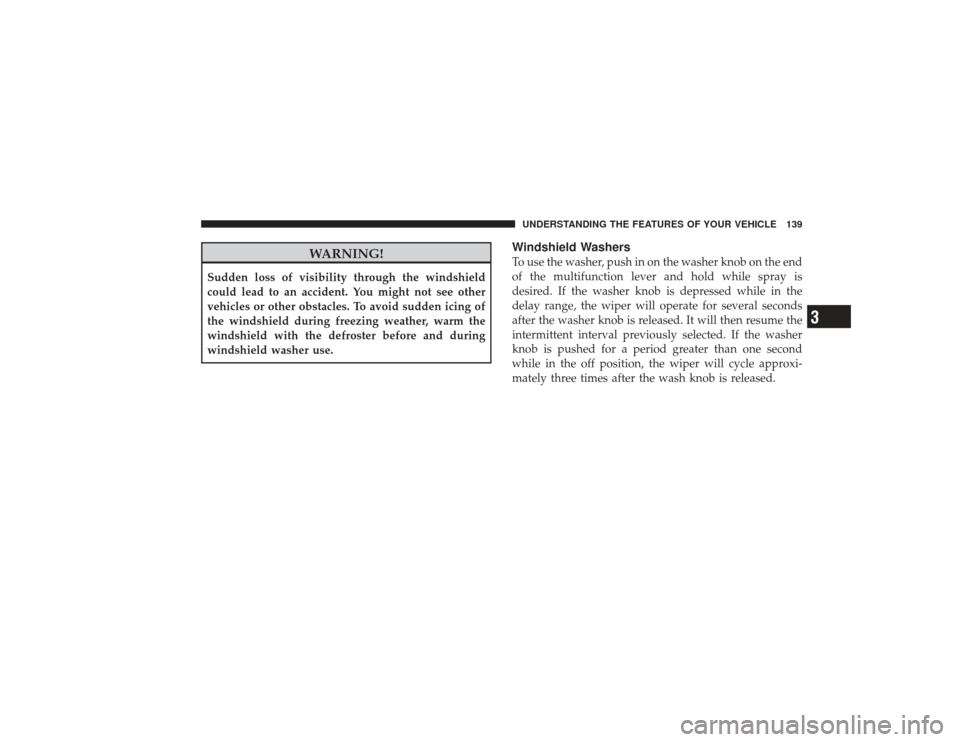

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Windshield WashersTo use the washer, push in on the washer knob on the end
of the multifunction lever and hold while spray is
desired. If the washer knob is depressed while in the
delay range, the wiper will operate for several seconds
after the washer knob is released. It will then resume the
intermittent interval previously selected. If the washer
knob is pushed for a period greater than one second
while in the off position, the wiper will cycle approxi-
mately three times after the wash knob is released.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3

TILT STEERING COLUMNThis feature allows you to tilt the steering column
upward or downward. The tilt control lever is located on
the left-side of the steering column, just below the
multifunction lever.
Pull the lever toward the steering wheel to unlock the
steering column. Move the steering column up or down
as desired, and push the lever toward the instrument
panel to lock the column firmly in place.
WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.
Tilt Steering Control Lever
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

DRIVER ADJUSTABLE PEDALS — IF EQUIPPEDThe adjustable accelerator and brake pedal allow the
driver to establish a comfortable position relative to the
steering wheel and pedals.
Adjustment1. Position the driver seat so that you are at least 10 in
(254 mm) away from the airbag, located in the center of
the steering wheel.
2. Fasten and adjust the seatbelts.
3. Move the adjustable pedal switch, located to the left of
the steering column near the parking brake release, in the
direction you desire to move the pedals.
NOTE:The pedals cannotbe adjusted when the vehicle
is in REVERSE or when the Electronic Speed Control is
set.
Adjustable Pedals Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.ELECTRONIC SPEED CONTROL — IF EQUIPPEDWhen engaged, the Electronic Speed Control system
takes over accelerator operation at speeds greater than
25 mph (40 km/h). The controls are mounted on the
steering wheel.NOTE:In order to ensure proper operation, the Elec-
tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated
Electronic Speed Controls
1 — Resume/Accel 4 — Set
2 — Cancel 5 — Cruise
3 — Decel 6 — On/Off
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
