2009 DODGE RAM 3500 DIESEL Owners Manual

•

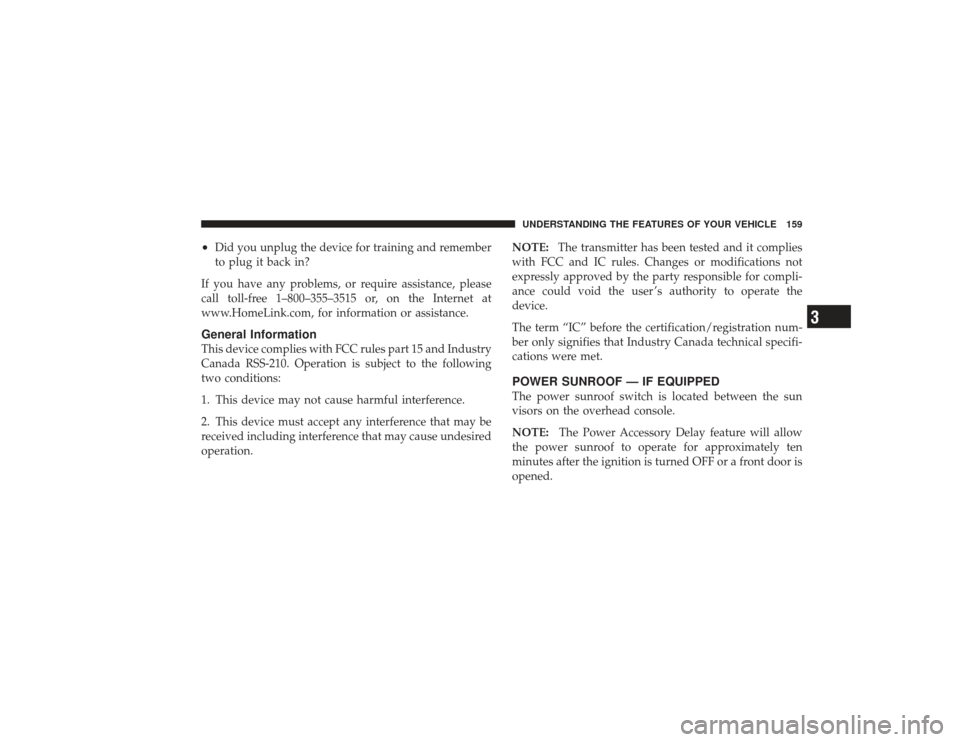

Did you unplug the device for training and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com, for information or assistance.
General InformationThis device complies with FCC rules part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation. NOTE:
The transmitter has been tested and it complies
with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
The term “IC” before the certification/registration num-
ber only signifies that Industry Canada technical specifi-
cations were met.
POWER SUNROOF — IF EQUIPPEDThe power sunroof switch is located between the sun
visors on the overhead console.
NOTE: The Power Accessory Delay feature will allow
the power sunroof to operate for approximately ten
minutes after the ignition is turned OFF or a front door is
opened.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3

WARNING!
•
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•
In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•
Do not allow small children to operate the sun-
roof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.
Open Sunroof — Express ModeMomentarily pressing the switch rearward will activate
the Express Open Feature, causing the sunroof to open
automatically. During the Express Open operation, any
movement of the switch will stop the sunroof and it will
remain in a partial open position. Again, momentarily
pressing the switch rearward will activate the Express
Open Feature.Closing Sunroof — ExpressPress the switch forward and release, and the sunroof
will close automatically from any position. The sunroof
will close fully and stop automatically. This is called
Express Close. During Express Close operation, any
movement of the switch will stop the sunroof.Pinch Protect FeatureThis feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

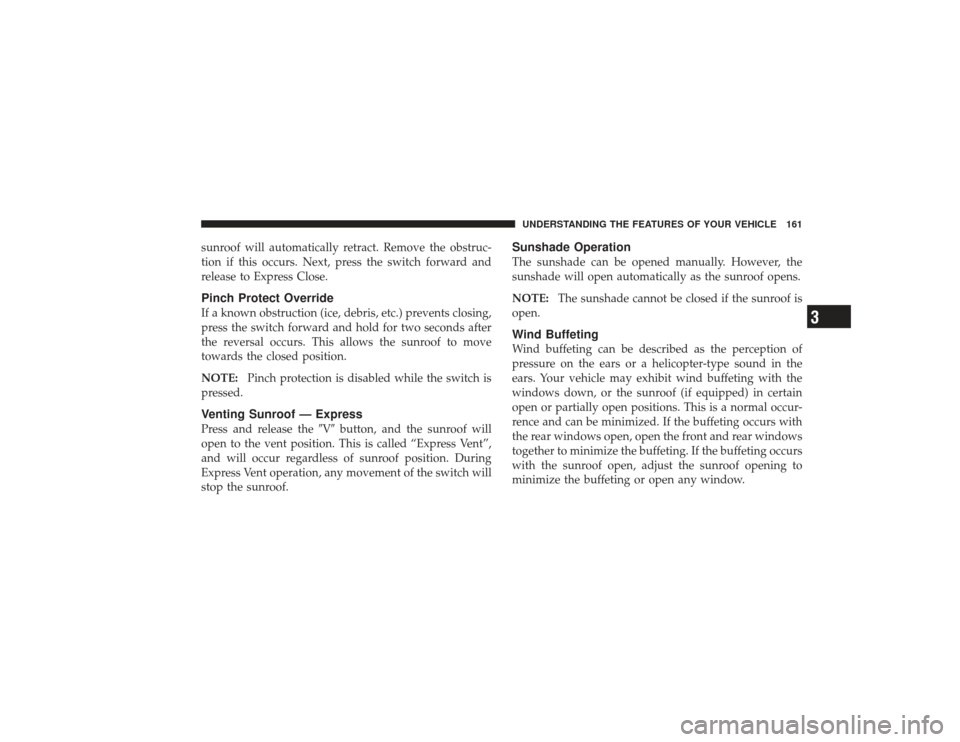

sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, press the switch forward and
release to Express Close.Pinch Protect OverrideIf a known obstruction (ice, debris, etc.) prevents closing,
press the switch forward and hold for two seconds after
the reversal occurs. This allows the sunroof to move
towards the closed position.
NOTE:Pinch protection is disabled while the switch is
pressed.Venting Sunroof — ExpressPress and release the Vbutton, and the sunroof will
open to the vent position. This is called “Express Vent”,
and will occur regardless of sunroof position. During
Express Vent operation, any movement of the switch will
stop the sunroof.
Sunshade OperationThe sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE: The sunshade cannot be closed if the sunroof is
open.Wind BuffetingWind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

Sunroof MaintenanceUse only a non-abrasive cleaner and a soft cloth to clean
the glass panel.Sunroof Fully ClosedPress the switch forward and release to ensure that the
sunroof is fully closed.ELECTRICAL POWER OUTLETSThe auxiliary electrical power outlet can provide power
for in-cab accessories designed for use with the standard
“cigar lighter” plug. The power outlet is located in the
instrument panel, below and to the right of the climate
control panel. A cap is attached to the outlet base
indicating “Power Outlet” 12-Volt/20 A.There is an additional power outlet inside the center
console of vehicle’s equipped with 40-20-40, or bucket
front seats.
Front Power Outlet
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

There is also a power outlet located on the rear of the
center console (if equipped with bucket seats).
The power outlet(s) has/have a fused direct feed from
the battery so it/they receive power whether the ignition
is ON or OFF.All accessories connected to this/these power outlet(s)
should be removed or turned off when the vehicle is not
in use to protect the battery against discharge.
NOTE:
If desired, all of the power outlets can be
converted by your authorized dealer to provide power
with the ignition switch in the ON position only.
WARNING!
To avoid serious injury or death:•
Do not use a three-prong adapter.
•
Do not insert any objects into the receptacles.
•
Do not touch with wet hands.
•
Close the lid when not in use and while driving
the vehicle.
•
If this outlet is mishandled, it may cause an
electric shock and failure.
Rear Power Outlet
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

CAUTION!
•
Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•
Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•
After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CIGAR LIGHTER AND ASH RECEIVERThe removable ash receiver is located in the instrument
panel cupholder tray.
The cigar lighter is located on the instrument panel,
above and to the left of the ash receiver.
As a child safety precaution, the lighter only operates
with the ignition switch ON. It heats when pushed in and
pops out automatically when ready for use.To preserve
the heating element, do not hold the lighter in the
heating position.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CUPHOLDERS
Front Instrument Panel Cupholders (40–20–40
Seats) — Automatic TransmissionLocated in the front center stack of the instrument panel
are two adjustable cupholders.To access the cupholders pull on the cupholder door
handle located on the instrument panel.
Each opening in the cupholder is adjustable and will hold
cups and mugs of various sizes.
Ash Receiver
Cupholder Door Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

To secure the cup, place the cup to be held into one of the
cup wells and then push the cupholder arm toward the
cup until it is held stable.
Front Instrument Panel Cupholders (Bucket
Seats)If your vehicle is equipped with bucket seats there are
three cupholders located on the front of the center
console.
Cupholders
Cupholders Bucket Seat
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
