2009 DODGE CARAVAN Owners Manual

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
SEATS
Seats are a primary part of the Occupant Restraint
(protection) System of the vehicle. They need to be used
properly for safe operation of the vehicle.
WARNING!
•DO NOT allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3
ProCarManuals.com

Manual Front And Second Row Seat Adjuster
The adjusting bar is located under the front of the seat.
Pull the bar upward and move the seat to the desired
position. Release the bar to lock the seat into position.Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Manual Seat Adjuster
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

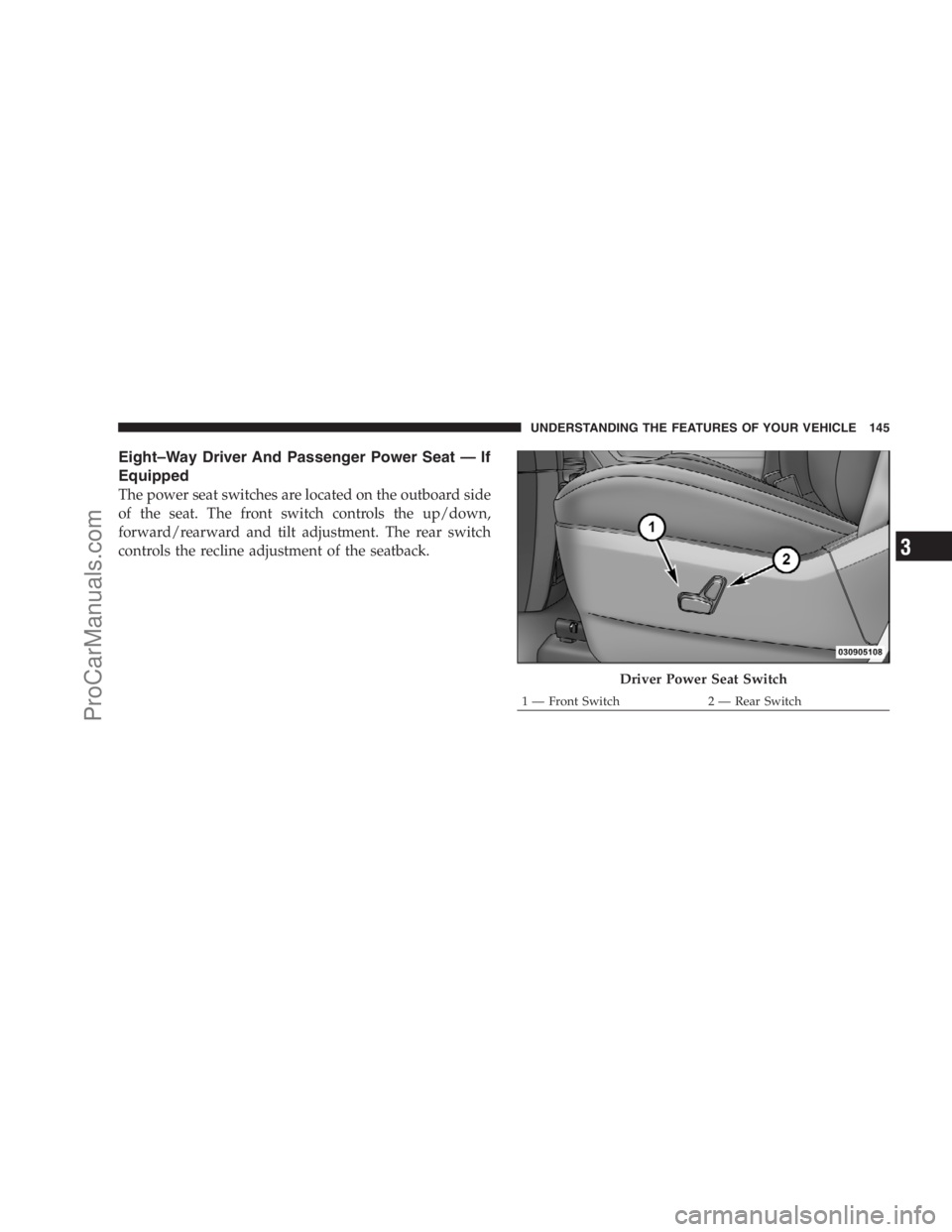

Eight–Way Driver And Passenger Power Seat — If
Equipped
The power seat switches are located on the outboard side
of the seat. The front switch controls the up/down,
forward/rearward and tilt adjustment. The rear switch
controls the recline adjustment of the seatback.
Driver Power Seat Switch
1 — Front Switch 2 — Rear SwitchUNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3
ProCarManuals.com

CAUTION!
DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull upward or push
downward on the head restraint cushion so that the
upper edge is as high as practical. To raise the head
restraint, pull upward on the head restraint. To lower the
head restraint, depress the release tab located at the base
of the head restraint and push downward on the head
restraint.
Adjusting The Head Restraint Cushion
1 — Removal Release 2 — Lowering Release 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Heated Seats — If Equipped
This feature heats the front driver and passenger seats.
The controls for front heated seats are located on the
center instrument panel area. The switch indicator lights
will show when the High or Low heat is on.
Press the switch once to choose High
(two lights), press it a second time to
choose Low (one light), press it a third
time to turn the heater Off (no lights).
Second row heated seat switches are located in the
sliding side door handle trim panels and function the
same as front switches.
Heated Seat Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3
ProCarManuals.com

WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. DO NOT place anything on the seat
that insulates against heat, such as a blanket or
cushion. This may cause the seat heater to overheat.
Manual Reclining Seats — If Equipped
The recliner control lever is on the outboard side of the
seat. To recline, lean forward slightly, lift the lever, then
push back to the desired position and release the lever.
Lean forward and lift the lever to return the seatback toits normal position. Using body pressure, lean forward
and rearward on the seat to be sure the seatback has
latched.
Manual Reclining Seat Control
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

WARNING!
DO NOT ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or fatally injured. Use the recliner only
when the vehicle is parked.

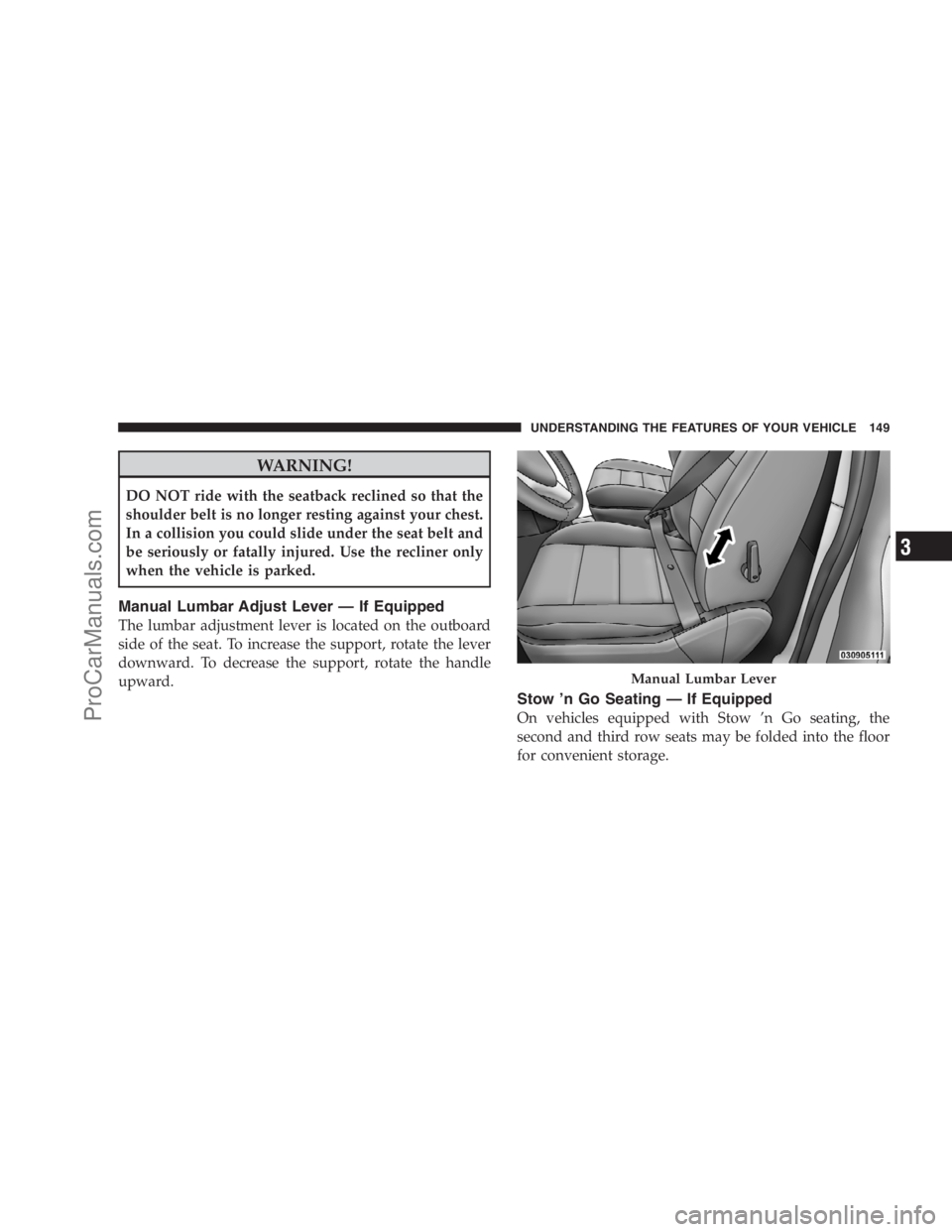

Manual Lumbar Adjust Lever — If Equipped
The lumbar adjustment lever is located on the outboard
side of the seat. To increase the support, rotate the lever
downward. To decrease the support, rotate the handle
upward.
Stow ’n Go Seating — If Equipped
On vehicles equipped with Stow ’n Go seating, the
second and third row seats may be folded into the floor
for convenient storage.
Manual Lumbar Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3
ProCarManuals.com

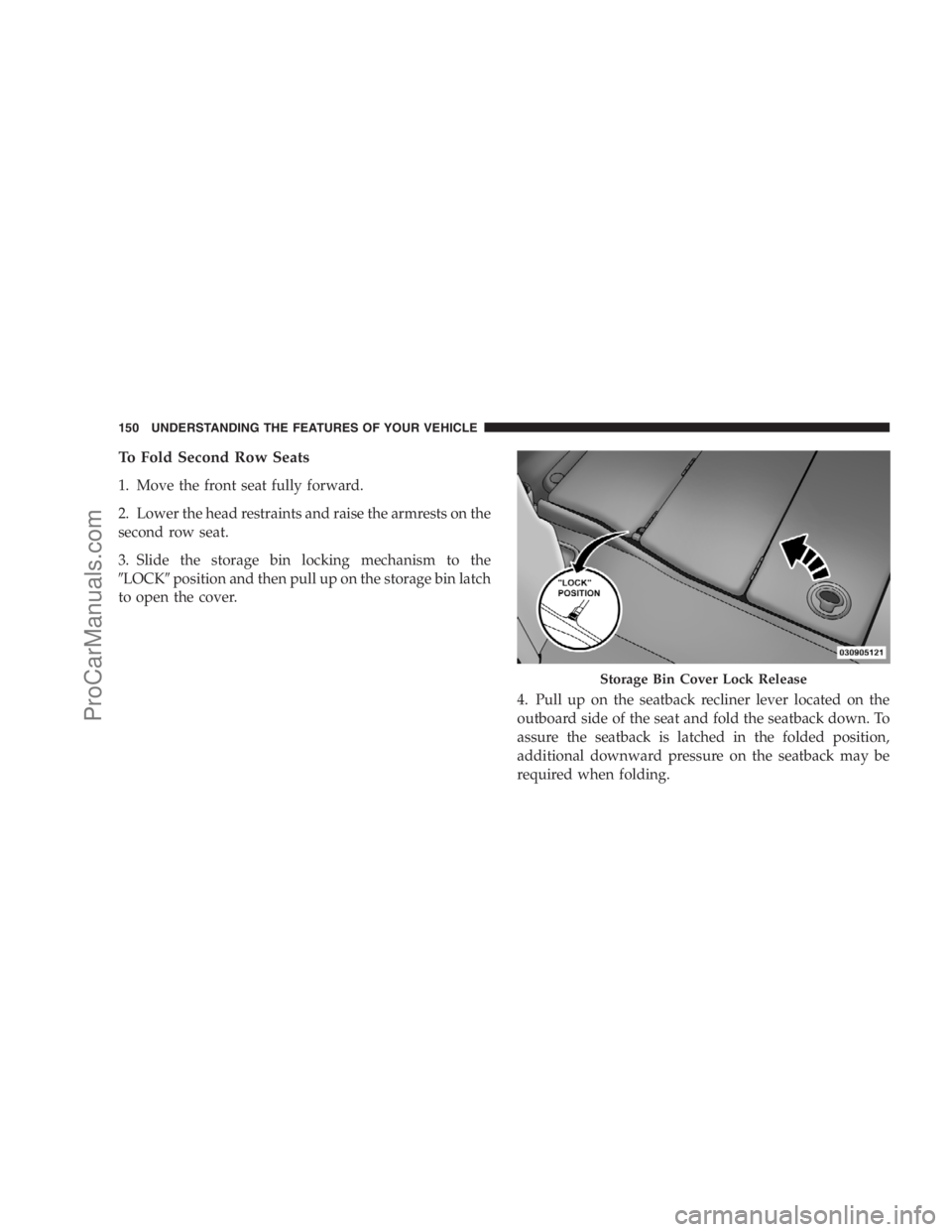

To Fold Second Row Seats
1. Move the front seat fully forward.
2. Lower the head restraints and raise the armrests on the
second row seat.
3. Slide the storage bin locking mechanism to the
LOCKposition and then pull up on the storage bin latch
to open the cover.
4. Pull up on the seatback recliner lever located on the
outboard side of the seat and fold the seatback down. To
assure the seatback is latched in the folded position,
additional downward pressure on the seatback may be
required when folding.
Storage Bin Cover Lock Release
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
