2009 DODGE CARAVAN Owners Manual

When to Reset Remote Start
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the Remote Starting sequence was
initiated but the engine stopped cranking without start-
ing. After either of these conditions, or if the Vehicle
Security Alarm system is alarming, or if the PANIC
button was pressed, the vehicle must be reset by inserting
a valid key into the ignition switch and rotating the key
to the ON position, and then rotating the key back to the
LOCK/OFF position.
DOOR LOCKS
Manual Door Locks
Lock the doors by pushing down on the lock plungers on
each door trim panel.If the lock plunger is down when you shut the door, the
door will lock. Therefore, make sure the keys are not
inside the vehicle before closing the door.
Manual Door Lock
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
ProCarManuals.com

WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
•When leaving the vehicle always remove the key
from the ignition switch, and lock your vehicle.
Do not leave unattended children in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
Sliding Door Lock
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

Power Door Locks — If Equipped
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.
Driver Power Door Lock Switch
1 - Unlock 2 - LockTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
ProCarManuals.com

If you press the power door lock switch while the sliding
door is open, the sliding door will lock.
Lock Doors Automatically — If Equipped
If the Lock Doors Automatically feature is enabled, your
door locks will lock automatically when the vehicle’s
speed exceeds 15 mph (24 km/h).
The Lock Doors Automatically feature is enabled when
your vehicle is shipped from the assembly plant and can
be disabled by using the following procedure:
•On vehicles equipped with the optional Electronic
Vehicle Information Center (EVIC), refer toPersonal
Settings (Customer-Programmable Features)in the
EVIC section of this manual.
•On vehicles not equipped with the optional EVIC
perform the following steps:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)Front Passenger Power Door Lock Switch
1 - Window Open/Close 3 - Doors Unlock
2 - Doors Lock 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

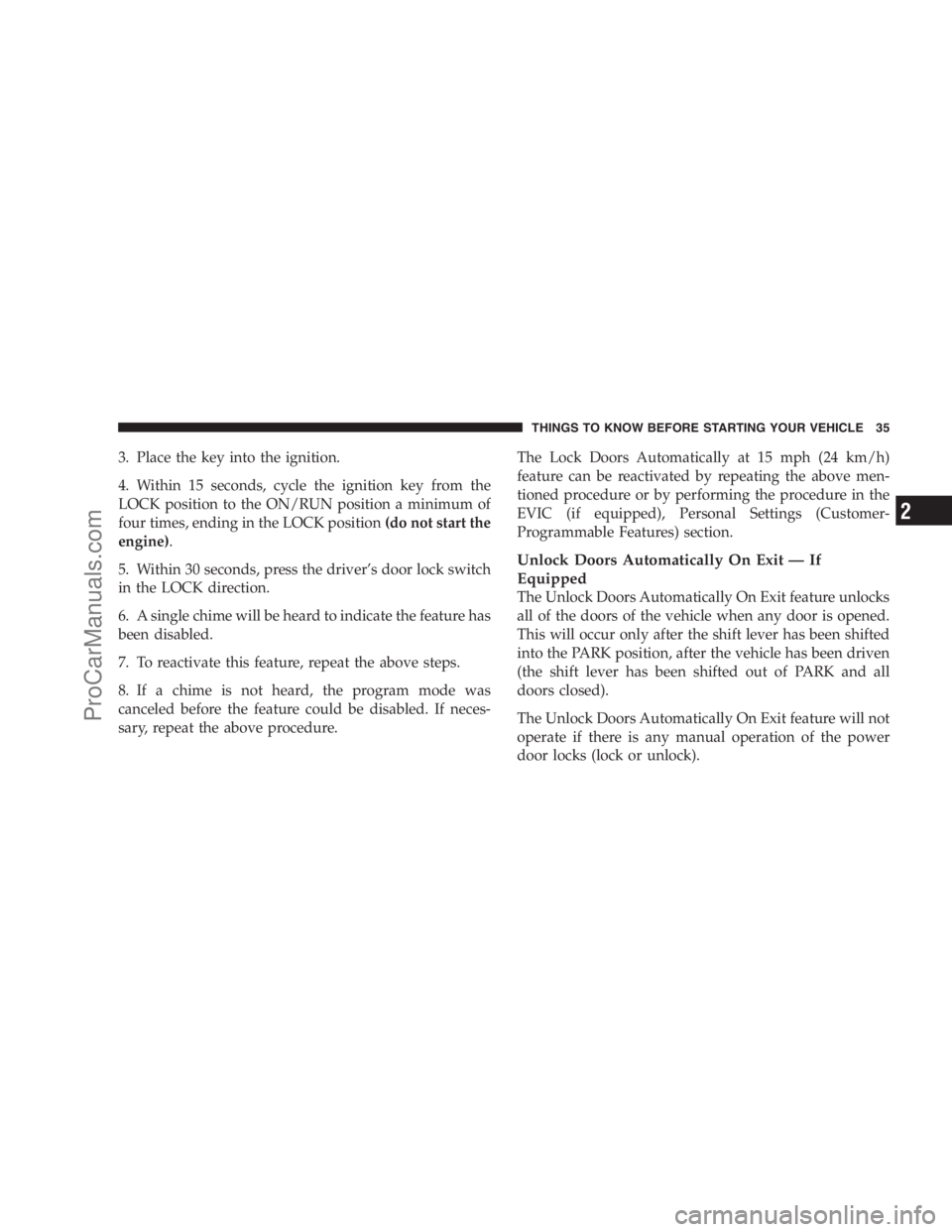

3. Place the key into the ignition.
4. Within 15 seconds, cycle the ignition key from the
LOCK position to the ON/RUN position a minimum of
four times, ending in the LOCK position(do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be disabled. If neces-
sary, repeat the above procedure.The Lock Doors Automatically at 15 mph (24 km/h)
feature can be reactivated by repeating the above men-
tioned procedure or by performing the procedure in the
EVIC (if equipped), Personal Settings (Customer-
Programmable Features) section.
Unlock Doors Automatically On Exit — If
Equipped
The Unlock Doors Automatically On Exit feature unlocks
all of the doors of the vehicle when any door is opened.
This will occur only after the shift lever has been shifted
into the PARK position, after the vehicle has been driven
(the shift lever has been shifted out of PARK and all
doors closed).
The Unlock Doors Automatically On Exit feature will not
operate if there is any manual operation of the power
door locks (lock or unlock).
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
ProCarManuals.com

The Unlock Doors Automatically On Exit feature can be
enabled or disabled by performing the following proce-
dure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chimes that may be confusing during this
programming procedure.)
3. Insert the key into the ignition switch.
4. Within 15 seconds, cycle the ignition key from the
LOCK position to the ON/RUN position a minimum of
four times ending in the LOCK position(do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.
6. A single chime will sound to indicate the feature has
been changed.7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be changed. If neces-
sary, repeat the above procedure.
The Unlock Doors Automatically On Exit feature can be
reactivated by repeating the above mentioned procedure
or by performing the procedure in the EVIC, Customer
Programmable Features section on vehicles so equipped.
NOTE:Use the Lock Doors Automatically at 15 mph
(24 km/h) and Unlock Doors Automatically On Exit
features in accordance with local laws.
Remote Power Unlock On First Press — If
Equipped
The Remote Power Unlock On First Press feature lets you
program the system to unlock either the driver’s side
door or all doors on the first press of the UNLOCK
button on the transmitter.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

The Remote Power Unlock On First Press feature can be
enabled or disabled by performing the following proce-
dure:
1. Perform this operation while standing outside the
vehicle.
2. Press the LOCK button for five to ten seconds.
3. While the LOCK button is pressed, (after five seconds)
press the UNLOCK button. Release both buttons.
The Remote Power Unlock On First Press feature can be
reactivated by repeating the above procedure or by
performing the procedure in Section Four, “Electronic
Vehicle Information Center (EVIC), Personal Settings
(Customer-Programmable Features)” on vehicles so
equipped.
For other power lock features, refer to “Remote Keyless
Entry (RKE) Transmitter” earlier in this section.WINDOWS
Power Vent Windows — If Equipped
Switches on the driver’s door trim panel let the driver
operate the two vent windows from the driver’s seat.
Power Vent Window Switches
1–Open 2–CloseTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
ProCarManuals.com

Power Windows
You can control either the front or rear windows using
switches located on the driver’s door trim panel. The
switches will operate only when the ignition switch is in
the ON or ACC position and during power accessory
delay.
NOTE:Power Window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
Driver’s Power Window Switches
1 – Left Rear 3 – Left Front
2 – Right Rear 4 – Right Front 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
