2009 DODGE CARAVAN Owners Manual

Power Window Lockout Switch — If Equipped
The driver may lock out all power windows by depressing
the bar switch just below the power window switches.
Front Passenger Power Window Switch
There is a single switch on the front passenger’s door
trim panel which operates the passenger door windowand locks and unlocks all doors. The switch will operate
only when the ignition switch is in the ON or ACC
position and during power accessory delay.
Power Window Lockout SwitchFront Passenger Power Window Switches
1 - Window Open/Close 3 - Doors Unlock
2 - Doors LockTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2
ProCarManuals.com

Sliding Side Door Power Window Switch
Second row passengers may power the sliding door
window by a single switch on the door handle assembly.
The switches will operate only when the ignition switch
is in the ON or ACC position.NOTE:Please note that the sliding door windows do
not fully recline, stopping several inches above the
window sill.
Auto Down Feature — If Equipped
The front window switches may be equipped with an
auto down feature. Press the window switch past the
detent, release, and the window will go down automati-
cally.
To open the window part way, press the window switch
part way and release it when you want the window to
stop.
The power window switches remain active for up to
90 seconds (depending on the accessory delay setting)
after the ignition switch has been turned off. Opening a
vehicle front door will cancel this feature.
Sliding Door Power Window Switch
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

Auto Up Feature With Anti–Pinch Protection — If
Equipped
The front Driver switch may be equipped with an Auto
Up feature. Lift the window switch to the second detent,
release, and the window will go up automatically.
To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then stop. Remove
the obstacle and use the window switch again to close
the window.
•Any impact due to rough road conditions may trigger
the auto reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.
Auto Up Reset — If Equipped
To reactivate the Auto Up feature, perform the following
steps after vehicle power is restored:
1. Pull the window switch up to close the window
completely and continue to hold the switch up for an
additional two seconds after the window is closed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
2
ProCarManuals.com

2. Push the window switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.
SLIDING SIDE DOOR
The sliding door may be opened from the inside or the
outside. Pull outward on exterior handle to open the
sliding door. The sliding door inside handle functions by
rocking forward and back. Rocking the handle back-
wards opens the door and rocking forward releases the
hold open latch in order to close the door.
To keep your door operating properly, observe the fol-
lowing guidelines:
•Always open the door smoothly.
•Avoid high impacts against the door stop when open-
ing the door. This is very important when your vehicle
is parked on an incline as the door will slide faster in
the downhill direction.
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

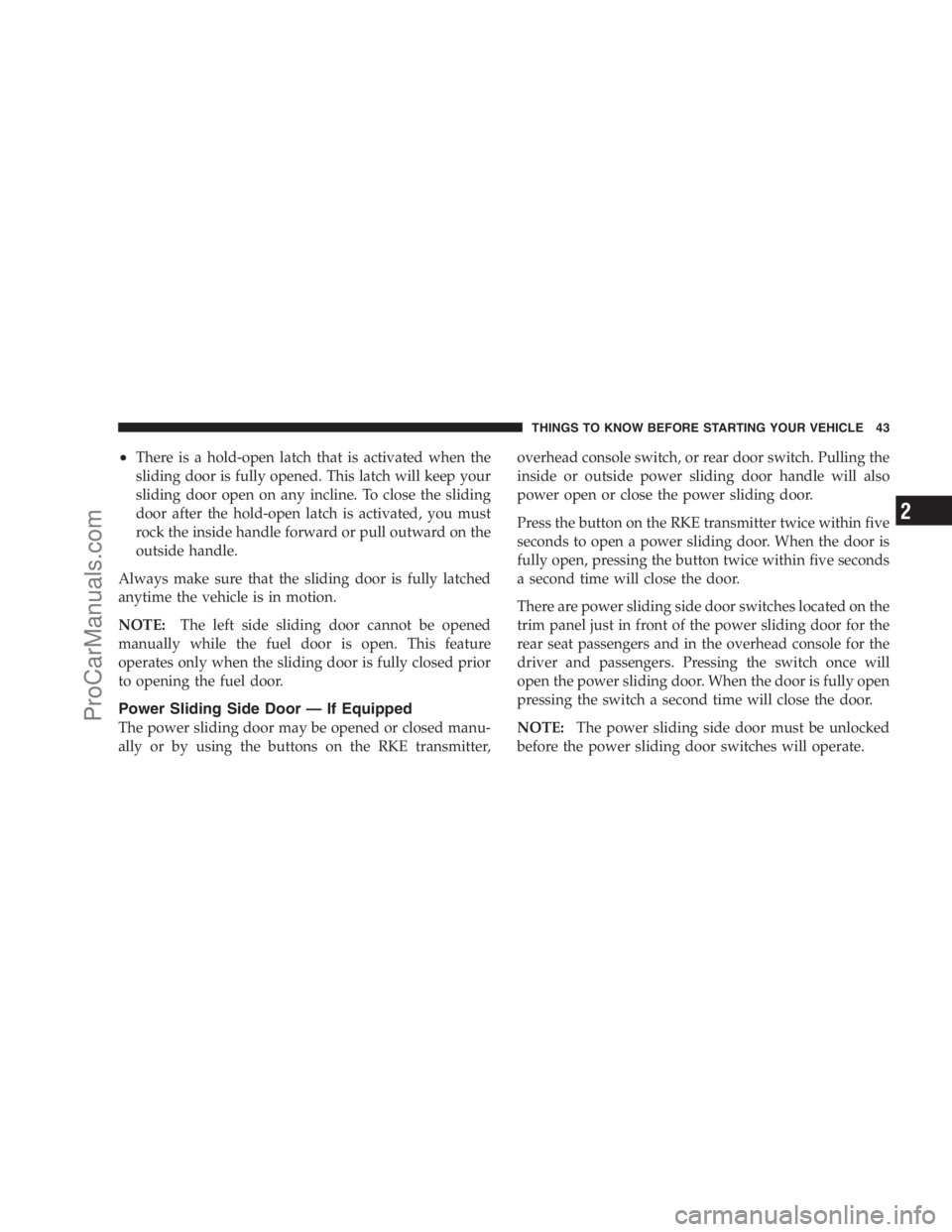

•There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the sliding
door after the hold-open latch is activated, you must
rock the inside handle forward or pull outward on the
outside handle.
Always make sure that the sliding door is fully latched
anytime the vehicle is in motion.
NOTE:The left side sliding door cannot be opened
manually while the fuel door is open. This feature
operates only when the sliding door is fully closed prior
to opening the fuel door.
Power Sliding Side Door — If Equipped
The power sliding door may be opened or closed manu-
ally or by using the buttons on the RKE transmitter,overhead console switch, or rear door switch. Pulling the
inside or outside power sliding door handle will also
power open or close the power sliding door.
Press the button on the RKE transmitter twice within five
seconds to open a power sliding door. When the door is
fully open, pressing the button twice within five seconds
a second time will close the door.
There are power sliding side door switches located on the
trim panel just in front of the power sliding door for the
rear seat passengers and in the overhead console for the
driver and passengers. Pressing the switch once will
open the power sliding door. When the door is fully open
pressing the switch a second time will close the door.
NOTE:The power sliding side door must be unlocked
before the power sliding door switches will operate.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
2
ProCarManuals.com

If the inside or outside door handles are used while the
power sliding side door is activated, the power sliding
door feature will be canceled.To avoid unintentional operation of the power sliding
doors from the rear seats, press the power sliding door
master lock button, located in the overhead console, to
disable the switches and handles for the rear seat passen-
gers.
NOTE:
•The power sliding side door switches will not open if
the shift lever is in gear or the vehicle speed is above
0 mph (0 km/h). To close the power sliding door with
the shift lever in gear and vehicle speed at 0 mph
(0 km/h), the brake must be pressed
•If anything obstructs the power sliding side door
while it is closing or opening, the door will automati-
cally reverse to the closed or open position, provided
it meets sufficient resistance.
•If the power sliding side door is not in the full open or
close position, it will fully open when a power sliding
Power Sliding Door
1 — Heated Seat 4 — Door Handle
2 — Power Window 5 — Power Sliding Door
3 — Manual Lock 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

door switch is pressed. To close the door, wait until it
is fully open and then press the switch again.
•The power sliding side door switches will not operate
if the shift lever is in gear or the vehicle speed is above
0 mph (0 km/h).
•If the power sliding door encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop and must be opened or closed manually.
WARNING!
You, or others, could be injured if caught in the path
of the sliding door. Make sure the door path is clear
before closing the door.
Power Sliding Side Door Open Flash
The left and right exterior hazard lights will flash for
12 seconds when either sliding door is opened. This will
alert other drivers in the area that passenger(s) could be
entering or exiting the vehicle.
The Sliding Side Door Open Flash can be enabled or
disabled by performing the following procedure:
1. Place the key in the ignition switch.
2. Cycle the ignition switch ON/OFF four times ending
in the ON position(do not start the engine).
3. Within 10 seconds of the final cycle, press the HAZ-
ARD switch.
4. A single chime will sound to signify that you have
successfully completed the programming.
You can turn the feature back on by repeating the above
mentioned procedure.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
2
ProCarManuals.com

Power Sliding Side Door Master Lock Switch
The power sliding side door may also be opened by
pressing the switches on the overhead console or the
switch located on the trim panel just in front of the
sliding door.
When the power sliding door master lock switch is in the
ON position, the power sliding side door may not be
opened or closed by pressing the switch located on the
trim panel just in front of the sliding door or activating
the inside power sliding door handle.
To provide a safer environment for small children riding
in the rear seats, the sliding door locks may be overrid-
den by pressing the ON side of the Master Lock Out
Switch located in the front overhead console.
Overhead Console Power Sliding Door Master Switch
1 — Left Door 3 — Right Door
2 — Liftgate 4 — Master Lock 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
