Power Fuse Box
GENERAL INFORMATION
LTSMW170004T
16
16–39Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Fuse and Relay Box
Description
The front fuse and relay box houses many of the fuses and relays for the vehicles electrical system. The front fuse
and relay box is located on the right side of the engine compartment and under the cowl top of windshield. If the
fuses and relays cannot be serviced, it must be replaced as a unit.
Operation
When a circuit fails, the fuse will blow and remove current from the circuit. The front fuse and relay box is equipped
with a label that identifies each component. The label is printed on the inside of the cover. The power fuse box
identifies the rating of each fuse individually. Turn off the ignition switch, and then replace the fuse.
GENERAL INFORMATION
16–40Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Overview
Front Fuse And Relay Box
GENERAL INFORMATION
LTSMW170005T
16
16–41Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Body Fuse and Relay Box
Description
The body fuse and relay box houses many of the fuses and relays for the vehicle’s electrical system. The body fuse
and relay box is situated on the left front side of the interior of the cabin and under the instrument panel, which is
mounted on the cross beam of the instrument panel. All the fuses and relays cannot be serviced it must be replaced
as a unit.
Operation
When a circuit fails, the fuse will blow and remove current from the circuit.
Turn off the ignition switch, and then replace the fuse.
GENERAL INFORMATION
16–42Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Overview
Body Fuse And Relay Box
GENERAL INFORMATION
LTSMW170006T
16
16–43Chery Automobile Co., Ltd.

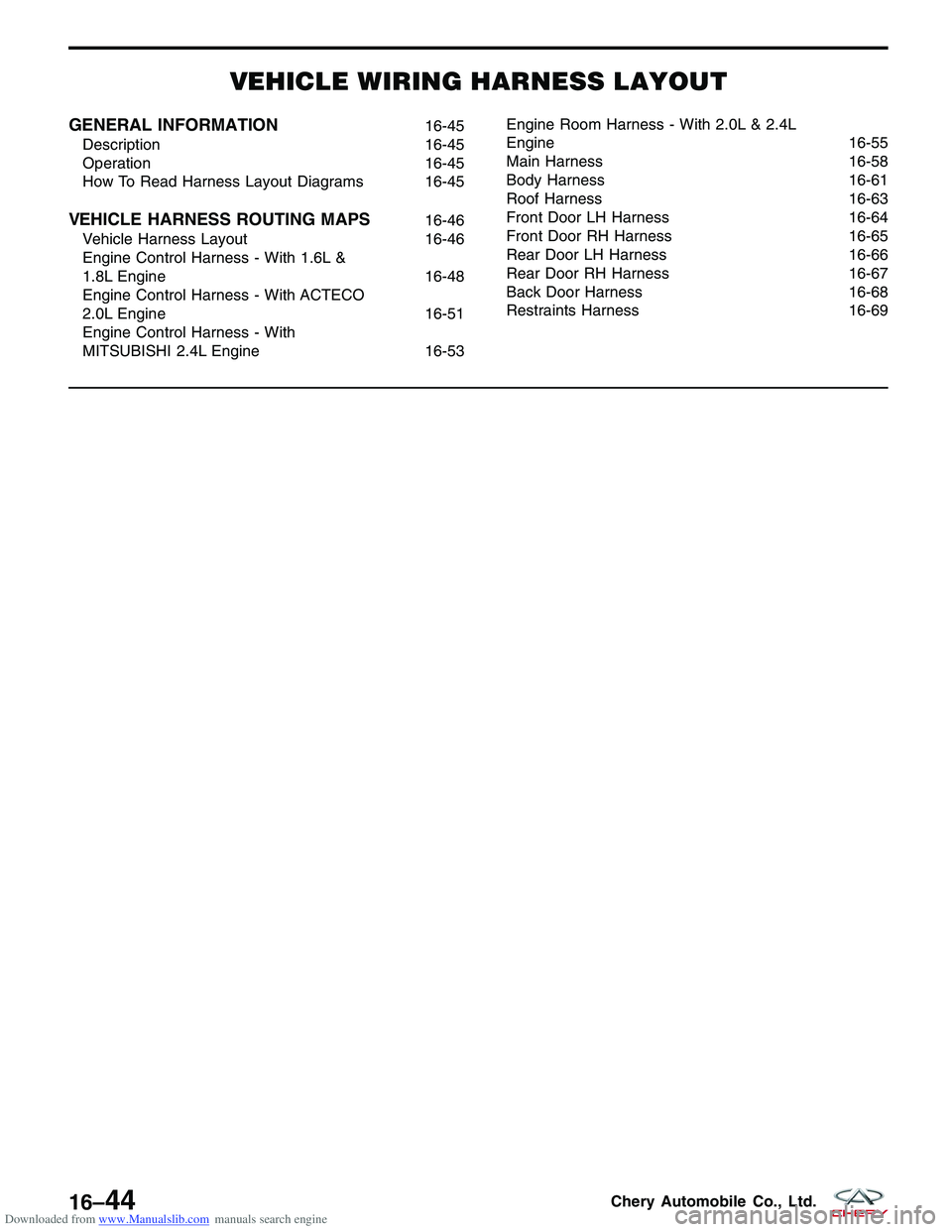

Downloaded from www.Manualslib.com manuals search engine VEHICLE WIRING HARNESS LAYOUT
GENERAL INFORMATION16-45
Description 16-45
Operation 16-45
How To Read Harness Layout Diagrams 16-45
VEHICLE HARNESS ROUTING MAPS16-46
Vehicle Harness Layout 16-46
Engine Control Harness - With 1.6L &
1.8L Engine 16-48
Engine Control Harness - With ACTECO
2.0L Engine 16-51
Engine Control Harness - With
MITSUBISHI 2.4L Engine 16-53 Engine Room Harness - With 2.0L & 2.4L
Engine 16-55
Main Harness 16-58
Body Harness 16-61
Roof Harness 16-63
Front Door LH Harness 16-64
Front Door RH Harness 16-65
Rear Door LH Harness 16-66
Rear Door RH Harness 16-67
Back Door Harness 16-68
Restraints Harness 16-69
16–44Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION

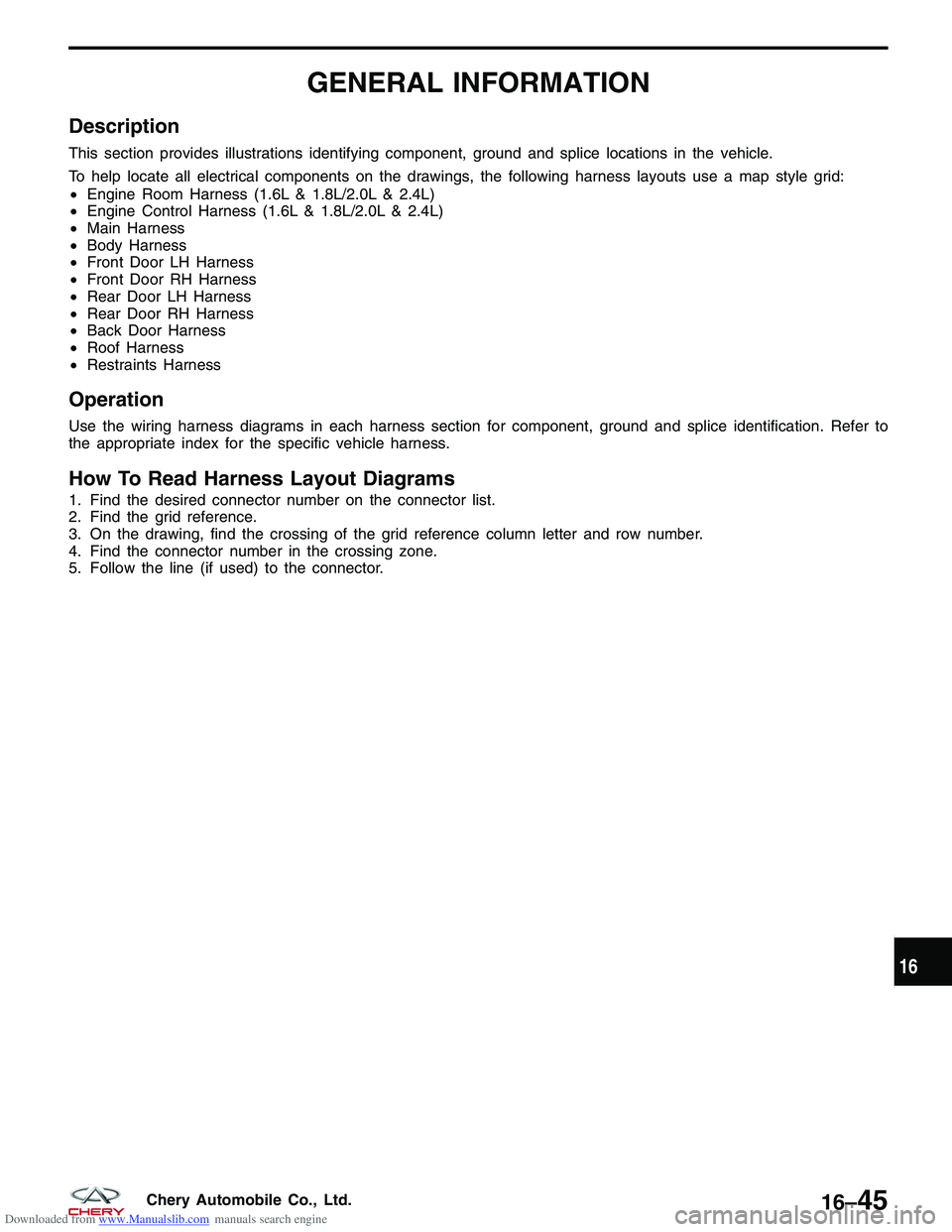

Description
This section provides illustrations identifying component, ground and splice locations in the vehicle.
To help locate all electrical components on the drawings, the following harness layouts use a map style grid:
•Engine Room Harness (1.6L & 1.8L/2.0L & 2.4L)
• Engine Control Harness (1.6L & 1.8L/2.0L & 2.4L)
• Main Harness
• Body Harness
• Front Door LH Harness
• Front Door RH Harness
• Rear Door LH Harness
• Rear Door RH Harness
• Back Door Harness
• Roof Harness
• Restraints Harness
Operation
Use the wiring harness diagrams in each harness section for component, ground and splice identification. Refer to
the appropriate index for the specific vehicle harness.
How To Read Harness Layout Diagrams
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference column letter and row number.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
16
16–45Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine VEHICLE HARNESS ROUTING MAPS

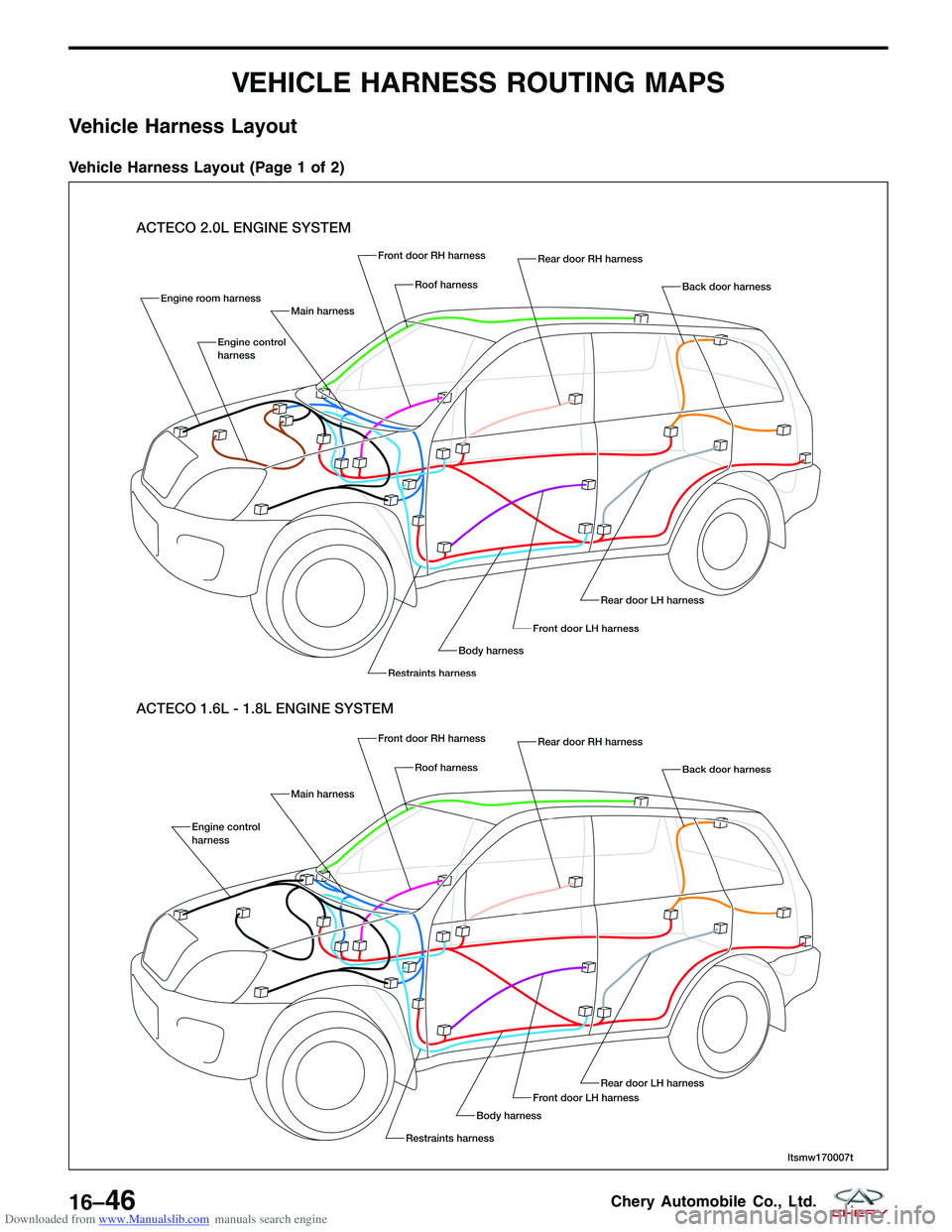

Vehicle Harness Layout
Vehicle Harness Layout (Page 1 of 2)
LTSMW170007T
16–46Chery Automobile Co., Ltd.
