Page 1841 of 1903

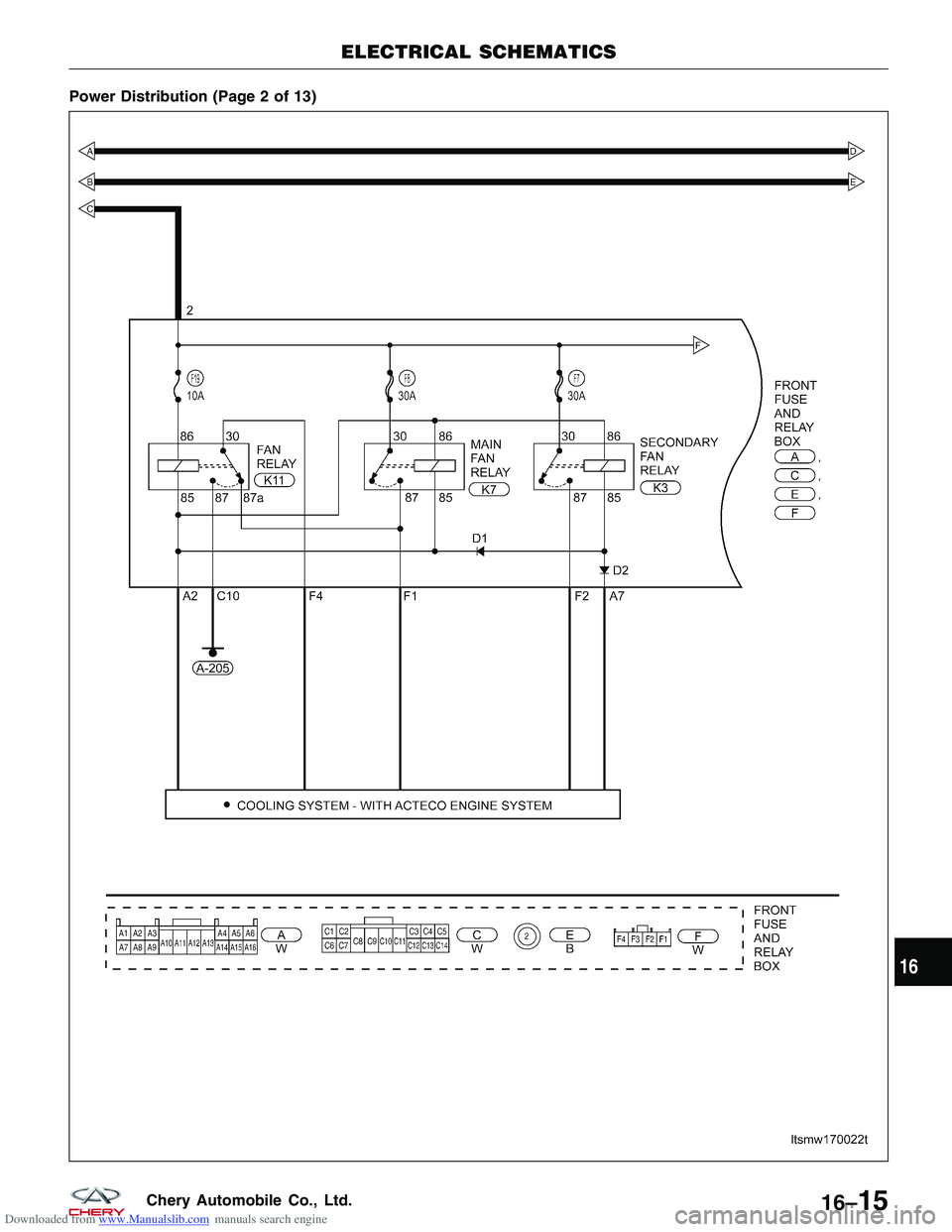

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 2 of 13)
ELECTRICAL SCHEMATICS
LTSMW170022T
16
16–15Chery Automobile Co., Ltd.
Page 1842 of 1903

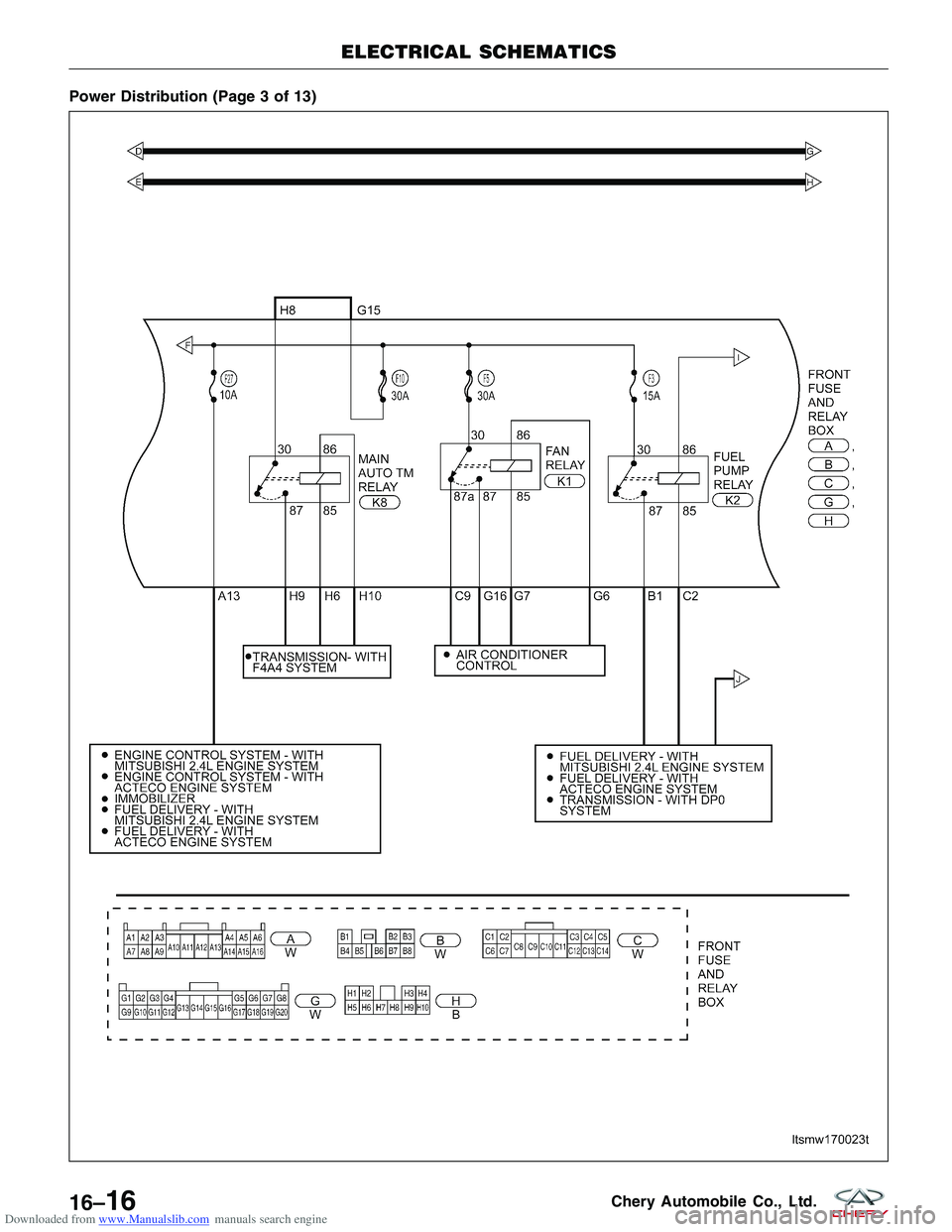

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 3 of 13)
ELECTRICAL SCHEMATICS
LTSMW170023T
16–16Chery Automobile Co., Ltd.
Page 1843 of 1903

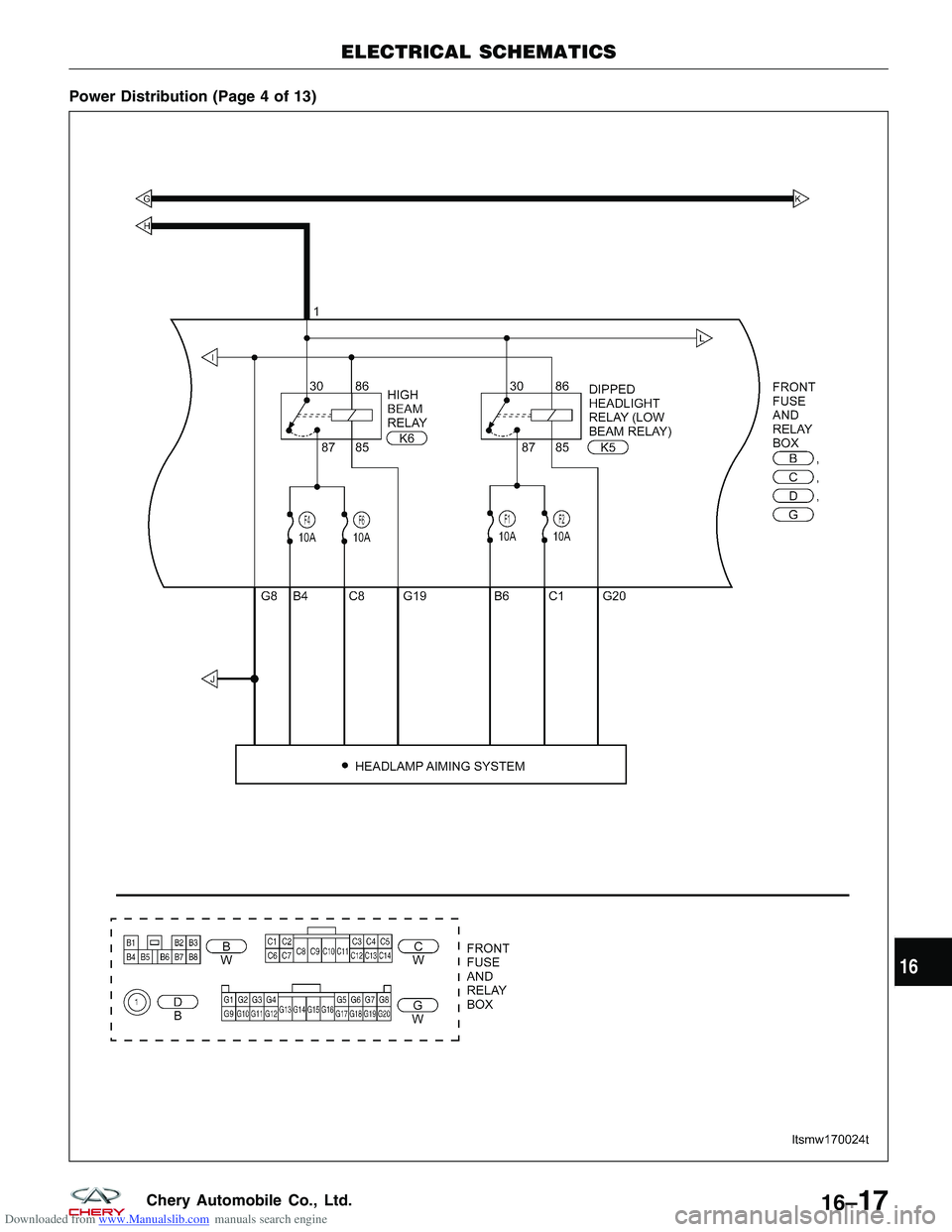

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 4 of 13)
ELECTRICAL SCHEMATICS
LTSMW170024T
16
16–17Chery Automobile Co., Ltd.
Page 1844 of 1903

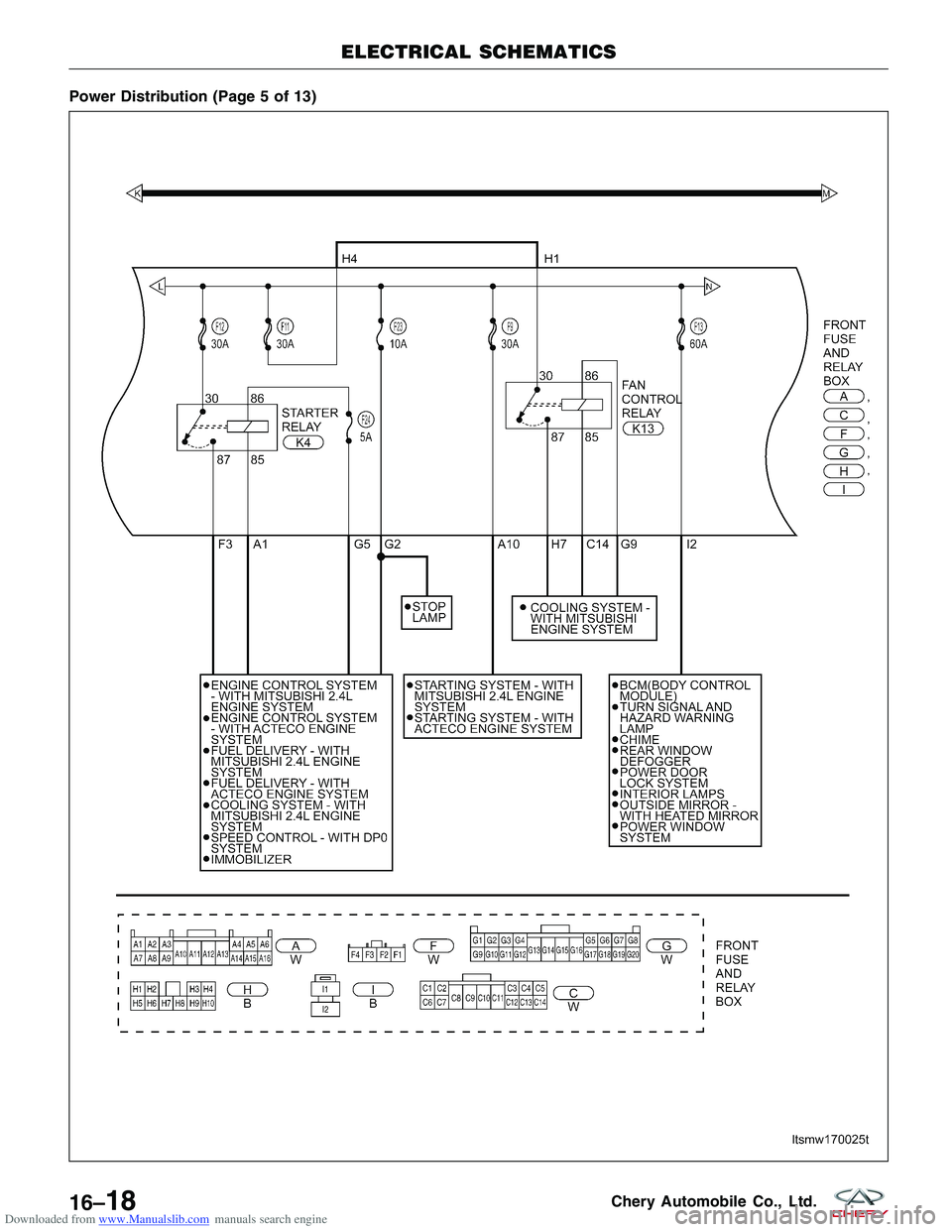

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 5 of 13)
ELECTRICAL SCHEMATICS
LTSMW170025T
16–18Chery Automobile Co., Ltd.
Page 1845 of 1903

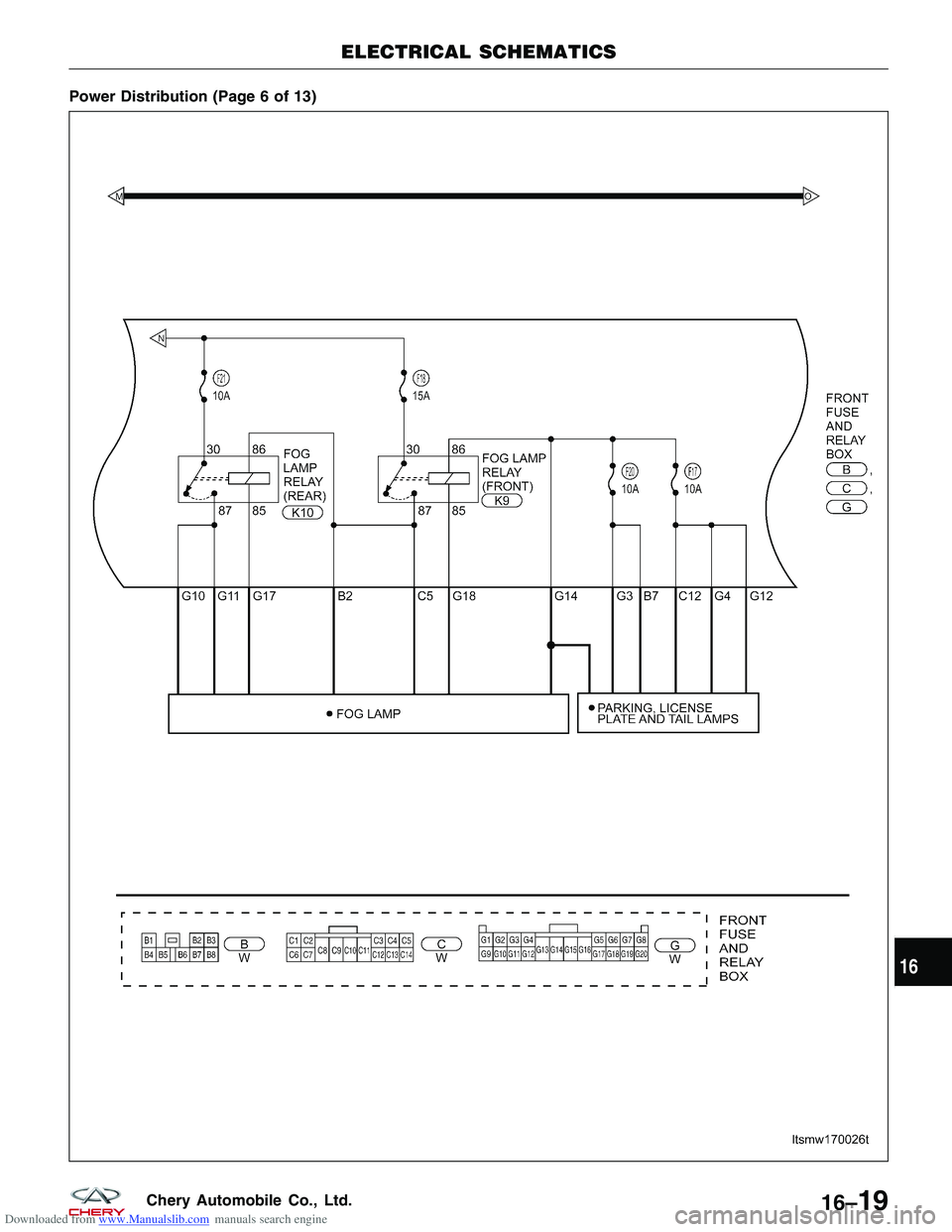

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 6 of 13)
ELECTRICAL SCHEMATICS
LTSMW170026T
16
16–19Chery Automobile Co., Ltd.
Page 1846 of 1903
Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 7 of 13)
ELECTRICAL SCHEMATICS
LTSMW170027T
16–20Chery Automobile Co., Ltd.
Page 1847 of 1903

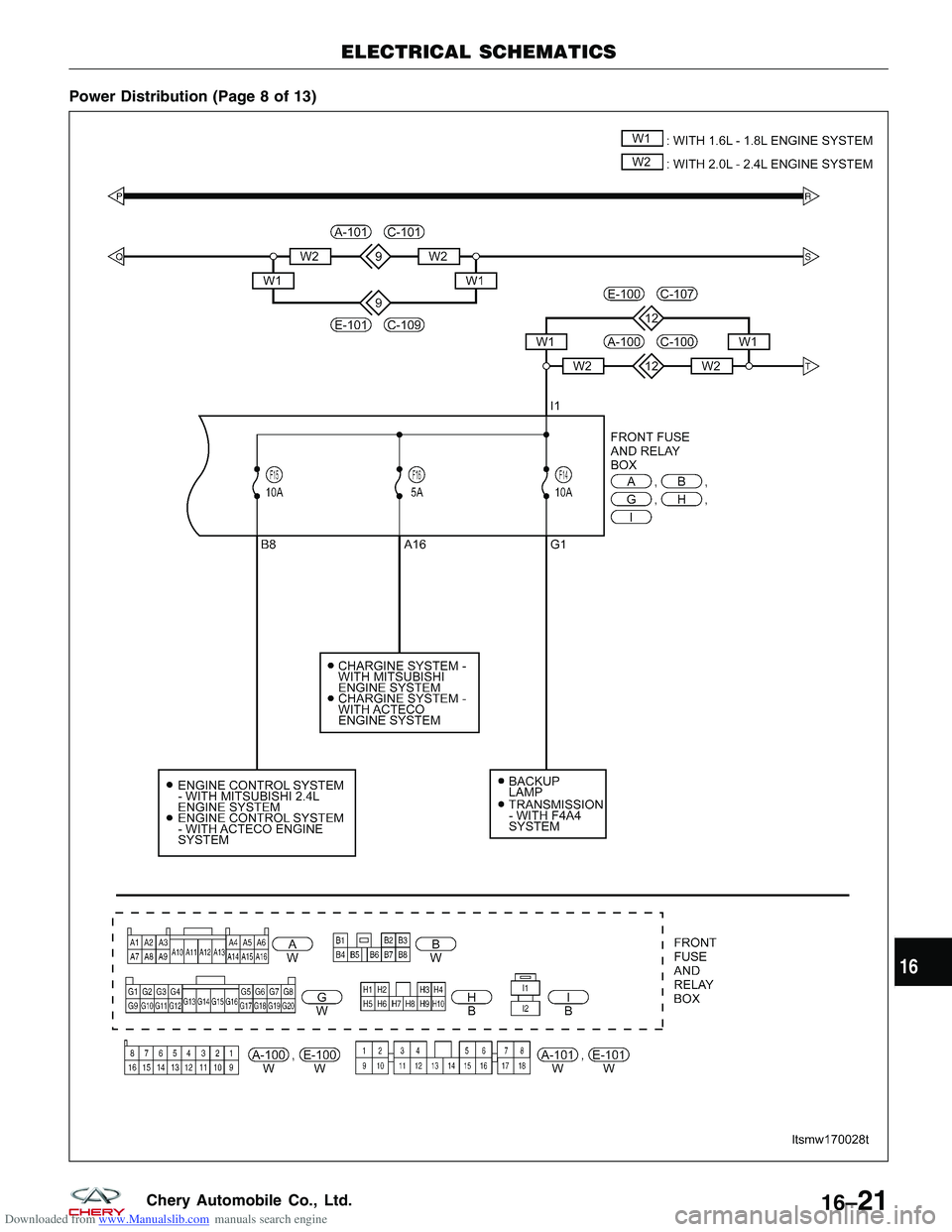

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 8 of 13)
ELECTRICAL SCHEMATICS
LTSMW170028T
16
16–21Chery Automobile Co., Ltd.
Page 1848 of 1903

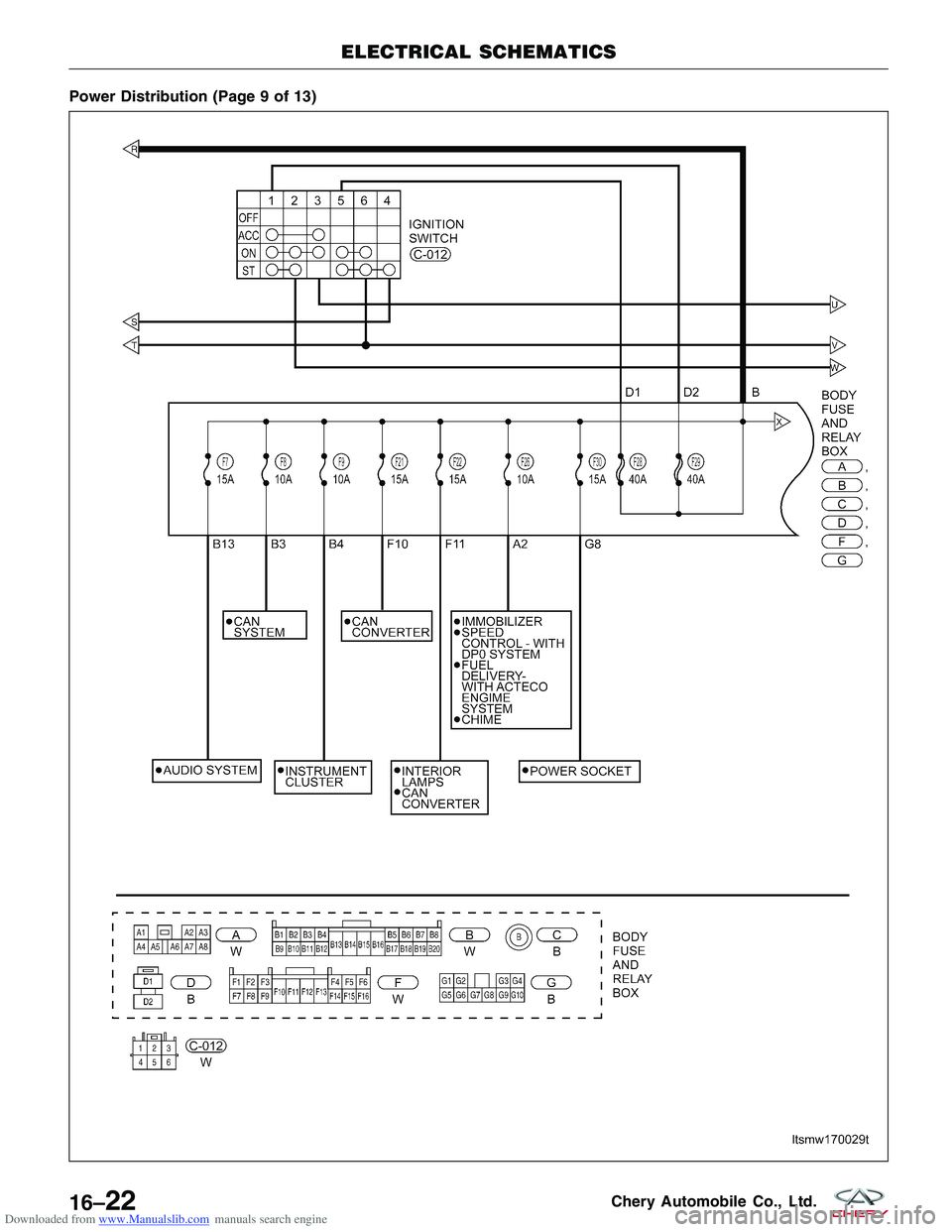

Downloaded from www.Manualslib.com manuals search engine Power Distribution (Page 9 of 13)
ELECTRICAL SCHEMATICS
LTSMW170029T
16–22Chery Automobile Co., Ltd.
