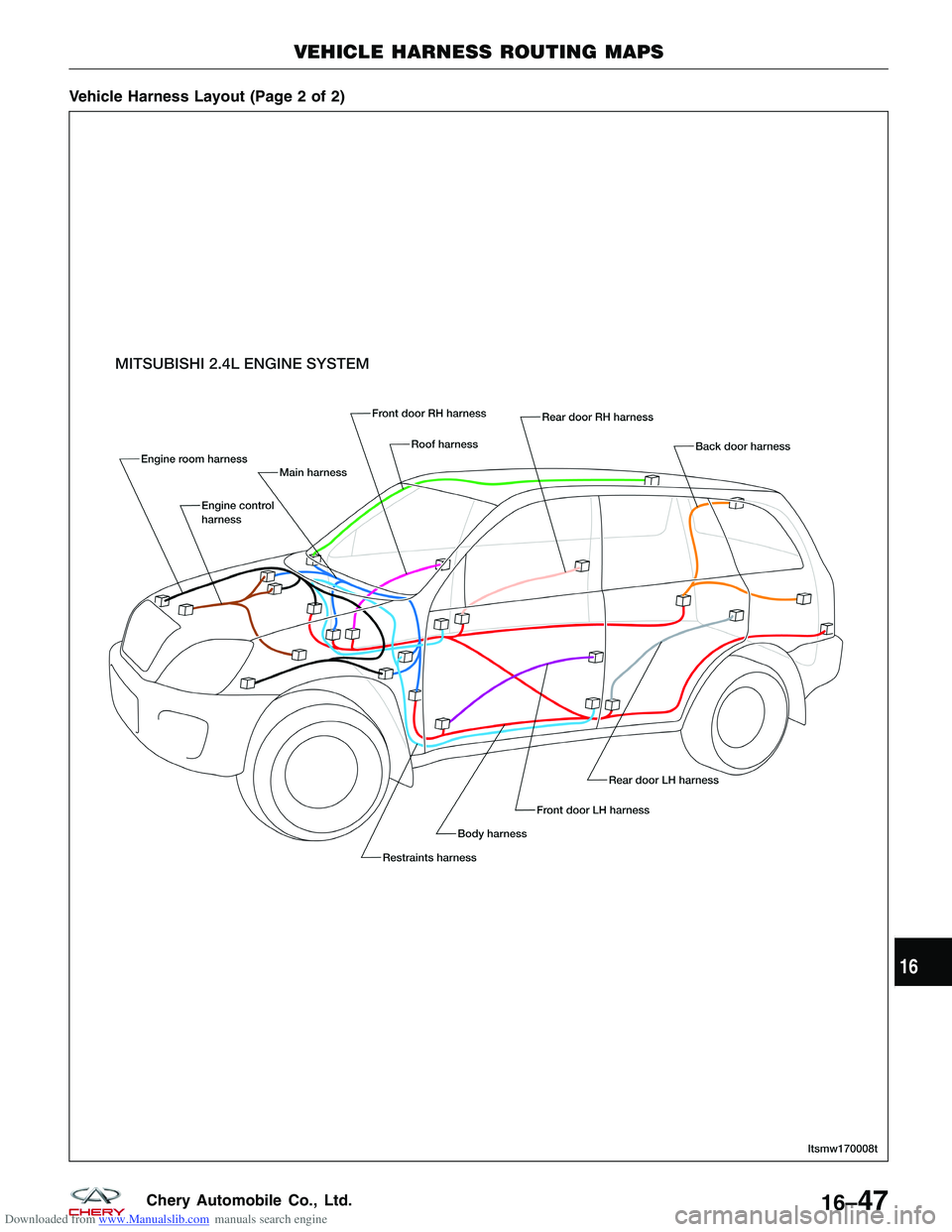

Downloaded from www.Manualslib.com manuals search engine Vehicle Harness Layout (Page 2 of 2)
VEHICLE HARNESS ROUTING MAPS
LTSMW170008T
16
16–47Chery Automobile Co., Ltd.

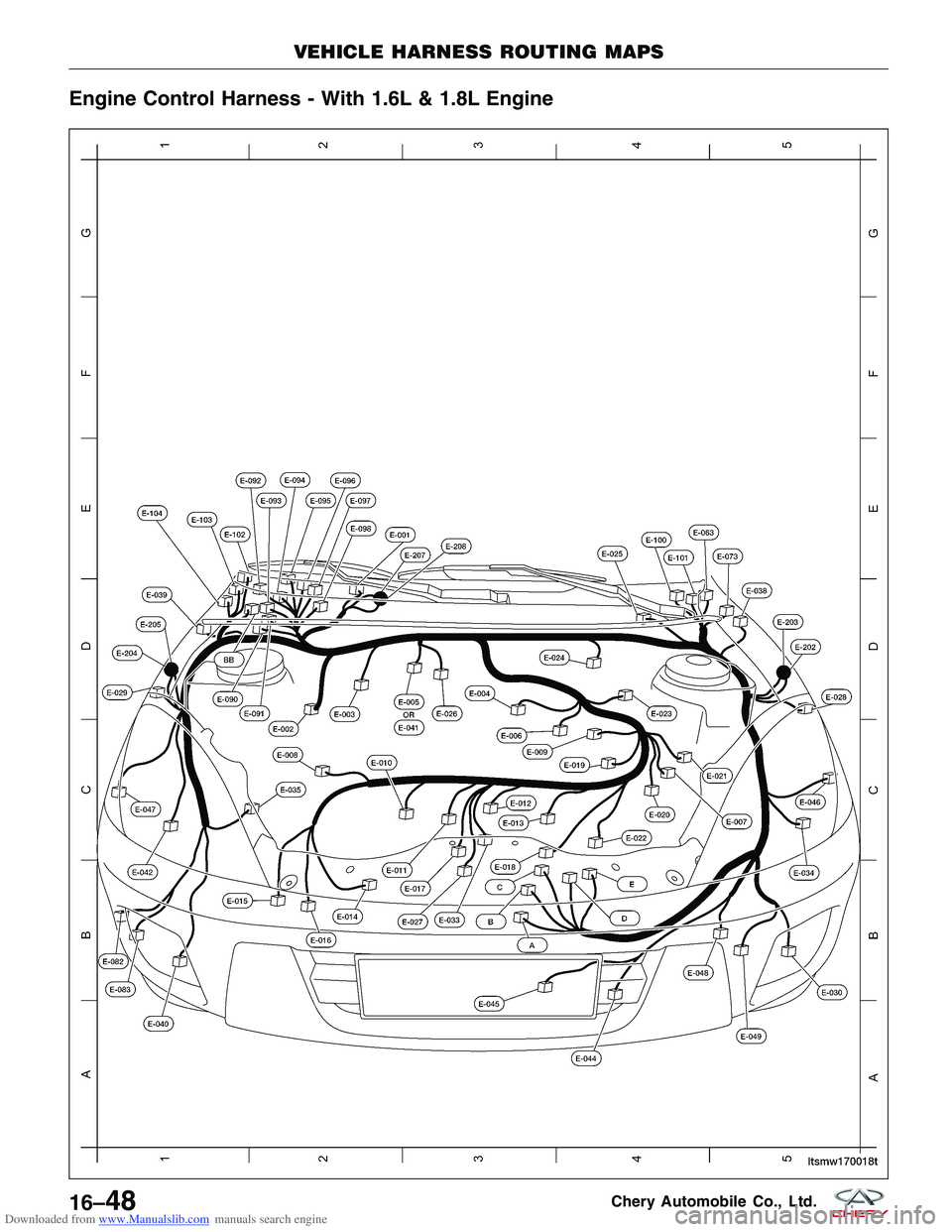

Downloaded from www.Manualslib.com manuals search engine Engine Control Harness - With 1.6L & 1.8L Engine
VEHICLE HARNESS ROUTING MAPS
LTSMW170018T
16–48Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine A/1Power Fuse Box B3
B /1Power Fuse Box B3
C /1Power Fuse Box B3
D /1Power Fuse Box B4
E /1Power Fuse Box B4
E-001 B/81 ECM D2
E-002 B/25 ABS Hydraulic Control Module D2
E-003 B/4A/C Pressure Switch D2
E-004 W-O/4 Upstream Oxygen Sensor D3
E-005 W-O/4 Downstream Oxygen Sensor (With EOBD) D3
E-006 B/3Crankshaft Position Sensor C4
E-007 B/3Camshaft Position Sensor C4
E-008 B/3Generator C2
E-009 B/5Air Flow Sensor C4
E-010 B/2Fuel Injector No.1 C3
E-011 B/2Fuel Injector No.2 C3
E-012 B/2Fuel Injector No.3 C3
E-013 B/2Fuel Injector No.4 C4
E-014 B/1Power Steering Switch B2
E-015 B/2A/C Compressor B2
E-016 W/1 Oil Pressure Switch B2
E-017 B/3Knock Sensor B3
E-018 B/1Starter Motor B4
E-019 B/2Engine Coolant Temperature Sensor C4
E-020 B/4Ignition Coil C4
E-021 B/2Backup Lamp Switch C4
E-022 B/3Canister Control Valve C4
E-023 B/3Vehicle Speed Sensor D4
E-024 GR/2 Brake Fluid Level Switch D4
E-025 GR/5 Front Wiper Motor D4
E-026 B/2Siren D3
E-027 B/6Electronic Throttle Control Actuator B3
E-028 B/2Front Wheel Speed Sensor LH D5
E-029 B/2Front Wheel Speed Sensor RH D1
E-030 B/2Front Fog Lamp LH B5
E-033 B/4Manifold Absolute Pressure Sensor (With
1.6L Engine) C3
E-034 B/10 Front Combination Lamp LH C5
E-035 B/3Accelerator Sensor C2
E-038 B/3Side Turn Signal Lamp LH D5
E-039 B/2Side Turn Signal Lamp RH D1
E-040 B/2Front Fog Lamp RH B1
E-041 B/4Downstream Oxygen Sensor (Without
EOBD) D3
E-042 B/10 Front Combination Lamp RH C1
VEHICLE HARNESS ROUTING MAPS
16
16–49Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine E-044B/2Main Fan Motor B4
E-045 B/2Secondary Fan Motor B3
E-046 B/2Turn Signal Lamp LH C5
E-047 B/2Turn Signal Lamp RH C1
E-048 B/2Horn 1 B5
E-049 B/2Horn 2 B5
E-063 W/14 Body Fuse And Relay Box (H) D4
E-073 B/1Body Fuse And Relay Box (C) D4
E-082 B/2Front Washer Motor B1
E-083 W/2 Rear Washer Motor B1
E-090 W/16 Front Fuse And Relay Box (A) D2
E-091 W/8 Front Fuse And Relay Box (B) D2
E-092 W/14 Front Fuse And Relay Box (C) D2
E-093 B/1Front Fuse And Relay Box (D) D2
E-094 B/1Front Fuse And Relay Box (E) D2
E-095 W/4 Front Fuse And Relay Box (F) D2
E-096 W/20 Front Fuse And Relay Box (G) D2
E-097 B/10 Front Fuse And Relay Box (H) D2
E-098 B/2Front Fuse And Relay Box (I) D2
E-100 W/16 To C-107 E4
E-101 W/18 To C-109 E4
E-102 W/14 To C-102 E2
E-103 W/14 To C-103 D2
E-104 W/18 To B-111 D2
E-202 -Ground D5
E-203 -Ground D5
E-204 -Ground D1
E-205 -Ground D1
E-207 -Ground D2
E-208 -Ground D2
VEHICLE HARNESS ROUTING MAPS
16–50Chery Automobile Co., Ltd.

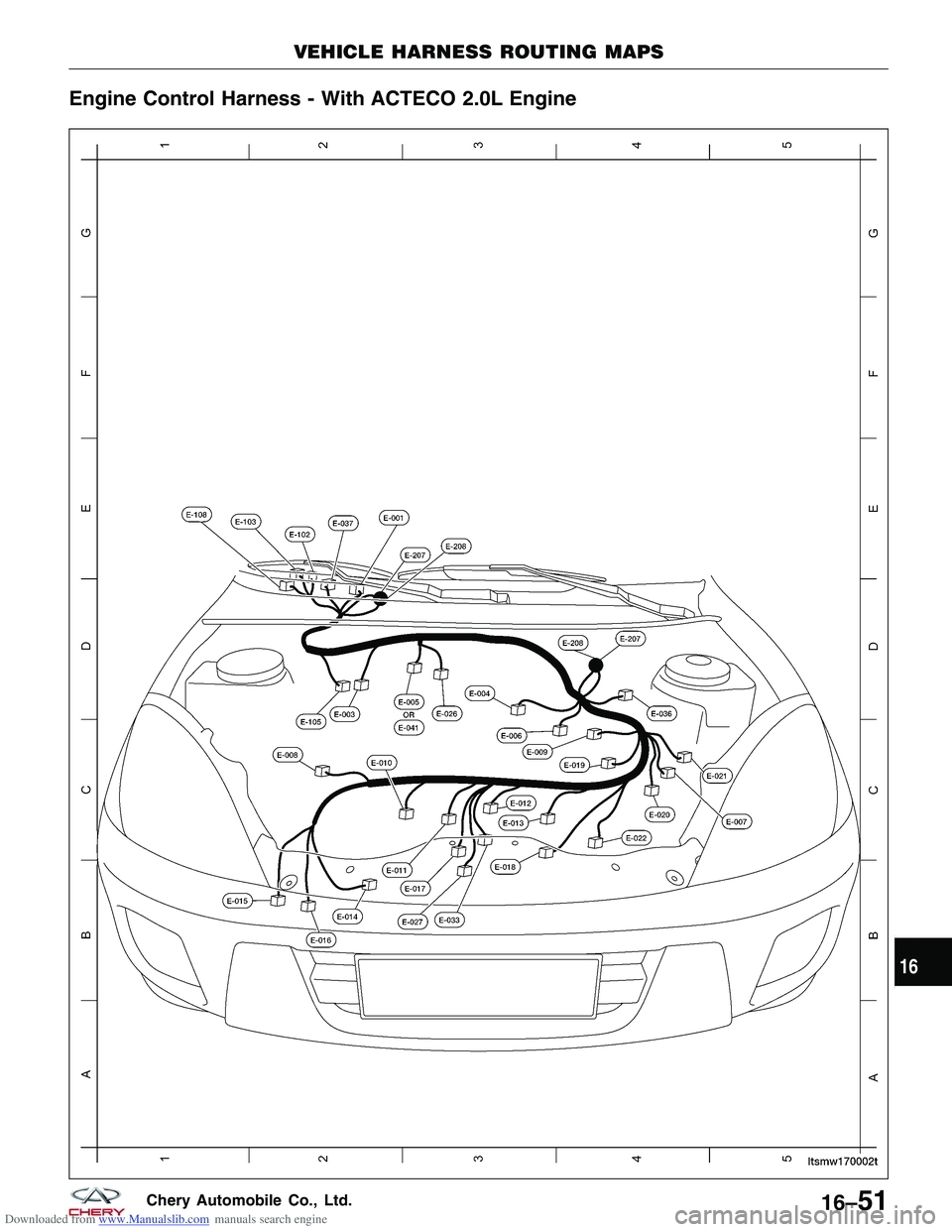

Downloaded from www.Manualslib.com manuals search engine Engine Control Harness - With ACTECO 2.0L Engine
VEHICLE HARNESS ROUTING MAPS
LTSMW170002T
16
16–51Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine E-001B/81 ECM D2
E-003 B/4A/C Pressure Switch D2
E-004 W-O/4 Upstream Oxygen Sensor D3
E-005 W-O/4 Downstream Oxygen Sensor (With EOBD) D3
E-006 B/3Crankshaft Position Sensor D4
E-007 B/3Camshaft Position Sensor C4
E-008 B/3Generator C2
E-009 B/5Air Flow Sensor C4
E-010 B/2Fuel Injector No.1 C2
E-011 B/2Fuel Injector No.2 C3
E-012 B/2Fuel Injector No.3 C3
E-013 B/2Fuel Injector No.4 C3
E-014 B/1Power Steering Switch B2
E-015 B/2A/C Compressor B2
E-016 B/1Oil Pressure Switch B2
E-017 B/3Knock Sensor C3
E-018 B/1Starter Motor C3
E-019 B/2Engine Coolant Temperature Sensor C4
E-020 B/4Ignition Coil C4
E-022 B/2Canister Control Valve C4
E-026 B/2Siren D3
E-027 B/6Electronic Throttle Control Actuator B3
E-033 B/4Manifold Absolute Pressure Sensor C3
E-036 GR/56 TCM (Transmission Control Module) D2
E-037 GR/33 A/T Assembly D4
E-041 B/4Downstream Oxygen Sensor (Without
EOBD) D3
E-043 B/2Fluid Cooler Flow Control Solenoid Valve D4
E-102 W/14 To C-102 E2
E-103 B/14 To C-103 E2
E-105 B/16 To A-102 D3
E-108 B/2To C-108 D2
E-207 -Ground D2
E-208 -Ground D2
VEHICLE HARNESS ROUTING MAPS
16–52Chery Automobile Co., Ltd.

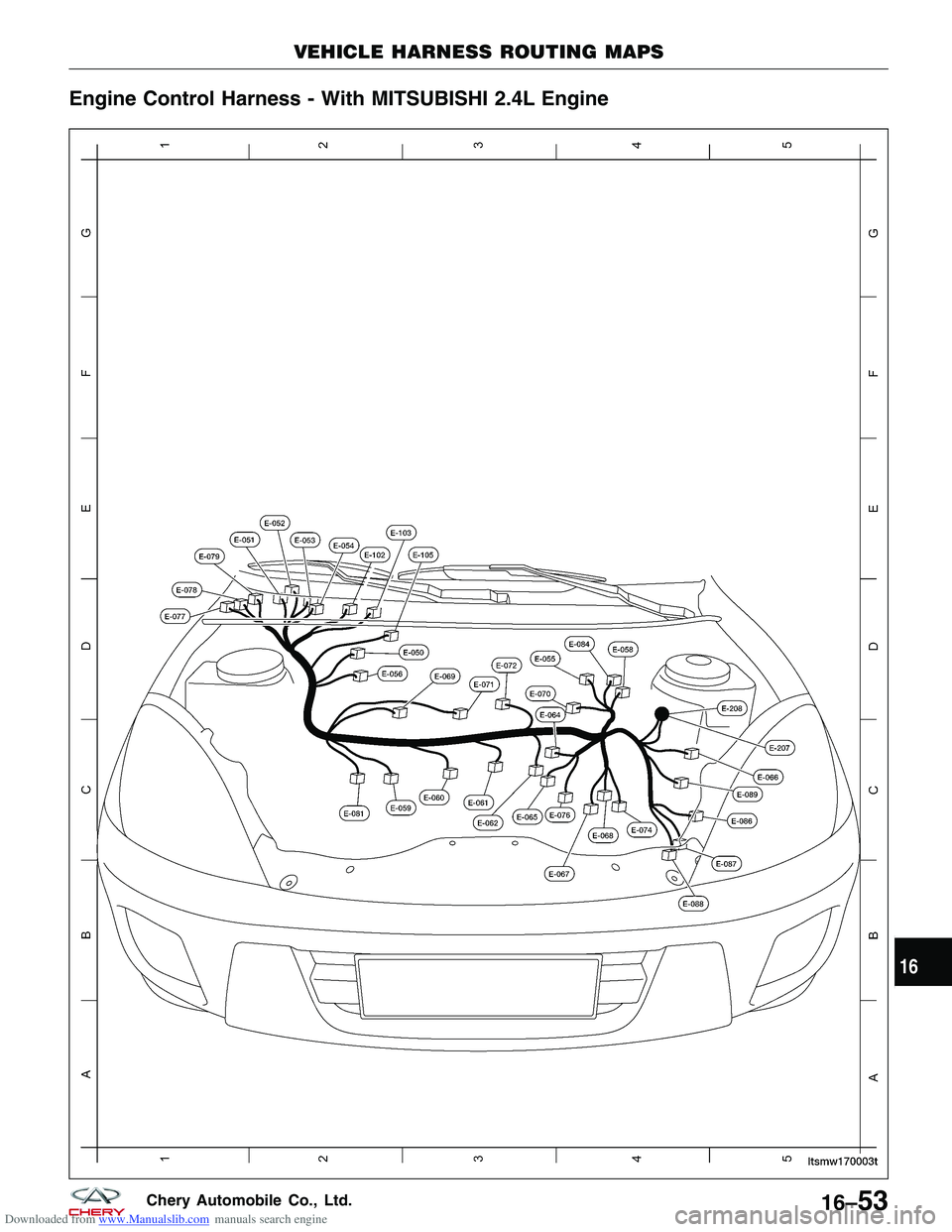

Downloaded from www.Manualslib.com manuals search engine Engine Control Harness - With MITSUBISHI 2.4L Engine
VEHICLE HARNESS ROUTING MAPS
LTSMW170003T
16
16–53Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine E-050B/4A/C Pressure Switch D2
E-051 W/26 ECM D2
E-052 W/16 ECM D2
E-053 W/12 ECM D2
E-054 W/22 ECM D2
E-055 GR/3 Camshaft Position Sensor D4
E-056 GR/3 Crankshaft Position Sensor D2
E-058 B/7Air Flow Sensor D4
E-059 GR/2 Fuel Injector No.1 C2
E-060 GR/2 Fuel Injector No.2 C3
E-061 GR/2 Fuel Injector No.3 C3
E-062 GR/2 Fuel Injector No.4 C3
E-064 B/6Idle Air Control Motor C3
E-065 B/1Oil Pressure Switch C3
E-066 BR/2 Knock Sensor C4
E-067 B/1Starter Motor C4
E-068 B/2Engine Coolant Temperature Sensor C4
E-069 GR/3 Ignition Coil 1 D2
E-070 GR/3 Ignition Coil 2 D4
E-071 GR/2 Canister Control Valve D3
E-072 BR/2 EGR Control Solenoid Valve D3
E-074 B/4Upstream Oxygen Sensor C4
E-076 B/4Throttle Position Sensor C4
E-077 W/26 TCM (Transmission Control Module) D1
E-078 W/16 TCM (Transmission Control Module) D1
E-079 W/22 TCM (Transmission Control Module) D1
E-081 GR/4 Generator C2
E-084 B/1Coolant Temperature Sensor (For
Instrument Cluster) D4
E-086 GR/10 A/T Assembly C4
E-087 GR/10 Gearshift Switch C4
E-088 B/3Input Shaft Sensor C4
E-089 GR/3 Output Shaft Sensor C4
E-102 W/14 To C-102 D2
E-103 B/14 To C-103 D2
E-105 B/16 To A-105 D2
E-207 -Ground C4
E-208 -Ground C4
VEHICLE HARNESS ROUTING MAPS
16–54Chery Automobile Co., Ltd.
