Downloaded from www.Manualslib.com manuals search engine Roof Harness

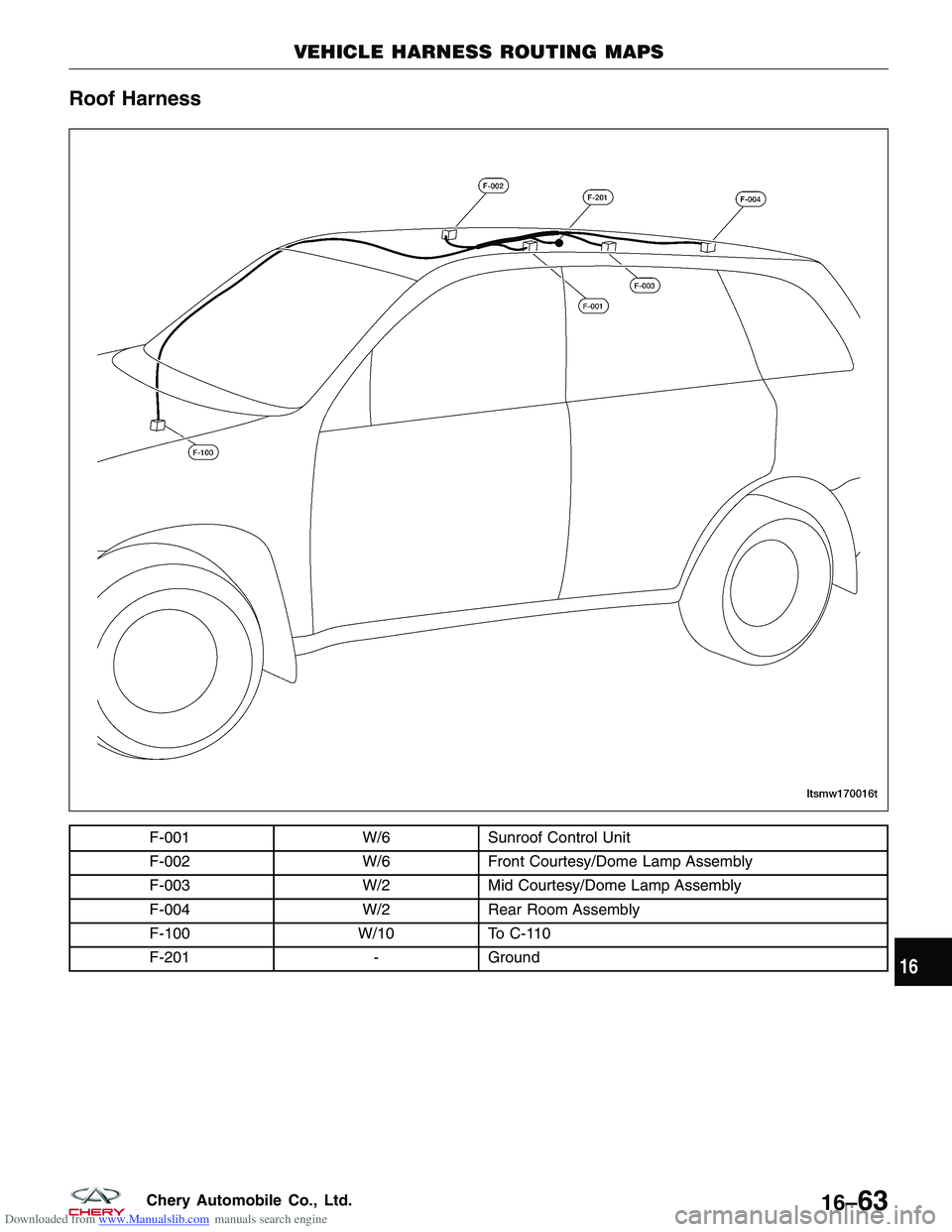

F-001W/6Sunroof Control Unit
F-002 W/6Front Courtesy/Dome Lamp Assembly
F-003 W/2Mid Courtesy/Dome Lamp Assembly
F-004 W/2Rear Room Assembly
F-100 W/10To C-110
F-201 -Ground
VEHICLE HARNESS ROUTING MAPS
LTSMW170016T
16
16–63Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Door LH Harness

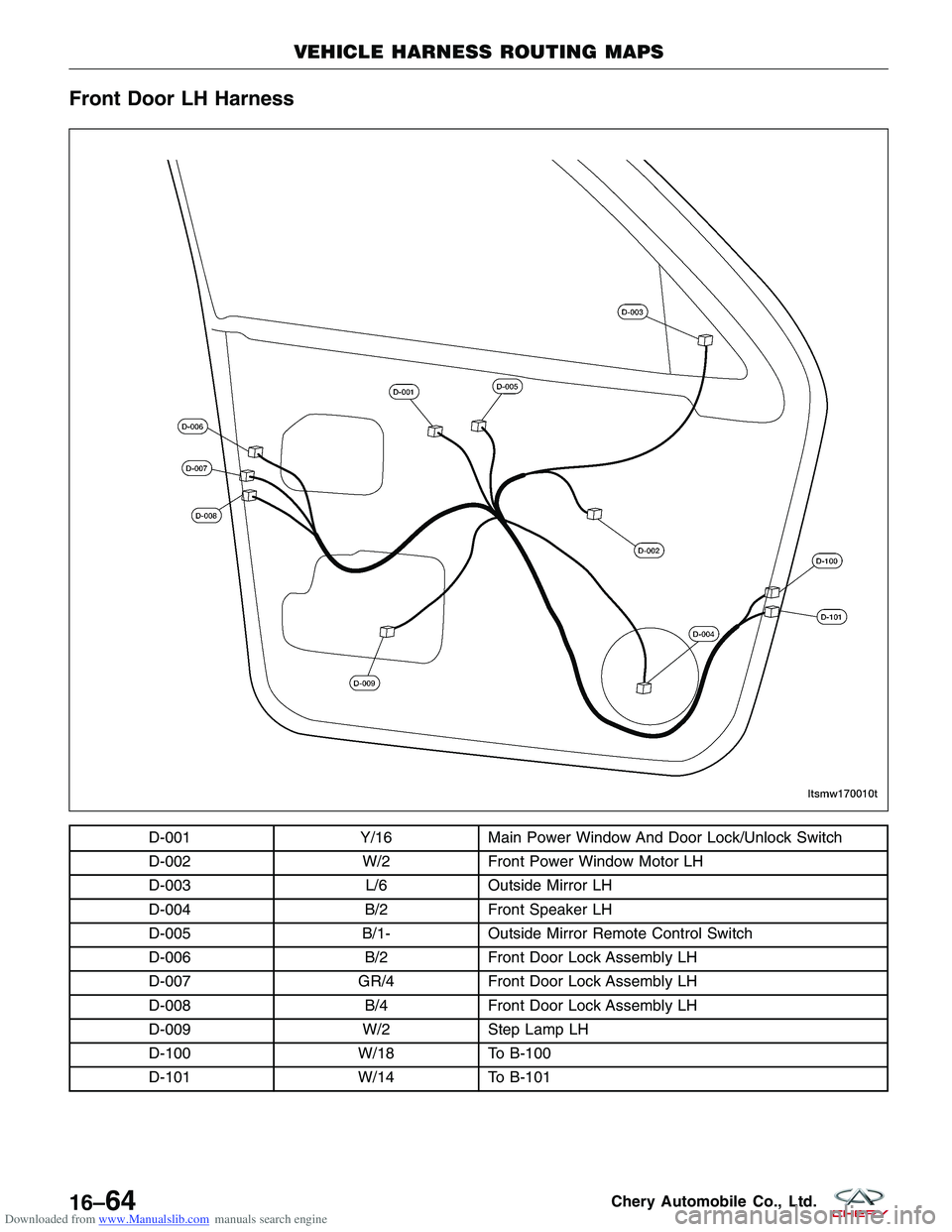

D-001Y/16Main Power Window And Door Lock/Unlock Switch
D-002 W/2Front Power Window Motor LH
D-003 L/6Outside Mirror LH
D-004 B/2Front Speaker LH
D-005 B/1-Outside Mirror Remote Control Switch
D-006 B/2Front Door Lock Assembly LH
D-007 GR/4Front Door Lock Assembly LH
D-008 B/4Front Door Lock Assembly LH
D-009 W/2Step Lamp LH
D-100 W/18To B-100
D-101 W/14To B-101
VEHICLE HARNESS ROUTING MAPS
LTSMW170010T
16–64Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Door RH Harness

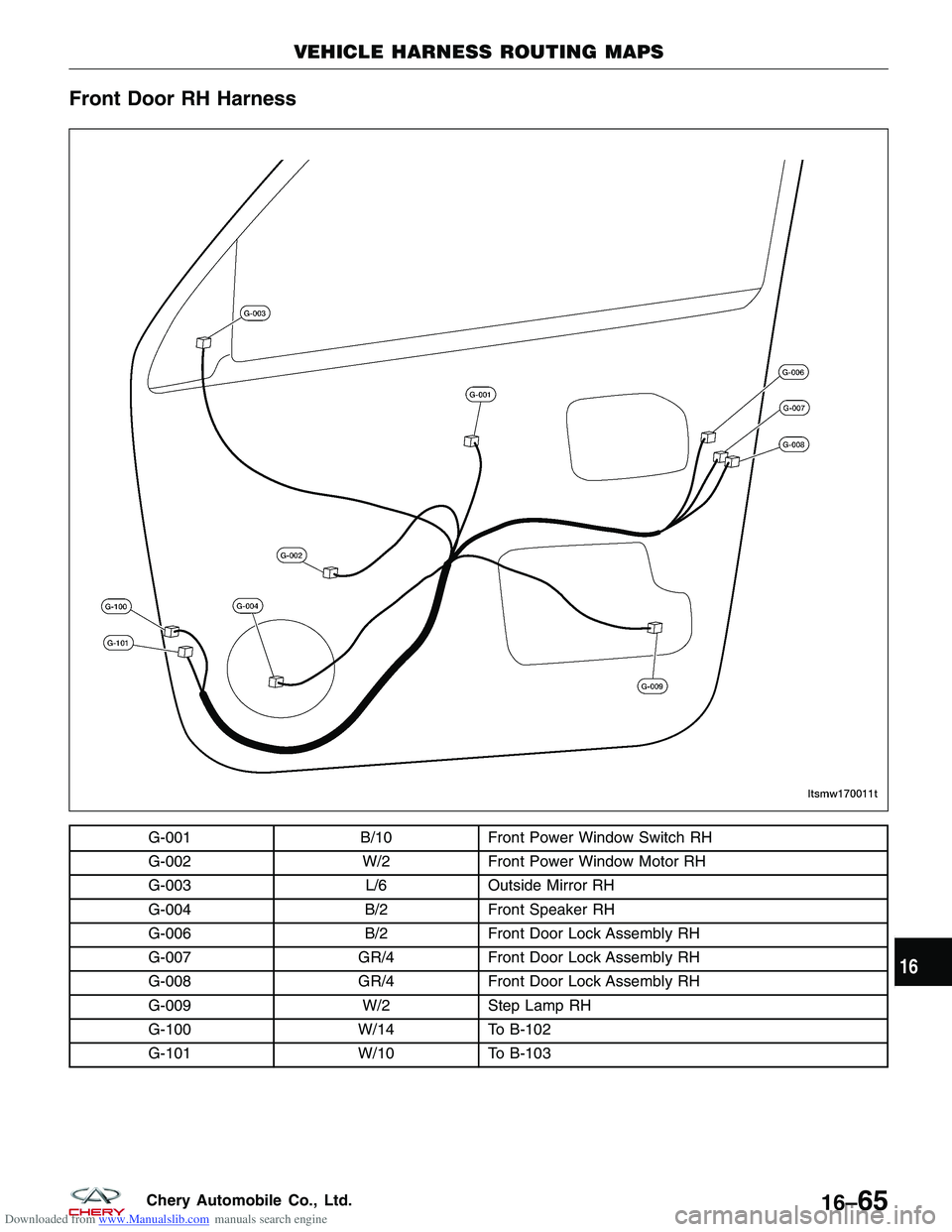

G-001B/10Front Power Window Switch RH
G-002 W/2Front Power Window Motor RH
G-003 L/6Outside Mirror RH
G-004 B/2Front Speaker RH
G-006 B/2Front Door Lock Assembly RH
G-007 GR/4Front Door Lock Assembly RH
G-008 GR/4Front Door Lock Assembly RH
G-009 W/2Step Lamp RH
G-100 W/14To B-102
G-101 W/10To B-103
VEHICLE HARNESS ROUTING MAPS
LTSMW170011T
16
16–65Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Rear Door LH Harness

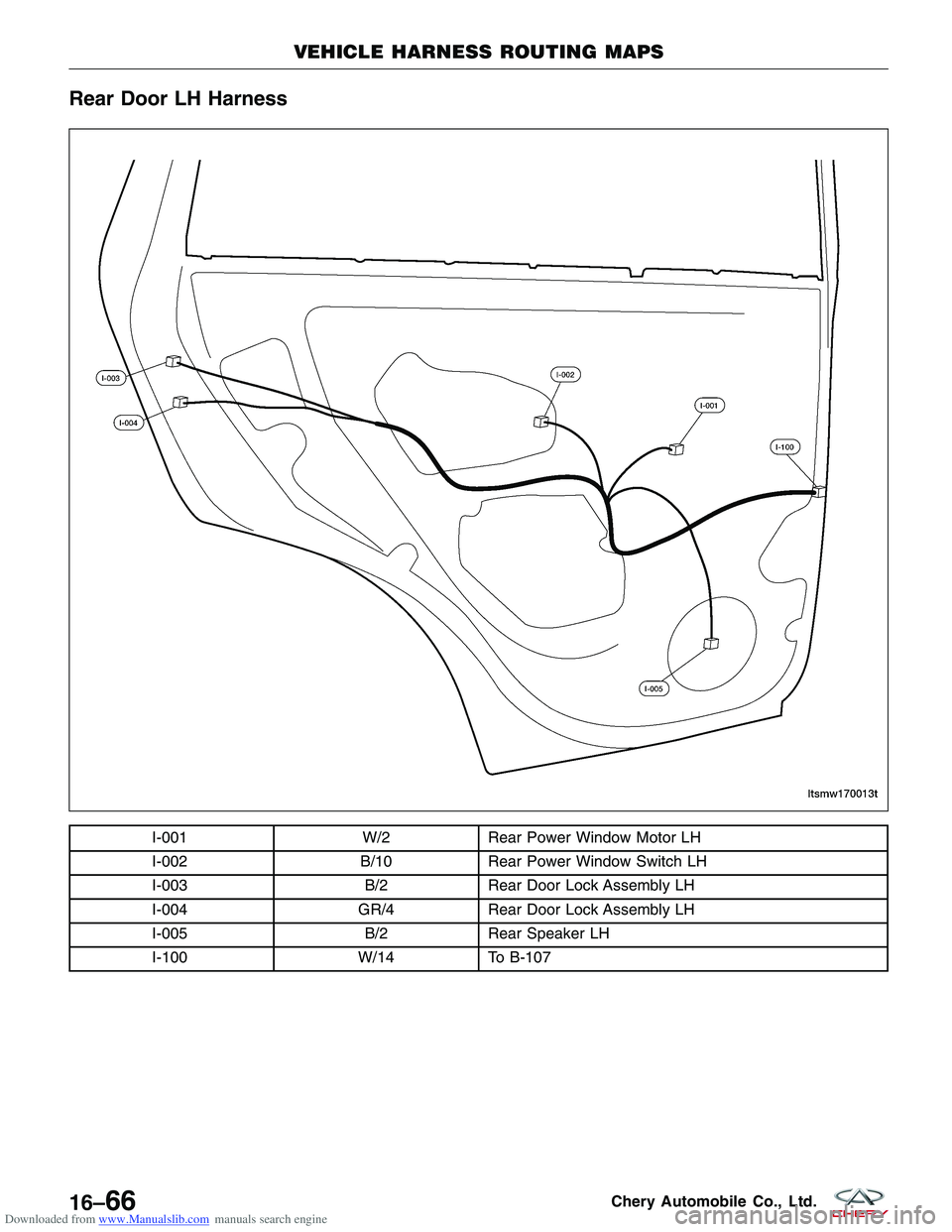

I-001W/2Rear Power Window Motor LH
I-002 B/10Rear Power Window Switch LH
I-003 B/2Rear Door Lock Assembly LH
I-004 GR/4Rear Door Lock Assembly LH
I-005 B/2Rear Speaker LH
I-100 W/14To B-107
VEHICLE HARNESS ROUTING MAPS
LTSMW170013T
16–66Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Rear Door RH Harness

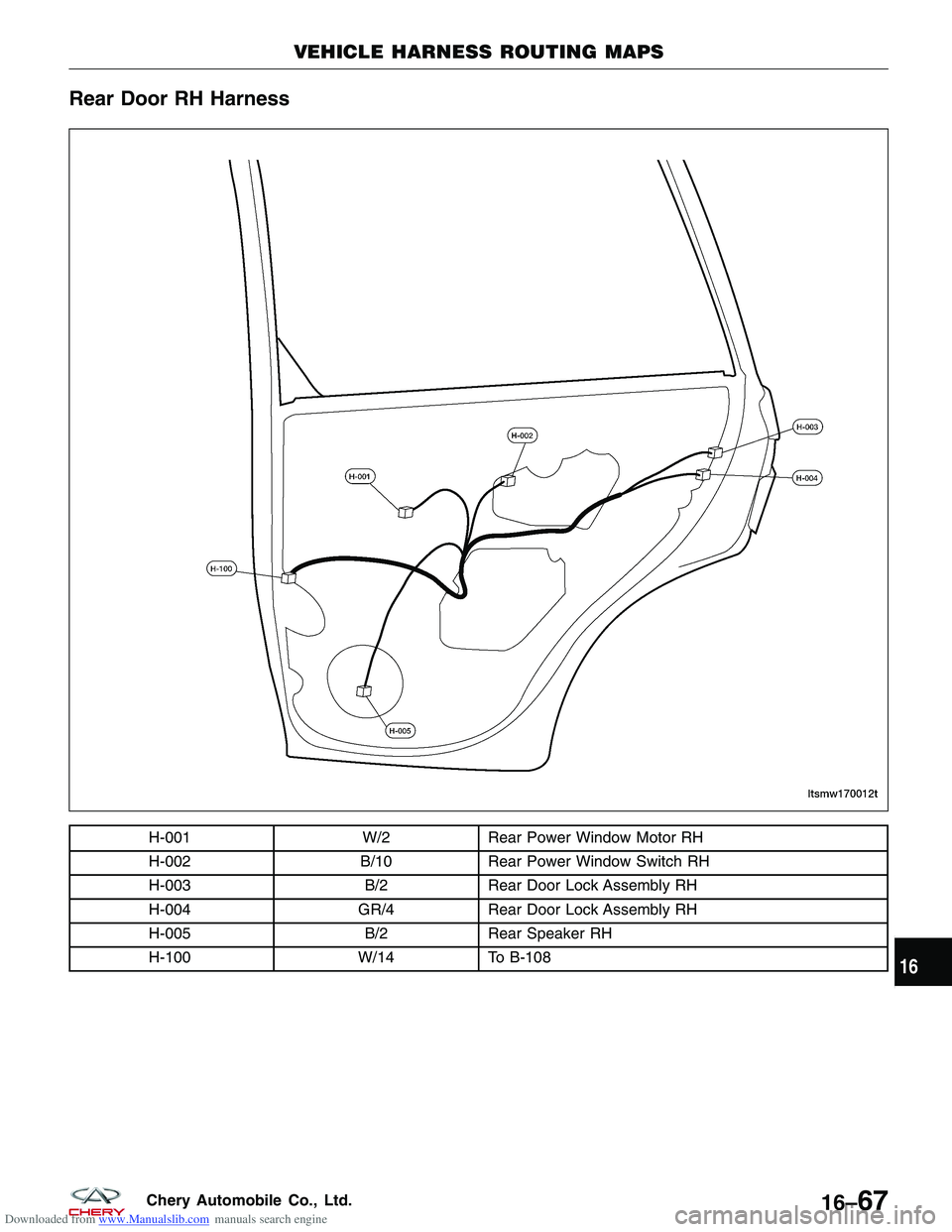

H-001W/2Rear Power Window Motor RH
H-002 B/10Rear Power Window Switch RH
H-003 B/2Rear Door Lock Assembly RH
H-004 GR/4Rear Door Lock Assembly RH
H-005 B/2Rear Speaker RH
H-100 W/14To B-108
VEHICLE HARNESS ROUTING MAPS
LTSMW170012T
16
16–67Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Back Door Harness

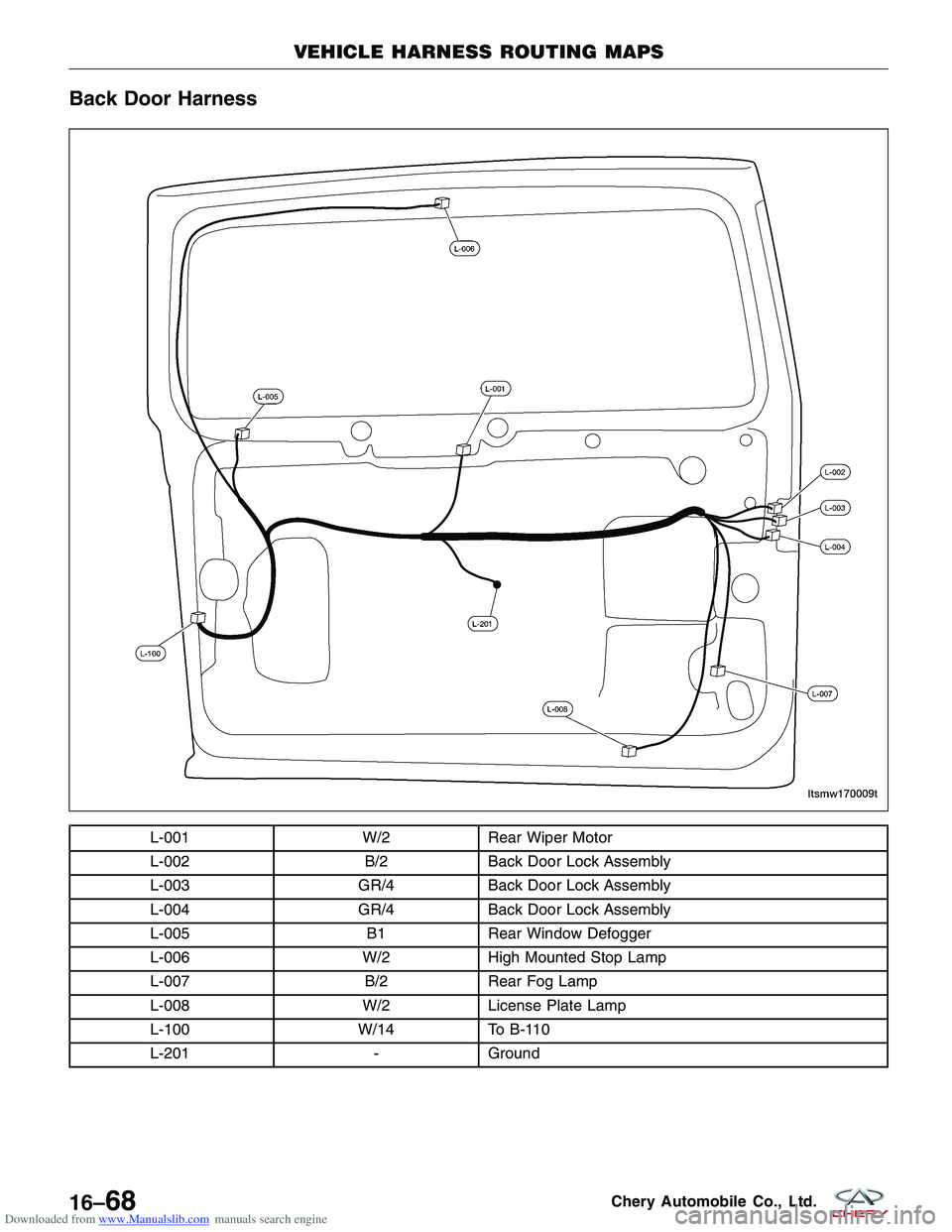

L-001W/2Rear Wiper Motor
L-002 B/2Back Door Lock Assembly
L-003 GR/4Back Door Lock Assembly
L-004 GR/4Back Door Lock Assembly
L-005 B1Rear Window Defogger
L-006 W/2High Mounted Stop Lamp
L-007 B/2Rear Fog Lamp
L-008 W/2License Plate Lamp
L-100 W/14To B-110
L-201 -Ground
VEHICLE HARNESS ROUTING MAPS
LTSMW170009T
16–68Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Restraints Harness

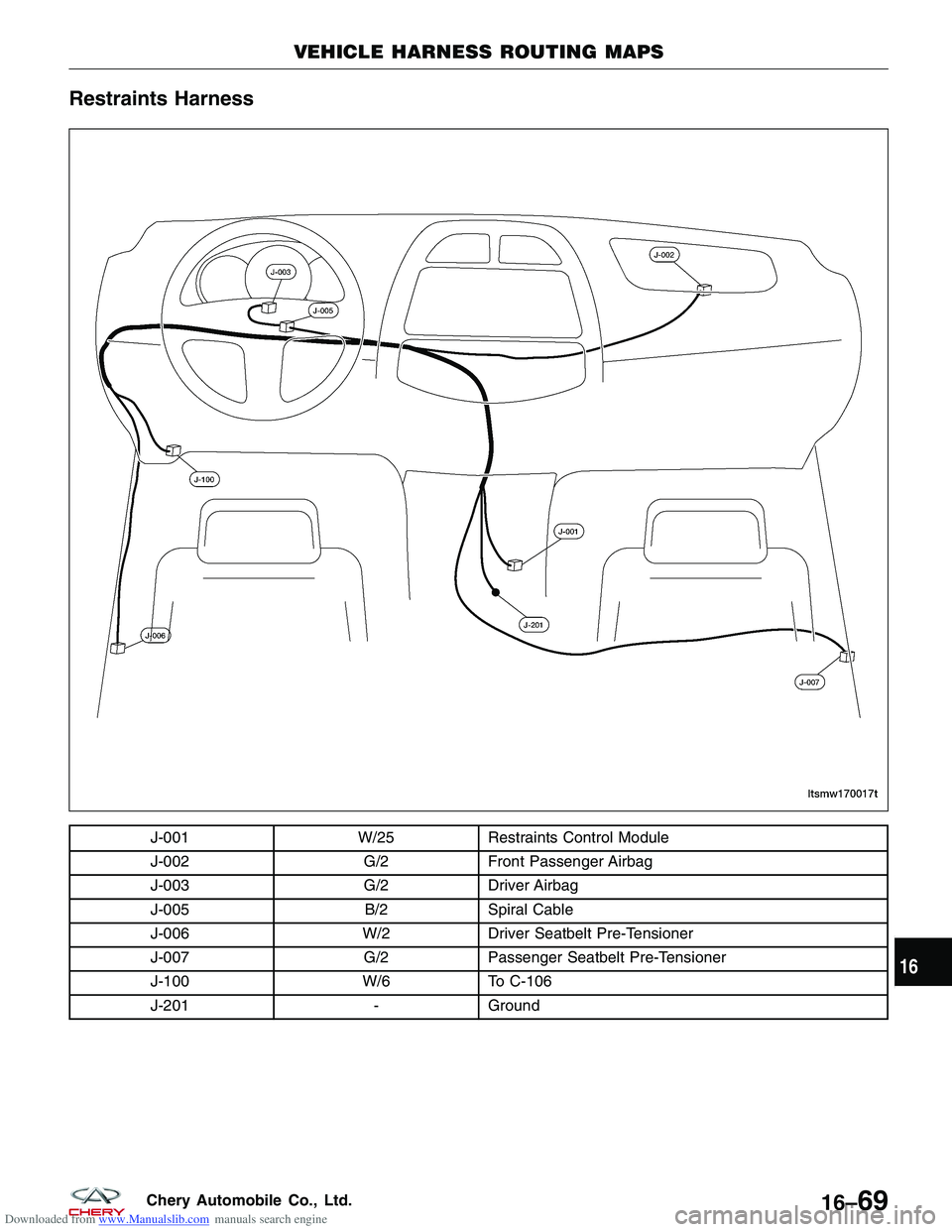

J-001W/25Restraints Control Module
J-002 G/2Front Passenger Airbag
J-003 G/2Driver Airbag
J-005 B/2Spiral Cable
J-006 W/2Driver Seatbelt Pre-Tensioner
J-007 G/2Passenger Seatbelt Pre-Tensioner
J-100 W/6To C-106
J-201 -Ground
VEHICLE HARNESS ROUTING MAPS
LTSMW170017T
16
16–69Chery Automobile Co., Ltd.
