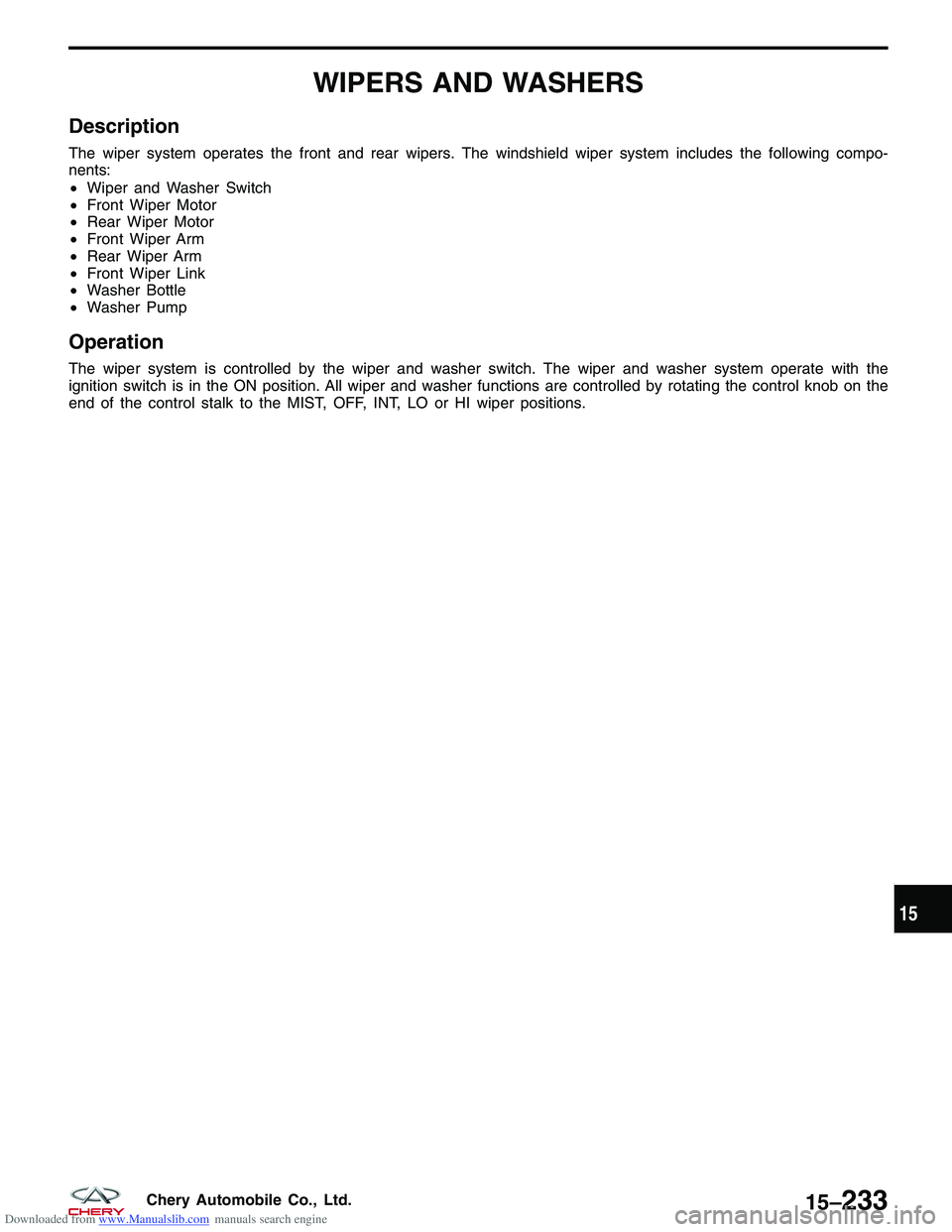

Downloaded from www.Manualslib.com manuals search engine WIPERS AND WASHERS
Description
The wiper system operates the front and rear wipers. The windshield wiper system includes the following compo-
nents:
•Wiper and Washer Switch
• Front Wiper Motor
• Rear Wiper Motor
• Front Wiper Arm
• Rear Wiper Arm
• Front Wiper Link
• Washer Bottle
• Washer Pump
Operation
The wiper system is controlled by the wiper and washer switch. The wiper and washer system operate with the
ignition switch is in the ON position. All wiper and washer functions are controlled by rotating the control knob on the
end of the control stalk to the MIST, OFF, INT, LO or HI wiper positions.
15
15–233Chery Automobile Co., Ltd.

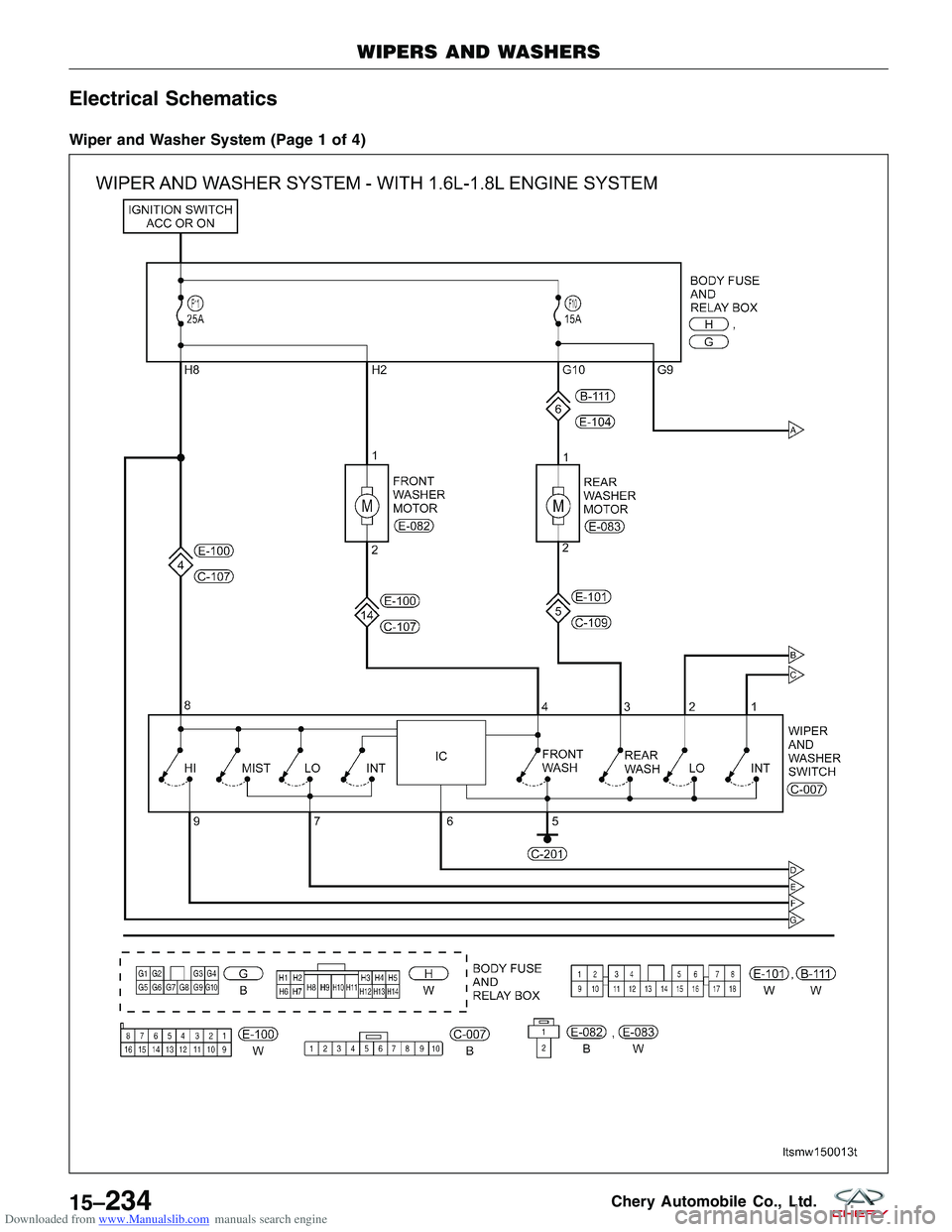

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Wiper and Washer System (Page 1 of 4)
WIPERS AND WASHERS
LTSMW150013T
15–234Chery Automobile Co., Ltd.

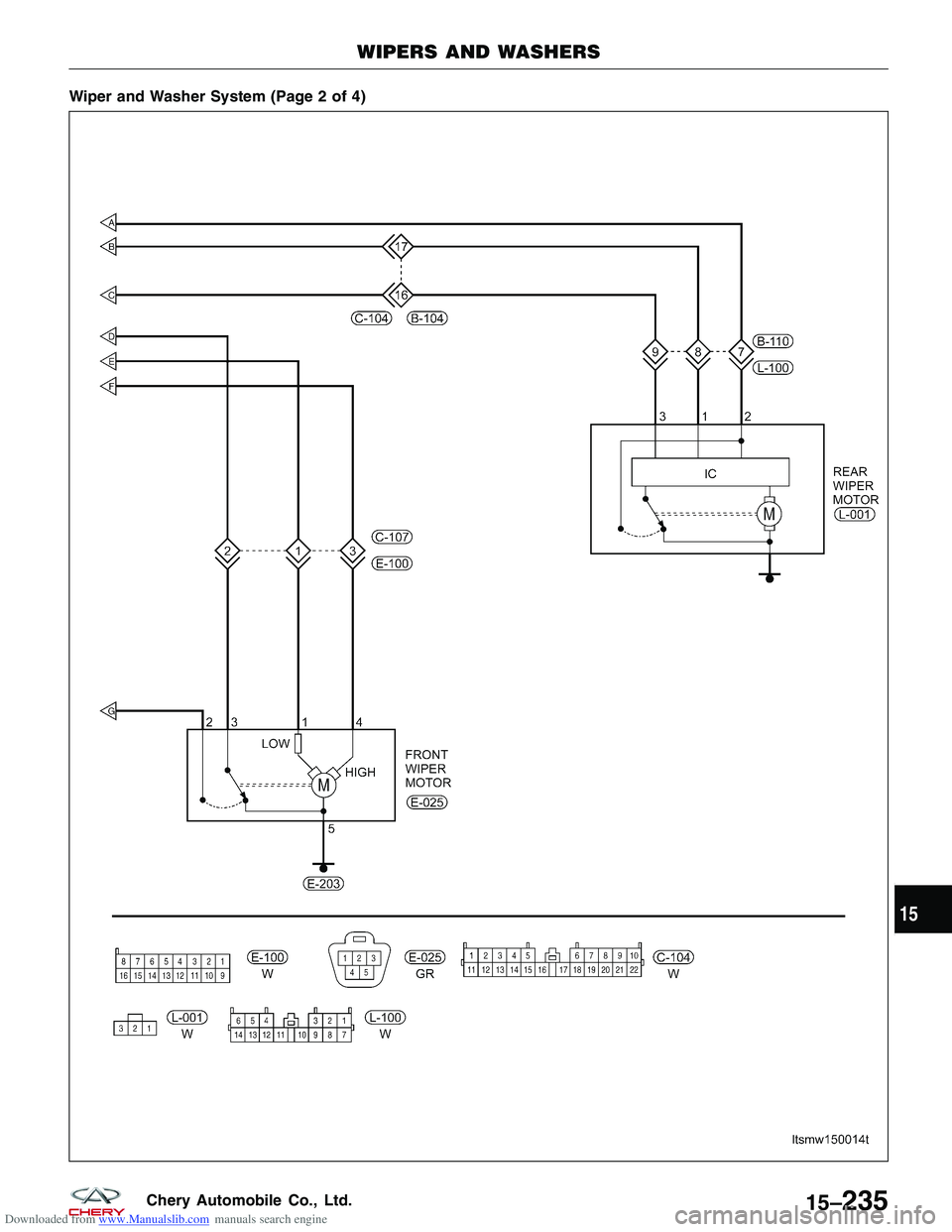

Downloaded from www.Manualslib.com manuals search engine Wiper and Washer System (Page 2 of 4)
WIPERS AND WASHERS
LTSMW150014T
15
15–235Chery Automobile Co., Ltd.

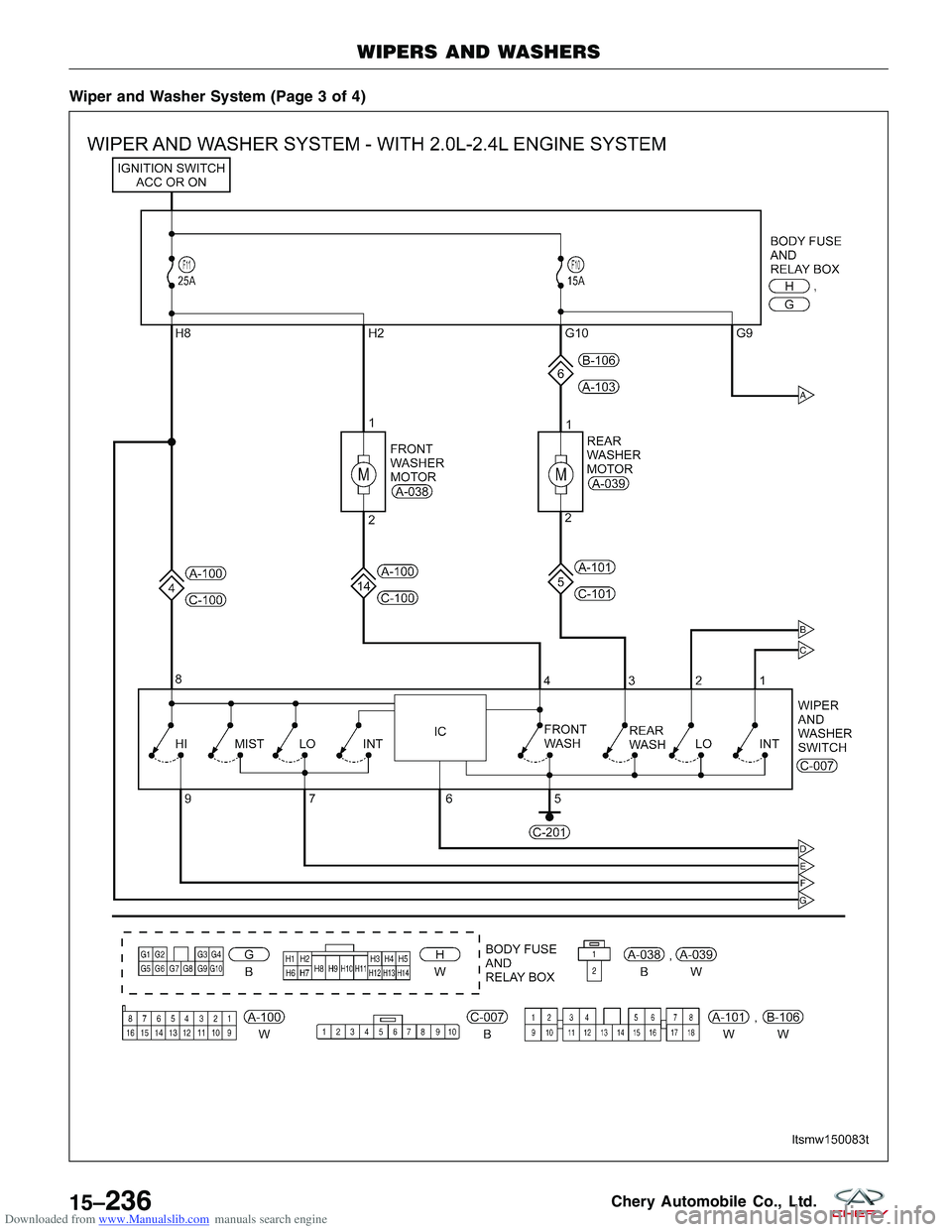

Downloaded from www.Manualslib.com manuals search engine Wiper and Washer System (Page 3 of 4)
WIPERS AND WASHERS
LTSMW150083T
15–236Chery Automobile Co., Ltd.

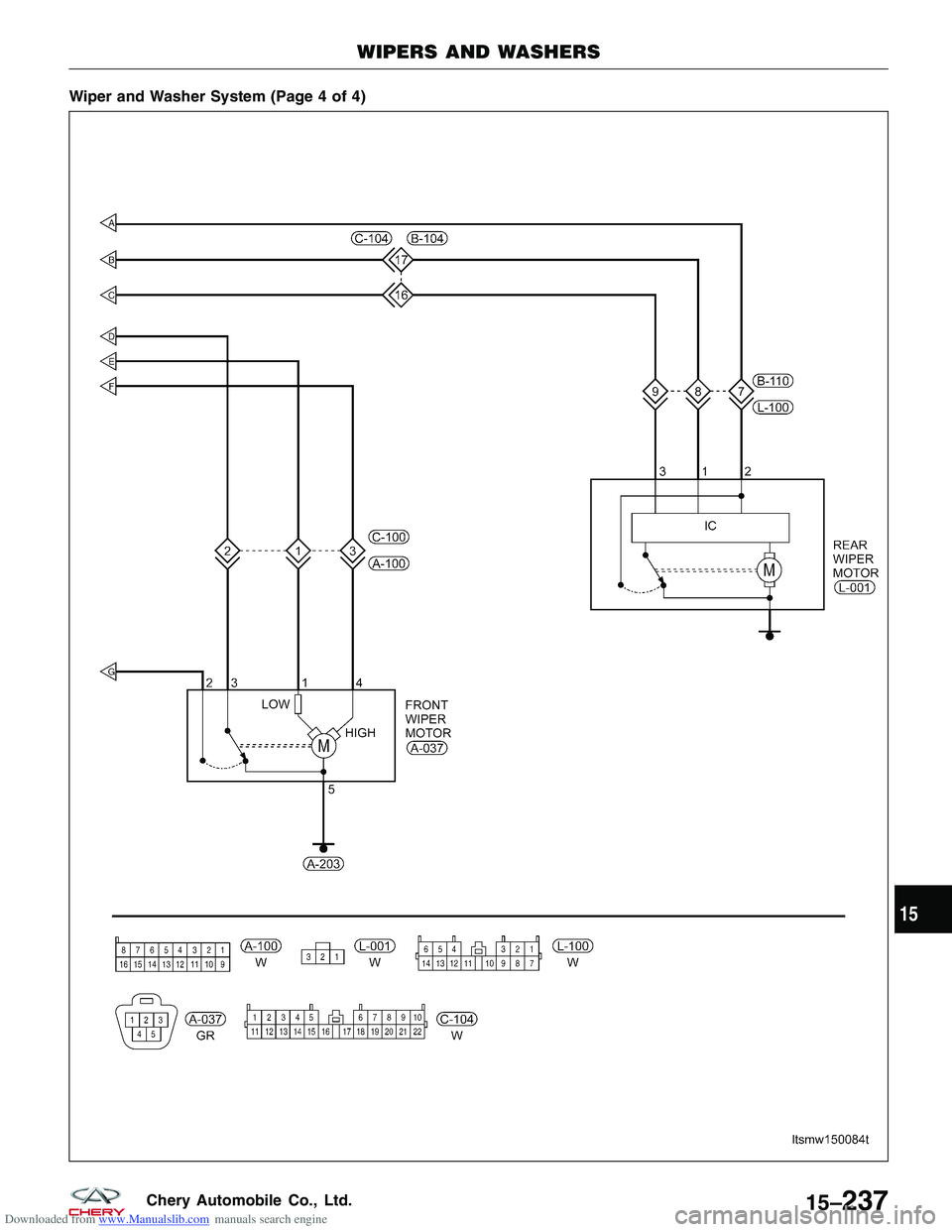

Downloaded from www.Manualslib.com manuals search engine Wiper and Washer System (Page 4 of 4)
WIPERS AND WASHERS
LTSMW150084T
15
15–237Chery Automobile Co., Ltd.

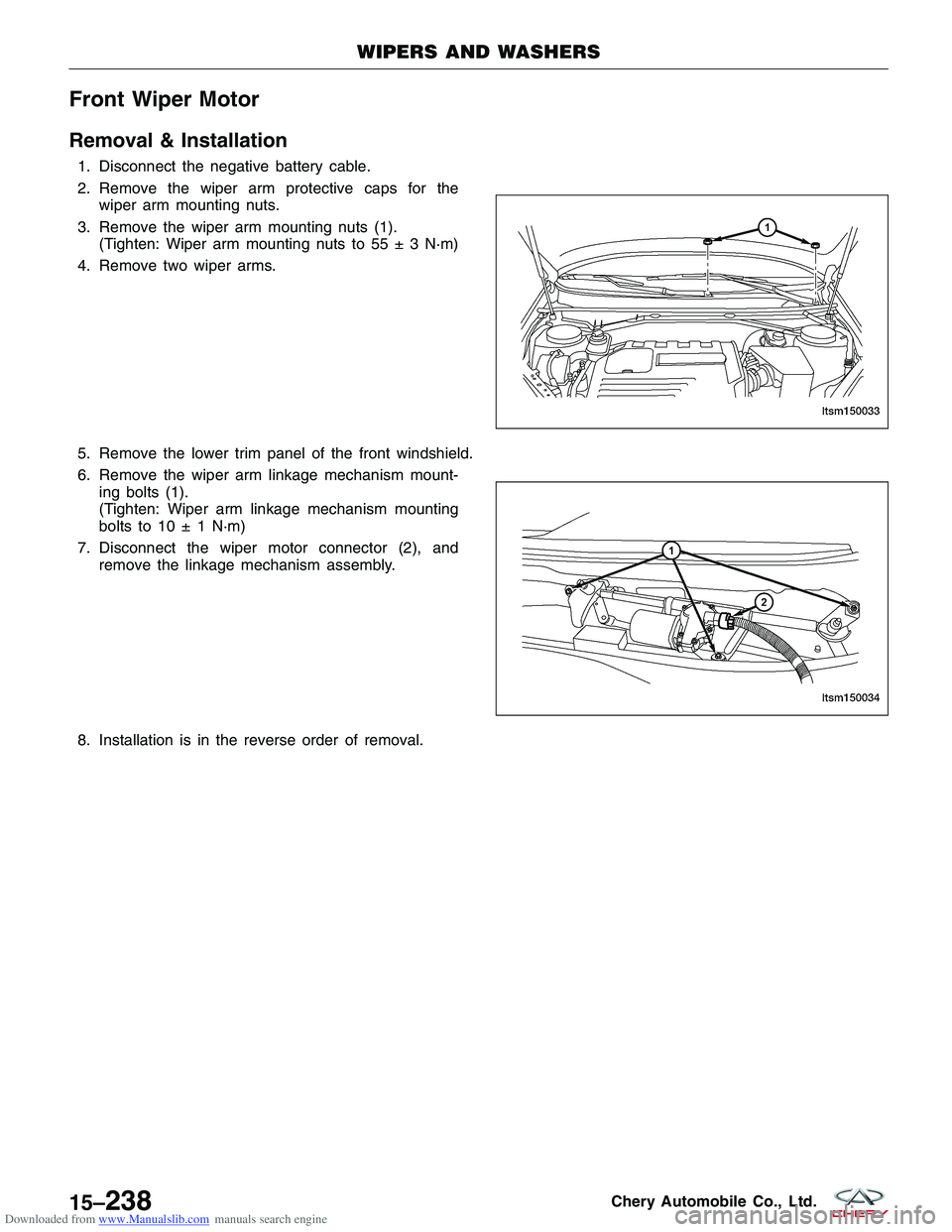

Downloaded from www.Manualslib.com manuals search engine Front Wiper Motor
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the wiper arm protective caps for thewiper arm mounting nuts.
3. Remove the wiper arm mounting nuts (1). (Tighten: Wiper arm mounting nuts to 55 ± 3 N·m)
4. Remove two wiper arms.
5. Remove the lower trim panel of the front windshield.
6. Remove the wiper arm linkage mechanism mount- ing bolts (1).
(Tighten: Wiper arm linkage mechanism mounting
bolts to 10 ± 1 N·m)
7. Disconnect the wiper motor connector (2), and remove the linkage mechanism assembly.
8. Installation is in the reverse order of removal.
WIPERS AND WASHERS
LTSM150033
LTSM150034
15–238Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Rear Wiper Motor
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the rear wiper arm nut protective cap fromthe rear wiper arm.
3. Remove the wiper arm mounting nut (1), and remove the wiper arm, and the rubber ring.
(Tighten: Rear wiper arm mounting nut to 20 ± 3
N·m)
4. Open the back cargo door.
5. Remove the back door panel.
6. Disconnect the rear wiper motor electrical connec- tor (2), and the rear wiper motor mounting bolts
(1).
(Tighten: Rear wiper motor mounting bolts to 10 ±
1 N·m)
7. Remove the rear wiper motor.
8. Installation is in the reverse order of removal.
WIPERS AND WASHERS
LTSM150035
LTSM150036
15
15–239Chery Automobile Co., Ltd.

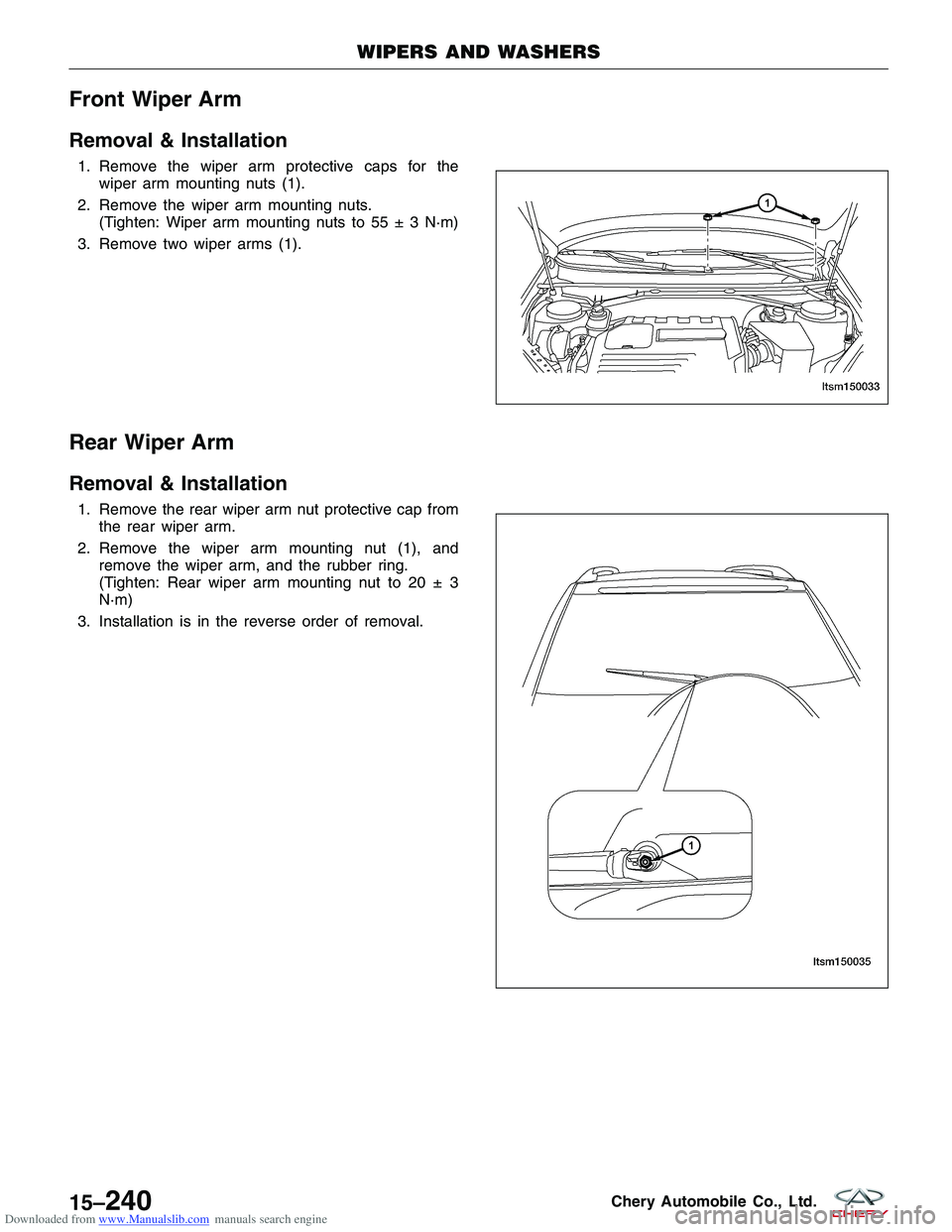

Downloaded from www.Manualslib.com manuals search engine Front Wiper Arm
Removal & Installation
1. Remove the wiper arm protective caps for thewiper arm mounting nuts (1).
2. Remove the wiper arm mounting nuts. (Tighten: Wiper arm mounting nuts to 55 ± 3 N·m)
3. Remove two wiper arms (1).
Rear Wiper Arm
Removal & Installation
1. Remove the rear wiper arm nut protective cap from the rear wiper arm.
2. Remove the wiper arm mounting nut (1), and remove the wiper arm, and the rubber ring.
(Tighten: Rear wiper arm mounting nut to 20 ± 3
N·m)
3. Installation is in the reverse order of removal.
WIPERS AND WASHERS
LTSM150033
LTSM150035
15–240Chery Automobile Co., Ltd.
