Downloaded from www.Manualslib.com manuals search engine GRILLE
Grille
Removal & Installation
1. Open the hood.
2. Remove the radiator grille mounting bolts (1).
3. Remove the radiator grille.
4. Installation is in the reverse order of removal.
LTSM150105
15
15–201Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine HOOD
Hood
Removal & Installation
1. Remove the hood mounting bolts (1) and the staybars (2).
(Tighten: Hood mounting bolts to 23 ± 2 N·m)
N·m)
2. Loosen the windshield washer hose.
3. Remove the hood.
4. Installation is in the reverse order of removal.
Hood Adjustment
1. Adjust the hood gap with a spacer gauge. •The gap between the hood and the fender should be 5 ± 0.5 mm
• The overall levelness when measured with a magnet should be 0-0.5 mm
2. Install the nuts (Part Number: Q1400820, 2 pcs both upper and lower) into the body for 2-3 turns, tighten with pneumatic wrench. Torque: 30 ± 4 N·m.
Check for the following after repair:
• Whether the bolts and nuts are assembled properly
• Whether the bolts and nuts are properly tightened
• Whether the gap between the hood and the fender are within specifications
• Whether the horizontal alignment of the front edge of the fenders is within specifications (0-0.5 mm)
LTSM150107
15–202Chery Automobile Co., Ltd.

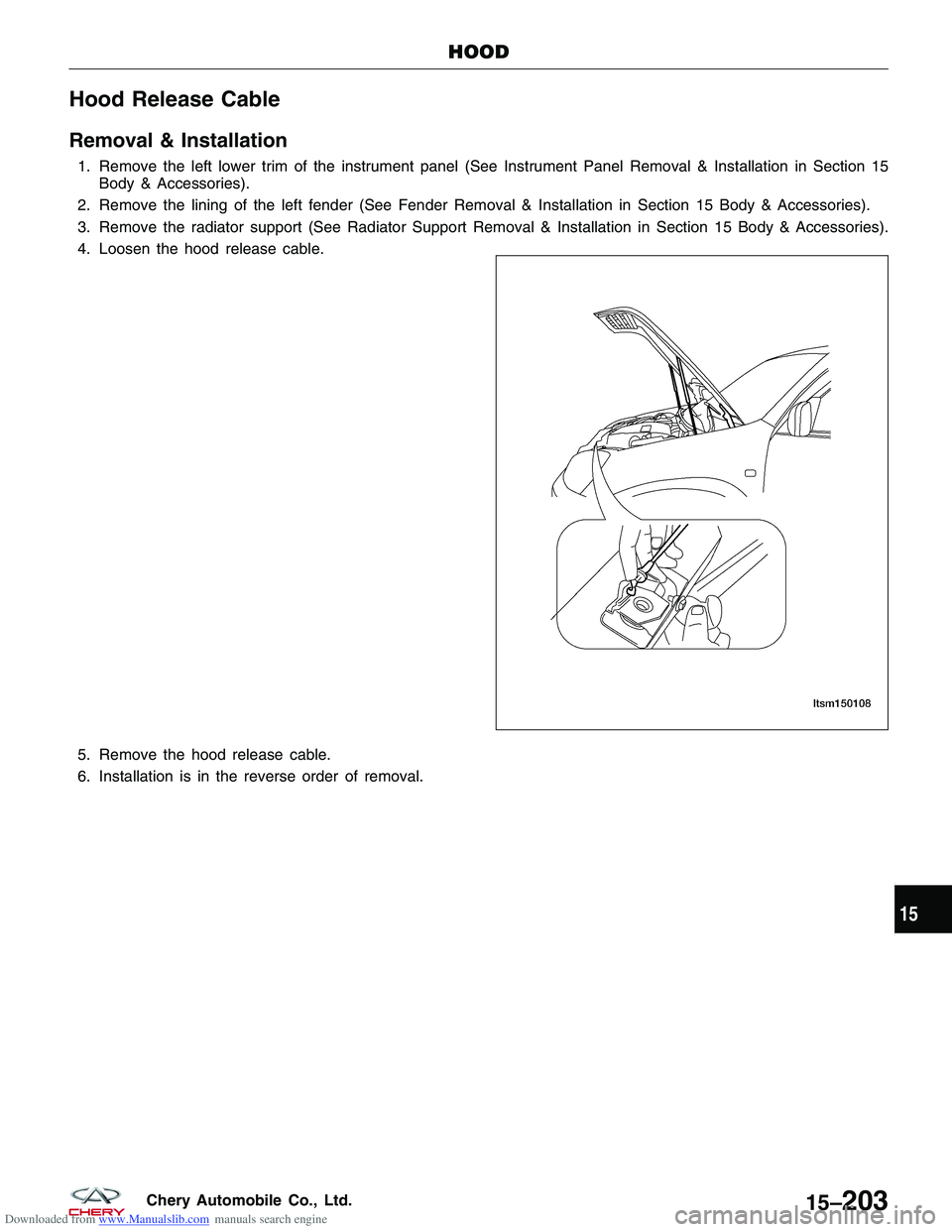

Downloaded from www.Manualslib.com manuals search engine Hood Release Cable
Removal & Installation
1. Remove the left lower trim of the instrument panel (See Instrument Panel Removal & Installation in Section 15Body & Accessories).
2. Remove the lining of the left fender (See Fender Removal & Installation in Section 15 Body & Accessories).
3. Remove the radiator support (See Radiator Support Removal & Installation in Section 15 Body & Accessories).
4. Loosen the hood release cable.
5. Remove the hood release cable.
6. Installation is in the reverse order of removal.
HOOD
LTSM150108
15
15–203Chery Automobile Co., Ltd.

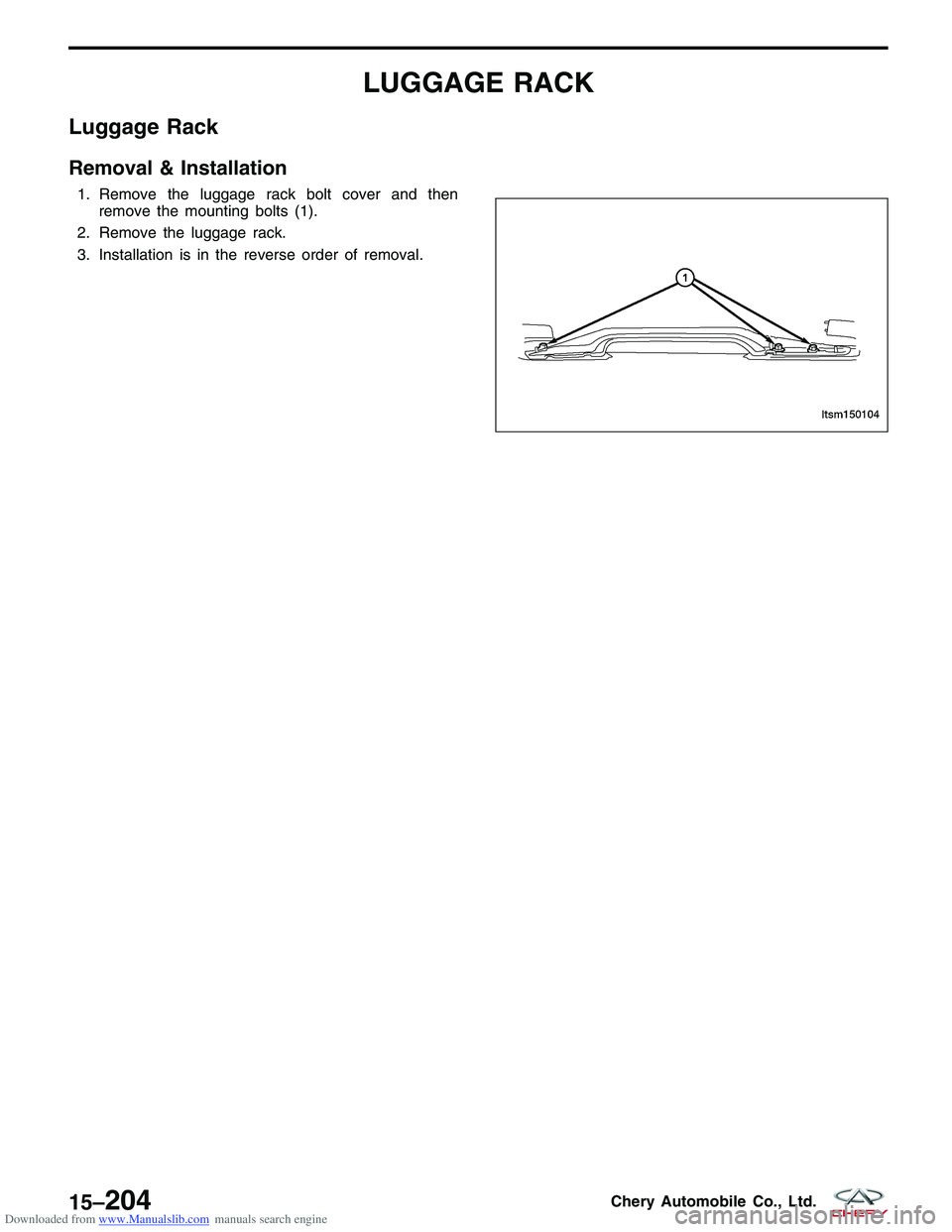

Downloaded from www.Manualslib.com manuals search engine LUGGAGE RACK
Luggage Rack
Removal & Installation
1. Remove the luggage rack bolt cover and thenremove the mounting bolts (1).
2. Remove the luggage rack.
3. Installation is in the reverse order of removal.
LTSM150104
15–204Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine SPARE TIRE SUPPORT
Spare Tire Support
Removal & Installation
1. Loosen the spare tire cover clasp (1) and thenremove the spare tire cover.
2. Using special tool, remove the spare tire mounting nuts (1) and then remove the spare tire.
3. Remove the spare tire support mounting bolts (1) and then remove the spare tire support.
4. Installation is in the reverse order of removal.
LTSM150102
LTSM150103
LTSM150132
15
15–205Chery Automobile Co., Ltd.

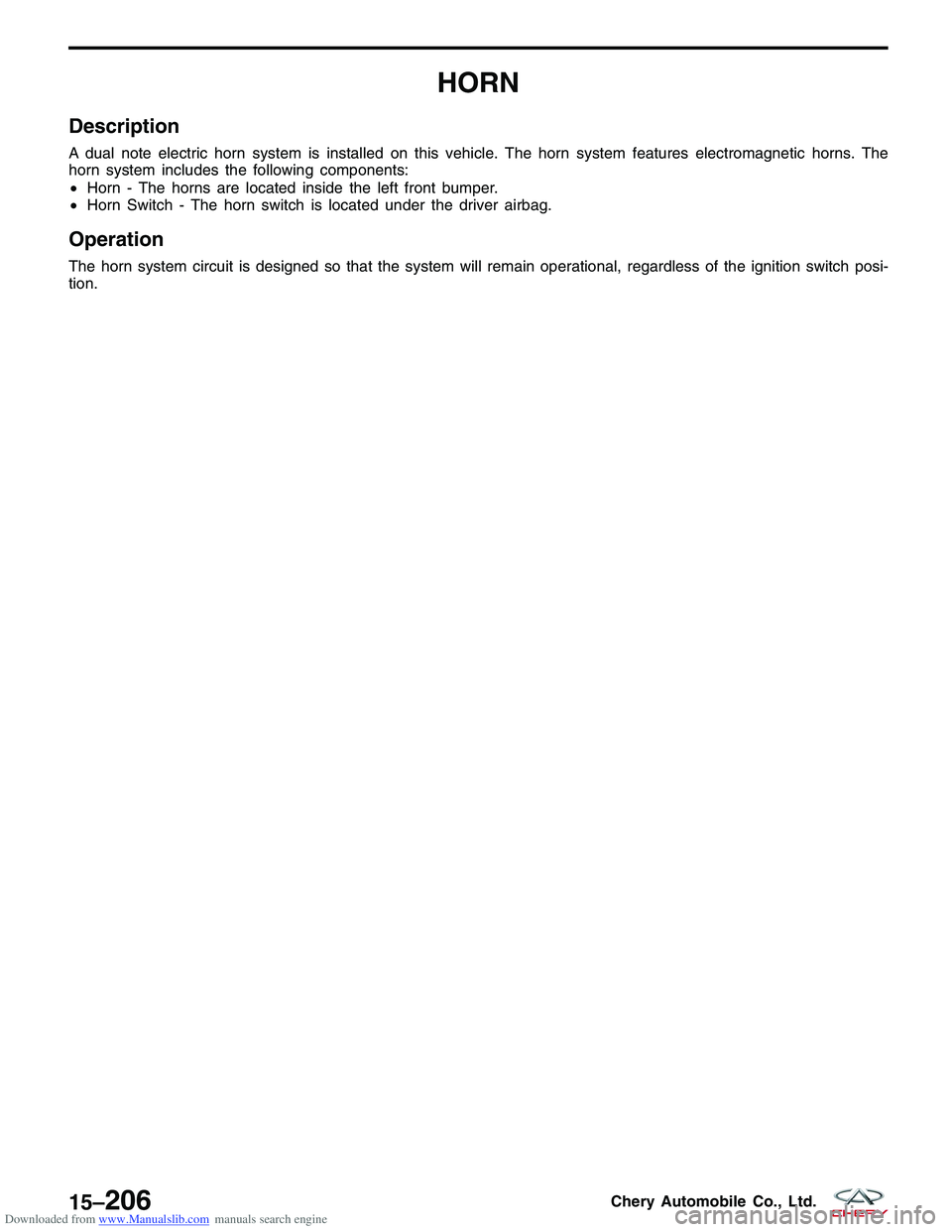

Downloaded from www.Manualslib.com manuals search engine HORN
Description
A dual note electric horn system is installed on this vehicle. The horn system features electromagnetic horns. The
horn system includes the following components:
•Horn - The horns are located inside the left front bumper.
• Horn Switch - The horn switch is located under the driver airbag.
Operation
The horn system circuit is designed so that the system will remain operational, regardless of the ignition switch posi-
tion.
15–206Chery Automobile Co., Ltd.

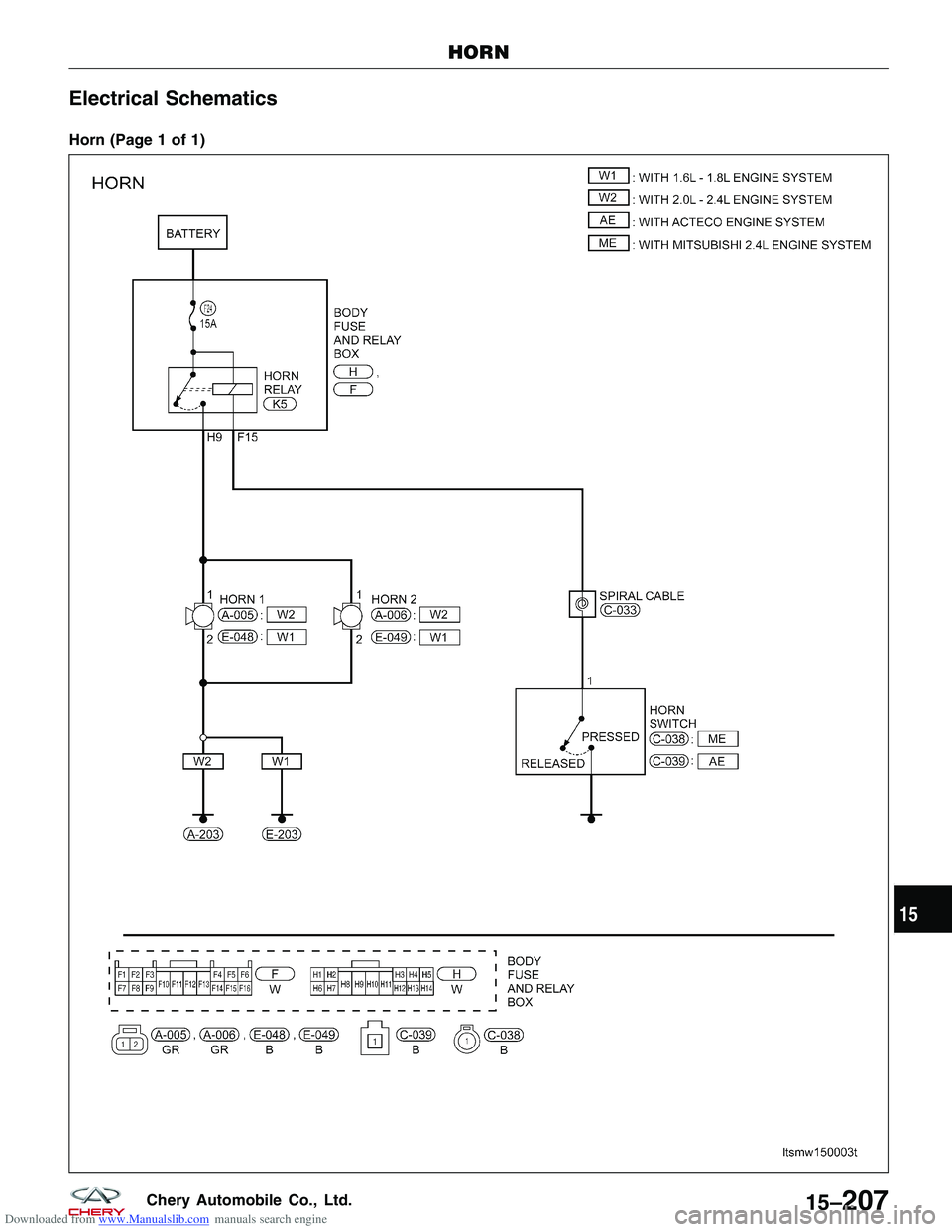

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Horn (Page 1 of 1)
HORN
LTSMW150003T
15
15–207Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Horn
Removal & Installation
1. Remove the right headlamp assembly.
2. Disconnect the horn electrical connector.
3. Remove the horn mounting nut (1).(Tighten: Horn mounting nut to 8 N·m)
4. Remove the horn.
5. Remove the other horn like this horn.
6. Installation is in the reverse order of removal.
HORN
LTSM150084
