Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE

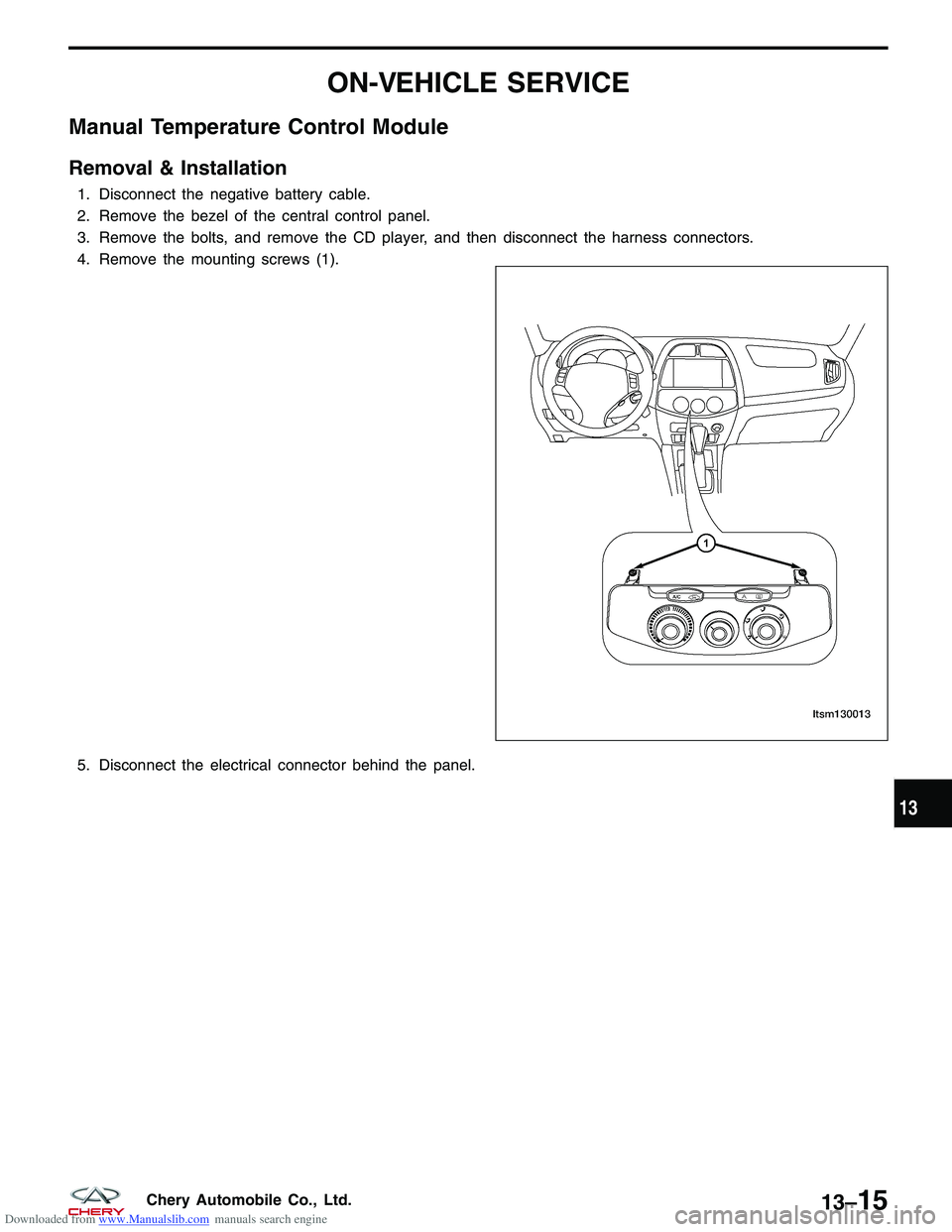

Manual Temperature Control Module
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the bezel of the central control panel.
3. Remove the bolts, and remove the CD player, and then disconnect the harness connectors.
4. Remove the mounting screws (1).
5. Disconnect the electrical connector behind the panel.
LTSM130013
13
13–15Chery Automobile Co., Ltd.
