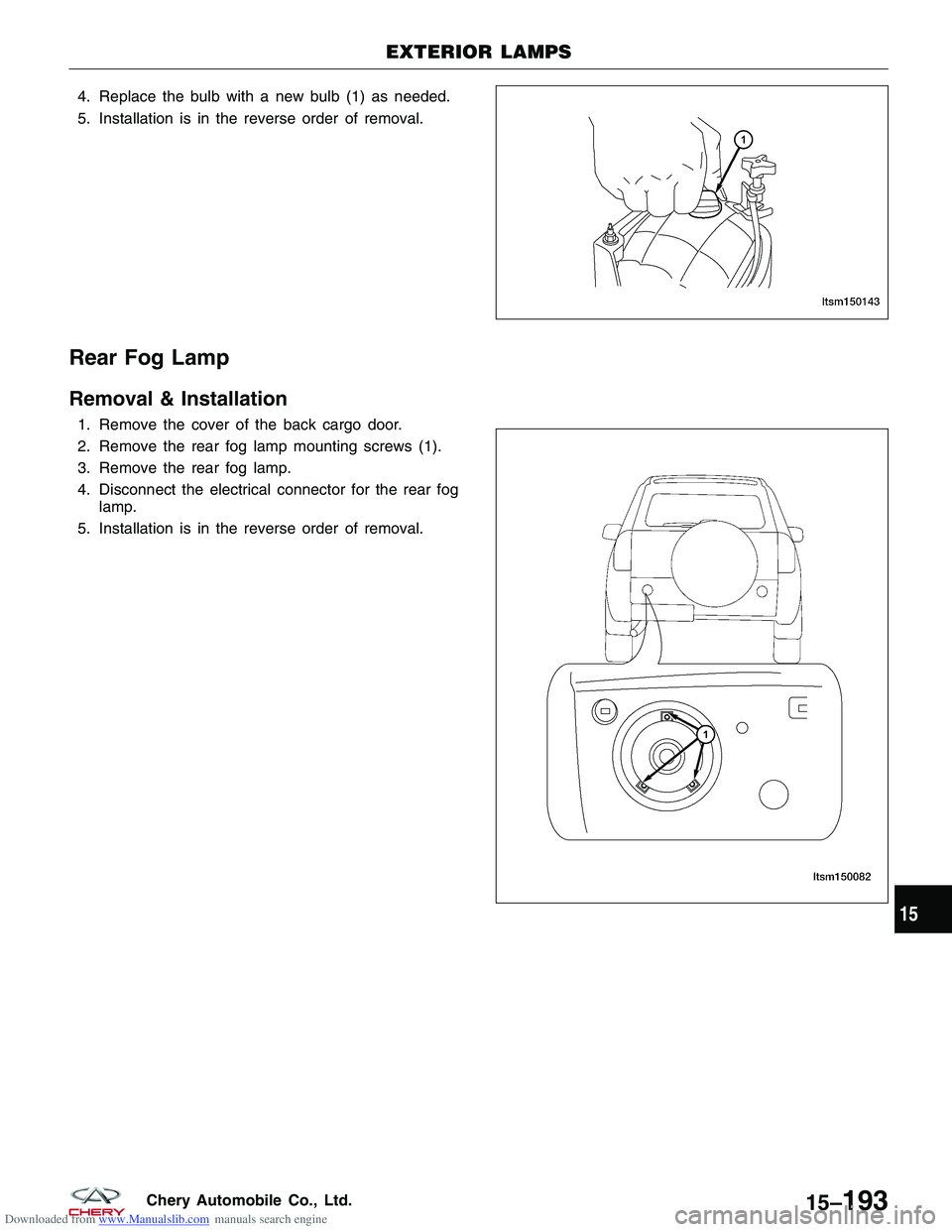

Downloaded from www.Manualslib.com manuals search engine 4. Replace the bulb with a new bulb (1) as needed.
5. Installation is in the reverse order of removal.
Rear Fog Lamp
Removal & Installation
1. Remove the cover of the back cargo door.
2. Remove the rear fog lamp mounting screws (1).
3. Remove the rear fog lamp.
4. Disconnect the electrical connector for the rear foglamp.
5. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150143
LTSM150082
15
15–193Chery Automobile Co., Ltd.

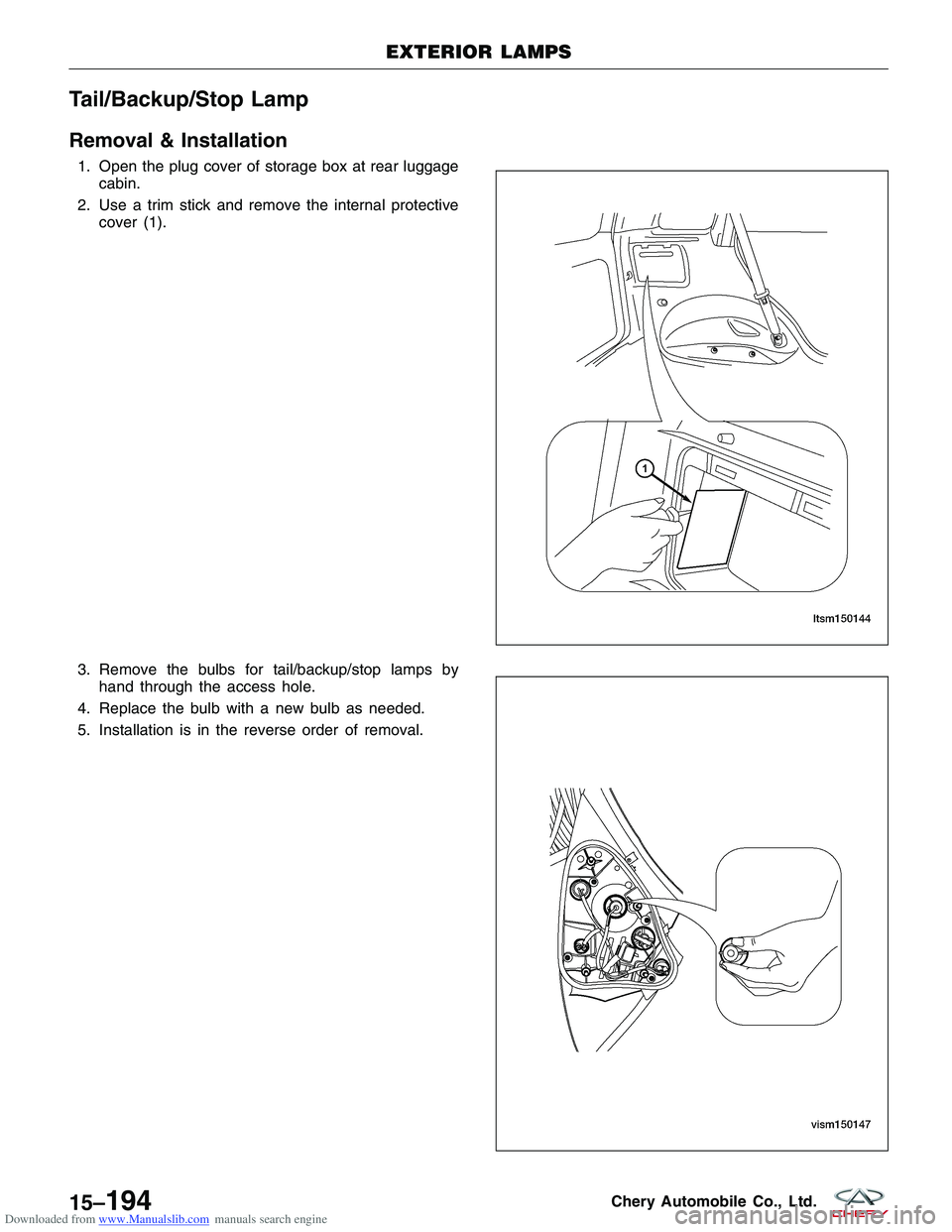

Downloaded from www.Manualslib.com manuals search engine Tail/Backup/Stop Lamp
Removal & Installation
1. Open the plug cover of storage box at rear luggagecabin.
2. Use a trim stick and remove the internal protective cover (1).
3. Remove the bulbs for tail/backup/stop lamps by hand through the access hole.
4. Replace the bulb with a new bulb as needed.
5. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150144
LTSM150146
15–194Chery Automobile Co., Ltd.

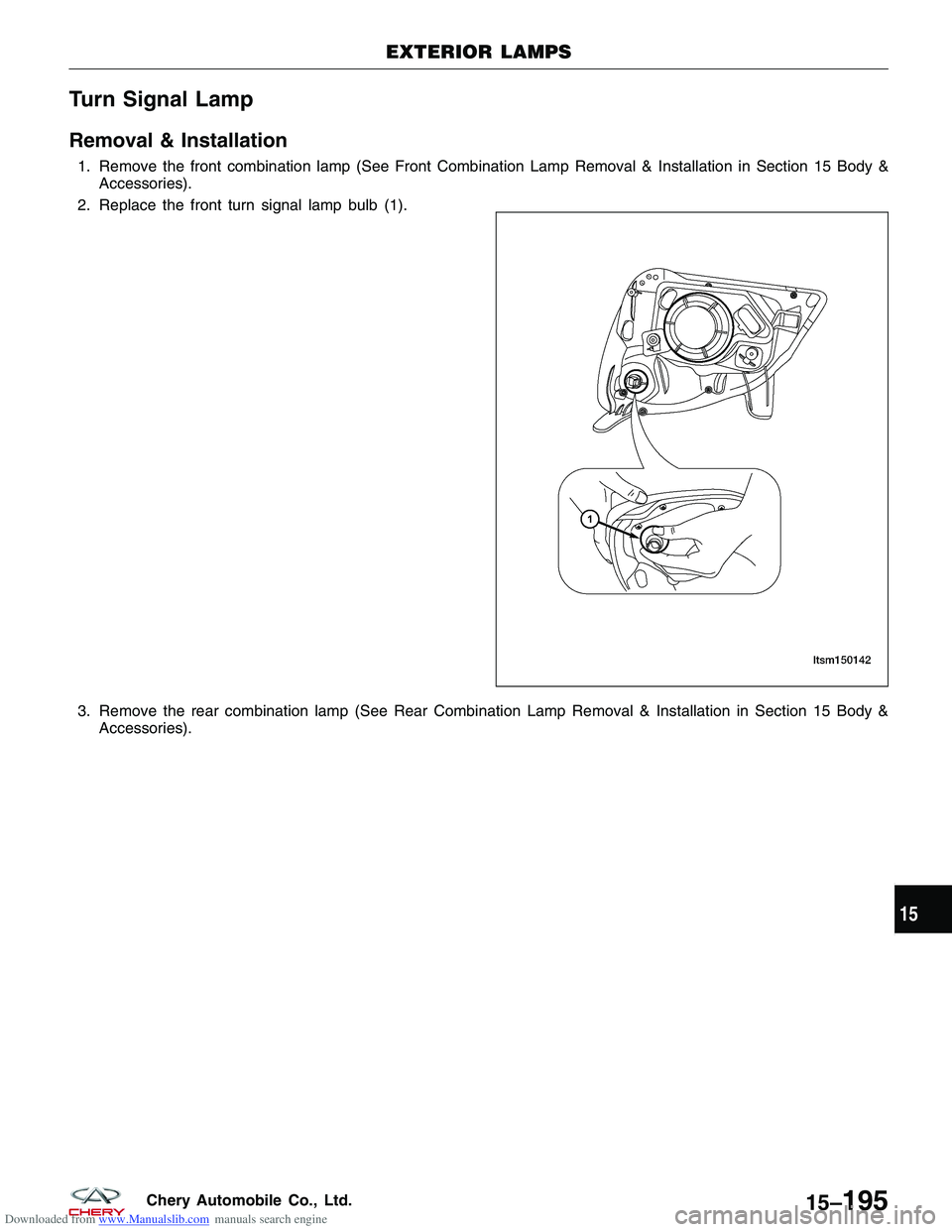

Downloaded from www.Manualslib.com manuals search engine Turn Signal Lamp
Removal & Installation
1. Remove the front combination lamp (See Front Combination Lamp Removal & Installation in Section 15 Body &Accessories).
2. Replace the front turn signal lamp bulb (1).
3. Remove the rear combination lamp (See Rear Combination Lamp Removal & Installation in Section 15 Body & Accessories).
EXTERIOR LAMPS
LTSM150142
15
15–195Chery Automobile Co., Ltd.

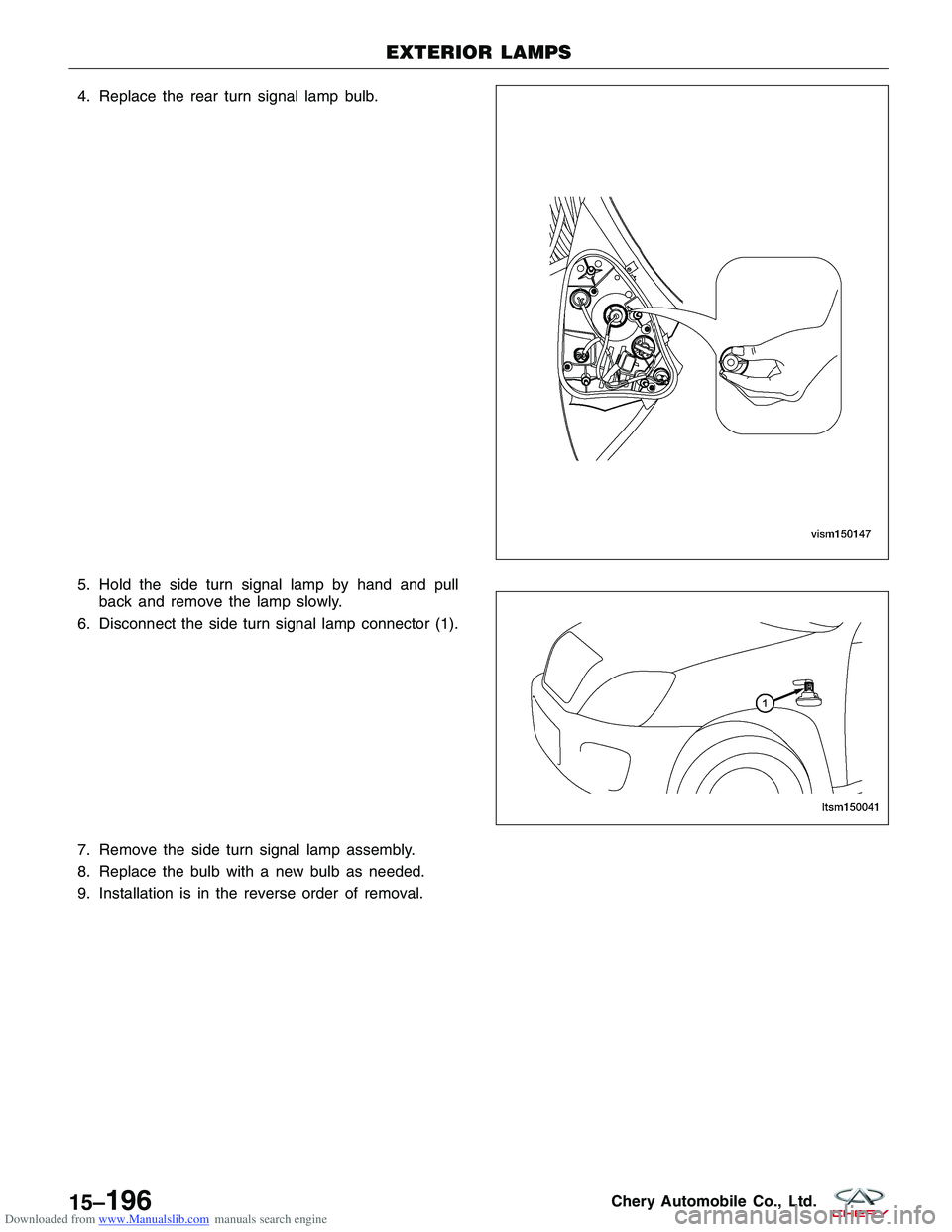

Downloaded from www.Manualslib.com manuals search engine 4. Replace the rear turn signal lamp bulb.
5. Hold the side turn signal lamp by hand and pullback and remove the lamp slowly.
6. Disconnect the side turn signal lamp connector (1).
7. Remove the side turn signal lamp assembly.
8. Replace the bulb with a new bulb as needed.
9. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150146
LTSM150041
15–196Chery Automobile Co., Ltd.

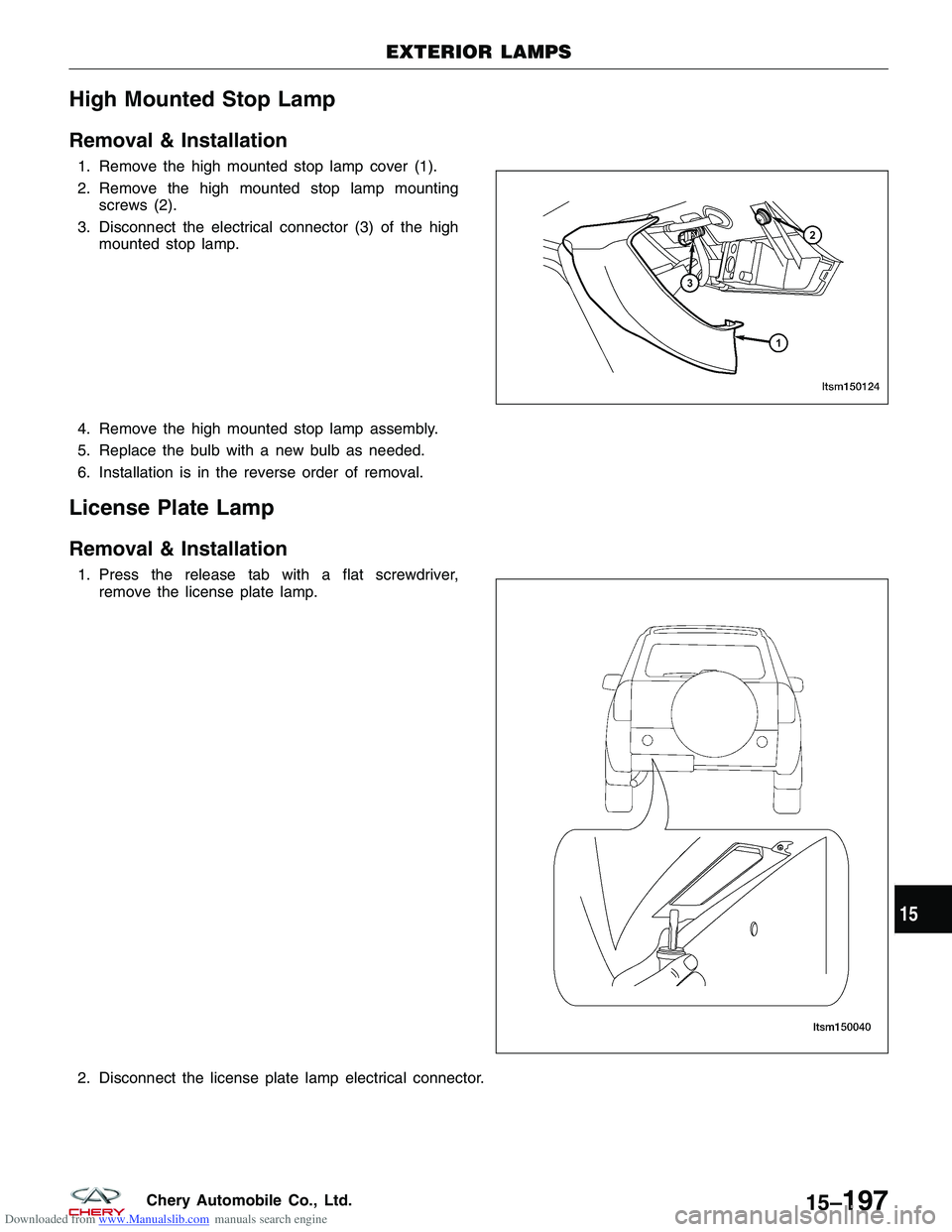

Downloaded from www.Manualslib.com manuals search engine High Mounted Stop Lamp
Removal & Installation
1. Remove the high mounted stop lamp cover (1).
2. Remove the high mounted stop lamp mountingscrews (2).
3. Disconnect the electrical connector (3) of the high mounted stop lamp.
4. Remove the high mounted stop lamp assembly.
5. Replace the bulb with a new bulb as needed.
6. Installation is in the reverse order of removal.
License Plate Lamp
Removal & Installation
1. Press the release tab with a flat screwdriver, remove the license plate lamp.
2. Disconnect the license plate lamp electrical connector.
EXTERIOR LAMPS
LTSM150124
LTSM150040
15
15–197Chery Automobile Co., Ltd.

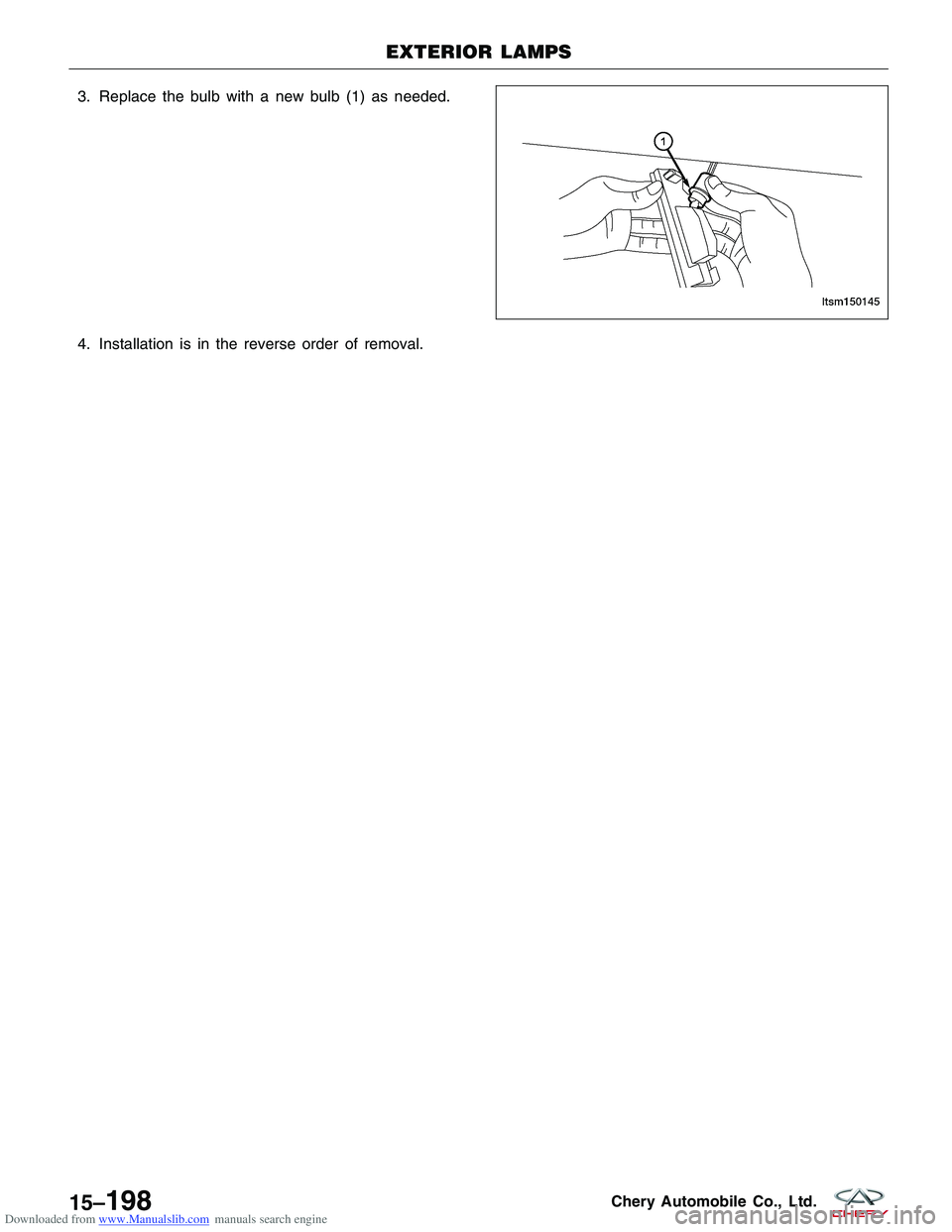

Downloaded from www.Manualslib.com manuals search engine 3. Replace the bulb with a new bulb (1) as needed.
4. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150145
15–198Chery Automobile Co., Ltd.

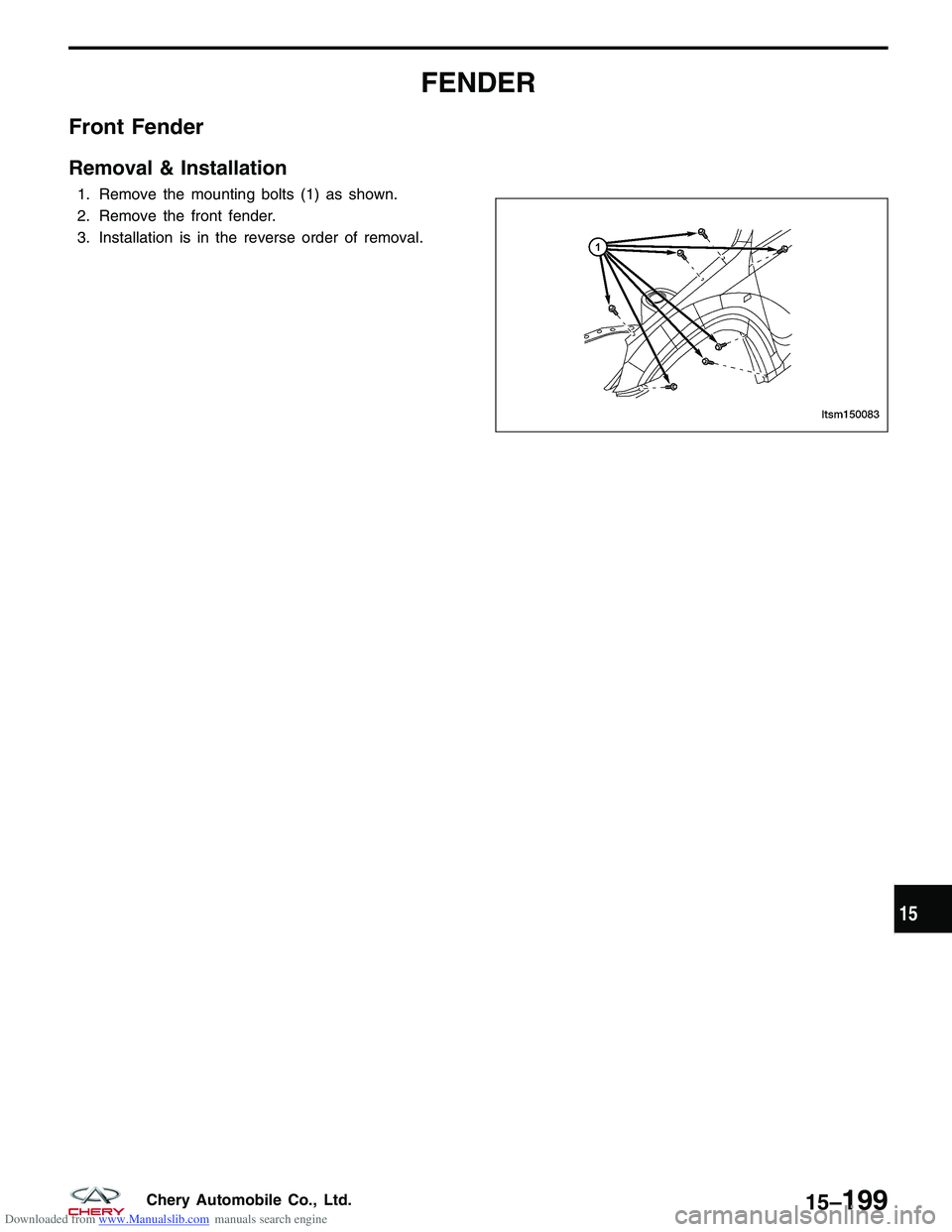

Downloaded from www.Manualslib.com manuals search engine FENDER
Front Fender
Removal & Installation
1. Remove the mounting bolts (1) as shown.
2. Remove the front fender.
3. Installation is in the reverse order of removal.
LTSM150083
15
15–199Chery Automobile Co., Ltd.

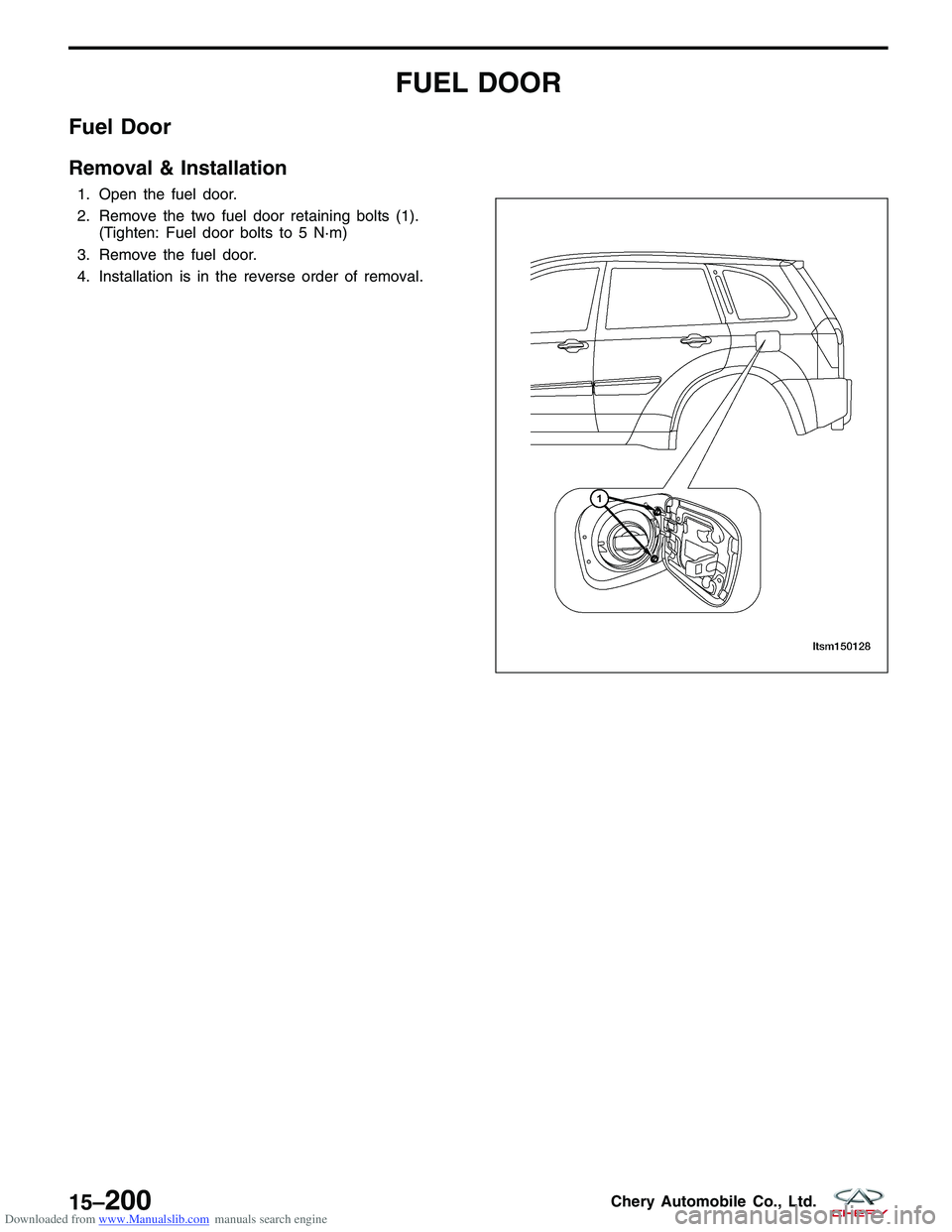

Downloaded from www.Manualslib.com manuals search engine FUEL DOOR
Fuel Door
Removal & Installation
1. Open the fuel door.
2. Remove the two fuel door retaining bolts (1).(Tighten: Fuel door bolts to 5 N·m)
3. Remove the fuel door.
4. Installation is in the reverse order of removal.
LTSM150128
