2009 CHERY TIGGO engine

Downloaded from www.Manualslib.com manuals search engine Cross section B1-B1, requirements for clearance and
levelness.
Cross section C1-C1, requirements for clearance and
levelness.
Cross section C2-C2, requirements for clearance and
levelness.
1 - External Plate Of Side Wall
1 - Fender2 - Front Bumper
1 - Fender 2 - Side Wall
BODY DIMENSIONS
LTSM150020
LTSM150021
LTSM150022
15
15–161Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Cross section C3-C3, requirements for clearance and
levelness.
Cross section C4-C4, requirements for clearance and
levelness.
Cross section C5-C5, requirements for clearance and
levelness.
1 - Side Wall2 - Rear Bumper
1 - Side Wall2 - Rear Headlight
1 - Fuel Tank Cover 2 - Side Wall
BODY DIMENSIONS
LTSM150023
LTSM150024
LTSM150025
15–162Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Rear View
BODY DIMENSIONS
LTSM150026
15
15–163Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Cross section D1-D1, requirements for clearance and
levelness.
Cross section D2-D2, requirements for clearance and
levelness.
Cross section D3-D3, requirements for clearance and
levelness.
1 - Rear Back Door2 - Head Cover
1 - Rear Back Door 2 - Side Wall
1 - Rear Back Door2 - Side Wall
BODY DIMENSIONS
LTSM150027
LTSM150028
LTSM150029
15–164Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Cross section D4-D4, requirements for clearance and
levelness.
Cross section D5-D5, requirements for clearance and
levelness.
1 - Rear Back Door2 - Rear Headlight
1 - Right Section Of Rear
Bumper 2 - Middle Section Of Rear
Bumper
BODY DIMENSIONS
LTSM150030
LTSM150031
15
15–165Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine BUMPERS
Front Bumper
Removal & Installation
1. Remove the left and right headlamp (See Headlamp Removal & Installation in Section 15 Body & Accessories).
2. Remove the three front bumper mounting bolts (1).
3. Remove the front bumper side mounting bolts and the connecting bolts (3) from the front wheel house.
4. Raise the vehicle and remove the mounting bolts (2) under the front bumper.
5. Disconnect the front fog light electrical connectors and remove the front bumper.
6. Installation is in the reverse order of removal.
LTSM150074
15–166Chery Automobile Co., Ltd.

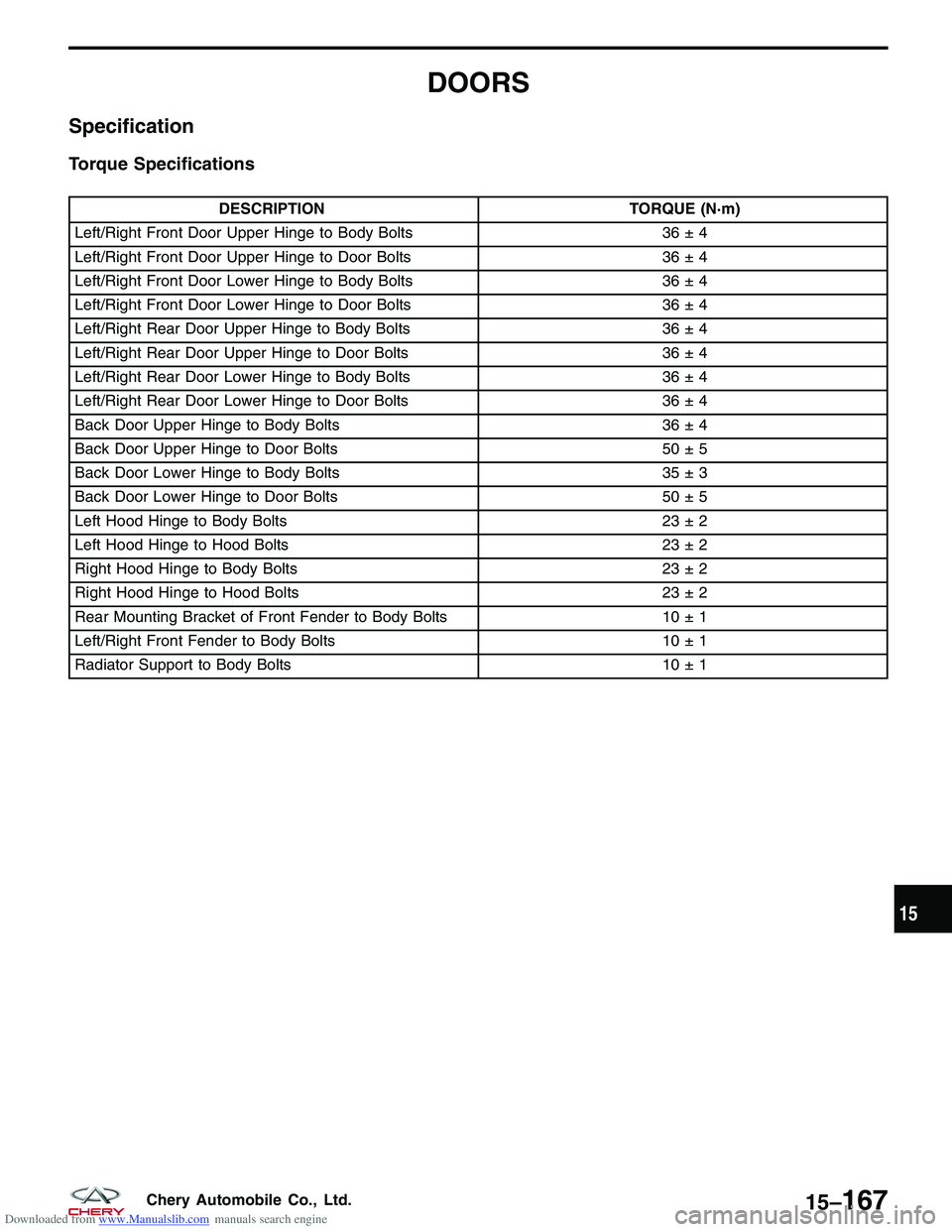

Downloaded from www.Manualslib.com manuals search engine DOORS
Specification
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Left/Right Front Door Upper Hinge to Body Bolts 36 ± 4
Left/Right Front Door Upper Hinge to Door Bolts 36 ± 4
Left/Right Front Door Lower Hinge to Body Bolts 36 ± 4
Left/Right Front Door Lower Hinge to Door Bolts 36 ± 4
Left/Right Rear Door Upper Hinge to Body Bolts 36 ± 4
Left/Right Rear Door Upper Hinge to Door Bolts 36 ± 4
Left/Right Rear Door Lower Hinge to Body Bolts 36 ± 4
Left/Right Rear Door Lower Hinge to Door Bolts 36 ± 4
Back Door Upper Hinge to Body Bolts 36 ± 4
Back Door Upper Hinge to Door Bolts 50 ± 5
Back Door Lower Hinge to Body Bolts 35 ± 3
Back Door Lower Hinge to Door Bolts 50 ± 5
Left Hood Hinge to Body Bolts 23 ± 2
Left Hood Hinge to Hood Bolts 23 ± 2
Right Hood Hinge to Body Bolts 23 ± 2
Right Hood Hinge to Hood Bolts 23 ± 2
Rear Mounting Bracket of Front Fender to Body Bolts 10 ± 1
Left/Right Front Fender to Body Bolts 10 ± 1
Radiator Support to Body Bolts 10 ± 1
15
15–167Chery Automobile Co., Ltd.

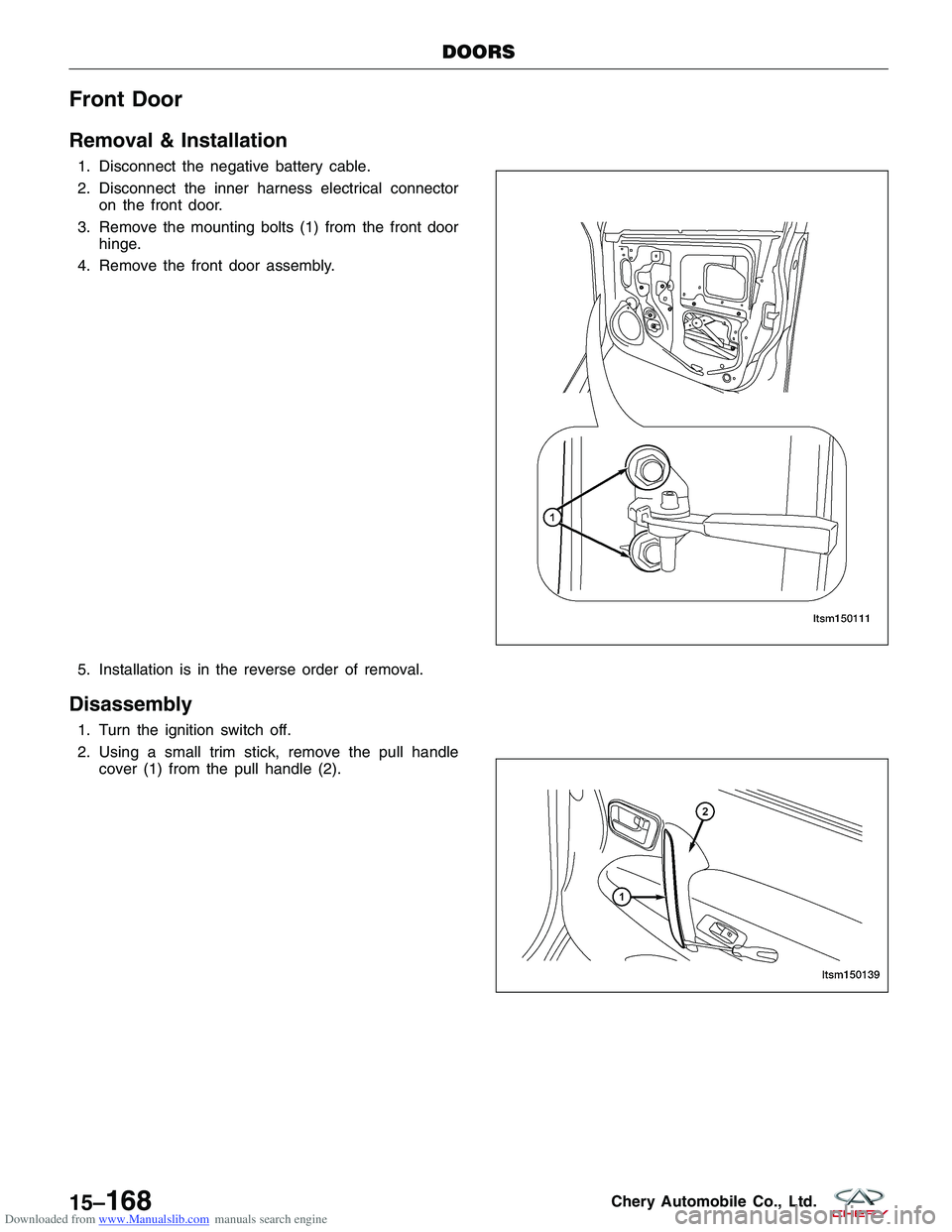

Downloaded from www.Manualslib.com manuals search engine Front Door
Removal & Installation
1. Disconnect the negative battery cable.
2. Disconnect the inner harness electrical connectoron the front door.
3. Remove the mounting bolts (1) from the front door hinge.
4. Remove the front door assembly.
5. Installation is in the reverse order of removal.
Disassembly
1. Turn the ignition switch off.
2. Using a small trim stick, remove the pull handle cover (1) from the pull handle (2).
DOORS
LTSM150111
LTSM150139
15–168Chery Automobile Co., Ltd.
