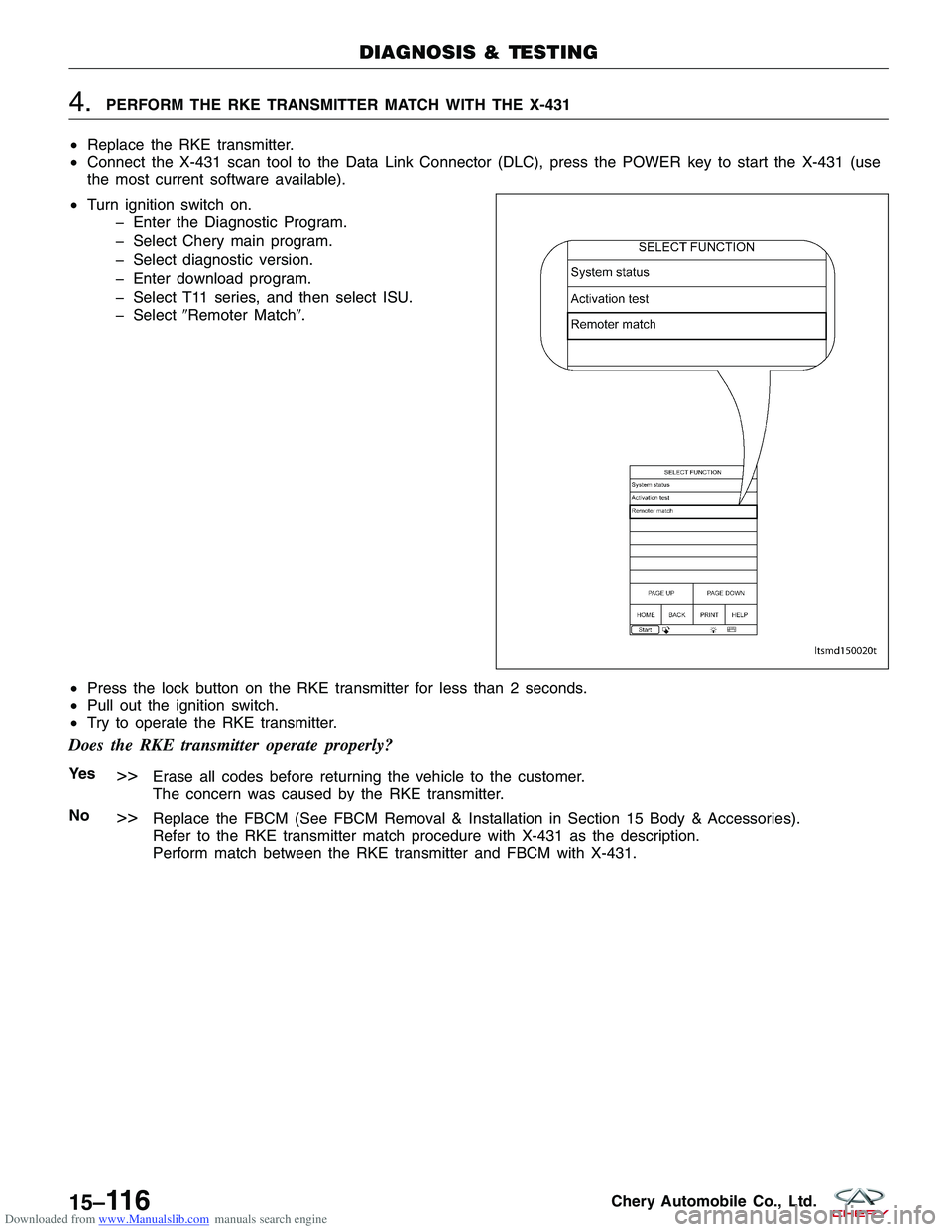

Downloaded from www.Manualslib.com manuals search engine 4.PERFORM THE RKE TRANSMITTER MATCH WITH THE X-431
• Replace the RKE transmitter.
• Connect the X-431 scan tool to the Data Link Connector (DLC), press the POWER key to start the X-431 (use
the most current software available).
• Turn ignition switch on.
Enter the Diagnostic Program.
Select Chery main program.
Select diagnostic version.
Enter download program.
Select T11 series, and then select ISU.
Select Remoter Match.
• Press the lock button on the RKE transmitter for less than 2 seconds.
• Pull out the ignition switch.
• Try to operate the RKE transmitter.
Does the RKE transmitter operate properly?
Ye s>>Erase all codes before returning the vehicle to the customer.
The concern was caused by the RKE transmitter.
No
>>Replace the FBCM (See FBCM Removal & Installation in Section 15 Body & Accessories).
Refer to the RKE transmitter match procedure with X-431 as the description.
Perform match between the RKE transmitter and FBCM with X-431.
DIAGNOSIS & TESTING
LTSMD150020T
15–11 6Chery Automobile Co., Ltd.
