2008 Peugeot 206 Dag Owner's Manual

49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
Always start with the seat, never
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.

COMFORT
50 -
TRANSPORTING LONG
OBJECTS
Front seat:
- Fold the seat back towards the
front using the control 5
(see corresponding paragraph).
Removing the rear seat
- Tilt the seat cushion against the
front seats.
- Squeeze the seat fasteners to release them from their
attachments.
- Remove the seat cushion. Folding seat back
- Remove the head restraint for
complete folding of the seat
back.
- Push handle 5 towards the rear
to tilt the seat back.
Rear seat:
- Remove the seat cushion.
- Tilt the seat back.

49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
Always start with the seat, never
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.

51
COMFORT
-
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for transporting
children are speciic to each
country. Consult the current
legislation in your country. Intermediate longitudinal
position
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre
ifty tall must travel in approved
child seats suited to their
weight , on seats itted with a seat
belt or ISOFIX mountings *,
- statistically, the safest
seats in your vehicle for the
transportation of children are
the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the age
of 2. "Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the
front passenger
seat , it is essential that the passen-
ger air bag is disarmed. Otherwise,
the child would risk being seri -
ously injured or killed if the air bag
were to inlate.

COMFORT
52 -

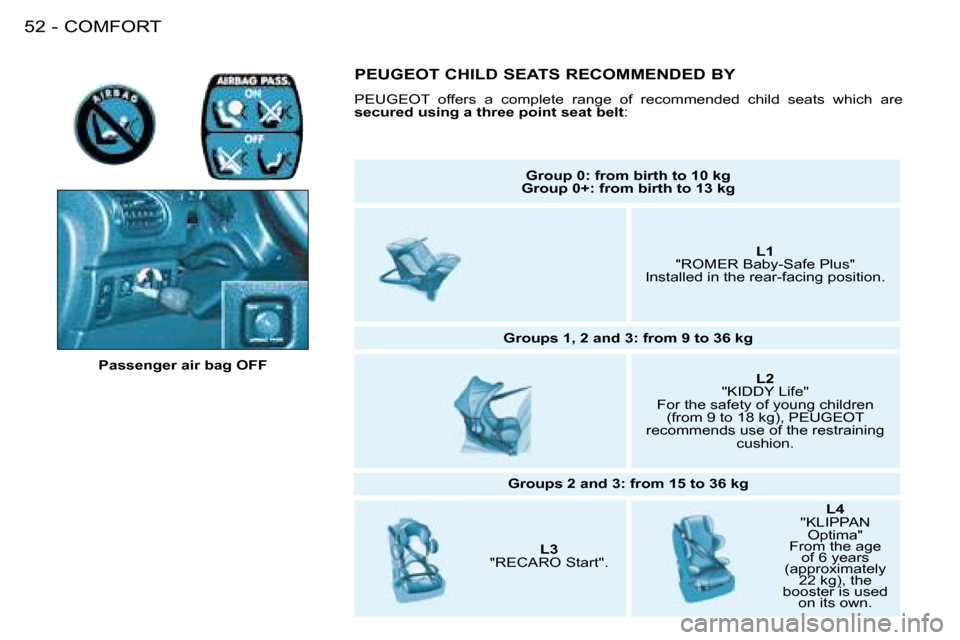

Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''. L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :

COMFORT
56 -
ADVICE ON CHILD
SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to inlate.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, it
-
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, it side blinds on the
rear windows.

COMFORT
52 -
Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''. L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :

53
COMFORT
-

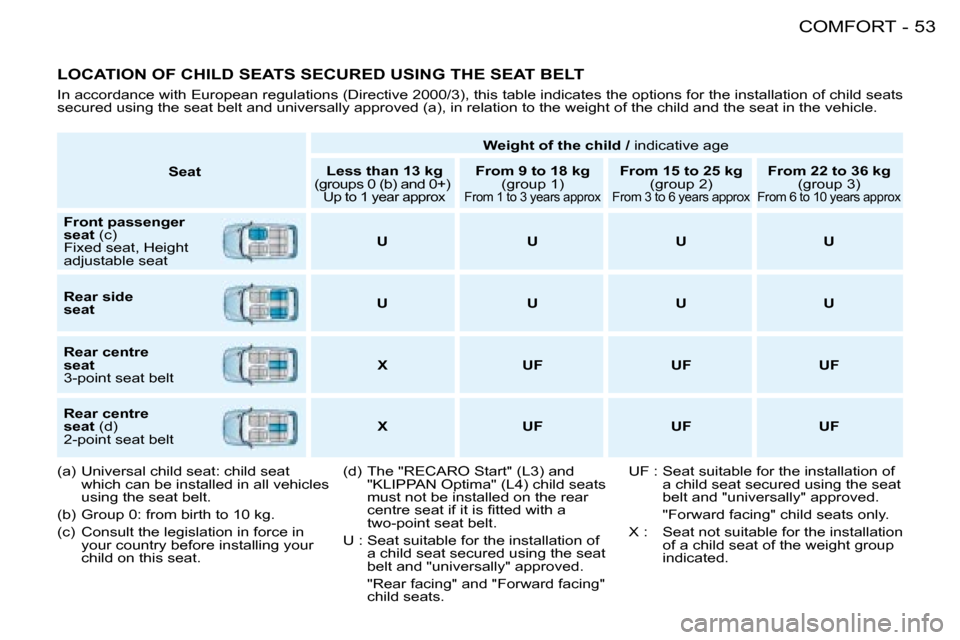

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a), in rela tion to the weight of the child and the seat in the vehicle.
Seat Weight of the child /
indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
From 15 to 25 kg (group 2)
From 3 to 6 years approx
From 22 to 36 kg(group 3)
From 6 to 10 years approx
Front passenger
seat (c)
Fixed seat, Height
adjustable seat U U U U
Rear side
seat U U U U
Rear centre
seat
3-point seat belt X UF UF UF
Rear centre
seat (d)
2-point seat belt X UF UF UF
(a) Universal child seat: child seat which can be installed in all vehicles
using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before installing your
child on this seat. (d) The "RECARO Start" (L3) and
"KLIPPAN Optima" (L4) child seats
must not be installed on the rear
centre seat if it is itted with a
two-point seat belt.
U : Seat suitable for the installation of a child seat secured using the seat
belt and "universally" approved.
"Rear facing" and "Forward facing" child seats. UF : Seat suitable for the installation of
a child seat secured using the seat
belt and "universally" approved.
"Forward facing" child seats only.
X : Seat not suitable for the installation of a child seat of the weight group
indicated.
