DRIVING
76 -
HANDBRAKE
Operating abnormality
Any operating abnormality is indi-
cated by an audible signal, accom-
panied by the message 'Automatic
gear fault' on the multi-function dis-
play, by a "-" a n d l a s h i n g o f t h e
Sport and Snow warning lights on the
instrument panel display.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substan-
tial knock when changing from P to
R and from N to R (this will not cause
any damage to the gearbox).
Do not exceed 60 mph (100 km/h),
respecting local speed limits.
Consult a PEUGEOT dealer.
I f t h e b a t t e r y i s l a t a n d t h e
lever is in position P, it will
be impossible to change
to another position.
In particular, do not force the lever
or there is a risk the gearbox may
be damaged. When the vehicle is be-
ing driven, illumination of
this warning light and of the
STOP
warning light, accom-
panied by an audible signal
and a message on the multifunction
display, indicates that the handbrake
is still on or has not been properly
released.
When parking on a slope,
direct your wheels to im-
mobilise them against the
pavement, pull the hand-
brake and engage a gear.
Applying
Pull the handbrake to immobilise
your vehicle.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.
Page 81 of 123
DRIVING
76 -
HANDBRAKE
Operating abnormality
Any operating abnormality is indi-
cated by an audible signal, accom-
panied by the message 'Automatic
gear fault' on the multi-function dis-
play, by a "-" a n d l a s h i n g o f t h e
Sport and Snow warning lights on the
instrument panel display.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substan-
tial knock when changing from P to
R and from N to R (this will not cause
any damage to the gearbox).
Do not exceed 60 mph (100 km/h),
respecting local speed limits.
Consult a PEUGEOT dealer.
I f t h e b a t t e r y i s l a t a n d t h e
lever is in position P, it will
be impossible to change
to another position.
In particular, do not force the lever
or there is a risk the gearbox may
be damaged. When the vehicle is be-
ing driven, illumination of
this warning light and of the
STOP
warning light, accom-
panied by an audible signal
and a message on the multifunction
display, indicates that the handbrake
is still on or has not been properly
released.
When parking on a slope,
direct your wheels to im-
mobilise them against the
pavement, pull the hand-
brake and engage a gear.
Applying
Pull the handbrake to immobilise
your vehicle.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.
Page 99 of 123
93
PRACTICAL INFORMATION
-

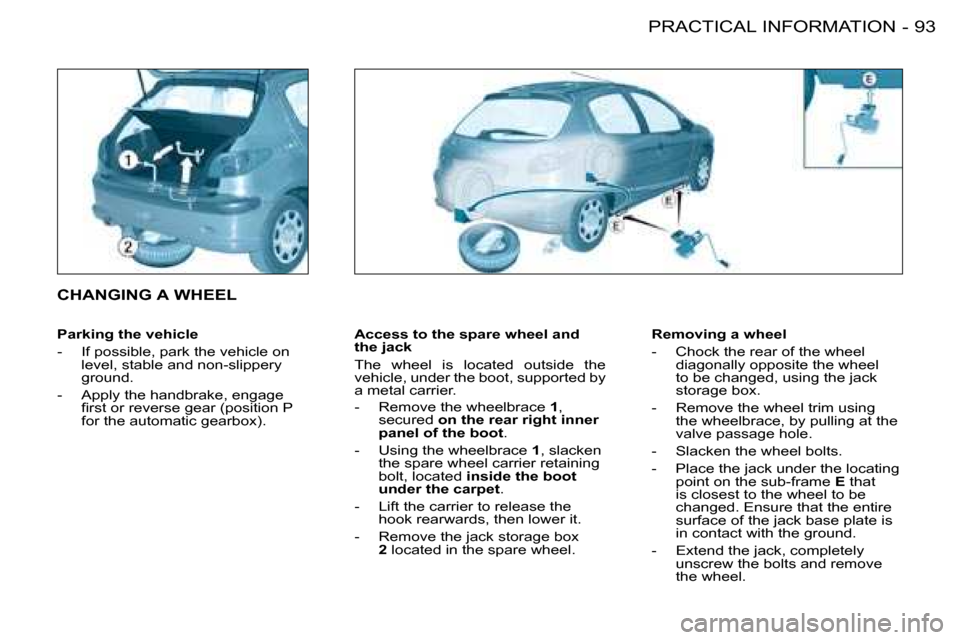

Access to the spare wheel and
the jack
The wheel is located outside the
vehicle, under the boot, supported by
a metal carrier.
- Remove the wheelbrace 1,
secured on the rear right inner
panel of the boot .
- Using the wheelbrace 1, slacken
the spare wheel carrier retaining
bolt, located inside the boot
under the carpet .
- Lift the carrier to release the hook rearwards, then lower it.
- Remove the jack storage box 2 located in the spare wheel.
CHANGING A WHEEL
Removing a wheel
- Chock the rear of the wheel diagonally opposite the wheel
to be changed, using the jack
storage box.
- Remove the wheel trim using the wheelbrace, by pulling at the
valve passage hole.
- Slacken the wheel bolts.
- Place the jack under the locating point on the sub-frame E that
is closest to the wheel to be
changed. Ensure that the entire
surface of the jack base plate is
in contact with the ground.
- Extend the jack, completely unscrew the bolts and remove
the wheel.
Parking the vehicle
- If possible, park the vehicle on
level, stable and non-slippery
ground.
- Apply the handbrake, engage i r s t o r r e v e r s e g e a r ( p o s i t i o n P
for the automatic gearbox).
Page 100 of 123
PRACTICAL INFORMATION
94 -
For your safety, always change a wheel:
- on level, stable and non slippery ground,
- with the handbrake applied,
- w i t h i r s t o r r e v e r s e g e a r e n g a g e d ,
- with the vehicle chocked using the jack storage box,
- n e v e r g o u n d e r n e a t h a v e h i c l e r a i s e d u s i n g a j a c k ( u s e a n a x l e s t a n d ) .
After changing the wheel
- Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possible by a PEUGEOT
dealer.
- Have the punctured tyre repaired and replace it on the vehicl e as soon as possible.
- The space-saver spare wheel must only be used temporarily:
- i n l a t i o n p r e s s u r e : 4 . 2 b a r s ( 6 0 p . s . i . ) .
- m a x i m u m s p e e d : 5 0 m p h ( 8 0 k m / h ) .
Page 116 of 123
1 0 9
PRACTICAL INFORMATION
-
206 ACCESSORIES
For your PEUGEOT only use acces-
sories and original parts approved by
the manufacturer.
These accessories and parts are all
adapted to your PEUGEOT, after be-
ing tested and approved for reliability
and safety, which PEUGEOT cannot
guarantee for other products.
A wide choice of original accessories,
approved by PEUGEOT, is available
through the dealer network. They all
carry the PEUGEOT guarantee:
Travel and Leisure: Towbar, boot
luggage rack , boot tray, roof bars,
roof boxes, ski carrier, bicycle carrier
( d o n o t i t t h e b i c y c l e c a r r i e r o n t h e
spoiler or on the rear screen), snow
chains, ...
Exterior style: Alloy wheels, trims,
m u d l a p s , s u n r o o f ( i t i s i m p e r a t i v e
that only genuine PEUGEOT products
a r e u s e d f o r t h e i t t i n g o f a s u n r o o f ) ,
front fog lamps, tailgate spoiler, sports
exhaust, aluminium and wood panel
trim, door sills, body kit, wing exten-
ders, two-tone steering wheel, ... Interior equipment:
Central armrest,
writing table, passenger seat protec-
tor, seat covers suitable for side air
bags, mats, boot tray, can holder, CD
s t o r a g e , a u d i o / t e l e p h o n e c o n s o l e ,
d o o r d e l e c t o r s , u n d e r - s h e l f s t o r a g e ,
sun blinds, ...
Technology: A u d i o / t e l e p h o n e , h a n d s -
free kit, satellite navigation system,
CD changers, audio systems, speak-
e r s , a u d i o t r i m , r e a r s h e l f i t t e d w i t h
4 speakers, ...
Safety: Anti-theft alarm, window en-
graving, wheel locks, warning trian-
g l e , i r s t a i d k i t , s a f e t y j a c k e t , b o o s t e r
s e a t s a n d c h i l d s e a t s , I s o i x K i d d y
seat, ...
Van: K i t f o r c o n v e r s i o n i n t o a v a n , . . . Depending on the coun-
try in which the vehicle
is sold, it is compulsory
to have a safety jacket,
warning triangle and spare bulbs
available in the vehicle.
Installation of radiocommunica-
tion transmitters
You are advised to contact a rep-
resentative of the PEUGEOT
marque before installing acces-
sory radiocommunication trans-
mitters with external aerial on your
vehicle.
The PEUGEOT network will inform
y o u o f t h e c h a r a c t e r i s t i c s ( f r e q u e n -
cy band, maximum output power,
a e r i a l p o s i t i o n , s p e c i i c i n s t a l l a -
tion conditions) of the transmitters
w h i c h c a n b e i t t e d , i n a c c o r d a n c e
with the Motor Vehicle Electro-
magnetic Compatibility Directive
( 2 0 0 4 / 1 0 4 / C E ) .
T h e i t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i i c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be
shown the range of recommended
equipment and accessories.
